Carrier
Heating & Cooling Combined Unit

Model # 48XL024060300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48XL024060300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

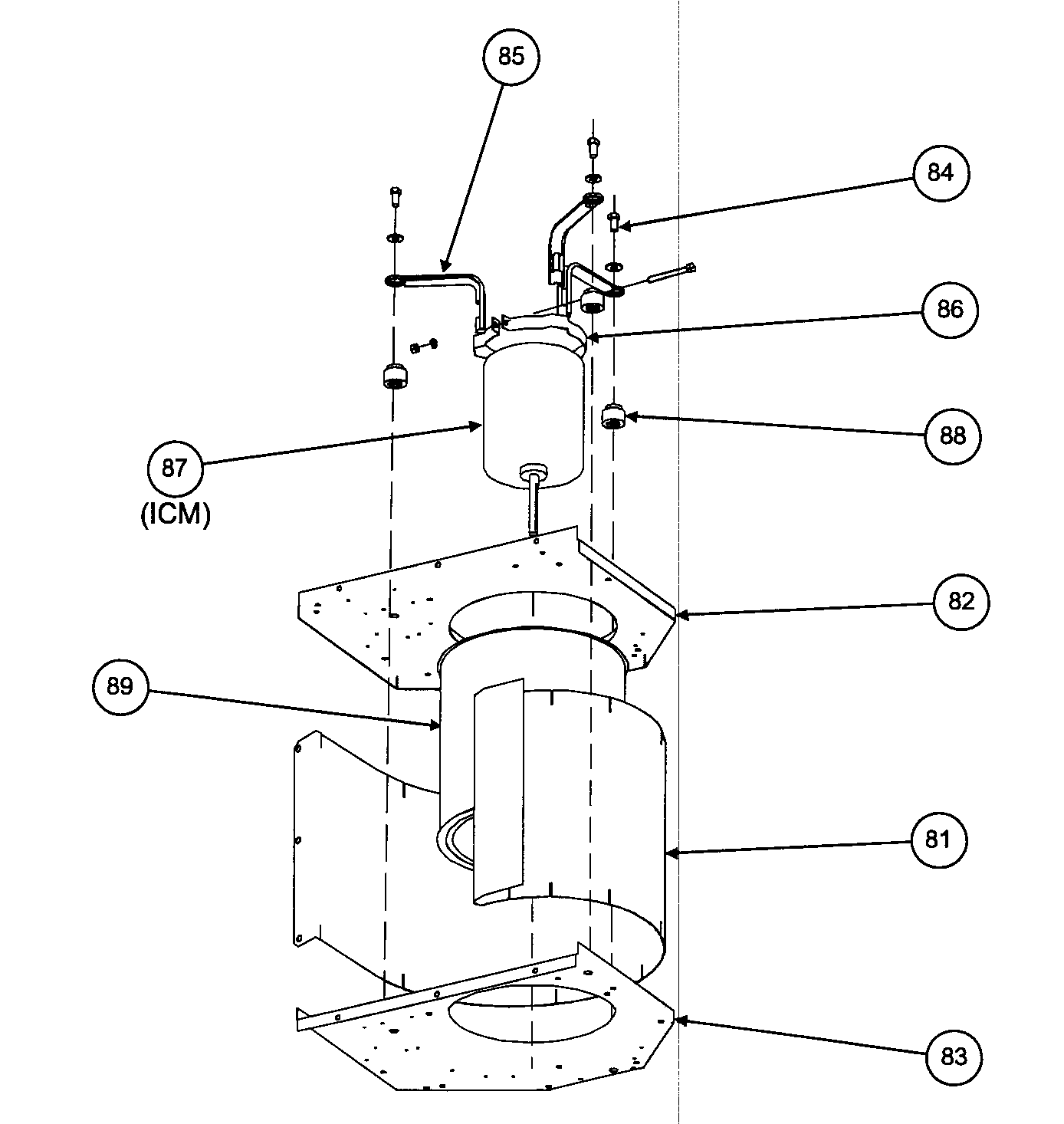

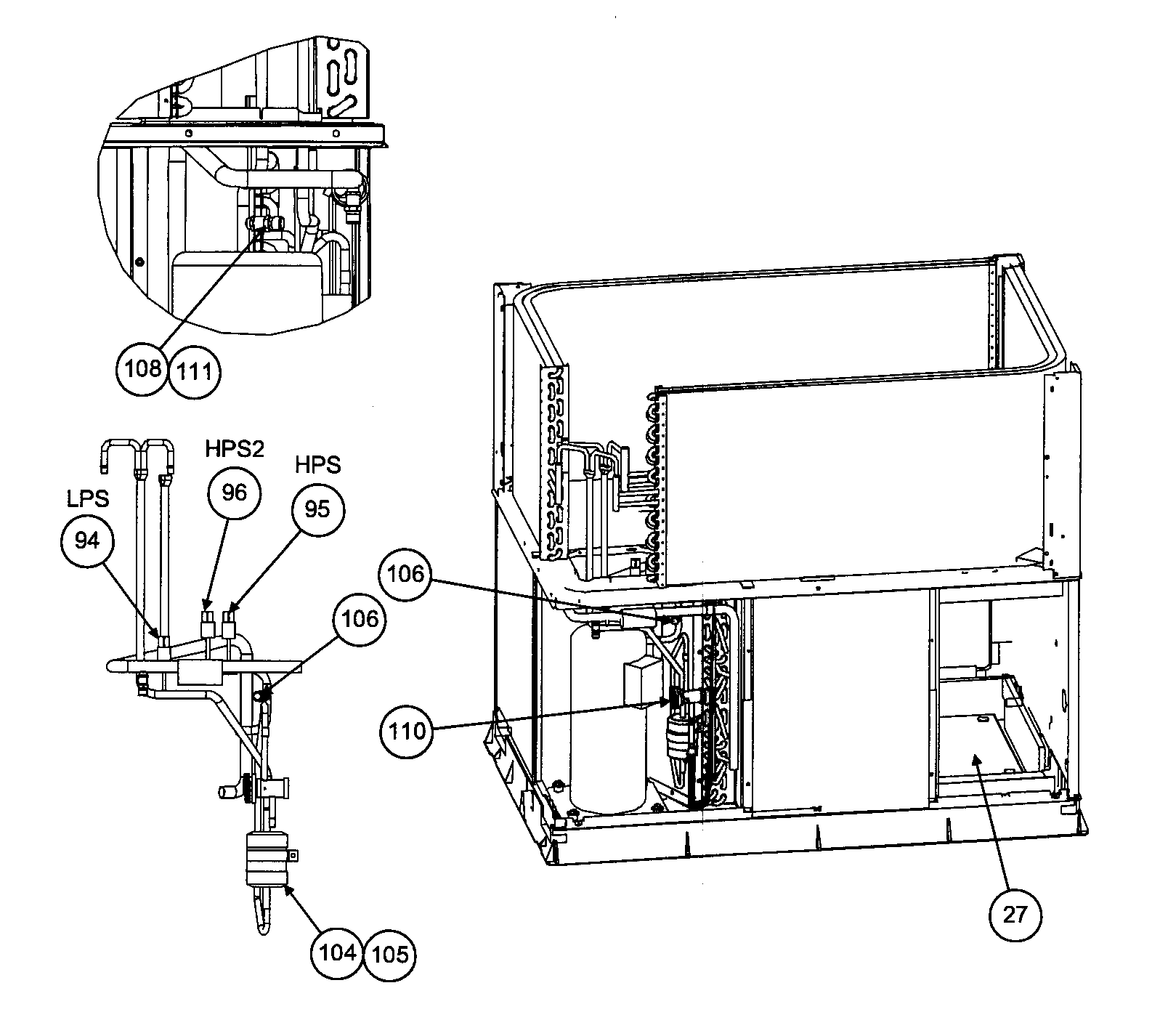

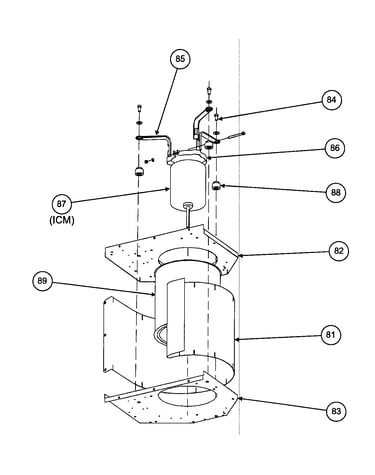

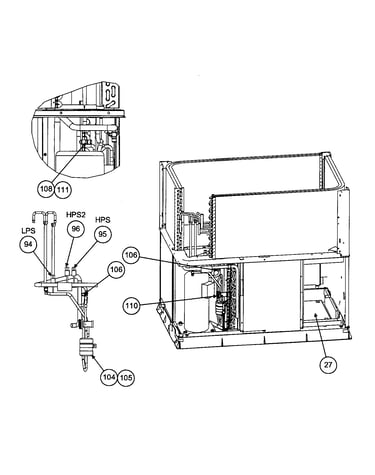

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Central Air Conditioner Condenser Fan Motor HC35GE235
#91

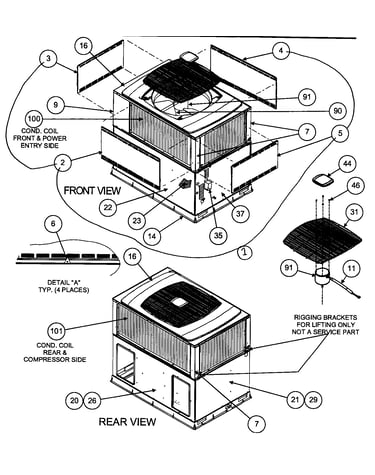

Front view/rear view diagram

Central air conditioner condenser fan motor

Part #HC35GE235

$509.50
In Stock

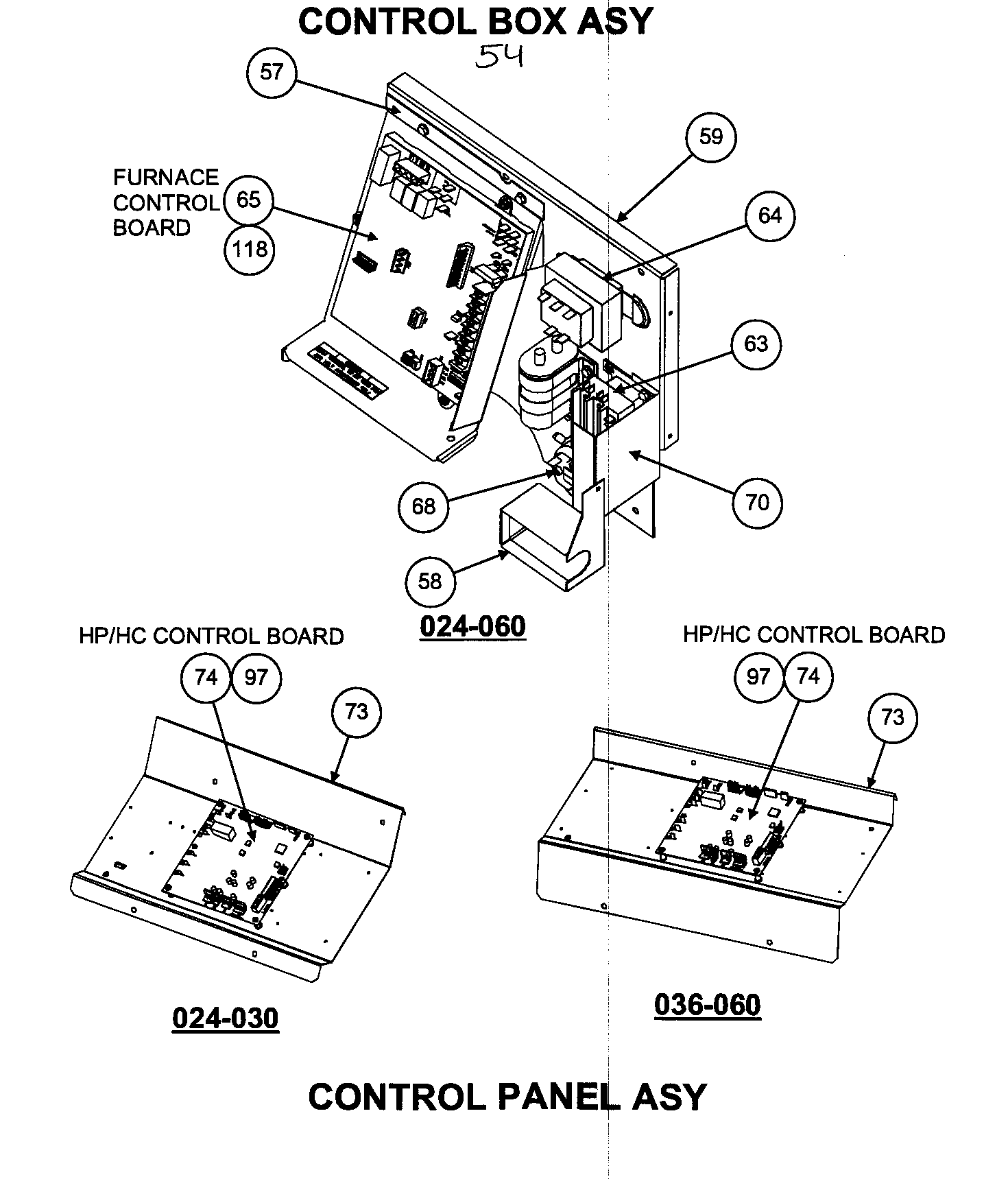

Pcb Assembly HK38EA008
#74

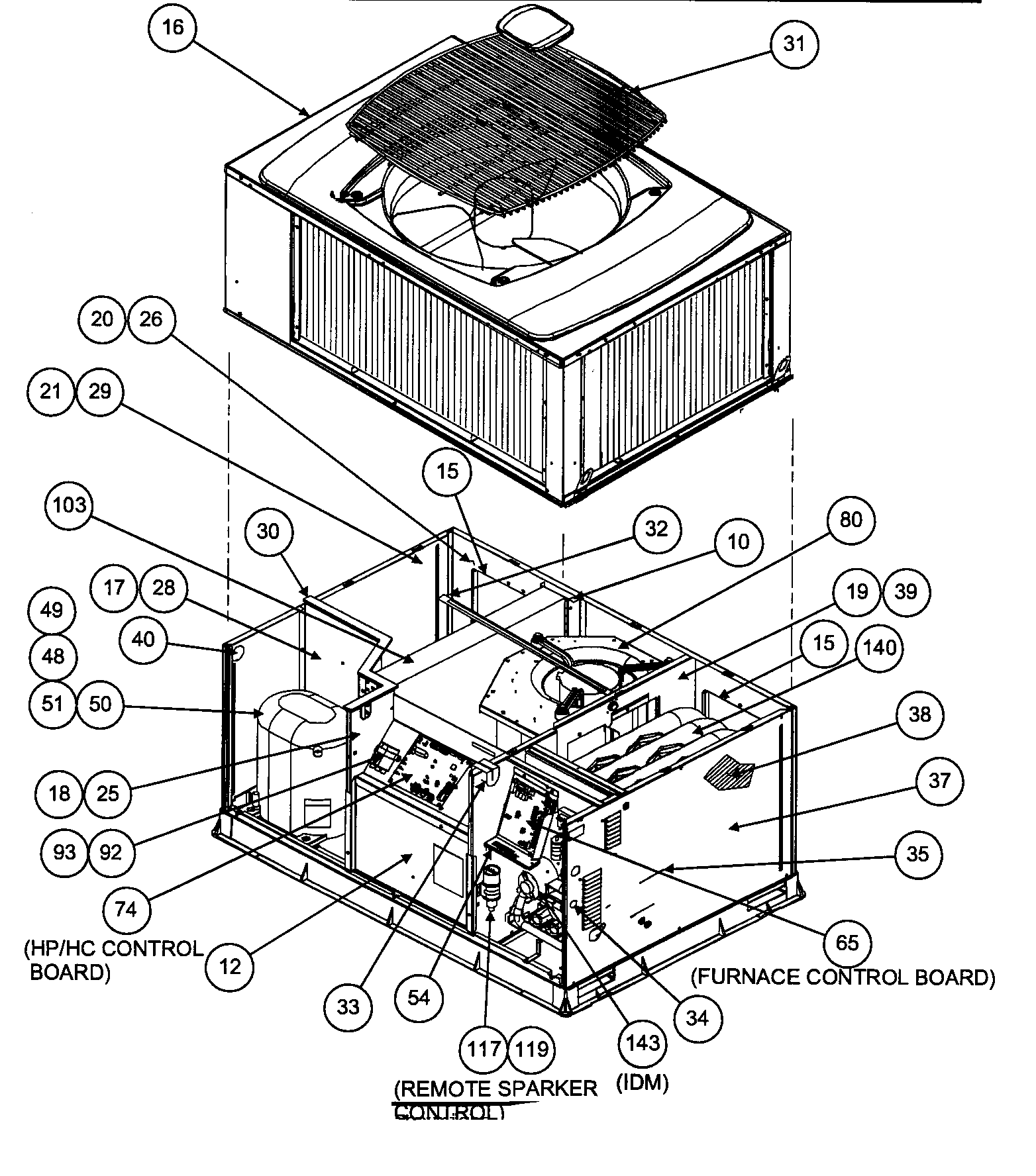

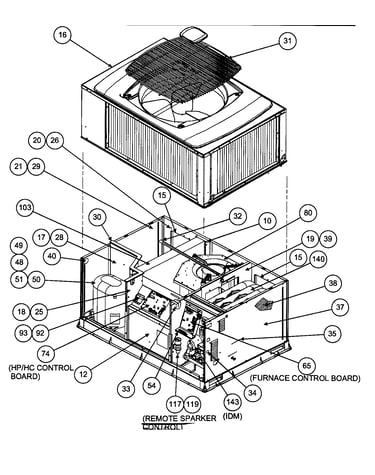

Outside view diagram

Pcb assembly

Part #HK38EA008

Replaced by #HK38EA023

?
Manufacturer substitution
This part replaces HK38EA008. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock

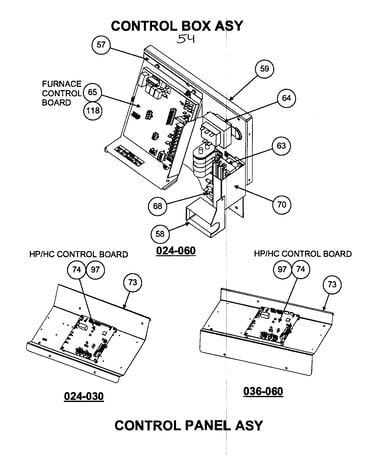

Control Board HK42FZ024
#65

Outside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Panel 48GS500011
#21

Front view/rear view diagram

Panel

Part #48GS500011

$267.82
In Stock
Heater, Cr HT32BH291
#51

Outside view diagram

Heater, cr

Part #HT32BH291

$153.48
In Stock
Bracket 48GS500461
#8

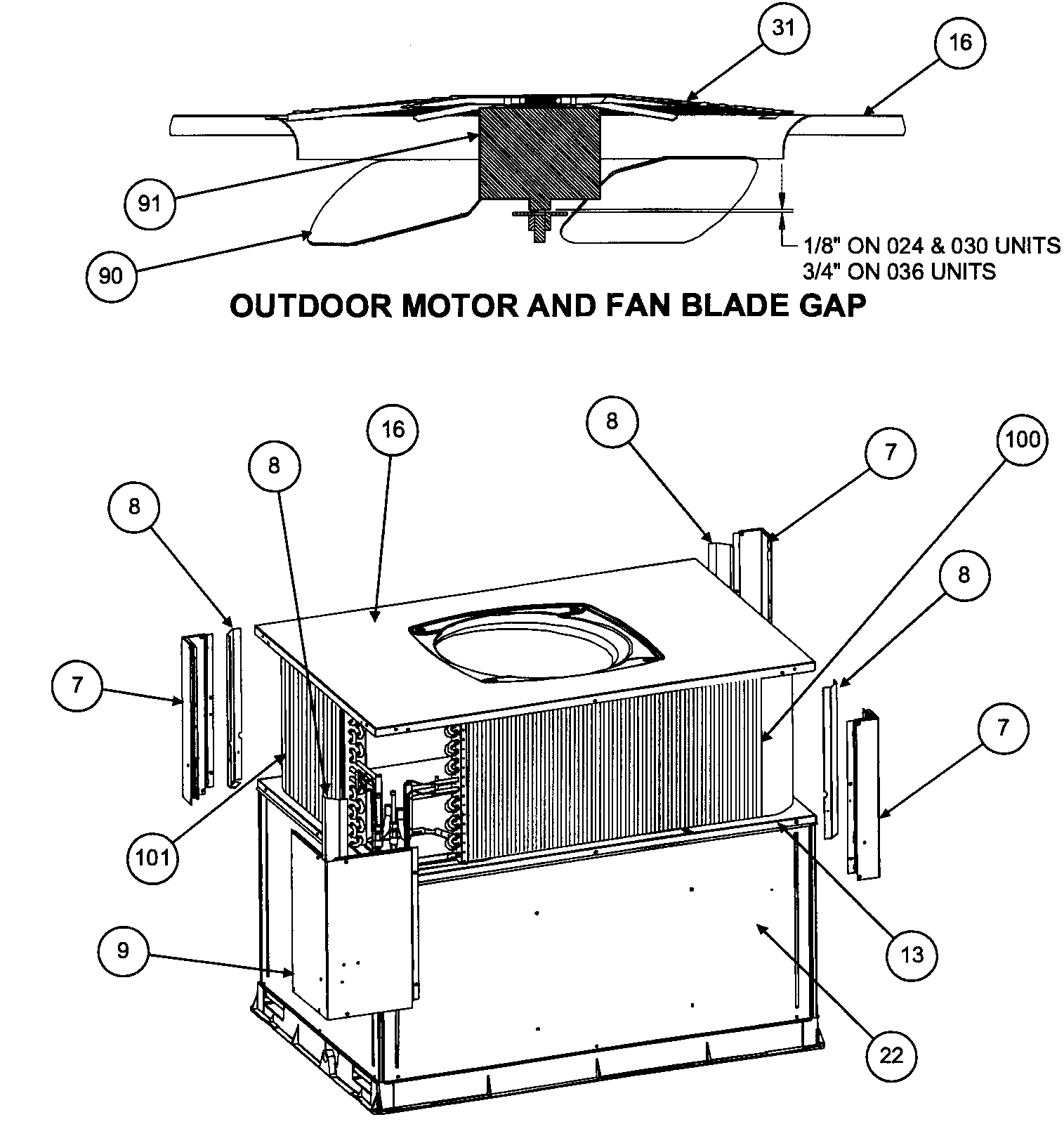

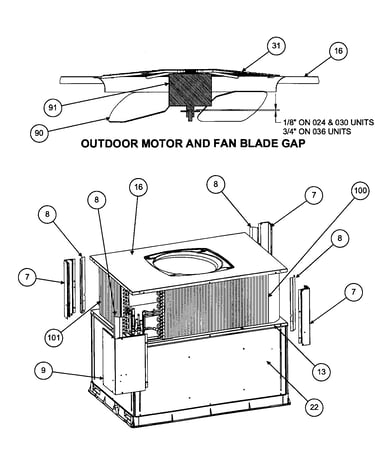

Outdoor motor/fan blade gap diagram

Bracket

Part #48GS500461

$22.69
In Stock

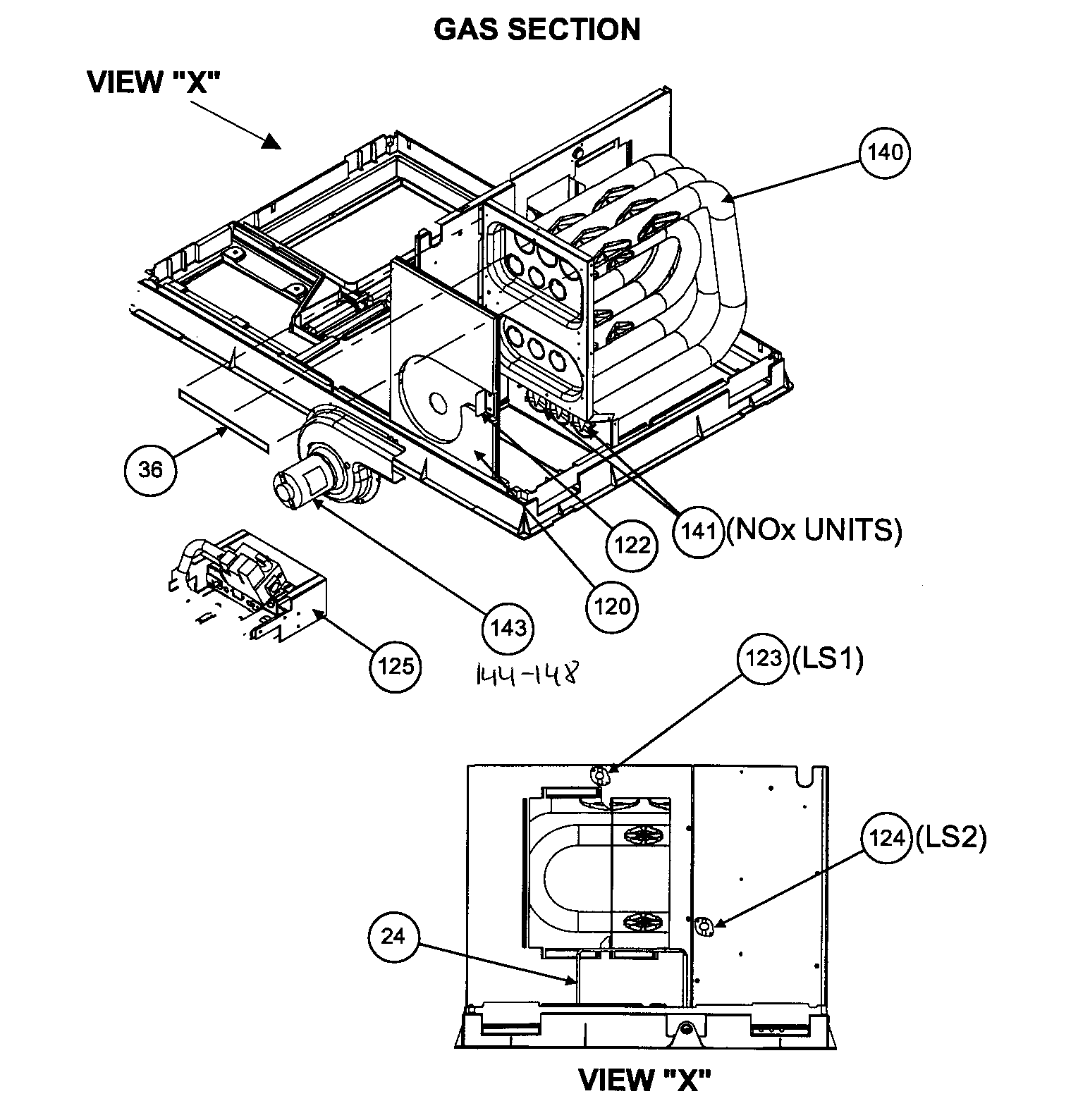

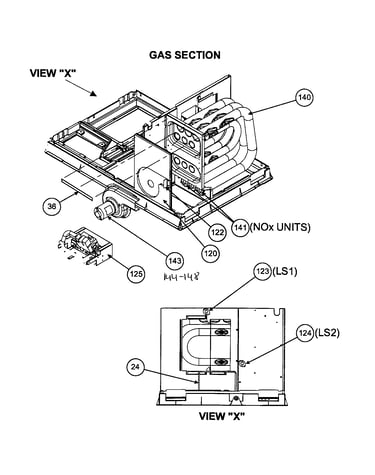

Insulation 48SS500601
#140A

Outside view diagram

Insulation

Part #48SS500601

$39.82
In Stock
Panel 48GS500369
#7

Front view/rear view diagram

Panel

Part #48GS500369

$109.08
In Stock
Gas Valve EF33CW201
#136

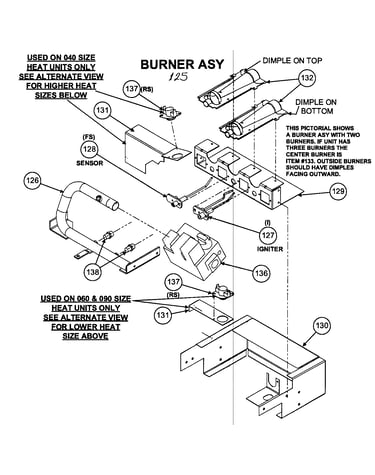

Burner assy diagram

Gas valve

Part #EF33CW201

$274.95
In Stock
Side Panel 50JS400293
#5

Front view/rear view diagram

Side panel

Part #50JS400293

$236.36
In Stock
