Amana
Countertop Microwave

Model # 560.000 Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana 560000 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Nut, Diode Mounting M1D329
Nut, diode mounting

Part #M1D329

The manufacturer no longer makes this part, and there's no substitute part

Shelf (includes R.t.v.) M50D29
#57A

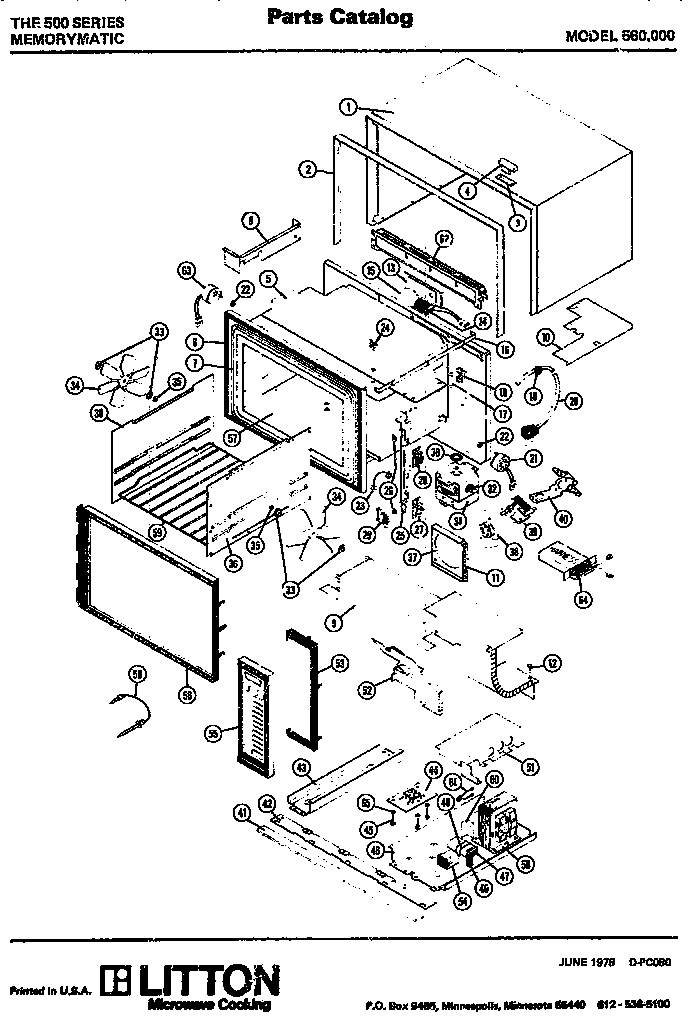

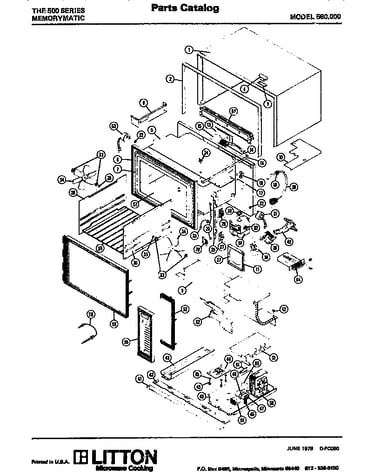

(560.000) diagram

Shelf (includes r.t.v.)

Part #M50D29

The manufacturer no longer makes this part, and there's no substitute part

Nut M1D619
#31B

(560.000) diagram

Nut

Part #M1D619

The manufacturer no longer makes this part, and there's no substitute part

Diode M3D22
#49

(560.000) diagram

Diode

Part #M3D22

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Motor (right) M12D39
#21A

(560.000) diagram

Stirrer motor (right)

Part #M12D39

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (includes Ref. Nos. 6, 7, 8, 9, 10, 18,57, 62) M77D81
#5

(560.000) diagram

Cavity assembly (includes ref. nos. 6, 7, 8, 9, 10, 18,57, 62)

Part #M77D81

The manufacturer no longer makes this part, and there's no substitute part

Oven Relay M16D52
#54A

(560.000) diagram

Oven relay

Part #M16D52

The manufacturer no longer makes this part, and there's no substitute part

H. V. Barrier M2D329
#60

(560.000) diagram

H. v. barrier

Part #M2D329

The manufacturer no longer makes this part, and there's no substitute part

Screw, Backplate Mtg. M1D402
Screw, backplate mtg.

Part #M1D402

The manufacturer no longer makes this part, and there's no substitute part

Screw Thermal Protector Mounting M1D666
#32B

(560.000) diagram

Screw thermal protector mounting

Part #M1D666

The manufacturer no longer makes this part, and there's no substitute part
