Model # MHS-PM5P Official Sony digital camera

Here are the diagrams and repair parts for Official Sony MHS-PM5P digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Cd-rom 417078501
#NI

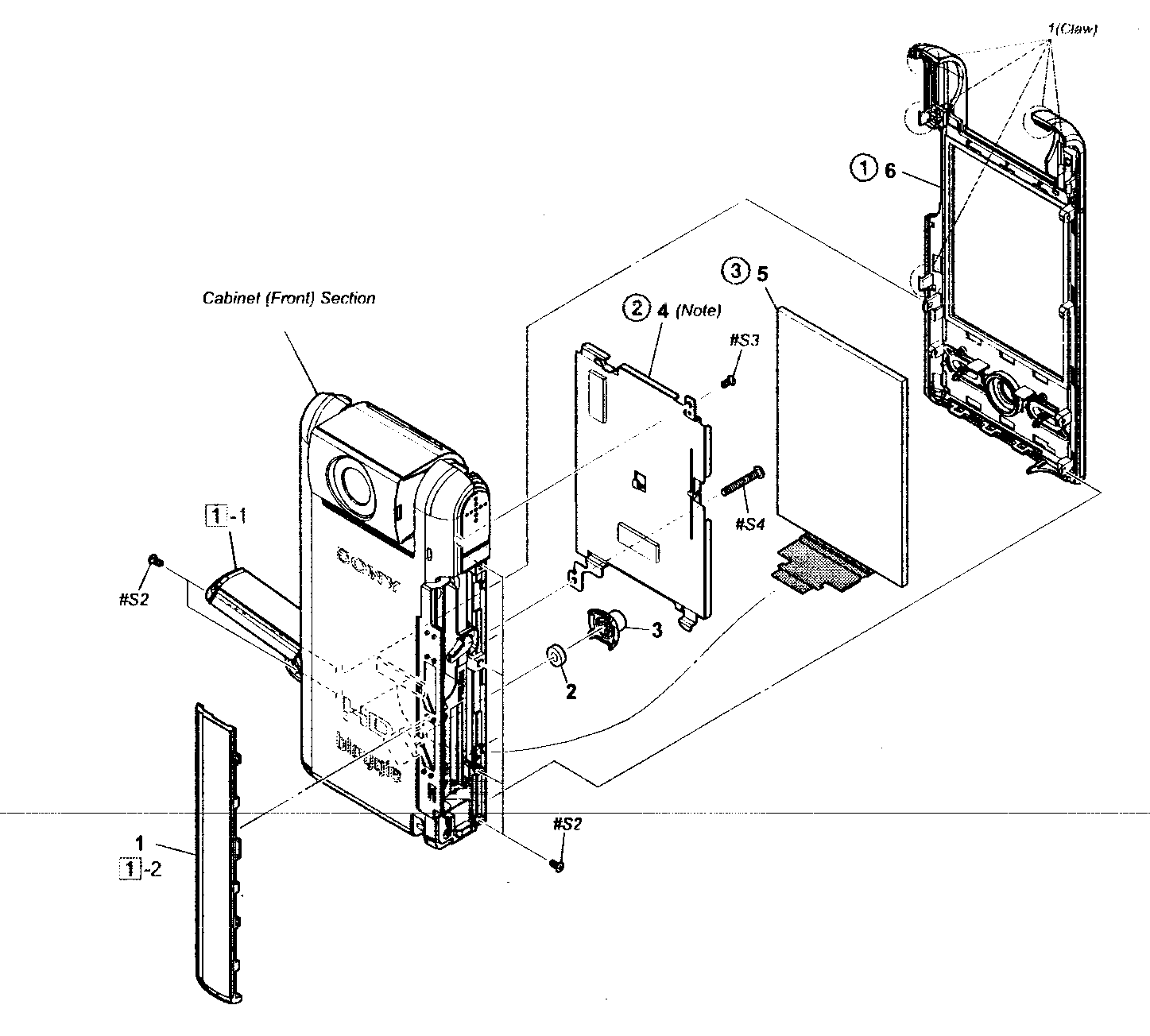

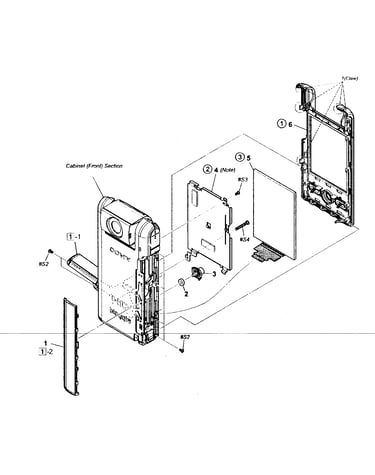

Rear assy diagram

Cd-rom

Part #417078501

$13.43
In Stock
Digital Camera Video Lens X25467051
#NI

Rear assy diagram

Digital camera video lens

Part #X25467051

$110.14
In Stock
Ring 417980701
#107

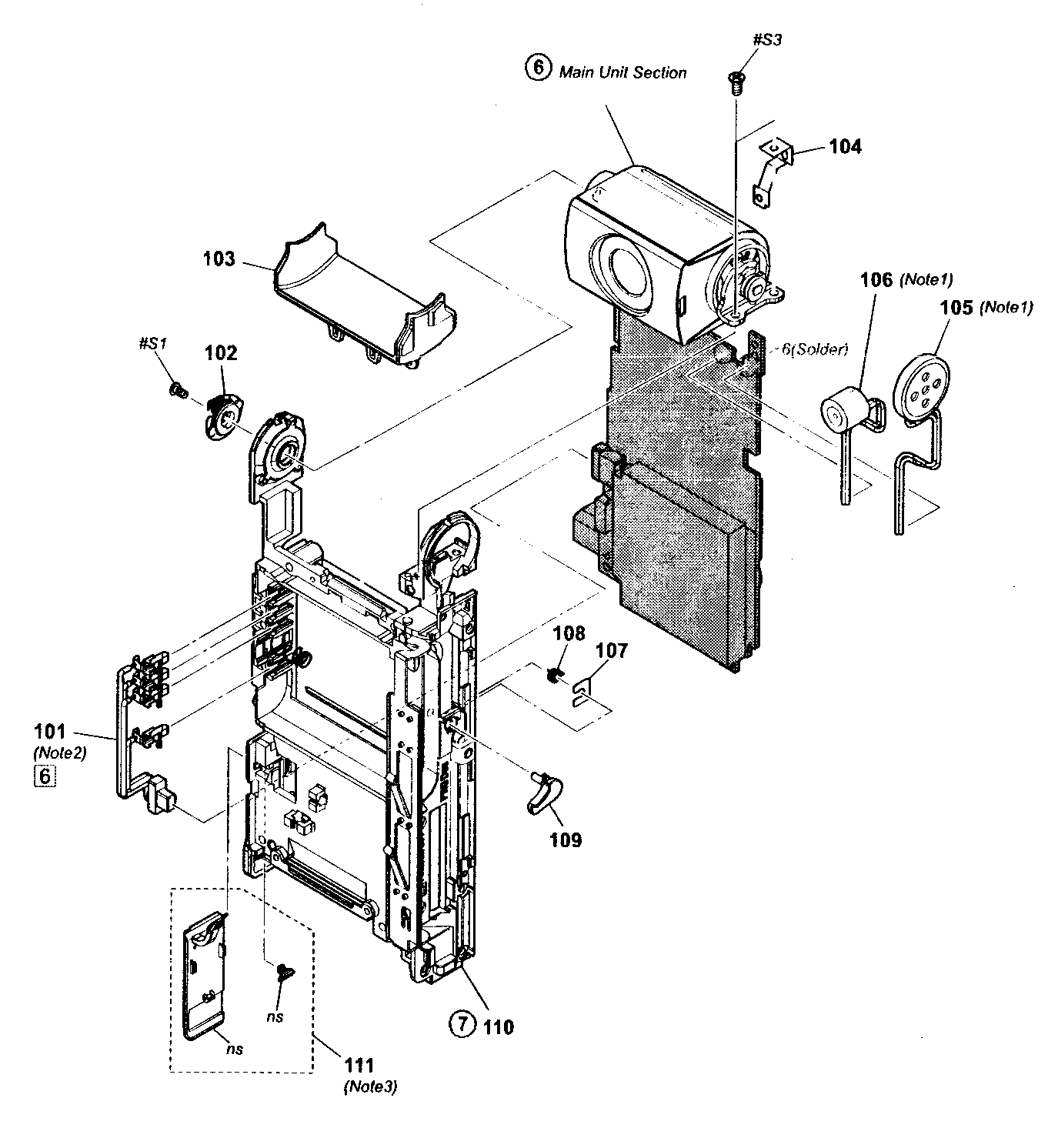

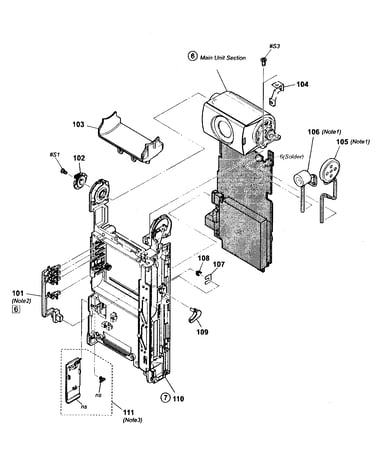

Frame assy diagram

Ring

Part #417980701

$10.31
In Stock
Frame Assembly X25418241
#110

Frame assy diagram

Frame assembly

Part #X25418241

$41.39
In Stock
Lcd Sheet 416892701
#4

Rear assy diagram

Lcd sheet

Part #416892701

$23.64
In Stock
Sony Lid,av-p 416889201
#111

Frame assy diagram

Sony lid,av-p

Part #416889201

$41.96
In Stock
Sony Cab.lens-p 416890401
#103

Frame assy diagram

Sony cab.lens-p

Part #416890401

$13.87
In Stock
Hinge 416893001
#151

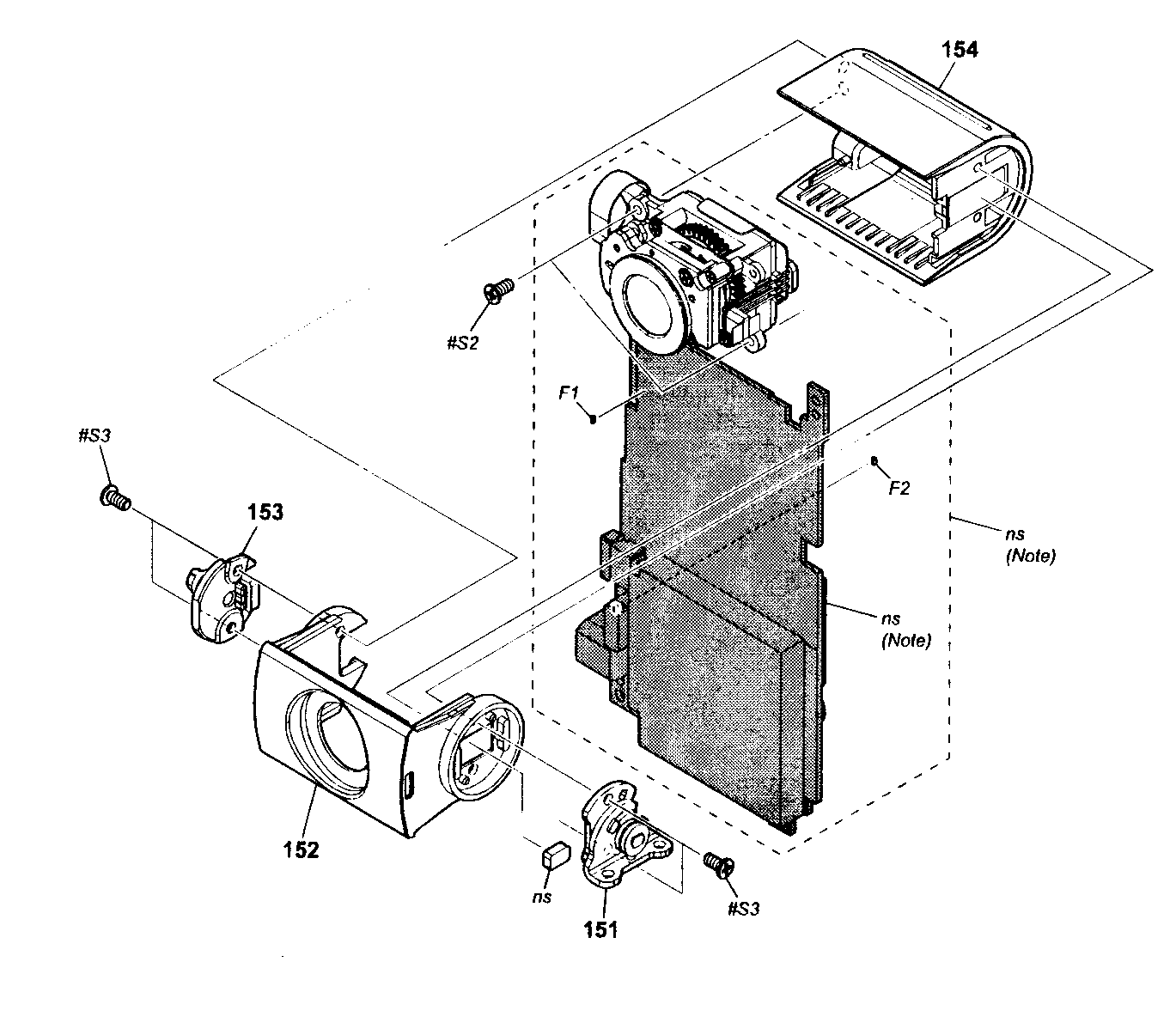

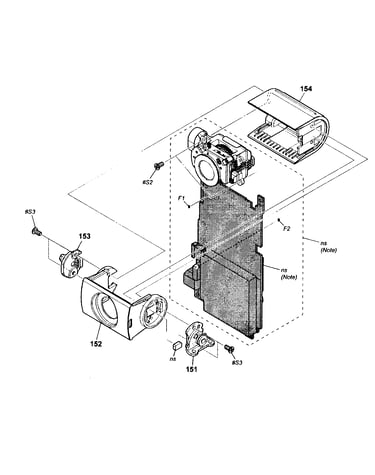

Main assy diagram

Hinge

Part #416893001

$29.13
In Stock
Pcb Assembly X25418251
#52

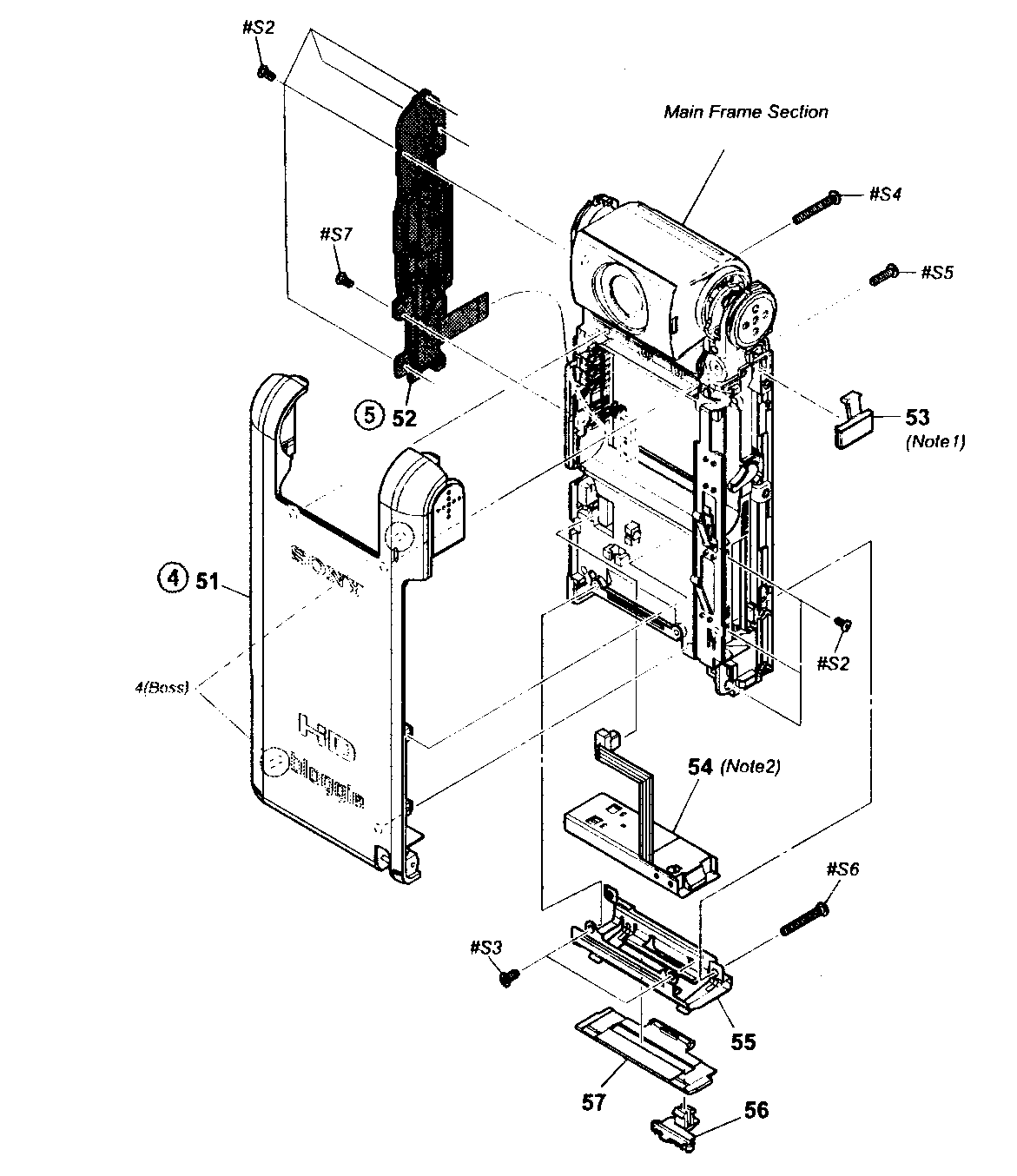

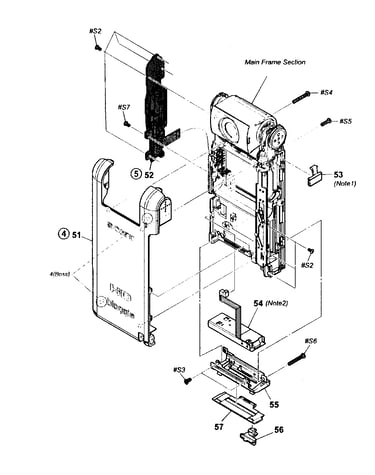

Front assy diagram

Pcb assembly

Part #X25418251

$57.46
In Stock
Base Plate 416890701
#57

Front assy diagram

Base plate

Part #416890701

This item is not returnable
$6.49
In Stock
