Model # DW735 TYPE 1 Official DeWalt 13" portable planer

Here are the diagrams and repair parts for Official DeWalt DW735-TYPE-1 13" portable planer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Plate 5140010-91
#93

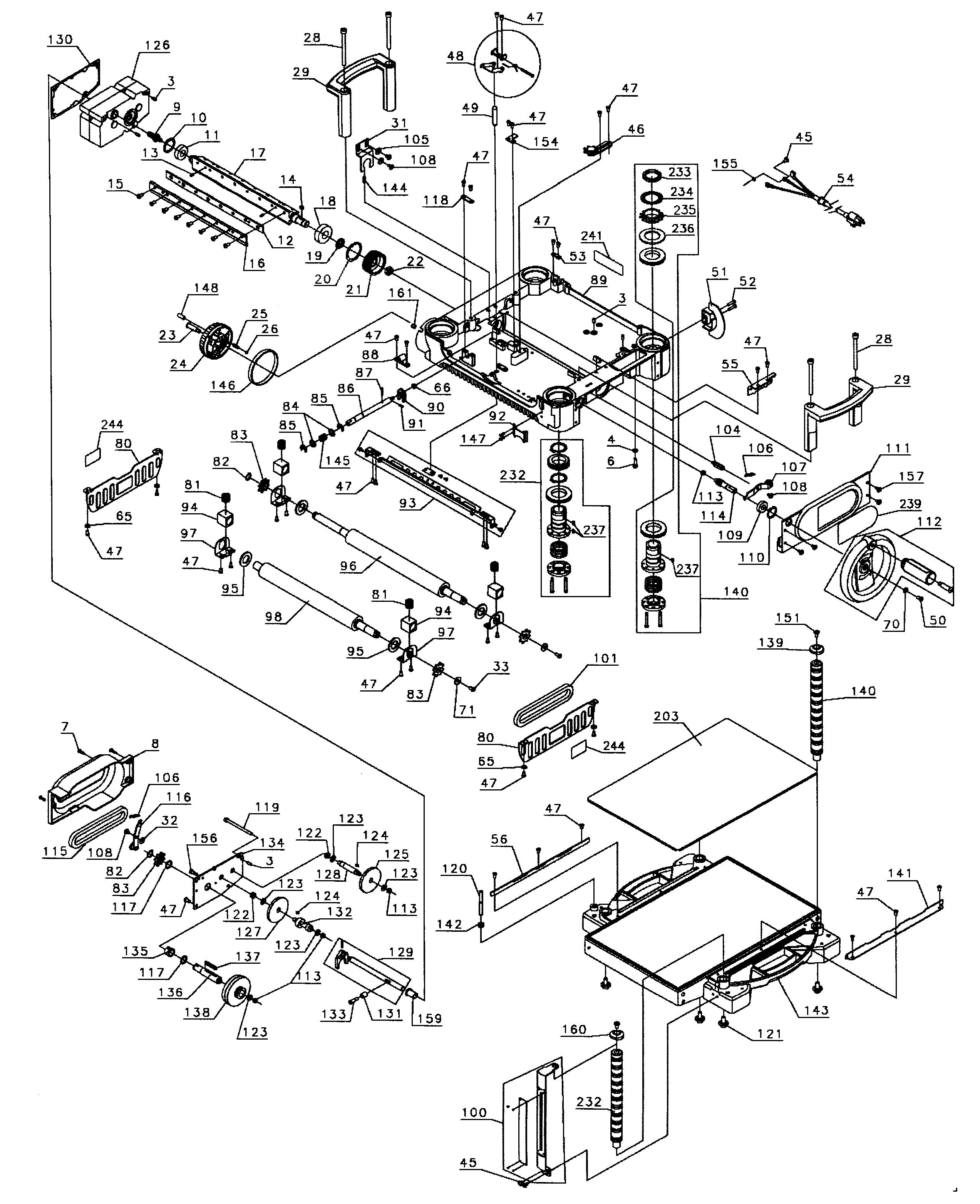

Main assy diagram

Plate

Part #5140010-91

The manufacturer no longer makes this part, and there's no substitute part

Plate 5140011-61
#165

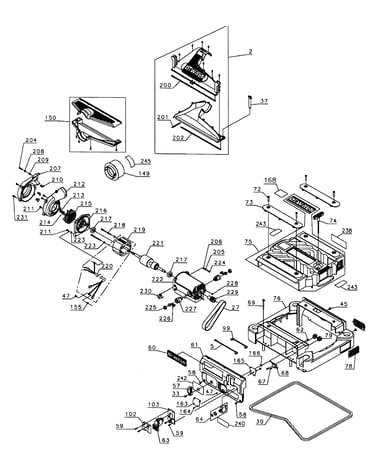

Motor assy diagram

Plate

Part #5140011-61

The manufacturer no longer makes this part, and there's no substitute part

Gear 5140011-36
#138

Main assy diagram

Gear

Part #5140011-36

The manufacturer no longer makes this part, and there's no substitute part

Wheel Assembly 5140010-47
#46

Main assy diagram

Wheel assembly

Part #5140010-47

The manufacturer no longer makes this part, and there's no substitute part

Mtr Hsng 5140011-81
#222

Motor assy diagram

Mtr hsng

Part #5140011-81

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 5140010-05
#4

Main assy diagram

Lock washer

Part #5140010-05

The manufacturer no longer makes this part, and there's no substitute part

Shaft 5140011-18
#120

Main assy diagram

Shaft

Part #5140011-18

The manufacturer no longer makes this part, and there's no substitute part

Washer 5140011-73
#214

Motor assy diagram

Washer

Part #5140011-73

The manufacturer no longer makes this part, and there's no substitute part

Screw 5140010-53
#52

Main assy diagram

Screw

Part #5140010-53

The manufacturer no longer makes this part, and there's no substitute part

Cover 5140011-00
#102

Motor assy diagram

Cover

Part #5140011-00

The manufacturer no longer makes this part, and there's no substitute part
