Miter Saw

Model # 315212300 Official Craftsman compound miter saw

Here are the diagrams and repair parts for Official Craftsman 315212300 compound miter saw, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
315212300 Power Tools
5 Hex Key 46615
#NI

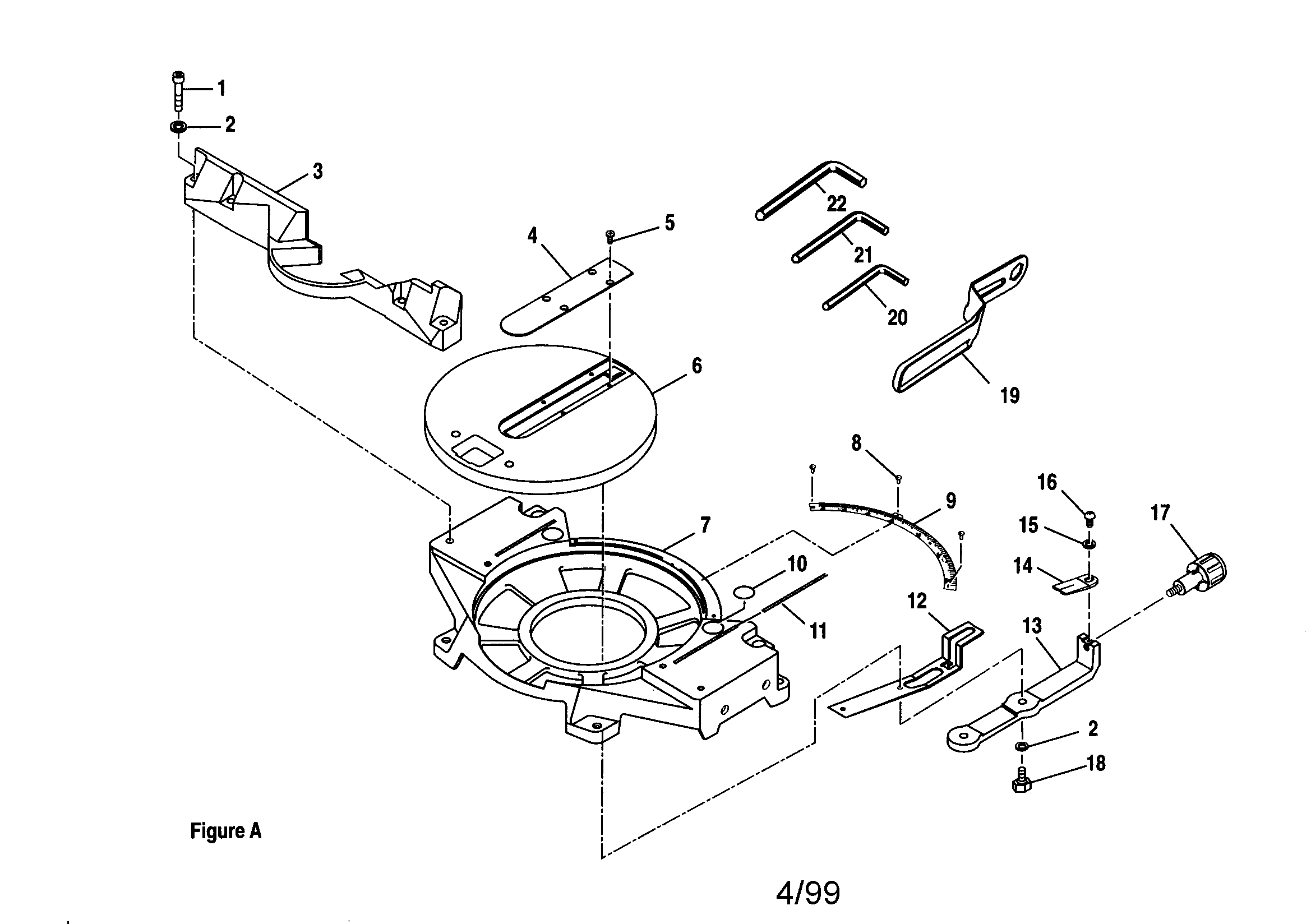

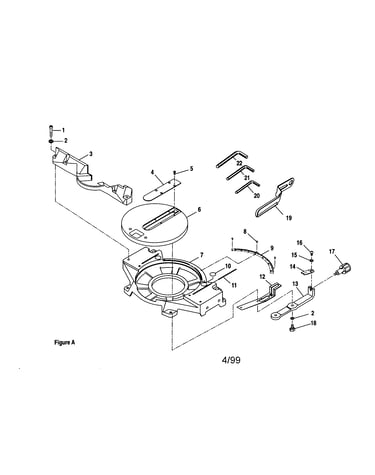

Craftsman compound miter saw diagram

5 hex key

Part #46615

The manufacturer no longer makes this part, and there's no substitute part

Pivot Shaft 976521-001
#15

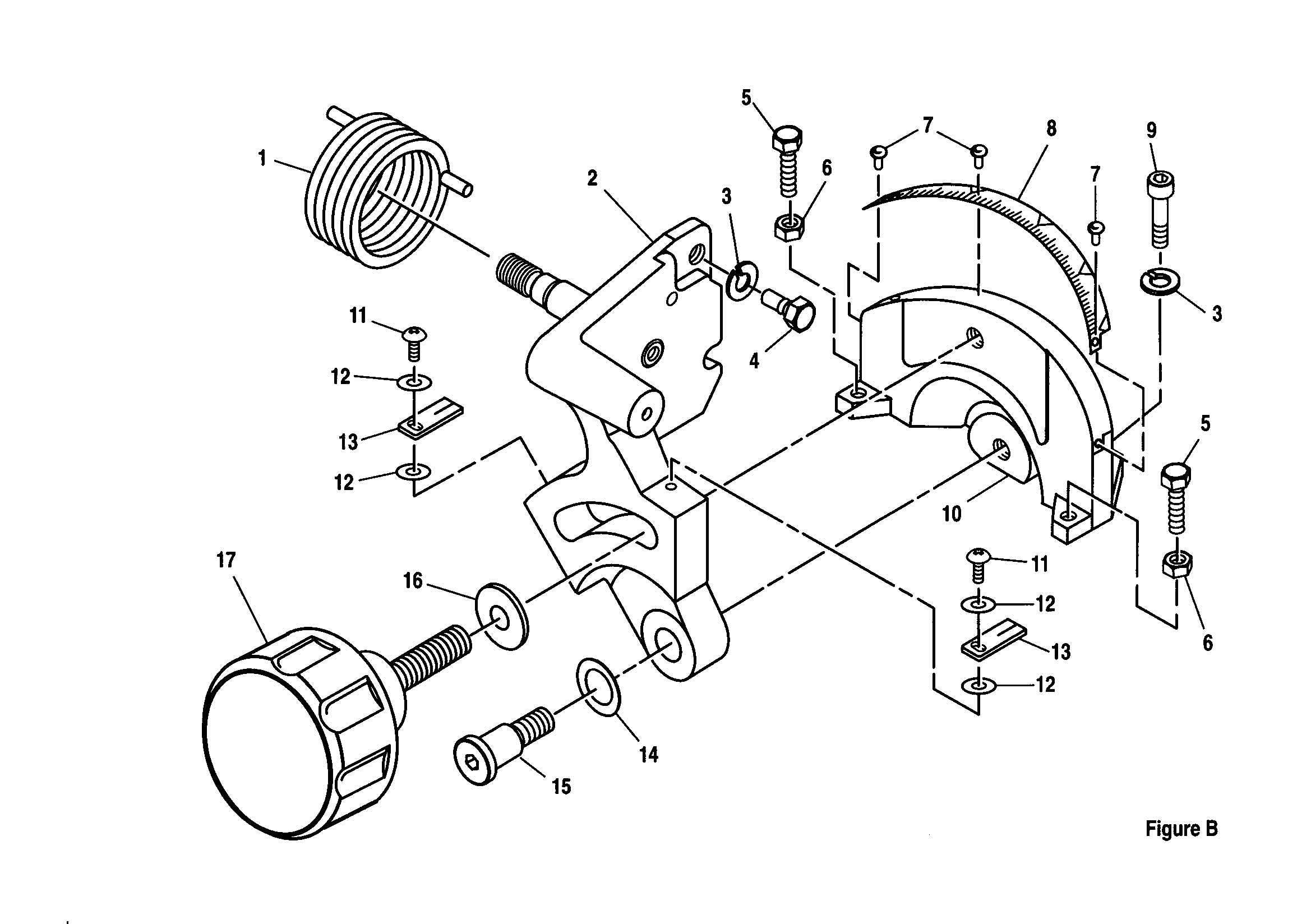

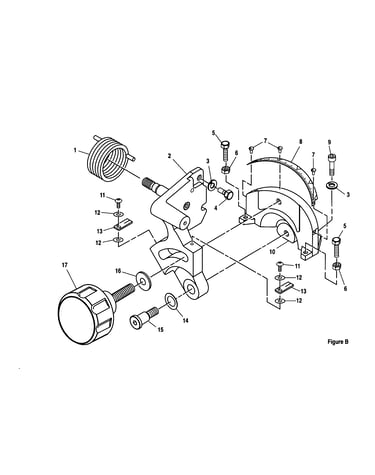

Figure b diagram

Pivot shaft

Part #976521-001

The manufacturer no longer makes this part, and there's no substitute part

Handle 976505-001
#14

Craftsman compound miter saw diagram

Handle

Part #976505-001

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Bolt 976548-001
#17

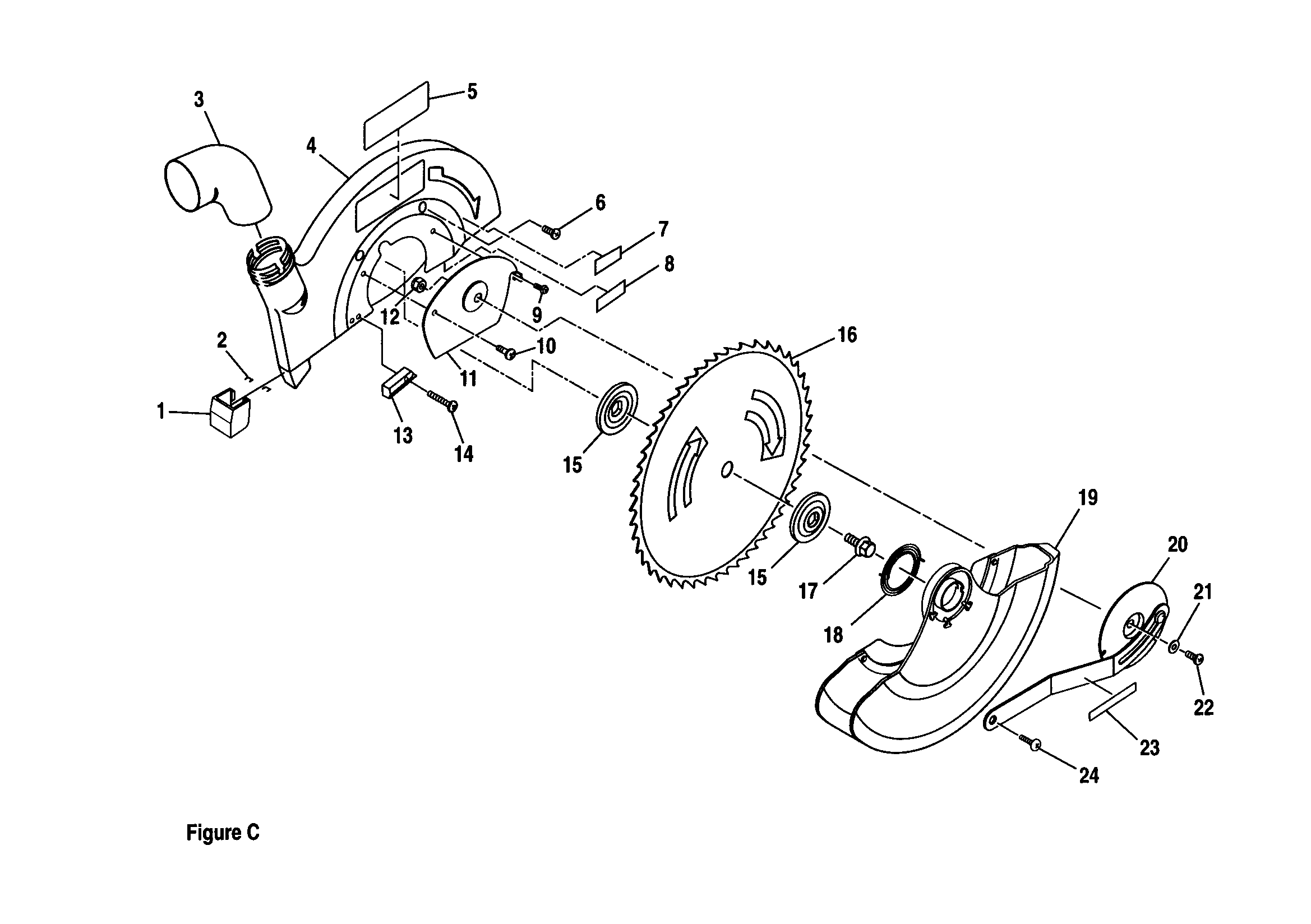

Figure c diagram

Miter saw blade bolt

Part #976548-001

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Gear Shaft 588030-008
#24

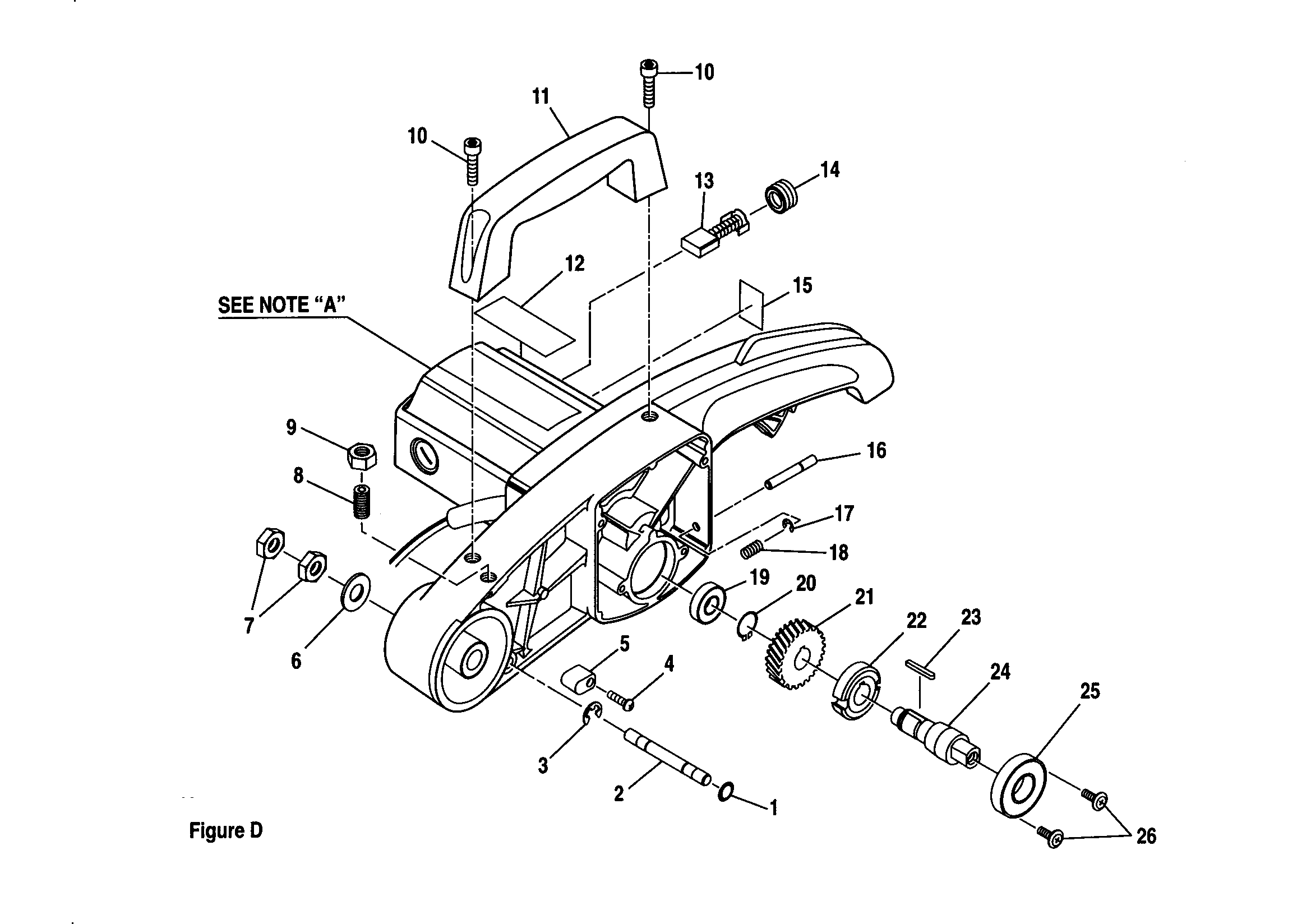

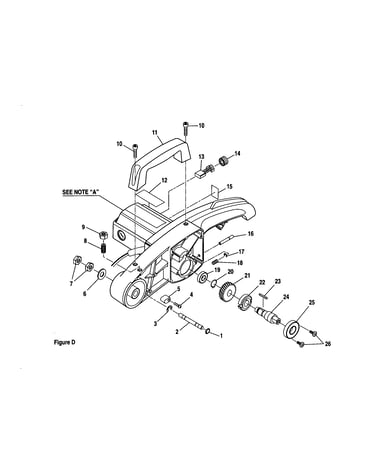

Figure d diagram

Miter saw gear shaft

Part #588030-008

The manufacturer no longer makes this part, and there's no substitute part

Bolt 710308-045
#1

Craftsman compound miter saw diagram

Bolt

Part #710308-045

The manufacturer no longer makes this part, and there's no substitute part

Switch 976676-001
#12

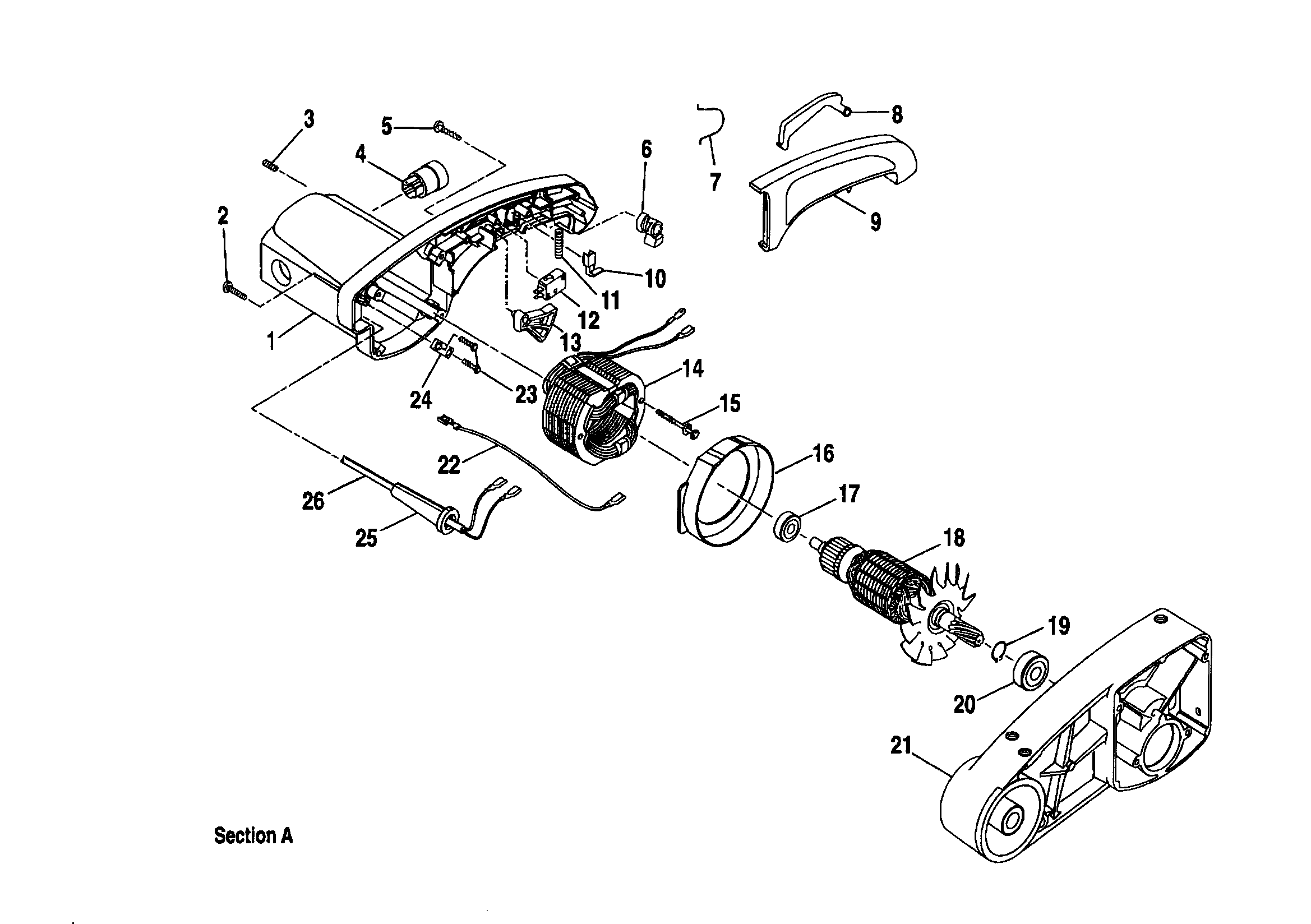

Section a diagram

Switch

Part #976676-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 160030-400
#5

Craftsman compound miter saw diagram

Screw

Part #160030-400

The manufacturer no longer makes this part, and there's no substitute part

Pointer 976525-001
#13

Figure b diagram

Pointer

Part #976525-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 4mm 976644-001
#4

Figure d diagram

Screw 4mm

Part #976644-001

The manufacturer no longer makes this part, and there's no substitute part
