GE
Freestanding Ice Maker

Model # ZDIW50XA Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDIW50XA ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Thumbscrew WR1X2101

#69

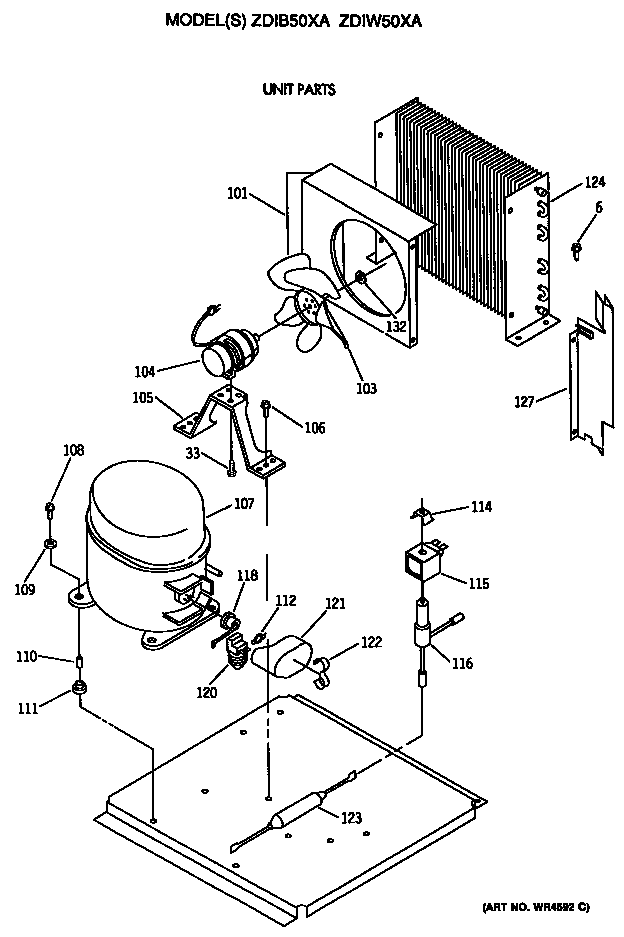

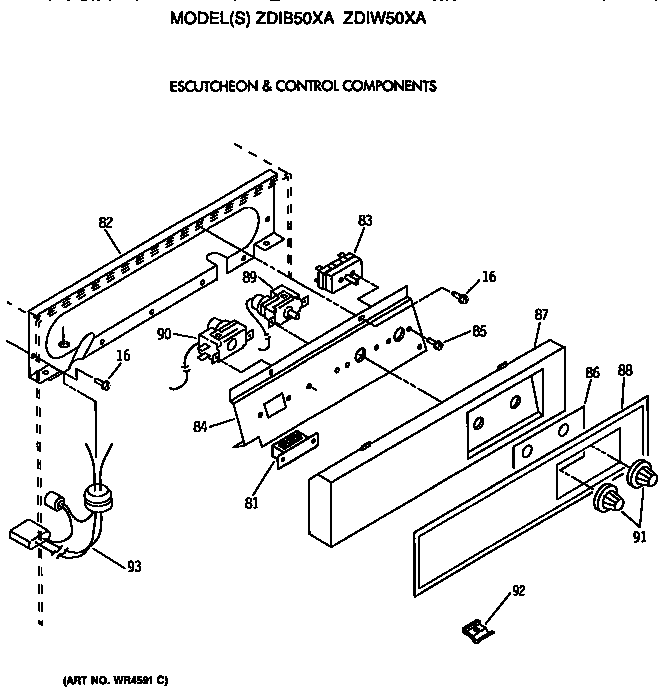

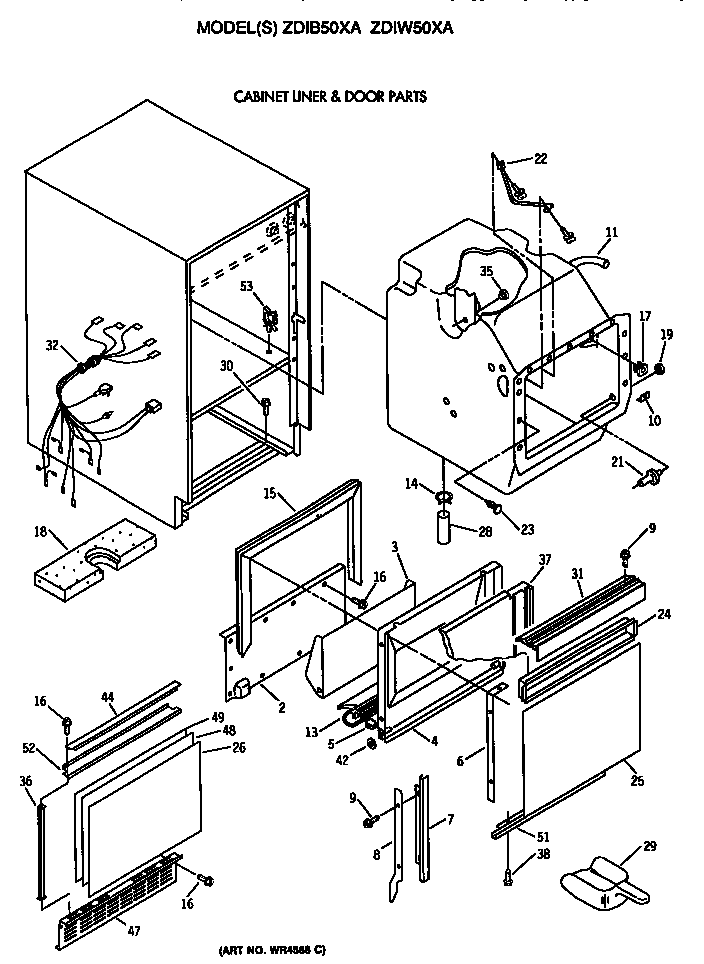

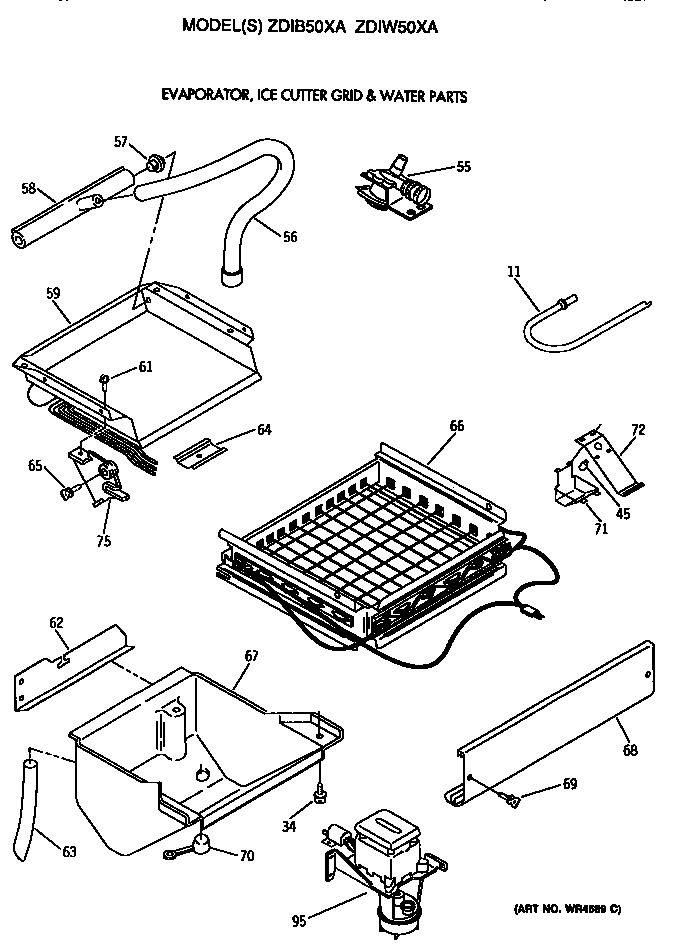

All parts diagram

Thumbscrew

Part #WR1X2101

$9.99 |
9% OFF Phone Price : $10.99
In Stock
Handle Screw WR1X2103

#85

All parts diagram

Handle screw

Part #WR1X2103

Replaced by #WR1X5690

?
Manufacturer substitution
This part replaces WR1X2103. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Bulb #917 Auto Type OBTAIN LOCALLY

#22

All parts diagram

Bulb #917 auto type

Part #OBTAIN LOCALLY

The manufacturer no longer makes this part, and there's no substitute part

Decal WR4X228

#86

All parts diagram

Decal

Part #WR4X228

The manufacturer no longer makes this part, and there's no substitute part

Stud WR2X9330

#21

All parts diagram

Stud

Part #WR2X9330

The manufacturer no longer makes this part, and there's no substitute part

Bracket,l WR2X9341

#72

All parts diagram

Bracket,l

Part #WR2X9341

The manufacturer no longer makes this part, and there's no substitute part

Connect Hose WR17X3974

#28

All parts diagram

Connect hose

Part #WR17X3974

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Bin WR50X137

#90

All parts diagram

Thermostat bin

Part #WR50X137

The manufacturer no longer makes this part, and there's no substitute part

Cover, Te WR7X244

#121

All parts diagram

Cover, te

Part #WR7X244

The manufacturer no longer makes this part, and there's no substitute part

Screw, 10 WR1X2092

#30

All parts diagram

Screw, 10

Part #WR1X2092

The manufacturer no longer makes this part, and there's no substitute part
