Amana
Electric Cooktop

Model # AKED3050E-P1131760NE Official Amana cooktop without module

Here are the diagrams and repair parts for Official Amana AKED3050E-P1131760NE cooktop without module, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Switch 31891202
#11

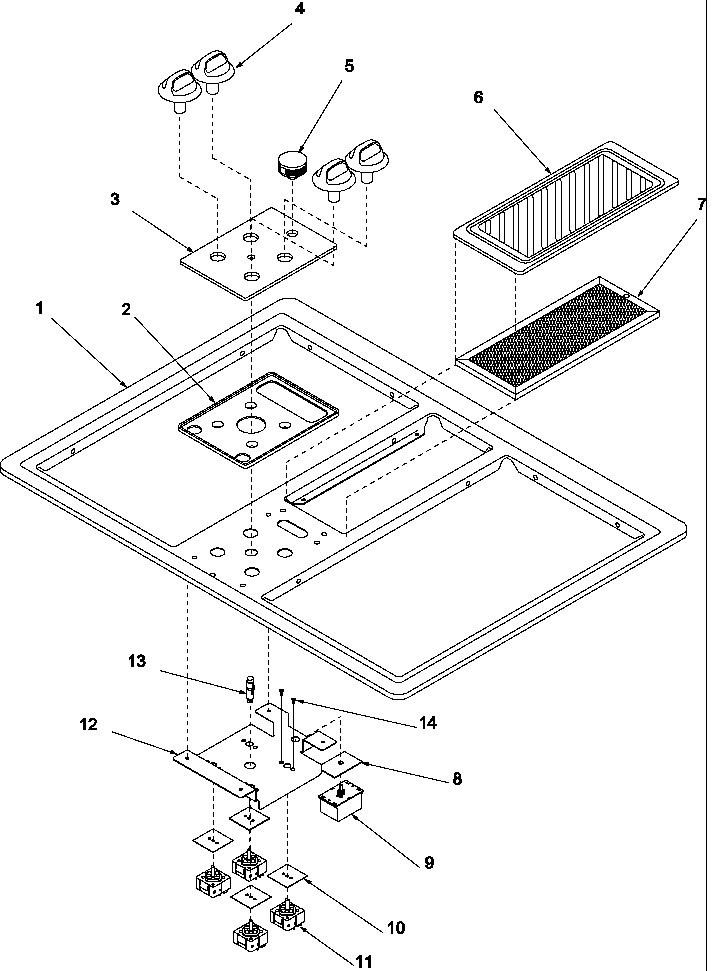

Main top diagram

Switch

Part #31891202

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8-18 31750416
#5

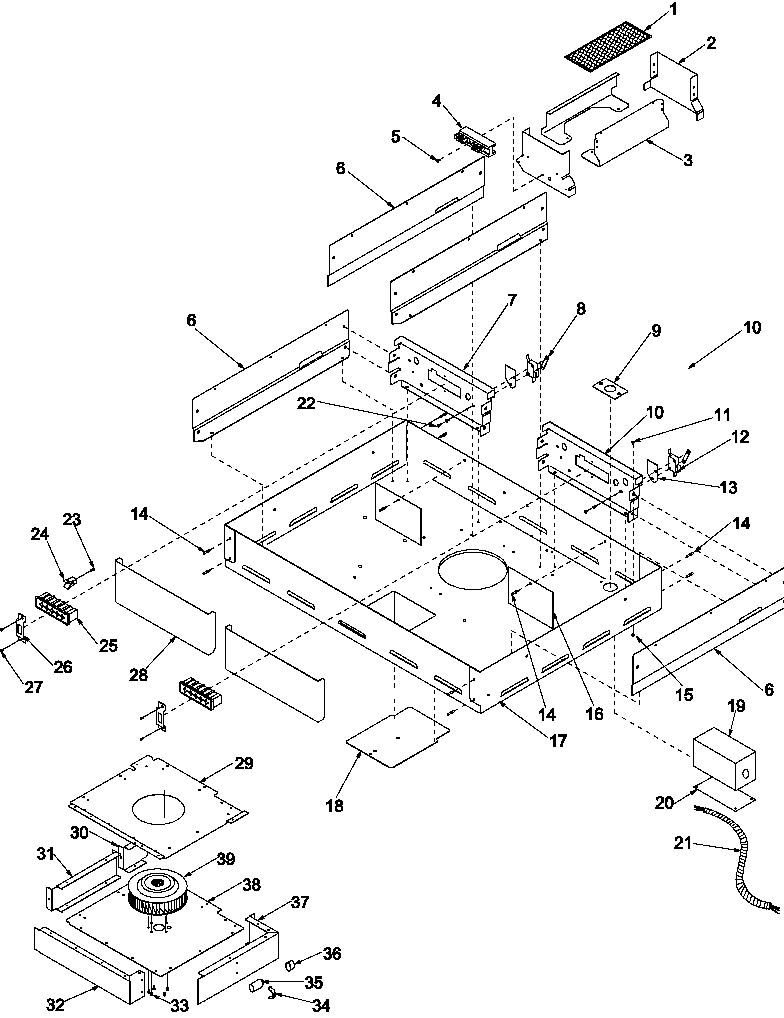

Cavity diagram

Screw, #8-18

Part #31750416

Replaced by #WP400021-1

?
Manufacturer substitution
This part replaces 31750416. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Screw M0234422
#14

Main top diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Owners Manual -aked3050 31889901

#0

All parts diagram

Owners manual -aked3050

Part #31889901

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Clamp 0317082
#34

Cavity diagram

Capacitor clamp

Part #0317082

The manufacturer no longer makes this part, and there's no substitute part

Assy, Condui 0315698
#21

Cavity diagram

Assy, condui

Part #0315698

The manufacturer no longer makes this part, and there's no substitute part

Cap 31756201
#36

Cavity diagram

Cap

Part #31756201

The manufacturer no longer makes this part, and there's no substitute part

Glass Control 315690B
#3

Main top diagram

Glass control

Part #315690B

The manufacturer no longer makes this part, and there's no substitute part

Control Shield 0315707
#6

Cavity diagram

Control shield

Part #0315707

The manufacturer no longer makes this part, and there's no substitute part

Plenum 31754201
#37

Cavity diagram

Plenum

Part #31754201

The manufacturer no longer makes this part, and there's no substitute part
