KitchenAid
Gas Range

Model # KSGG700ESS6 Official KitchenAid range/oven, gas, slide-in, 30 inch

Here are the diagrams and repair parts for Official KitchenAid KSGG700ESS6 range/oven, gas, slide-in, 30 inch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Oven Sensor W10586204
#12

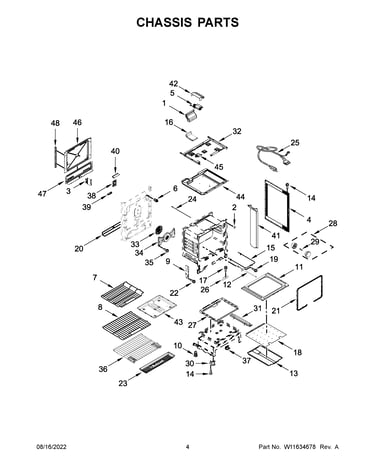

Chassis parts diagram

Oven sensor

Part #W10586204

Replaced by #W10833885

?
Manufacturer substitution
This part replaces W10586204. Substitute parts can look different from the original.
BEST SELLER
$87.79 |
6% OFF Phone Price : $93.79
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Touch-up Paint (black) 72032
#NI

Optional parts (not included) diagram

Touch-up paint (black)

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Range Oven Door Outer Panel (stainless) W10634271
#3

Door parts diagram

Range oven door outer panel (stainless)

Part #W10634271

Replaced by #WPW10634271

?
Manufacturer substitution
This part replaces W10634271. Substitute parts can look different from the original.
$256.56 |
$12.00 OFF Phone Price : $268.56
In Stock
Keypad W10575120
#NI

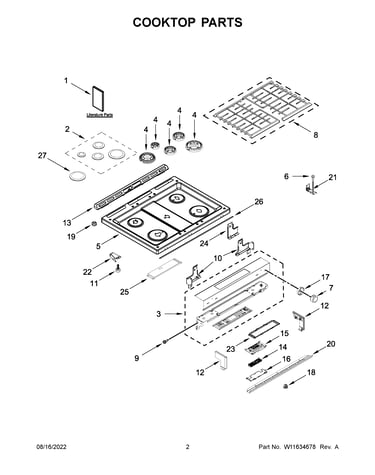

Cooktop parts diagram

Keypad

Part #W10575120

Replaced by #W11025616

?
Manufacturer substitution
This part replaces W10575120. Substitute parts can look different from the original.
$34.09 |
15% OFF Phone Price : $40.09
In Stock
Range Oven Lp Conversion Kit W10566535
#NI

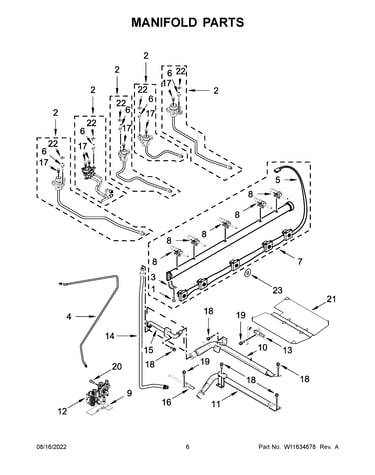

Manifold parts diagram

Range oven lp conversion kit

Part #W10566535

Replaced by #W11087486

?
Manufacturer substitution
This part replaces W10566535. Substitute parts can look different from the original.
$52.16 |
10% OFF Phone Price : $58.16
In Stock
Screw 3196169
#9

Cooktop parts diagram

Screw

Part #3196169

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196169. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bezel Knob W10785119
#17

Cooktop parts diagram

Bezel knob

Part #W10785119

Replaced by #W10814133

?
Manufacturer substitution
This part replaces W10785119. Substitute parts can look different from the original.
$78.98 |
7% OFF Phone Price : $84.98
In Stock
Console Assembly W10901124
#3

Cooktop parts diagram

Console assembly

Part #W10901124

Replaced by #W11029431

?
Manufacturer substitution
This part replaces W10901124. Substitute parts can look different from the original.
$376.32 |
$12.00 OFF Phone Price : $388.32
In Stock
Screw W10362924
Screw

Part #W10362924

Replaced by #W11233072

?
Manufacturer substitution
This part replaces W10362924. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
