Gas Range

Model # 79078873405 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79078873405 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

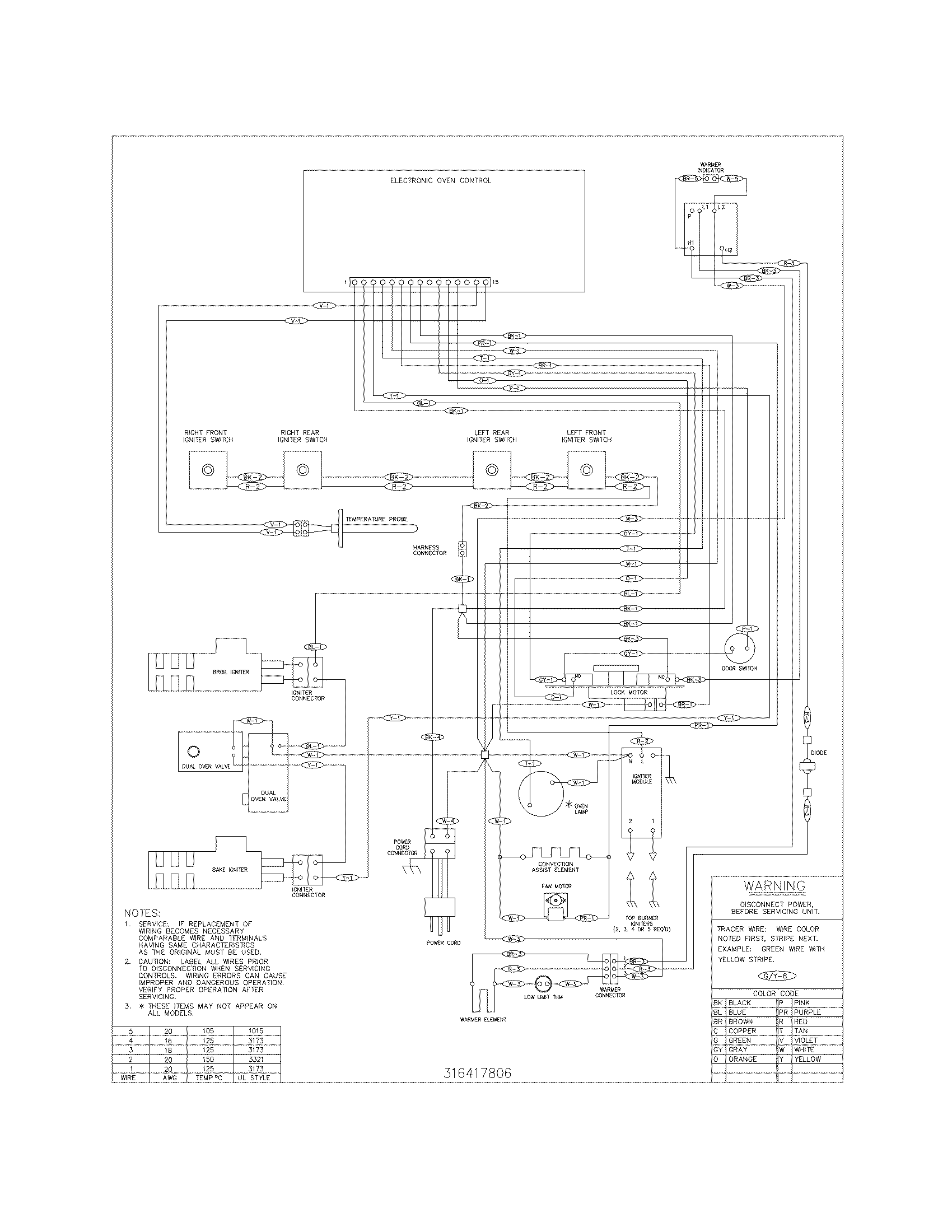

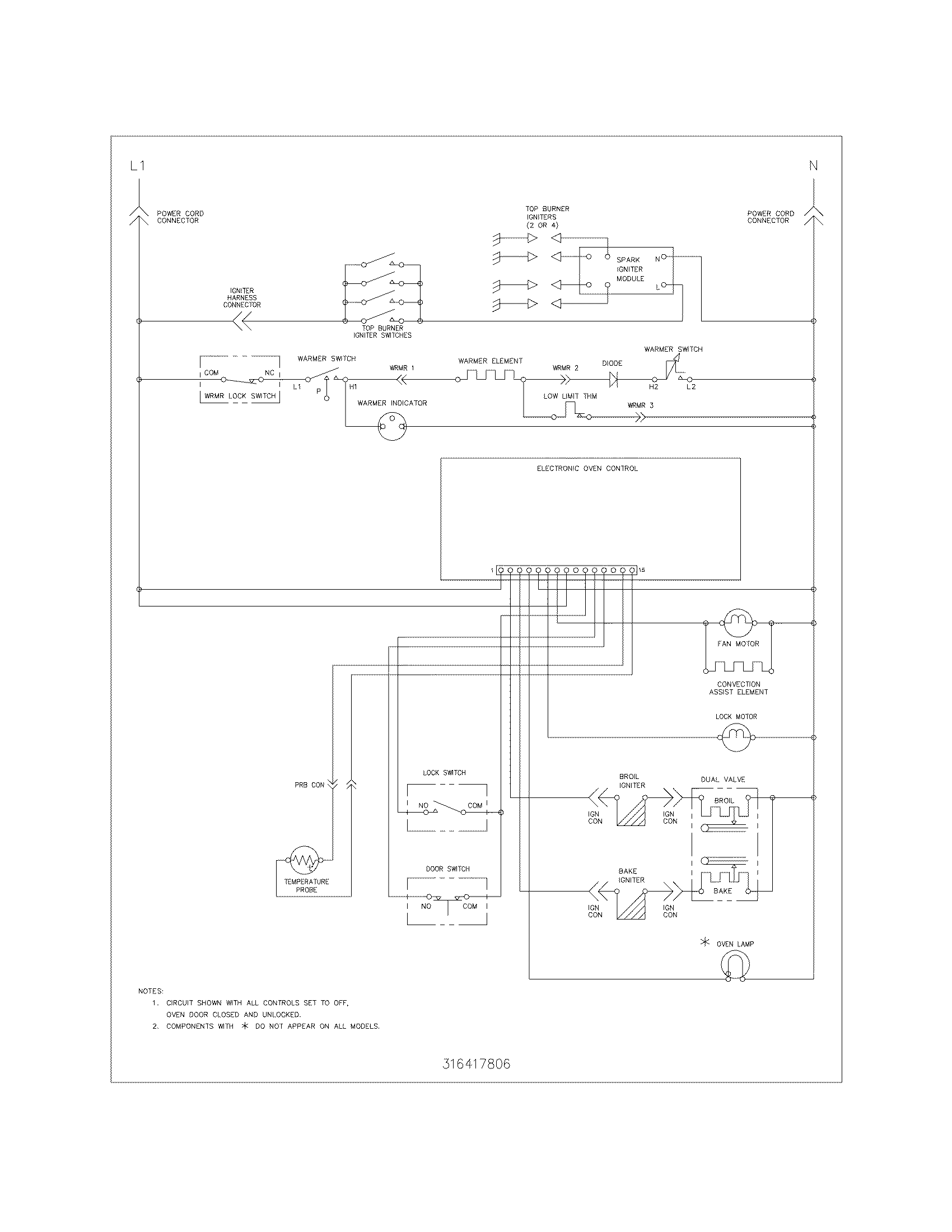

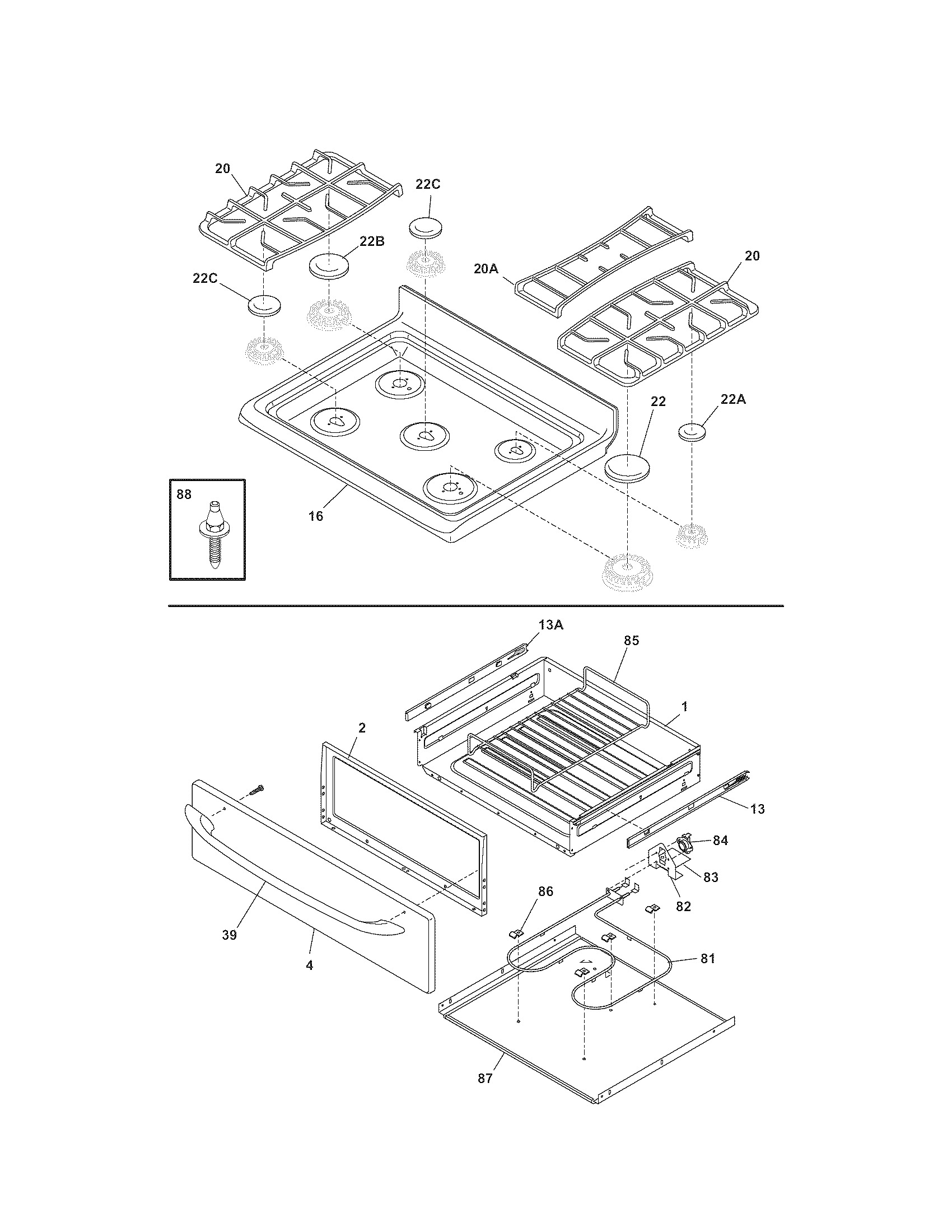

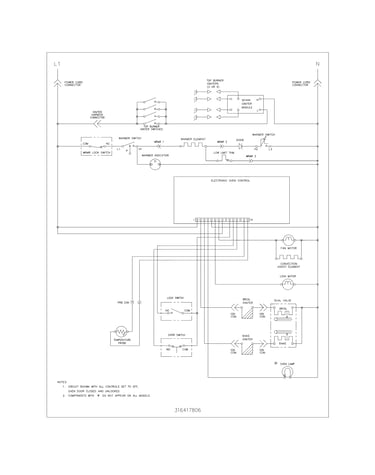

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for79078873405 Ranges

  • Range Oven Light Bulb 5303013071
    #15

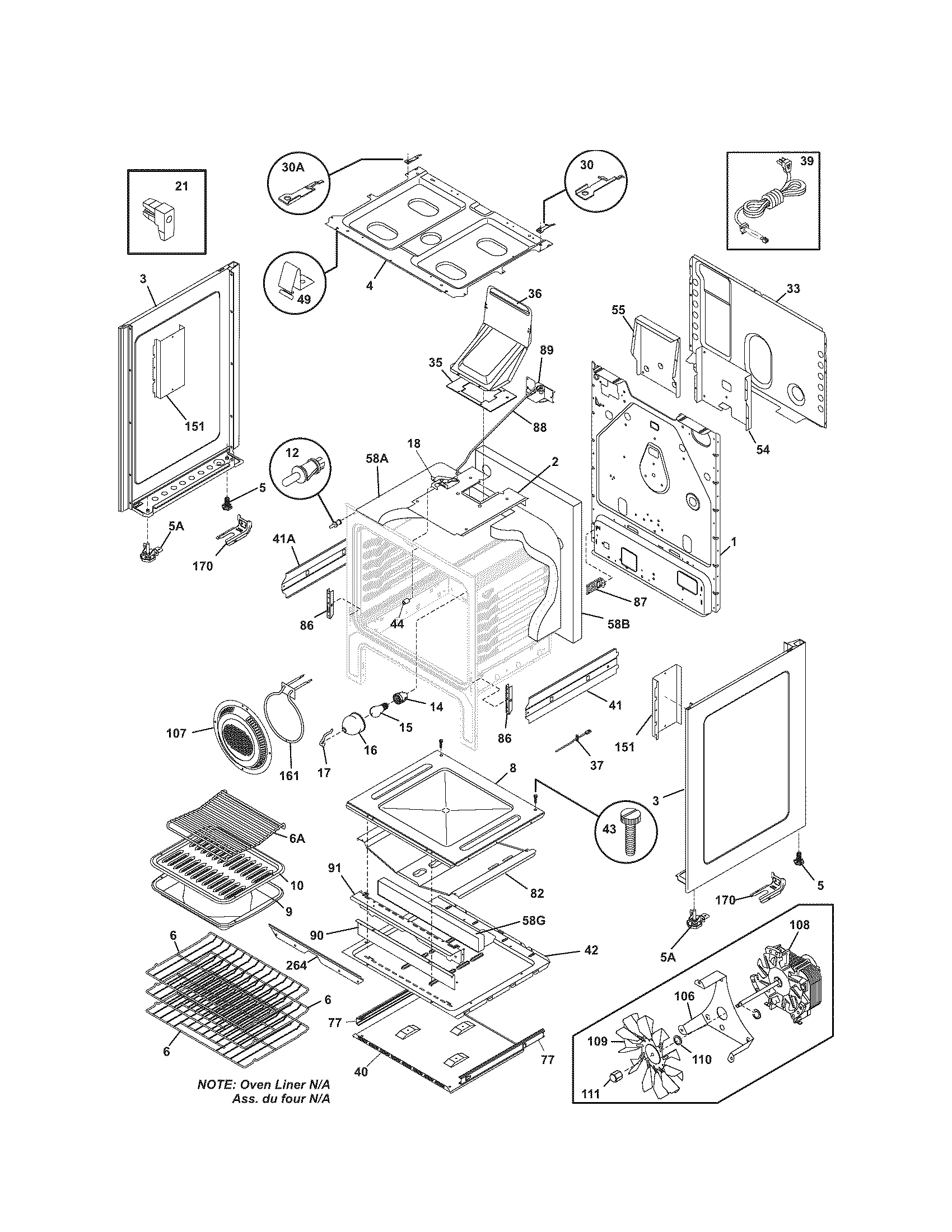

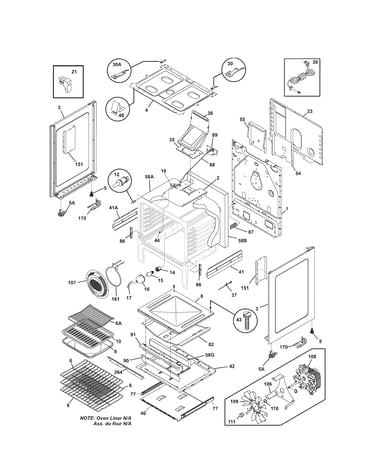

    Body diagram

    Range oven light bulb

    Part #5303013071

    Replaced by #316538904

    ?
    Manufacturer substitution
    This part replaces 5303013071. Substitute parts can look different from the original.
    5 (2)
    BEST SELLER
    $16.75 |
    11% OFF Phone Price : $18.75
    In Stock
  • Range Oven Door Inner Glass 316117500
    #8

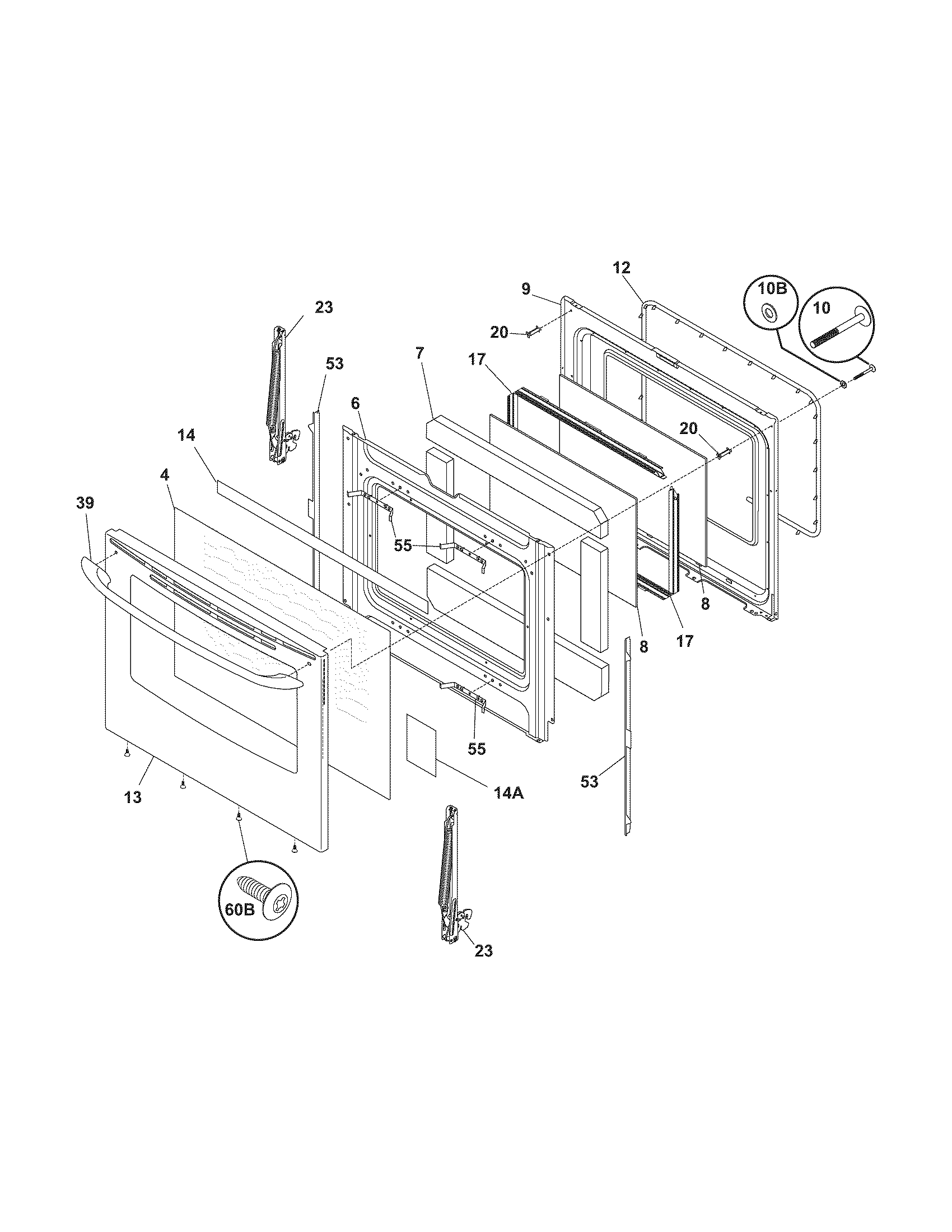

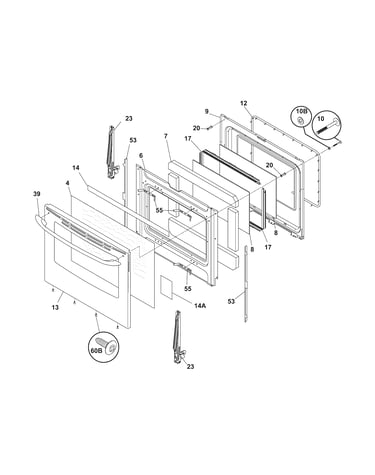

    Door diagram

    Range oven door inner glass

    Part #316117500

    Replaced by #5304503232

    ?
    Manufacturer substitution
    This part replaces 316117500. Substitute parts can look different from the original.
    5 (8)
    BEST SELLER
    $72.95 |
    8% OFF Phone Price : $78.95
    In Stock
  • Igniter 316428500
    #19

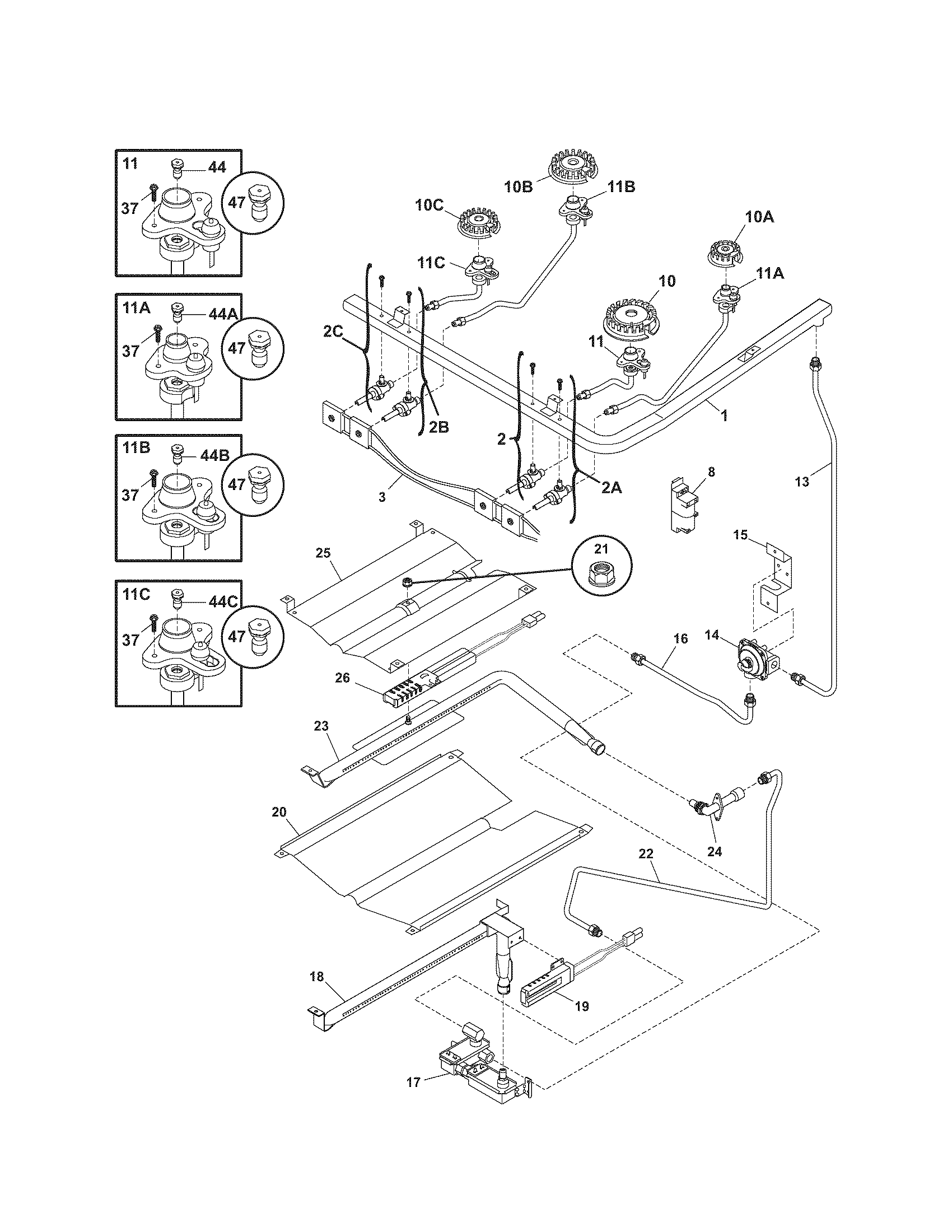

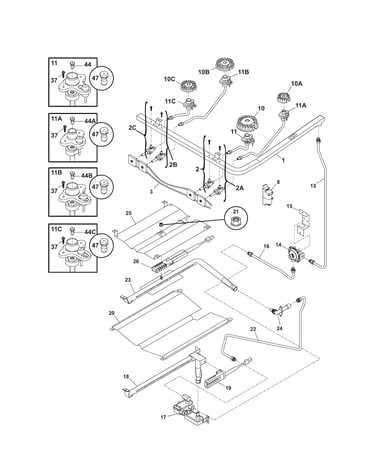

    Burner diagram

    Igniter

    Part #316428500

    Replaced by #316489400

    ?
    Manufacturer substitution
    This part replaces 316428500. Substitute parts can look different from the original.
    4 (37)
    BEST SELLER
    $137.14 |
    8% OFF Phone Price : $149.14
    In Stock
  • Range Screw 316240600
    #37

    Burner diagram

    Range screw

    Part #316240600

    4.5 (2)
    BEST SELLER
    $11.18 |
    15% OFF Phone Price : $13.18
    In Stock
  • Range Control Overlay 316419803
    #20A

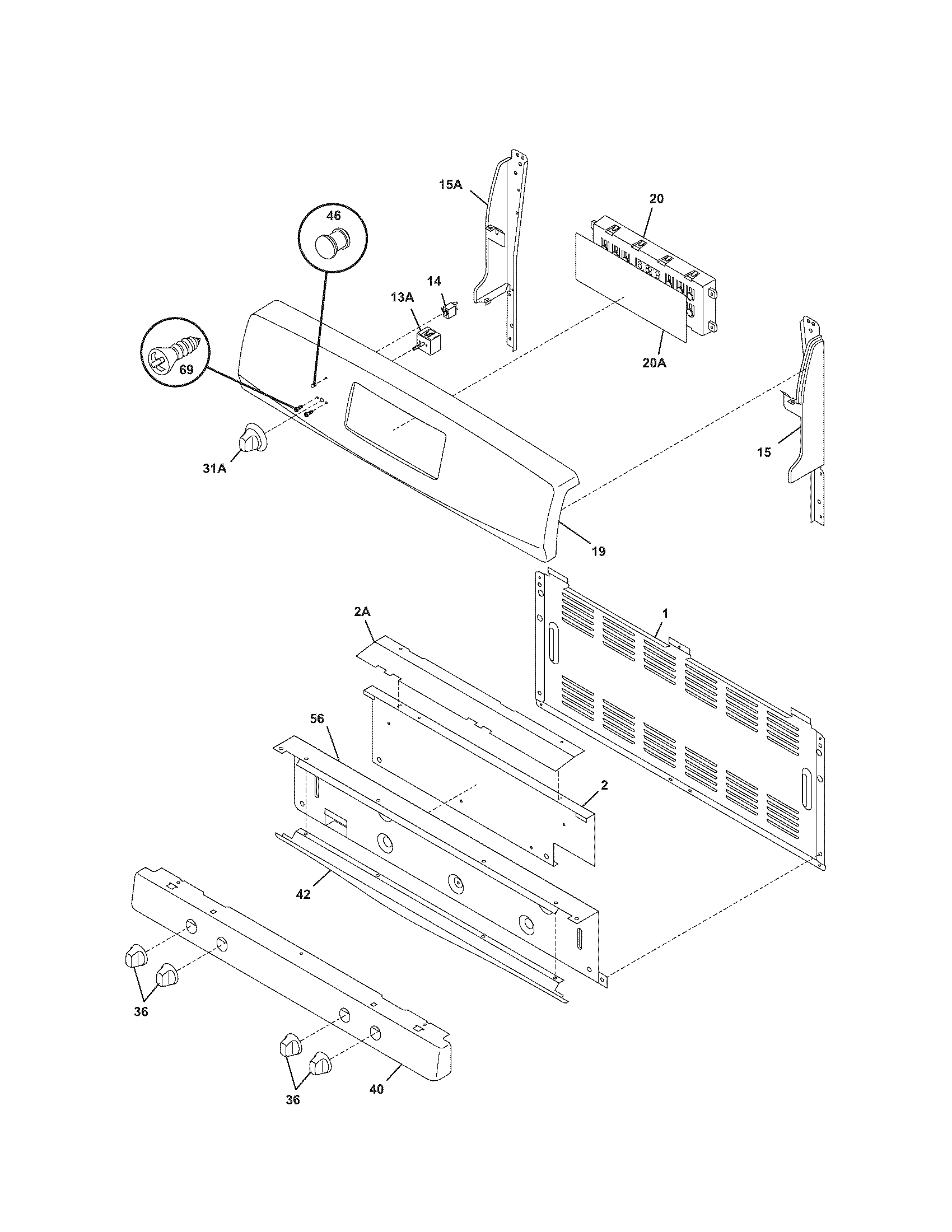

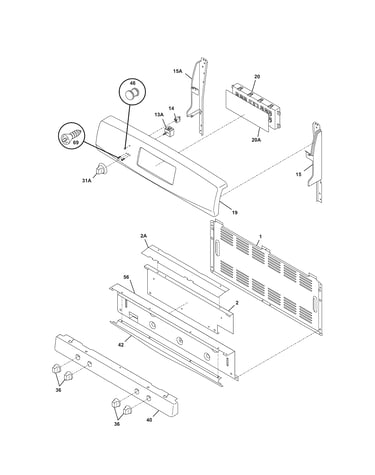

    Backguard diagram

    Range control overlay

    Part #316419803

    Replaced by #316352207

    ?
    Manufacturer substitution
    This part replaces 316419803. Substitute parts can look different from the original.
    3.5 (2)
    BEST SELLER
    $47.18 |
    11% OFF Phone Price : $53.18
    In Stock
  • Range Indicator Light 316022500
    #14

    Backguard diagram

    Range indicator light

    Part #316022500

    4.33 (6)
    BEST SELLER
    $40.71 |
    13% OFF Phone Price : $46.71
    In Stock
  • Igniter And Orifice Holder 316237800
    #11C

    Burner diagram

    Igniter and orifice holder

    Part #316237800

    Replaced by #316237805

    ?
    Manufacturer substitution
    This part replaces 316237800. Substitute parts can look different from the original.
    4.4 (5)
    BEST SELLER
    $89.89 |
    6% OFF Phone Price : $95.89
    In Stock
  • Probe 316217001
    #37

    Body diagram

    Probe

    Part #316217001

    Replaced by #316490001

    ?
    Manufacturer substitution
    This part replaces 316217001. Substitute parts can look different from the original.
    2.55 (20)
    BEST SELLER
    $58.47 |
    9% OFF Phone Price : $64.47
    In Stock
  • Range Pressure Regulator 316091706
    #14

    Burner diagram

    Range pressure regulator

    Part #316091706

    Replaced by #5304521339

    ?
    Manufacturer substitution
    This part replaces 316091706. Substitute parts can look different from the original.
    BEST SELLER
    $65.77 |
    8% OFF Phone Price : $71.77
    In Stock
  • Range Bake Burner 316404400
    #18

    Burner diagram

    Range bake burner

    Part #316404400

    4 (2)
    BEST SELLER
    $92.14 |
    6% OFF Phone Price : $98.14
    In Stock
