Tappan
Upright Freezer

Model # 99-2188-00-03 Official Tappan upright freezer - 5995203105

Here are the diagrams and repair parts for Official Tappan 99-2188-00-03 upright freezer - 5995203105, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Filter 5300152474
#30

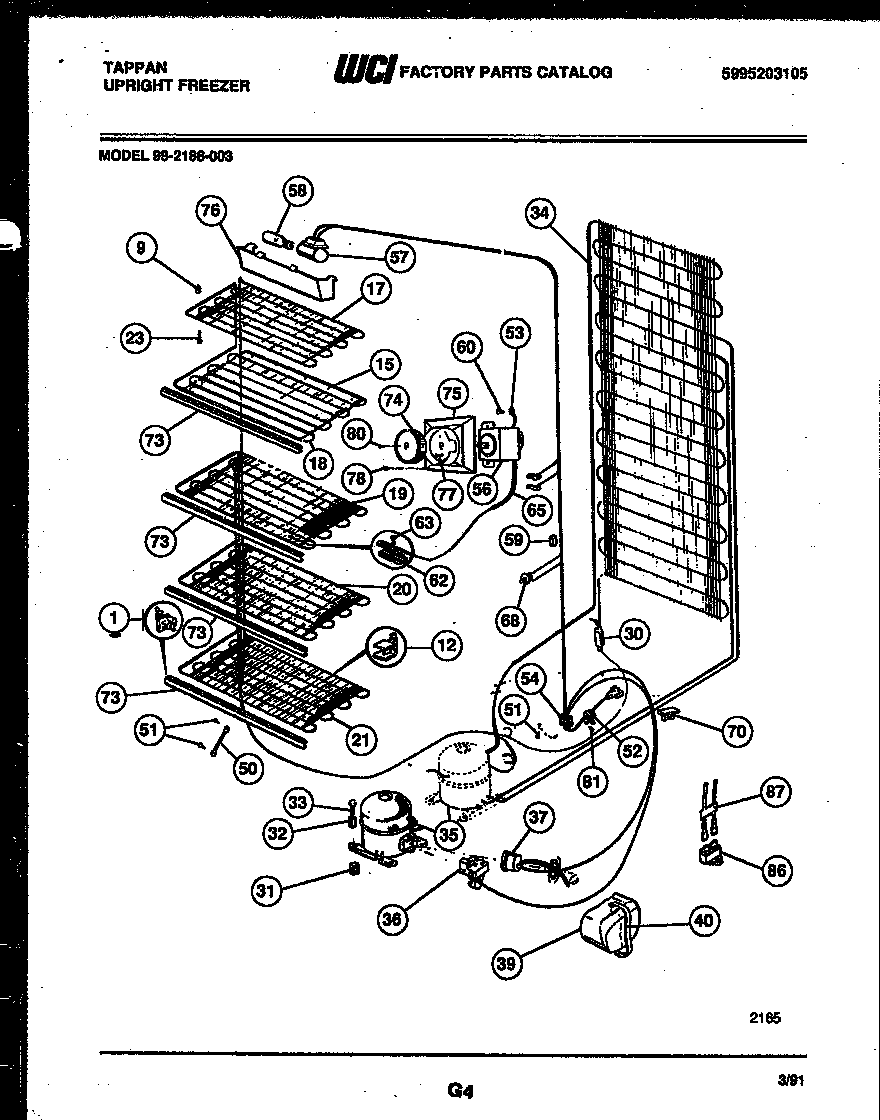

System and electrical parts diagram

Filter

Part #5300152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5300152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Condenser Coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, F000300847, F000900204, F112069, F118630, F83339, F83727, F83897) 5300083897
#34

System and electrical parts diagram

Freezer condenser coil (replaces 000300847, 000900204, 08000459, 08037427, 08950154, 118630, 75300083897, 83339, 83727, 83897, 8950154, f000300847, f000900204, f112069, f118630, f83339, f83727, f83897)

Part #5300083897

This item is not returnable
$417.18 |
$12.00 OFF Phone Price : $429.18
In Stock
Hose 5308037944
#13

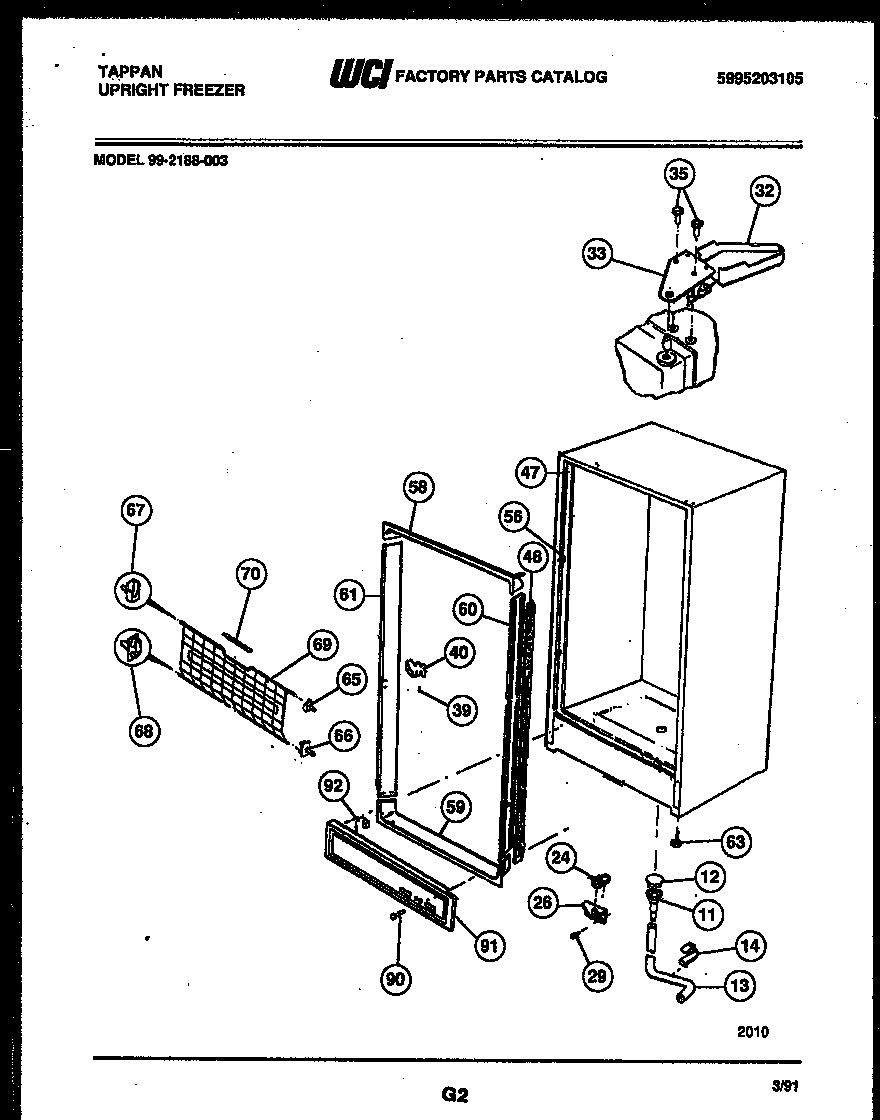

Cabinet parts diagram

Hose

Part #5308037944

Replaced by #5304512272

?
Manufacturer substitution
This part replaces 5308037944. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Retainer 5309948968
#30

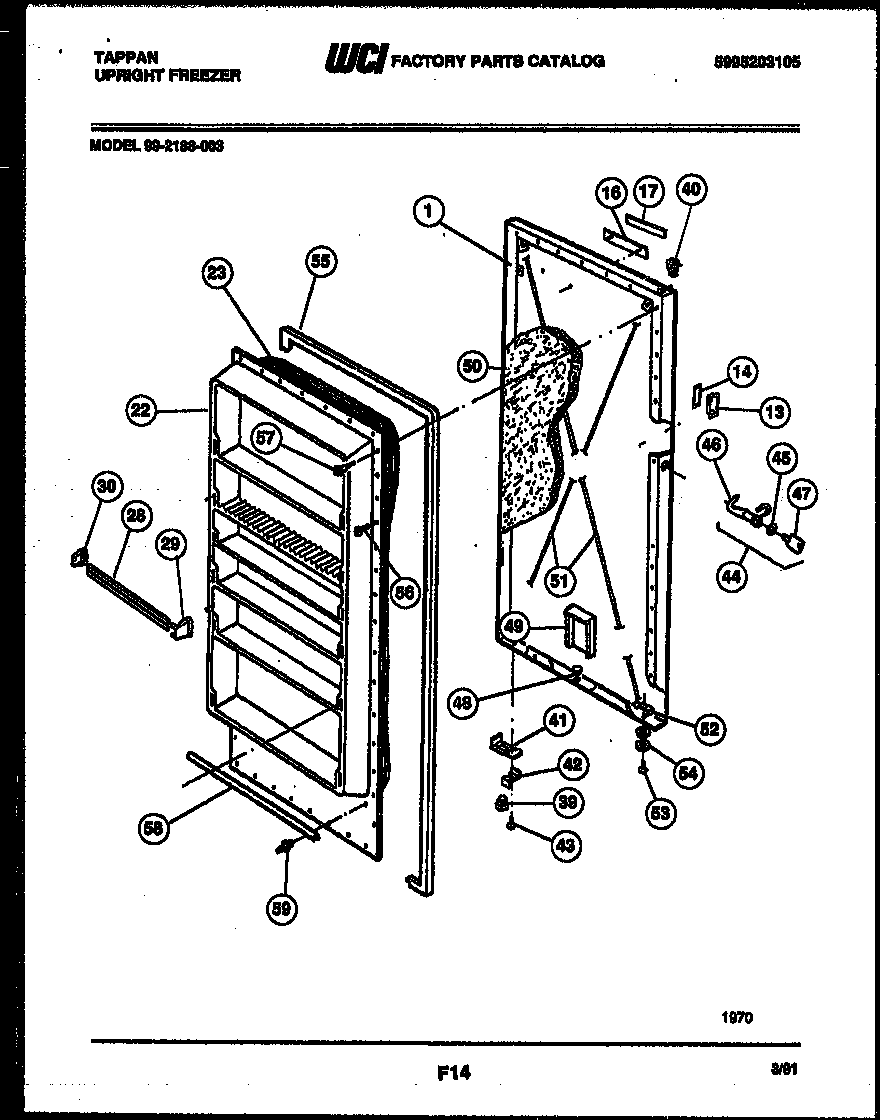

Door parts diagram

Retainer

Part #5309948968

Replaced by #5303925377

?
Manufacturer substitution
This part replaces 5309948968. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Retainer 5309948967
#29

Door parts diagram

Retainer

Part #5309948967

Replaced by #5303925377

?
Manufacturer substitution
This part replaces 5309948967. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#65

System and electrical parts diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Freezer Inner Door Panel Rivet 5303212828
#59

Door parts diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Switch 5308037962
#68

System and electrical parts diagram

Switch

Part #5308037962

Replaced by #5309918806

?
Manufacturer substitution
This part replaces 5308037962. Substitute parts can look different from the original.
This item is not returnable
$22.76 |
21% OFF Phone Price : $28.76
In Stock
Refrigerator Evaporator Cover Screw 08037851
#51

System and electrical parts diagram

Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
$3.51
In Stock
Grommet 5308002681
#31

System and electrical parts diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
