Model # REM77BDB2 Official Frigidaire wall oven - lf32090380
Here are the diagrams and repair parts for Official Frigidaire REM77BDB2 wall oven - lf32090380, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for

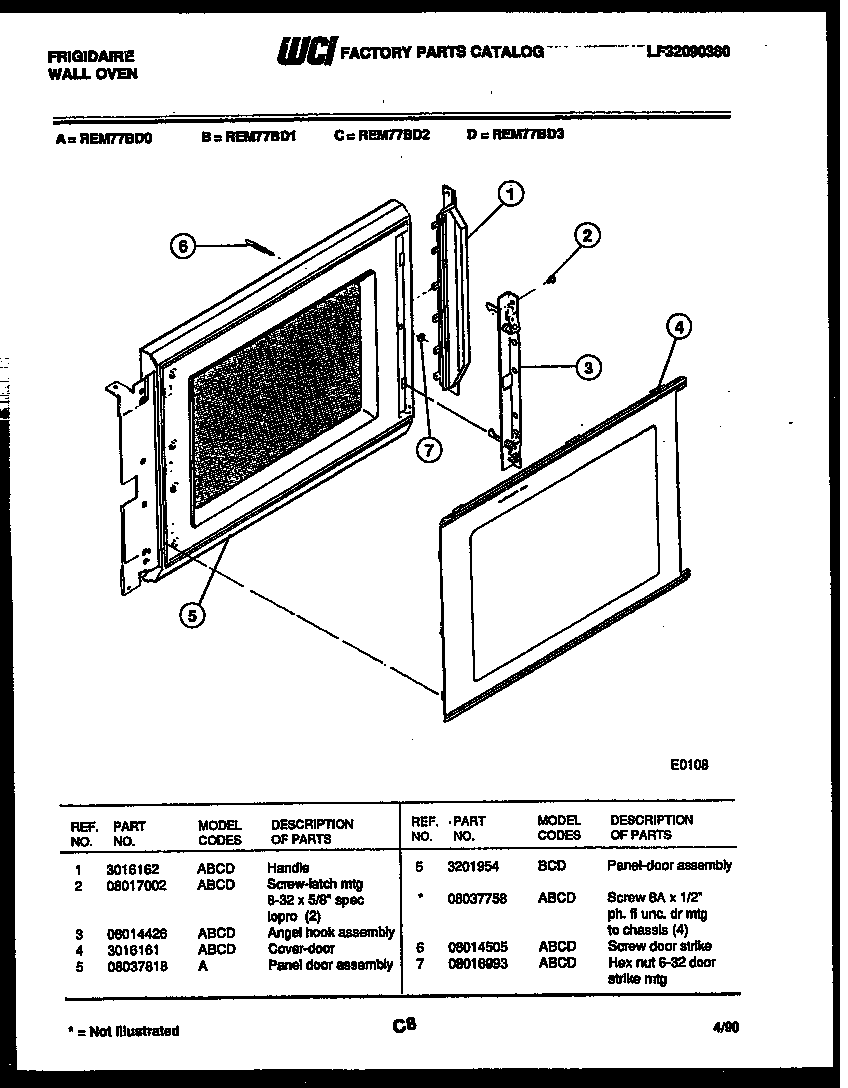

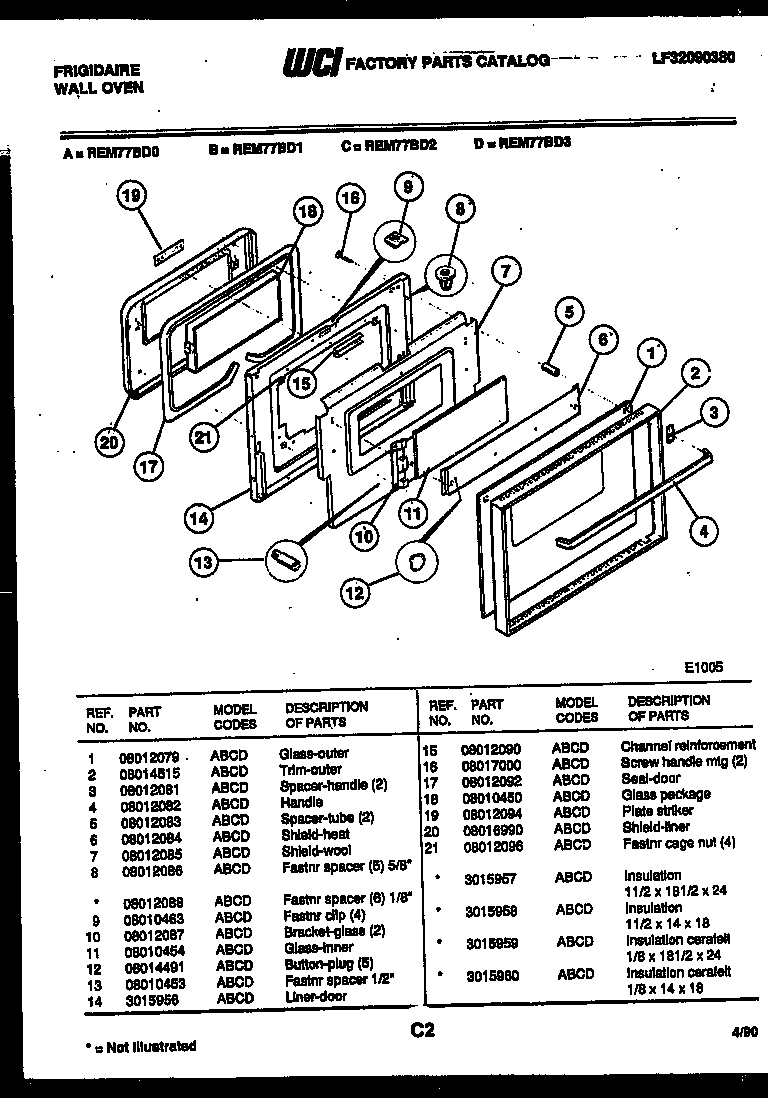

REM77BDB2 Wall Oven - LF32090380
#49

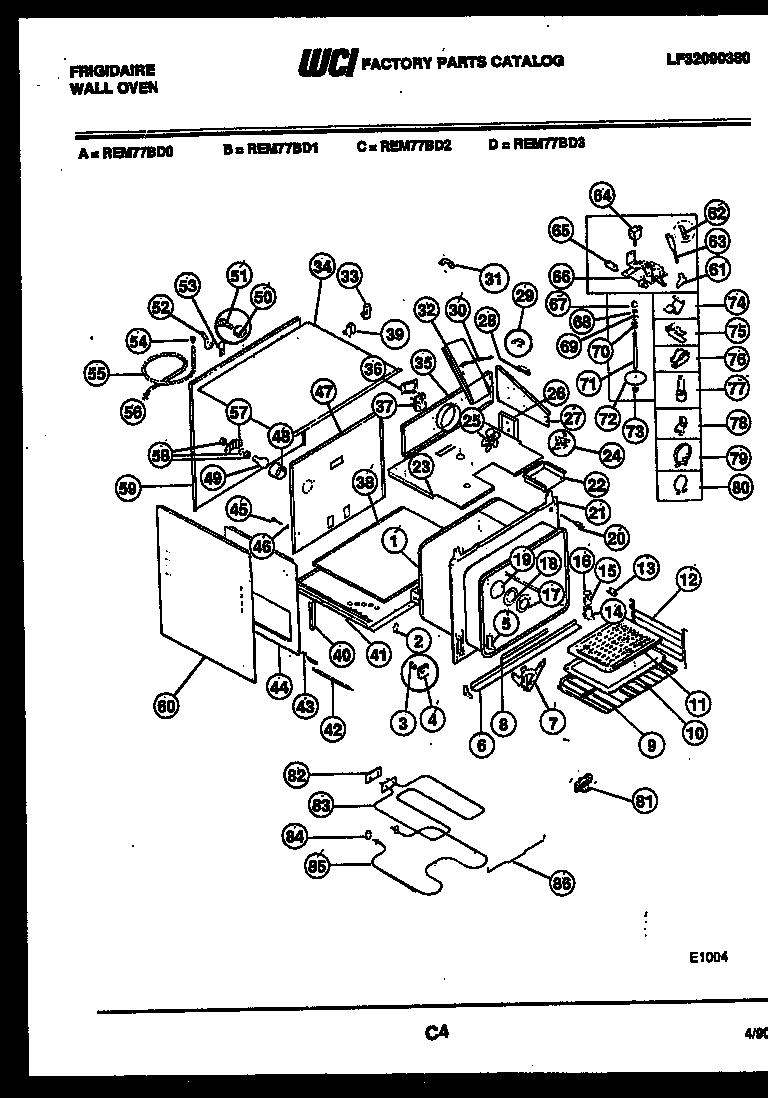

Lower body parts diagram
Light bulb/l
Part #08037649
Replaced by #316538904
?
Manufacturer substitution
This part replaces 08037649. Substitute parts can look different from the original.
$16.47 |
11% OFF Phone Price : $18.47
In Stock
#9

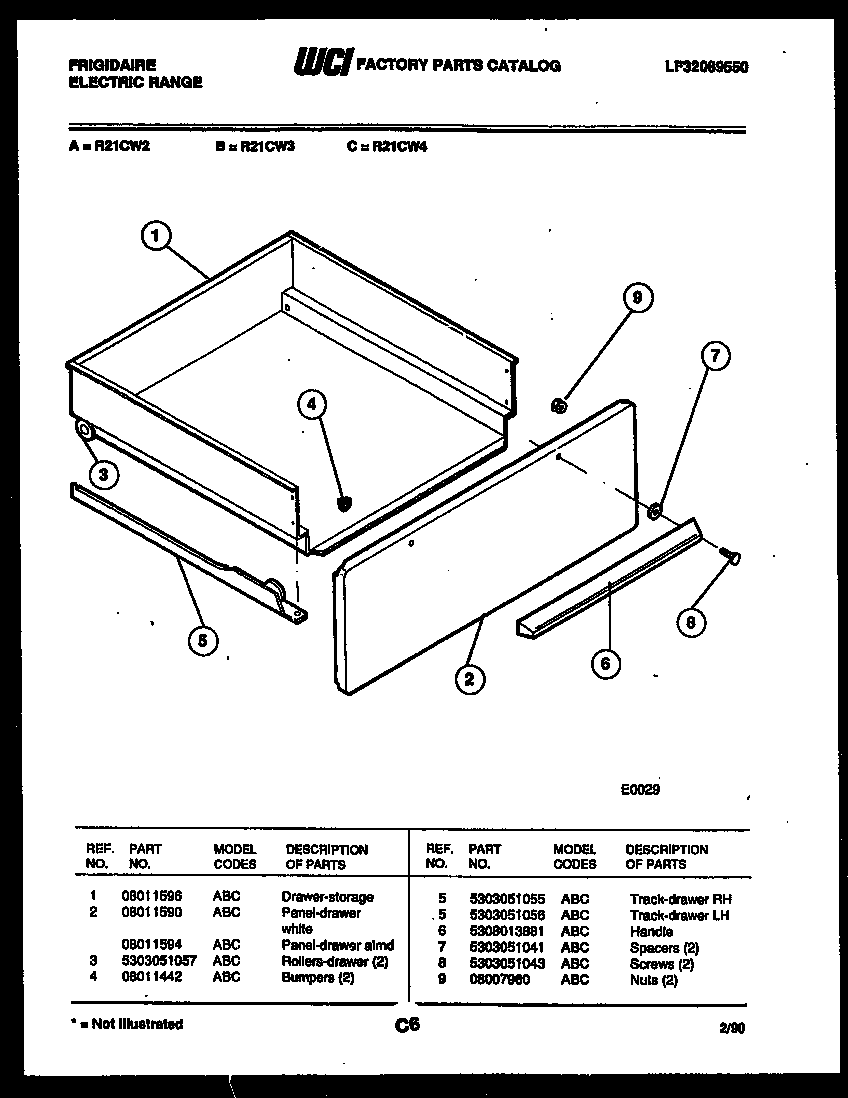

Drawer parts diagram
Nut
Part #08007960
Replaced by #5303013272
?
Manufacturer substitution
This part replaces 08007960. Substitute parts can look different from the original.
This item is not returnable
$19.01 |
10% OFF Phone Price : $21.01
In Stock
#50
Lower body parts diagram
Nut
Part #08011725
Replaced by #5303013272
?
Manufacturer substitution
This part replaces 08011725. Substitute parts can look different from the original.
This item is not returnable
$19.01 |
10% OFF Phone Price : $21.01
In Stock
#83
Lower body parts diagram
Element
Part #08010472
Replaced by #220T017P02
?
Manufacturer substitution
This part replaces 08010472. Substitute parts can look different from the original.
$131.41 |
8% OFF Phone Price : $143.41
In Stock
#28E

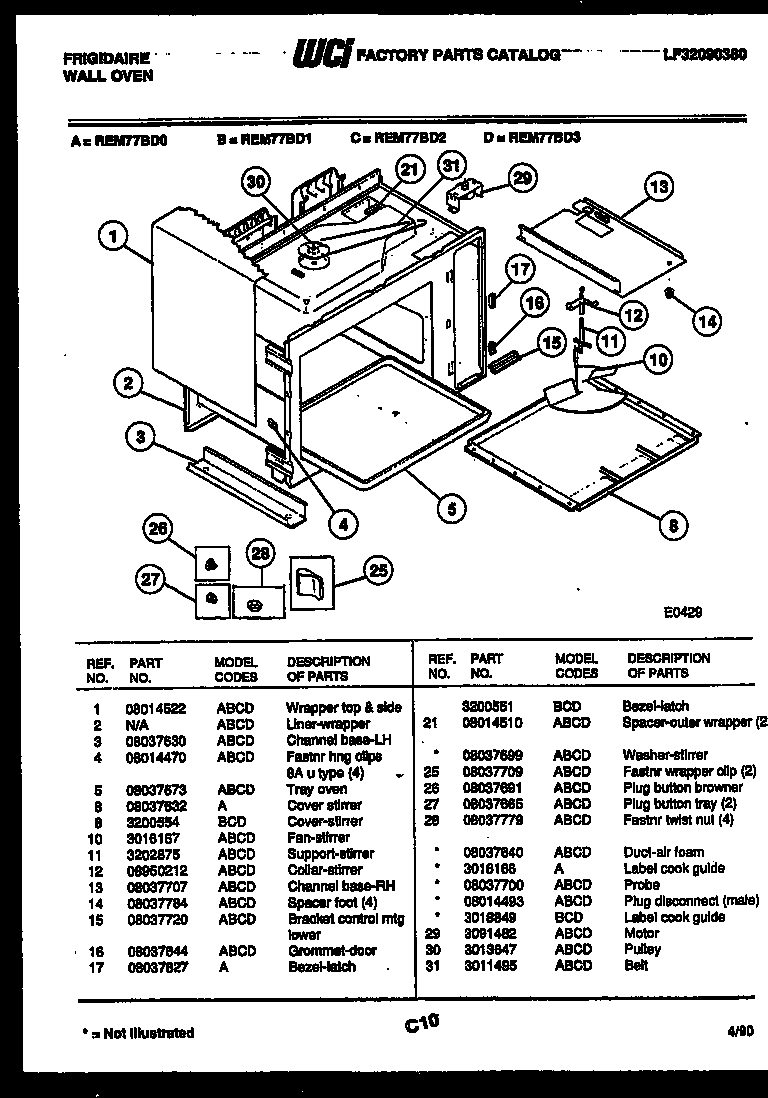

Upper body parts diagram
Label
Part #3018849
Replaced by #5303271795
?
Manufacturer substitution
This part replaces 3018849. Substitute parts can look different from the original.
This item is not returnable
$3.86
In Stock
#13A

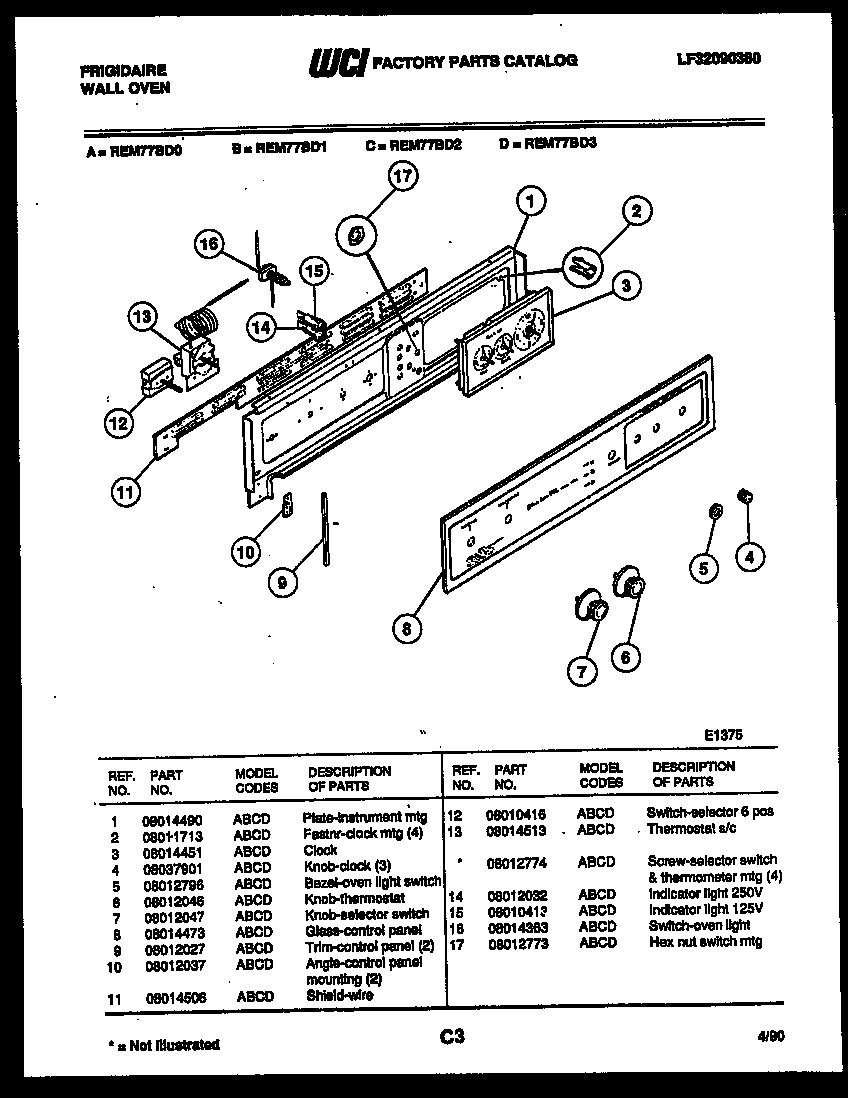

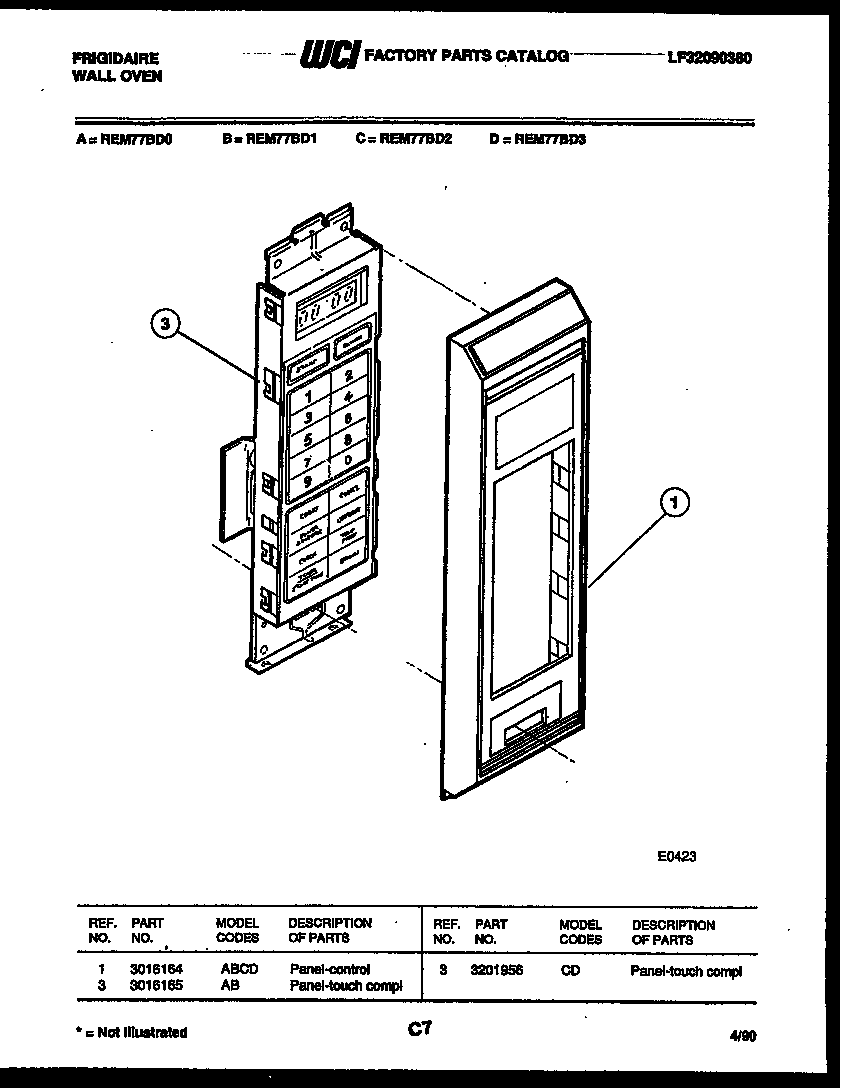

Control panel diagram
Screw
Part #08012774
Replaced by #5304501948
?
Manufacturer substitution
This part replaces 08012774. Substitute parts can look different from the original.
$9.03
In Stock
#7A

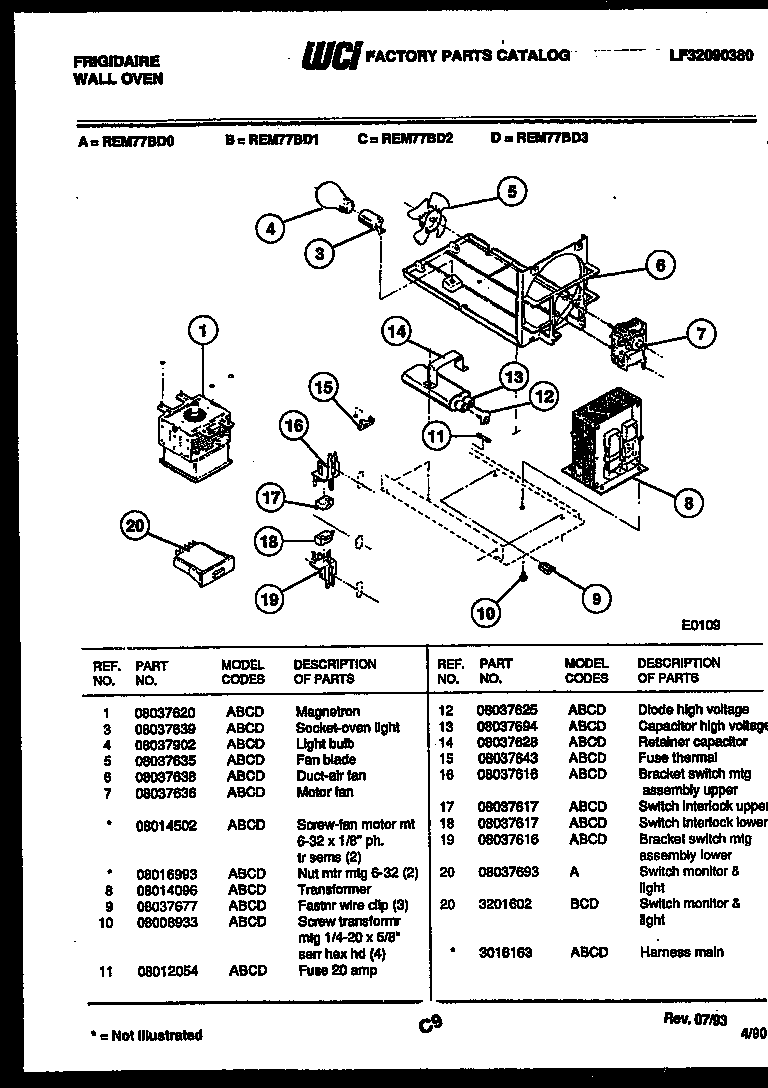

Power control diagram
Screw
Part #08014502
Replaced by #5308014502
?
Manufacturer substitution
This part replaces 08014502. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
#8
Drawer parts diagram
Screw
Part #5303051043
Replaced by #5303292012
?
Manufacturer substitution
This part replaces 5303051043. Substitute parts can look different from the original.
$15.60
In Stock
#28A
Upper body parts diagram
Duct - air (foam)
Part #08037640
The manufacturer no longer makes this part, and there's no substitute part
#81
Lower body parts diagram
Thermal fuse
Part #3051147
The manufacturer no longer makes this part, and there's no substitute part
