Model # AZ65H12EBMW5 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AZ65H12EBMW5 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Service Mainboard Reflash Asm WP26X25251
#110

Grille & control parts diagram

Service mainboard reflash asm

Part #WP26X25251

Replaced by #WP26X28394

?
Manufacturer substitution
This part replaces WP26X25251. Substitute parts can look different from the original.
This item is not returnable
$182.27
In Stock
Room Air Conditioner Evaporator Fan Blade WP73X20970
#221

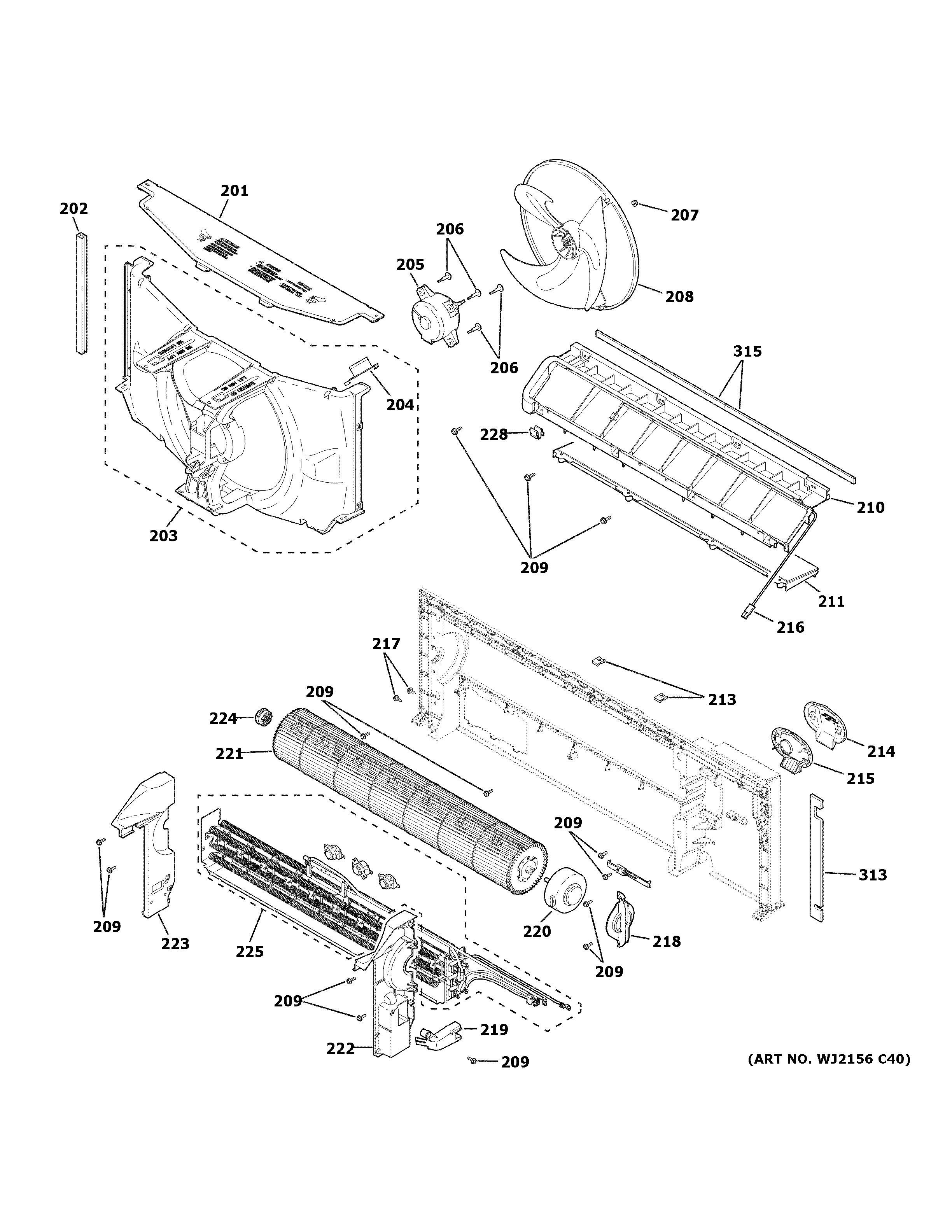

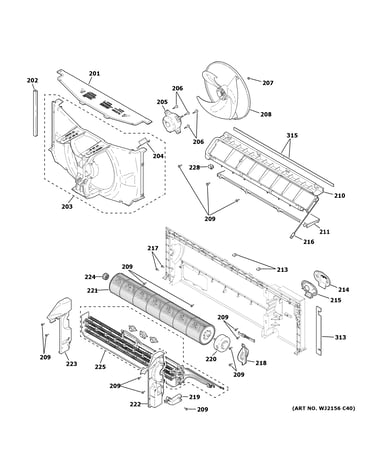

Motor & chassis parts diagram

Room air conditioner evaporator fan blade

Part #WP73X20970

$163.01 |
7% OFF Phone Price : $175.01
In Stock
Room Air Conditioner Control Panel Overlay WP71X20874
#117

Grille & control parts diagram

Room air conditioner control panel overlay

Part #WP71X20874

$20.49 |
23% OFF Phone Price : $26.49
In Stock
Room Air Conditioner Control Panel And Keypad Assembly WP76X24978
#116

Grille & control parts diagram

Room air conditioner control panel and keypad assembly

Part #WP76X24978

$38.73 |
13% OFF Phone Price : $44.73
In Stock
Room Air Conditioner Louver WP71X20866
#104

Grille & control parts diagram

Room air conditioner louver

Part #WP71X20866

$26.38 |
19% OFF Phone Price : $32.38
In Stock
Thermistor I WP26X20982
#318

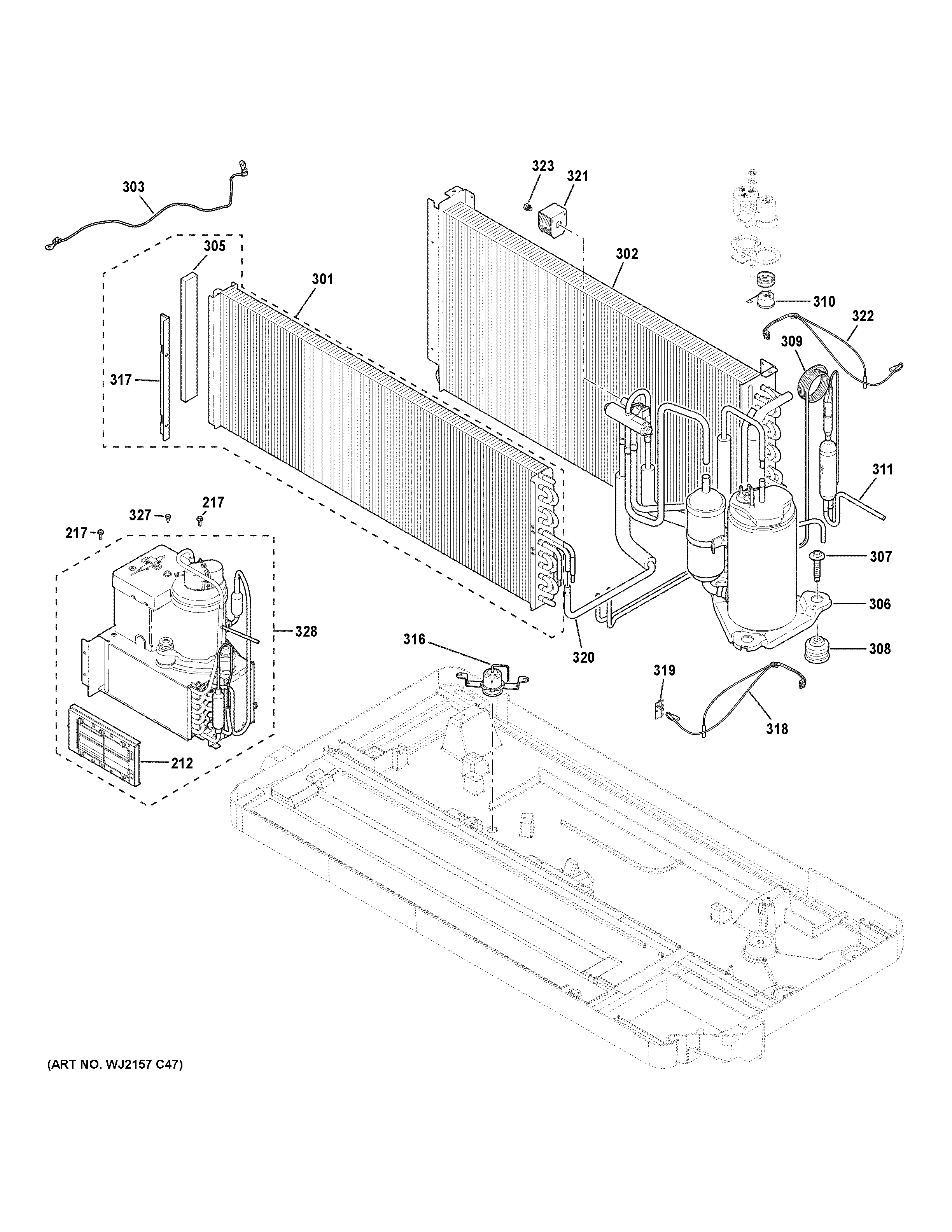

Sealed system diagram

Thermistor i

Part #WP26X20982

$20.28 |
23% OFF Phone Price : $26.28
In Stock
Room Air Conditioner User Interface Board (replaces Wp26x23380) WP26X24977
#119

Grille & control parts diagram

Room air conditioner user interface board (replaces wp26x23380)

Part #WP26X24977

$74.51 |
7% OFF Phone Price : $80.51
In Stock
End Cap Left WP76X24993
#223

Motor & chassis parts diagram

End cap left

Part #WP76X24993

$15.00
In Stock
Thermistor Id WP26X21547
#216

Motor & chassis parts diagram

Thermistor id

Part #WP26X21547

$24.00
In Stock
Hardware Kit WP01X20865
#9999

Grille & control parts diagram

Hardware kit

Part #WP01X20865

$8.11
In Stock
