CONFIRM THE PART FITS

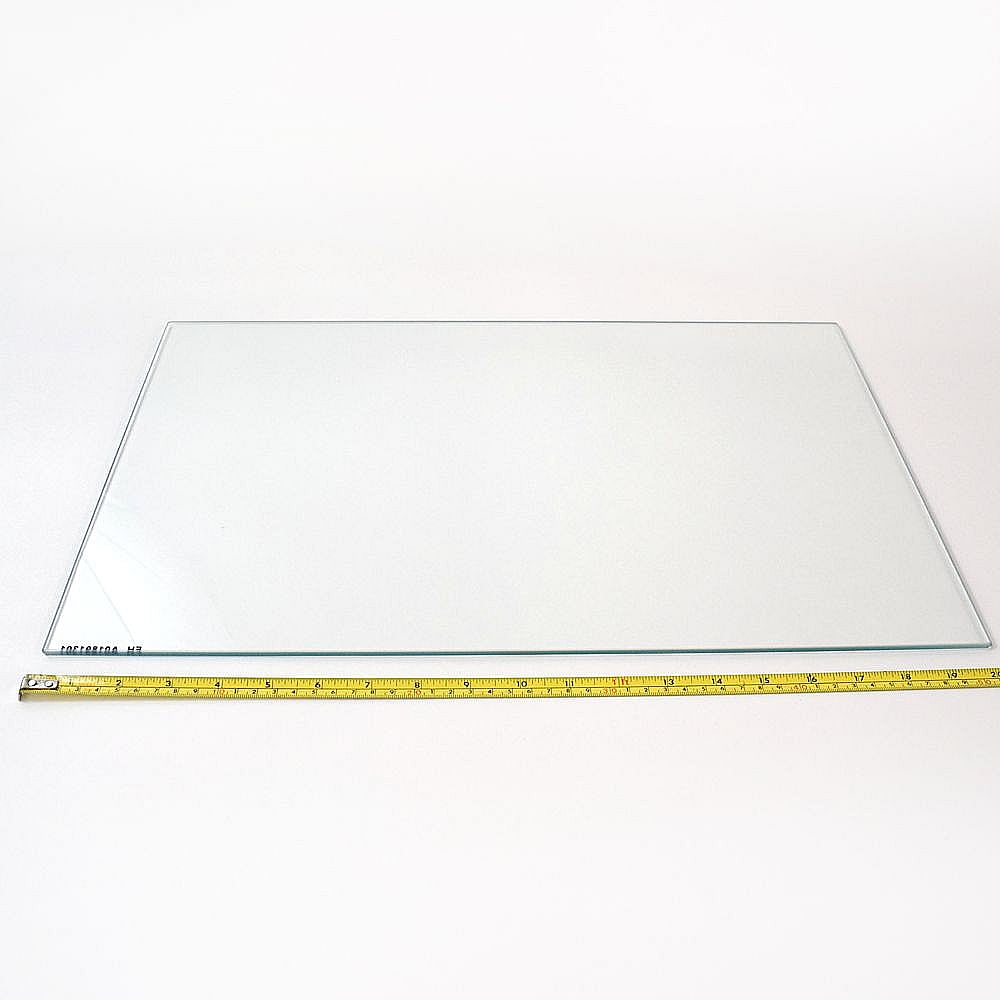

Range Oven Door Inner Glass 316117502
Part #316117502
Replaced by #5304503232
?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
Online Only Price
$76.50 |Â
7% OFFÂ Phone Price : $82.50
In Stock
For ZIP codes near Edit
This part fits
Part Information
Basic Information
- Part Name: Range Oven Door Inner Glass
- Manufacturer: Frigidaire
- Category: Range/Oven Parts
- Primary Function: This oven door inner glass forms a transparent heat barrier, assisting in the retention of heat within the oven for optimal cooking efficiency while allowing visibility of the interior.
Technical Specifications
- Dimensions: Refer to the manufacturer's documentation for precise dimensions.
- Power Rating: Not applicable.
- Material: Tempered glass.
Installation & Compatibility
- Compatible Models: Consult your oven's user manual or contact Frigidaire support for compatibility confirmation.
- Installation Difficulty: Medium — The process requires care due to the weight of the oven door; it is advisable to have an assistant during installation.
- Tools Required: Standard screwdriver set, protective gloves.
Additional Information
When replacing the Frigidaire Range Oven Door Inner Glass (Part Number 5304503232), ensure the surface has cooled sufficiently before commencing. The oven door must be removed from its frame for service, emphasizing the importance of safety and the potential need for two people to manage heavier components effectively.
This component replaces part numbers 316117502 and 316117503, ensuring continued compatibility and performance.
To maintain your appliance's efficiency and safety, regular inspection of the oven door glass for signs of damage or wear is recommended. Using protective gloves during installation helps prevent injury from sharp edges or broken glass fragments. For detailed installation instructions, please refer to the manufacturer's provided manual or consult a professional technician if needed.
Frequently Used Together
- $14.89 |Â12% OFFÂ Phone Price : $16.89
- $12.32 |Â14% OFFÂ Phone Price : $14.32
- $93.64 |Â6% OFFÂ Phone Price : $99.64
- $103.98
- $39.32 |Â13% OFFÂ Phone Price : $45.32
- $76.50 |Â7% OFFÂ Phone Price : $82.50
- $25.52 |Â19% OFFÂ Phone Price : $31.52
- $14.89 |Â12% OFFÂ Phone Price : $16.89
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #79045003803 Kenmore Elite electric range | 79045003803 | Door |
| Model #FGF379WJCB Frigidaire gas range | FGF379WJCB | Door |
| Model #FGFB86DCA Frigidaire gas range | FGFB86DCA | Door |
| Model #FGFL83DSB Frigidaire gas range | FGFL83DSB | Door |
| Model #FGFL87DCD Frigidaire gas range | FGFL87DCD | Door |
| Model #FGFL87DCC Frigidaire gas range | FGFL87DCC | Door |
| Model #FGF378ACE Frigidaire gas range | FGF378ACE | Top/drawer |
| Model #FGFL88ACB Frigidaire gas range | FGFL88ACB | Door |
| Model #FGFB86DQA Frigidaire gas range | FGFB86DQA | Door |
| Model #FGF378ACD Frigidaire gas range | FGF378ACD | Door |
Reviews
Great customer service
Item was delivered promptly, well packaged and priced affordably. The rest of the door was not repairable but return of the item was simple refund issued quickly.
Joe, Middle Island NY
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Glad it wasn't broken.
Replacing glass arrived in tact. 2 year old unit glass should not explode.
Dan71, ORLANDO
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
Yes, I would recommend this to a friend
Not so easy to install
Quite a bit to taking the door apart and getting it back together. I got it but not easy
Birdseed, Ma
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Yes, I would recommend this to a friend
Wrong part
Wrong part was sent but return procedure was an easy one
T63b, California
Did you find this review helpful?
- Ease of Installation
- Very Difficult
- Duration of Installation
- More than 2 hours
Yes, I would recommend this to a friend
It was easy to install
It took longer to clean up the broken glass than to install the glass !
jdavis, Lawley Al.
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Arrived on time, exact fit
Simple steps to put in and door is like new. I love it
OT1906, Misssissippi
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Yes, it was easy to install.
cleaning up the broken glass took most of the time. Installation was easy on the new glass.
Bruce, Battle Creek, MI
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Install ,Piece Of Cake Took 10 Min.
Inner Glass Door Exploded,Picked Up Broken Glass With Shop Vac. Took Door Off, Removed 4Screws on bottom of door ,2screws that held handle on,then removed inner panel Finished picking up rest of broken glass.Removed 4 screws on inner panel that held Glass in place. Put In new glass.and everything back the way it came out.Took 10 min.
Chuckmission, Mission ,Kansas
2 people thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
