Carrier
Heating & Cooling Combined Unit

Model # 50XL036300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 50XL036300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

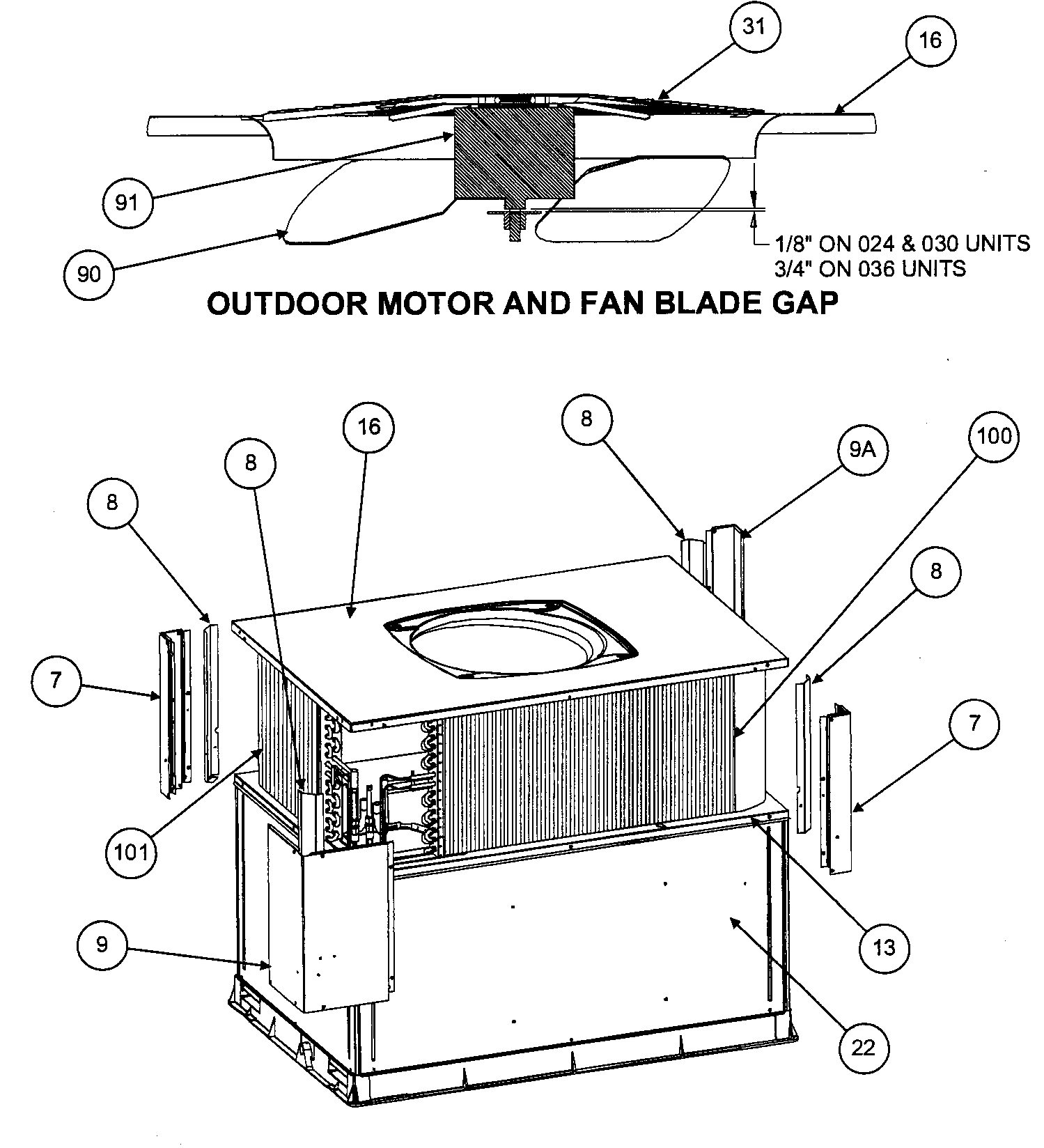

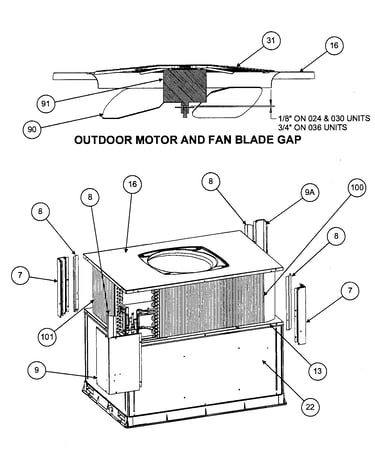

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Pcb Assembly HK38EA009
#65

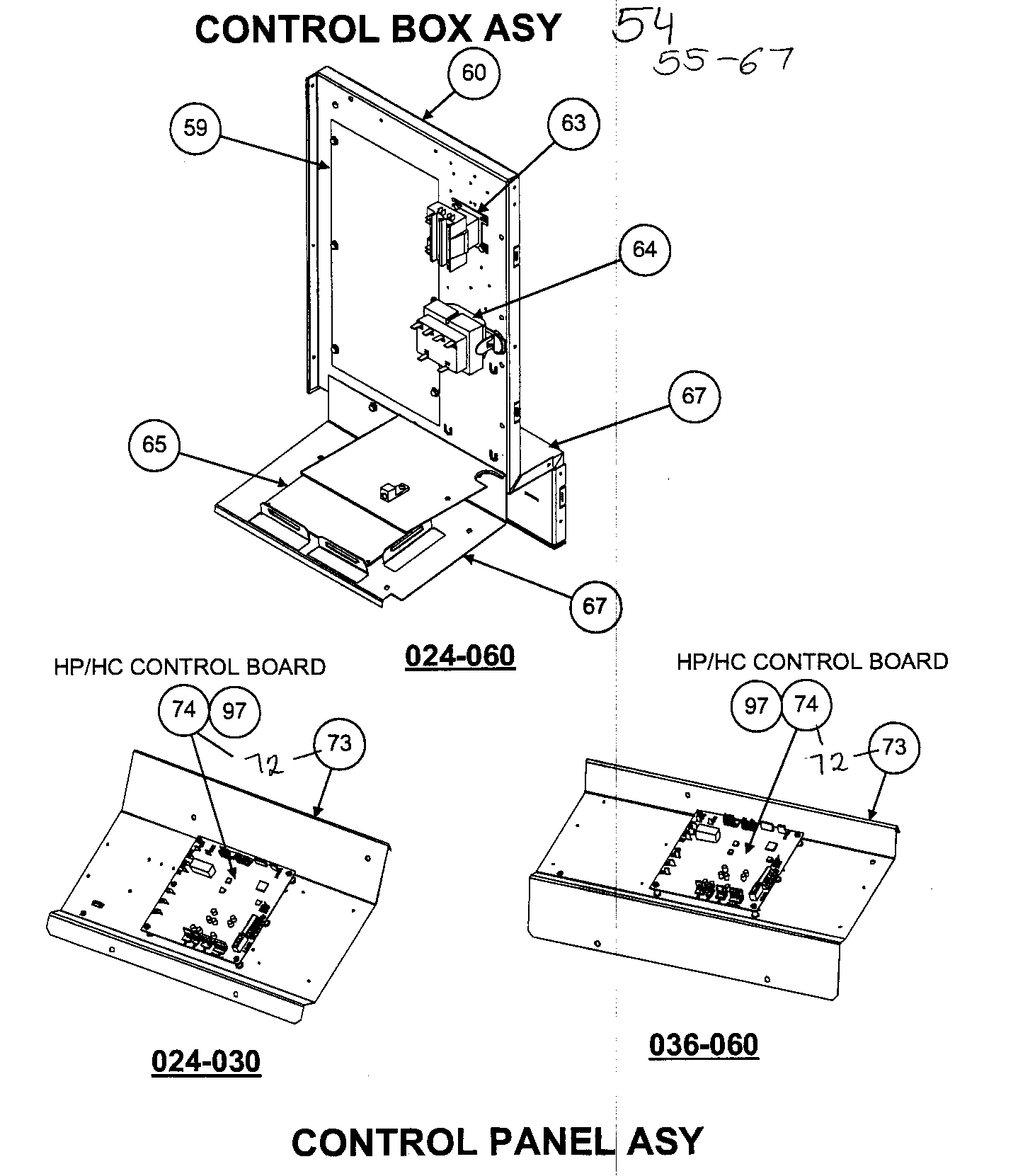

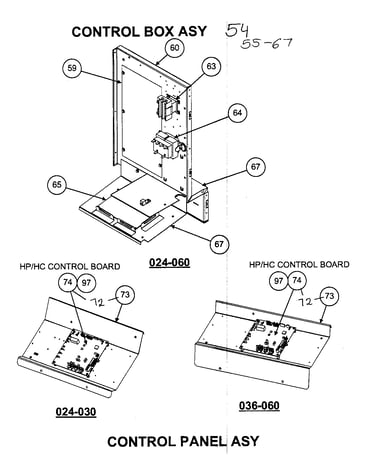

Control box/control panel assy diagram

Pcb assembly

Part #HK38EA009

Replaced by #HK38EA012

?
Manufacturer substitution
This part replaces HK38EA009. Substitute parts can look different from the original.
$1166.10 |
$12.00 OFF Phone Price : $1178.10
In Stock
Pcb Assembly HK38EA008
#74

Control box/control panel assy diagram

Pcb assembly

Part #HK38EA008

Replaced by #HK38EA023

?
Manufacturer substitution
This part replaces HK38EA008. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock
Fan LA01RA025
Fan

Part #LA01RA025

$127.52
In Stock
Core,valve EC39EZ067
#111

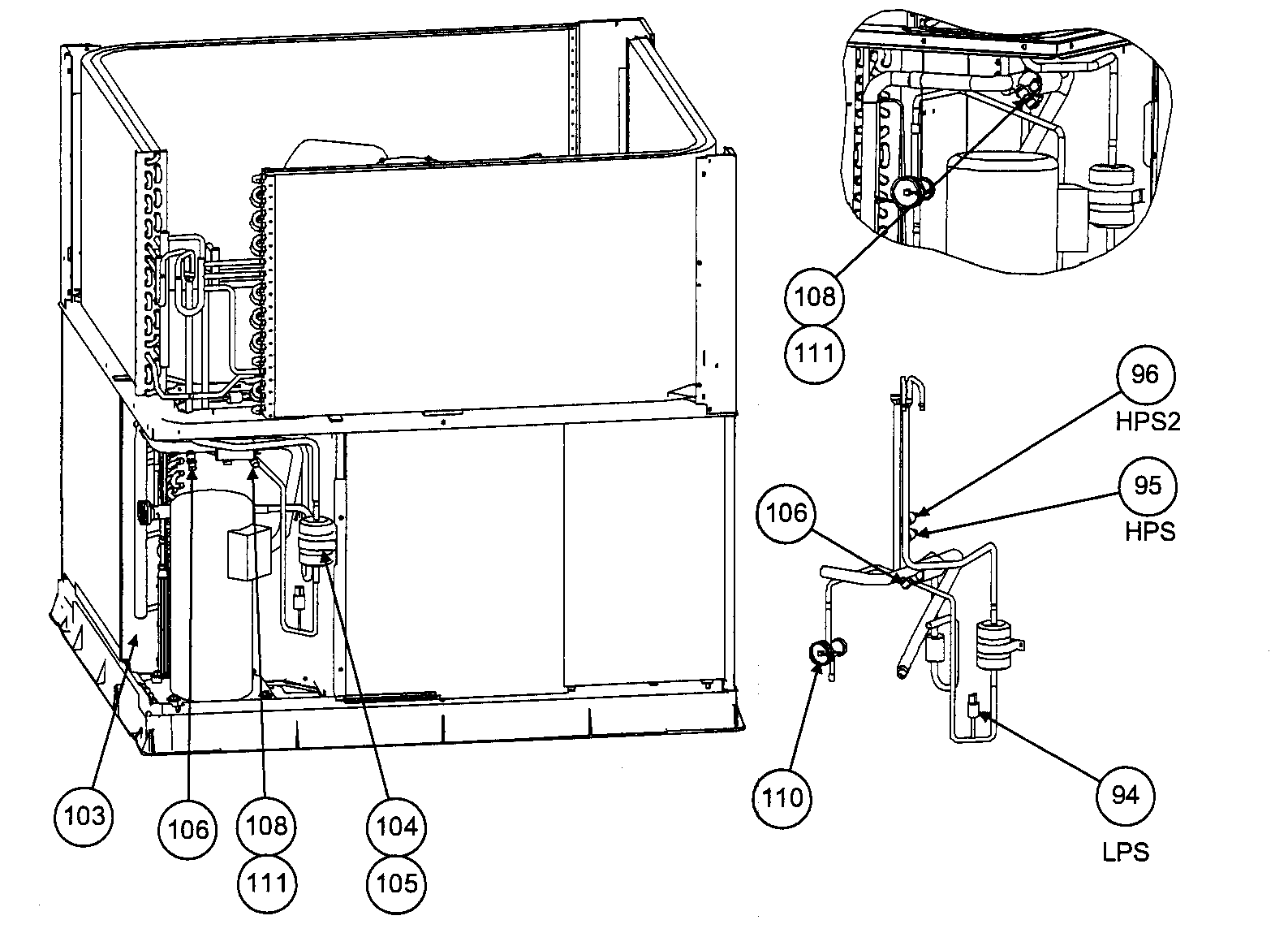

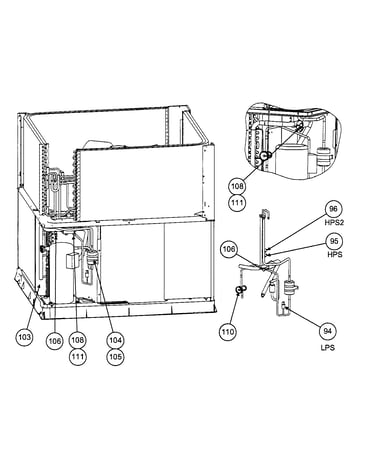

Evap coil diagram

Core,valve

Part #EC39EZ067

$22.03
In Stock
Grommet KA56DS001
#33

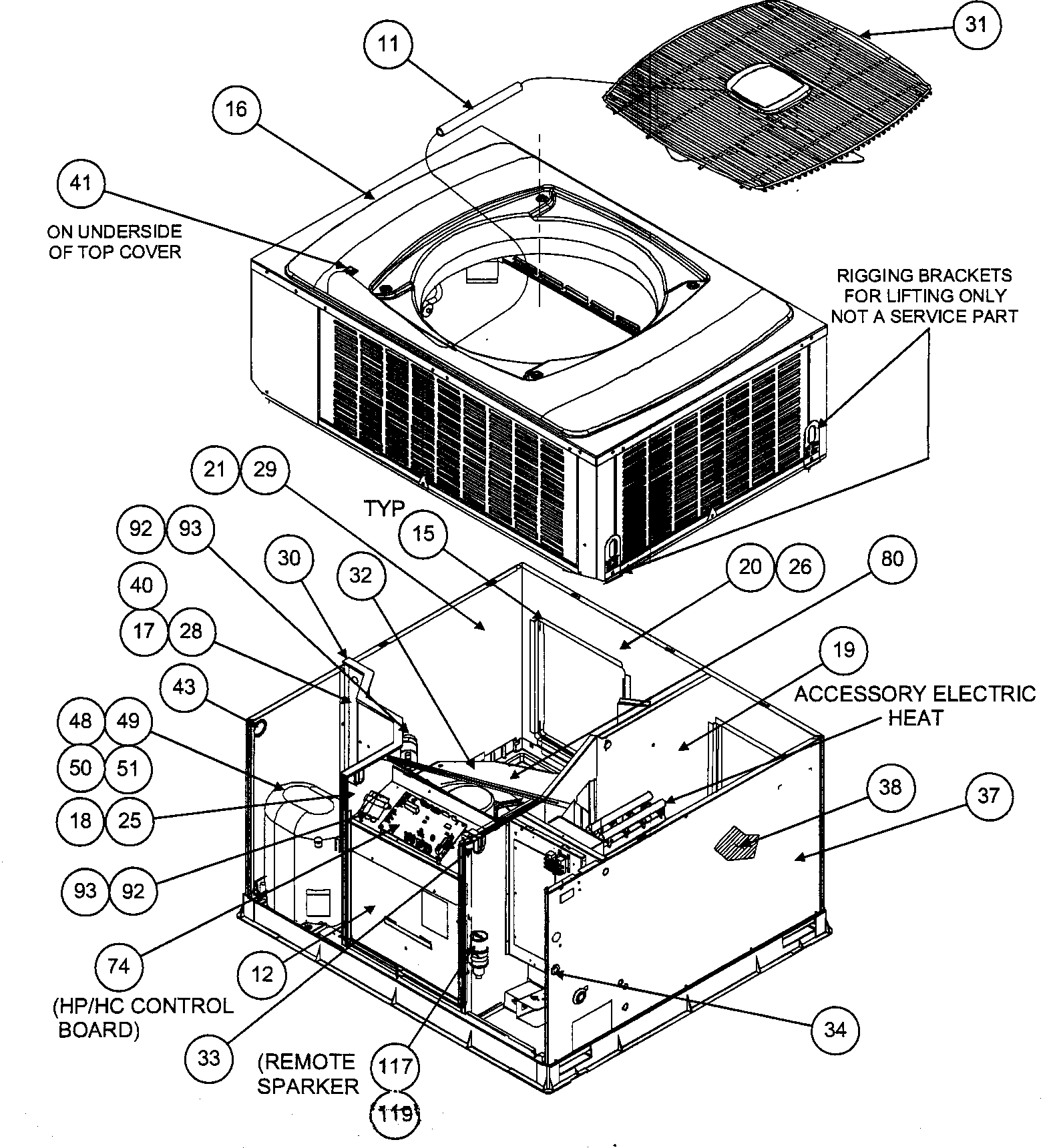

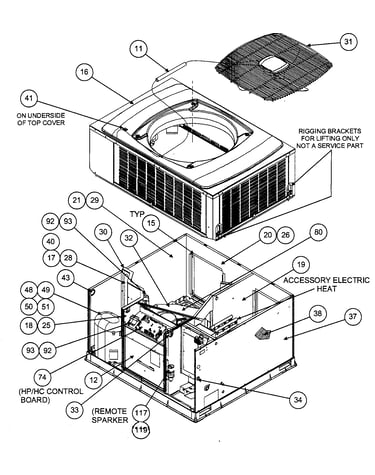

Inside view diagram

Grommet

Part #KA56DS001

This item is not returnable
$2.63
In Stock
Insulation 48GS500307
#26

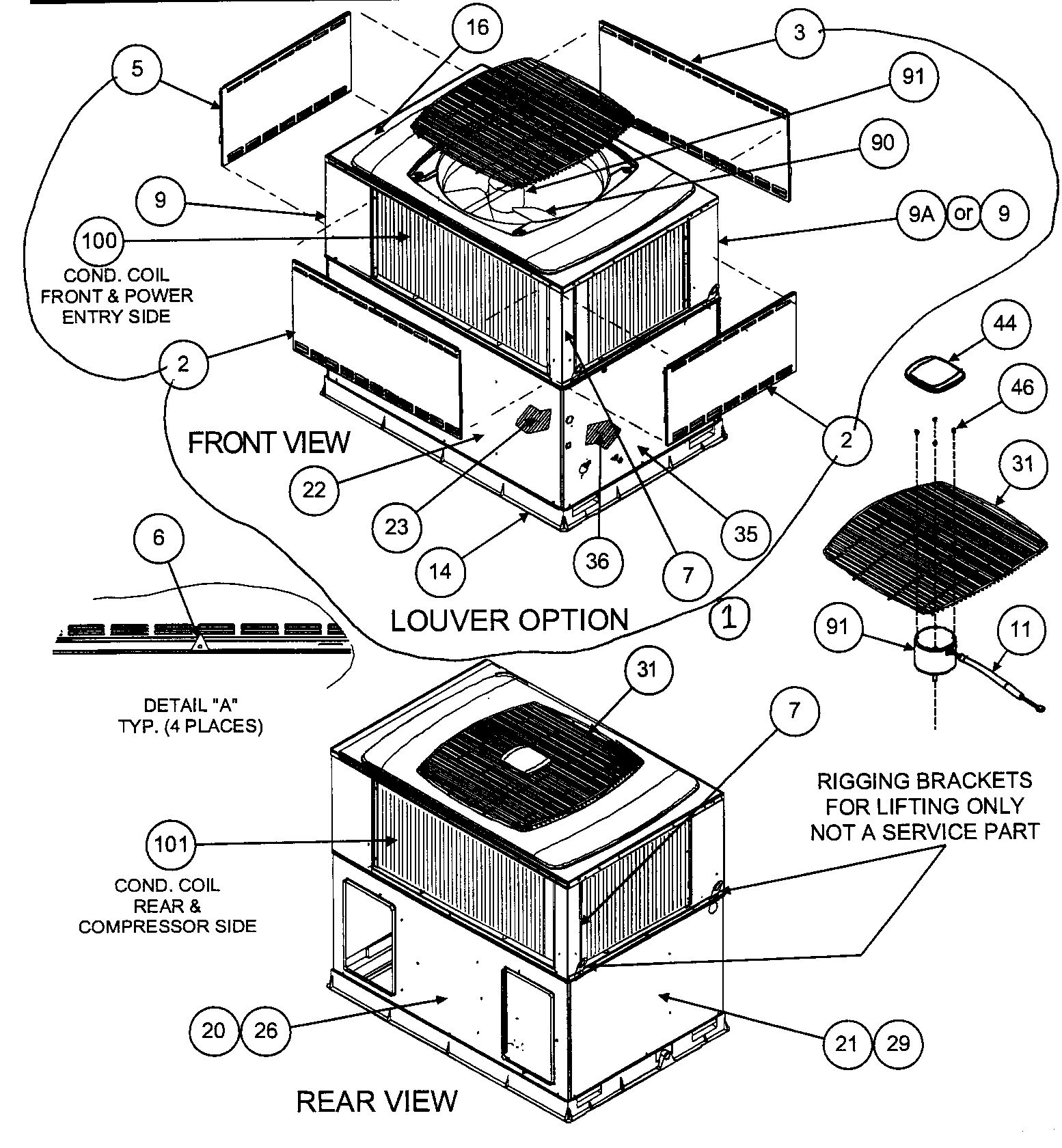

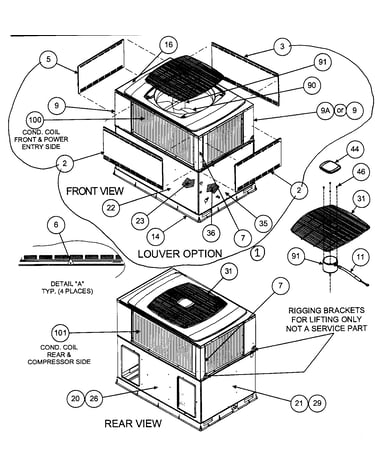

Front view/rear view diagram

Insulation

Part #48GS500307

$63.60
In Stock
Plate Assembly 48GS400310
#82

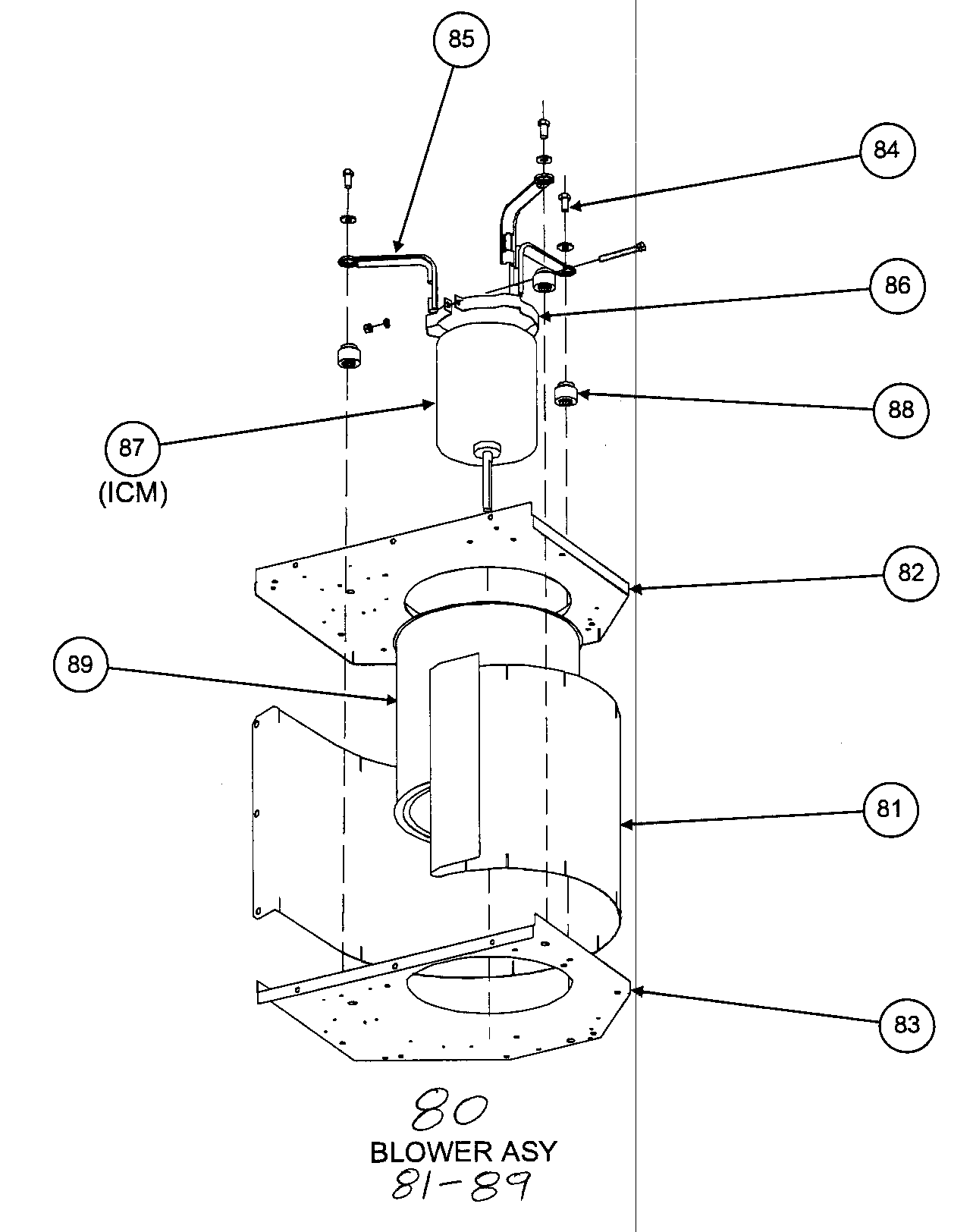

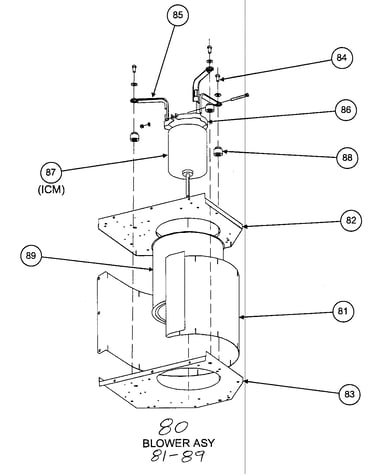

Blower assy diagram

Plate assembly

Part #48GS400310

$288.69
In Stock
Fan Plate 48GS500240
#83

Blower assy diagram

Fan plate

Part #48GS500240

$198.18
In Stock
Paint 313974-751
#NI

Front view/rear view diagram

Paint

Part #313974-751

$60.89
In Stock
Plug Assembly HK70EZ029
#97

Control box/control panel assy diagram

Plug assembly

Part #HK70EZ029

$30.07
In Stock
