Model # JB840DP1BB Official GE electric range
Here are the diagrams and repair parts for Official GE JB840DP1BB electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

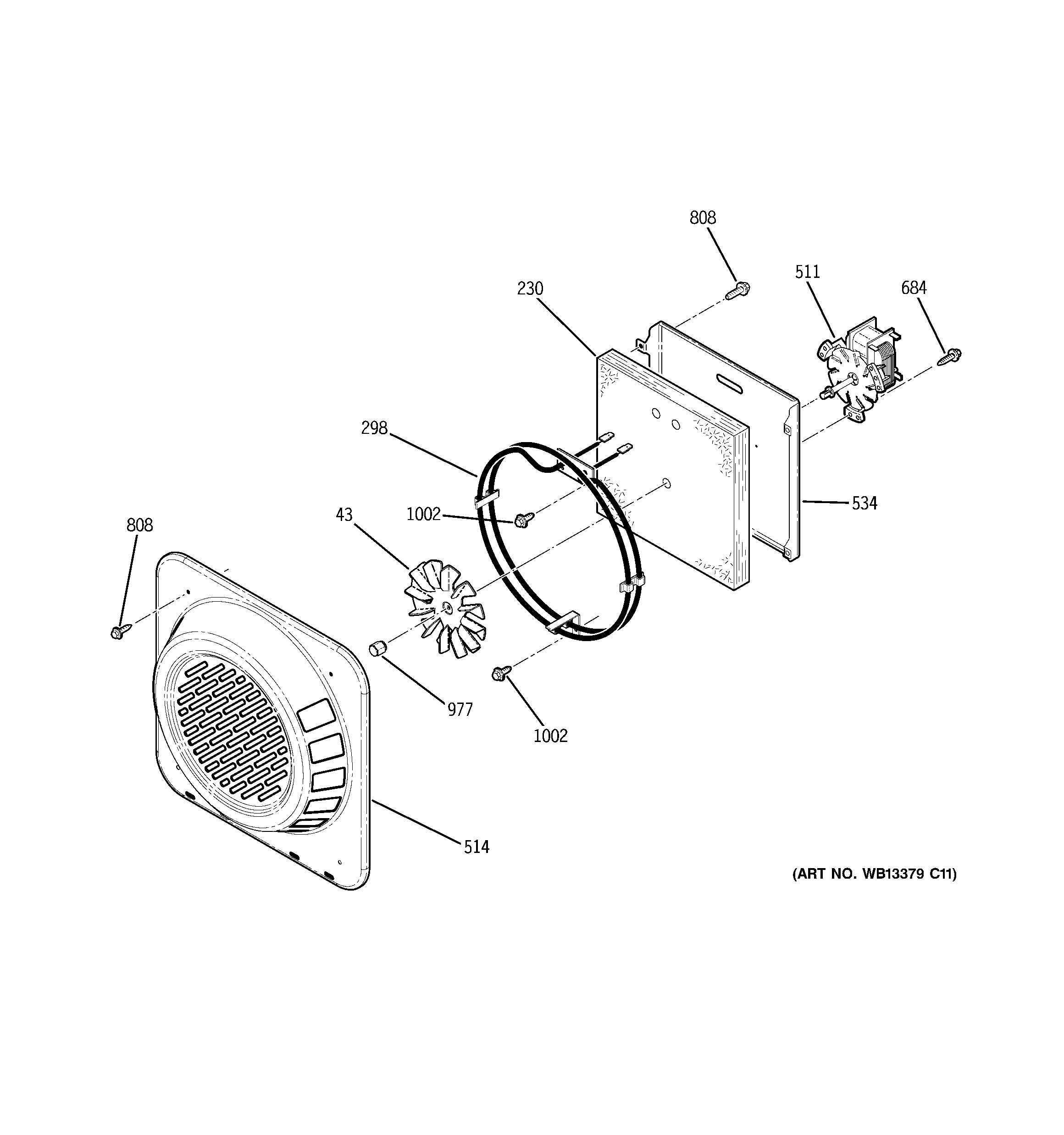

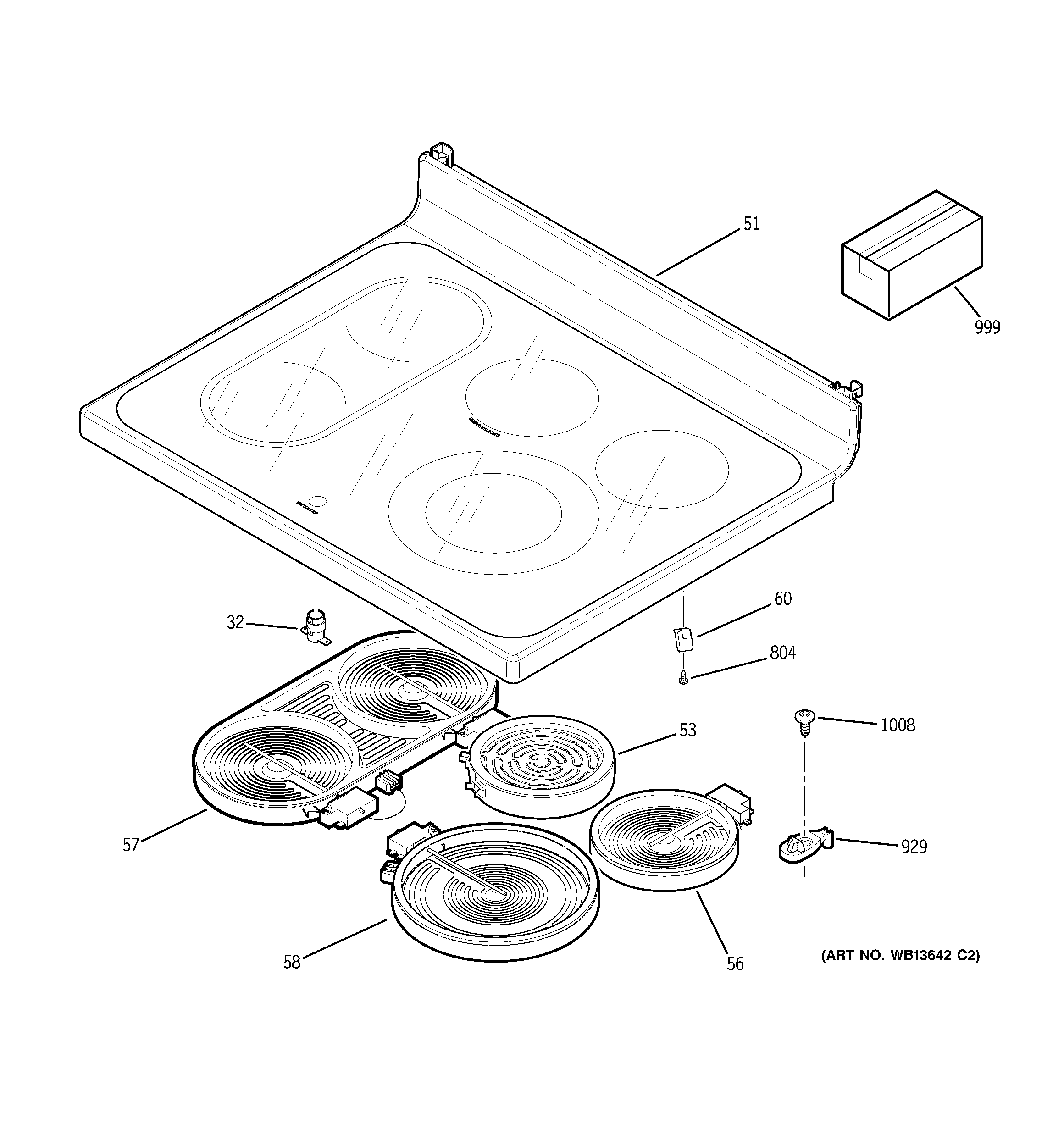

SELECT DIAGRAM
Browse Parts forJB840DP1BB Ranges
- #253

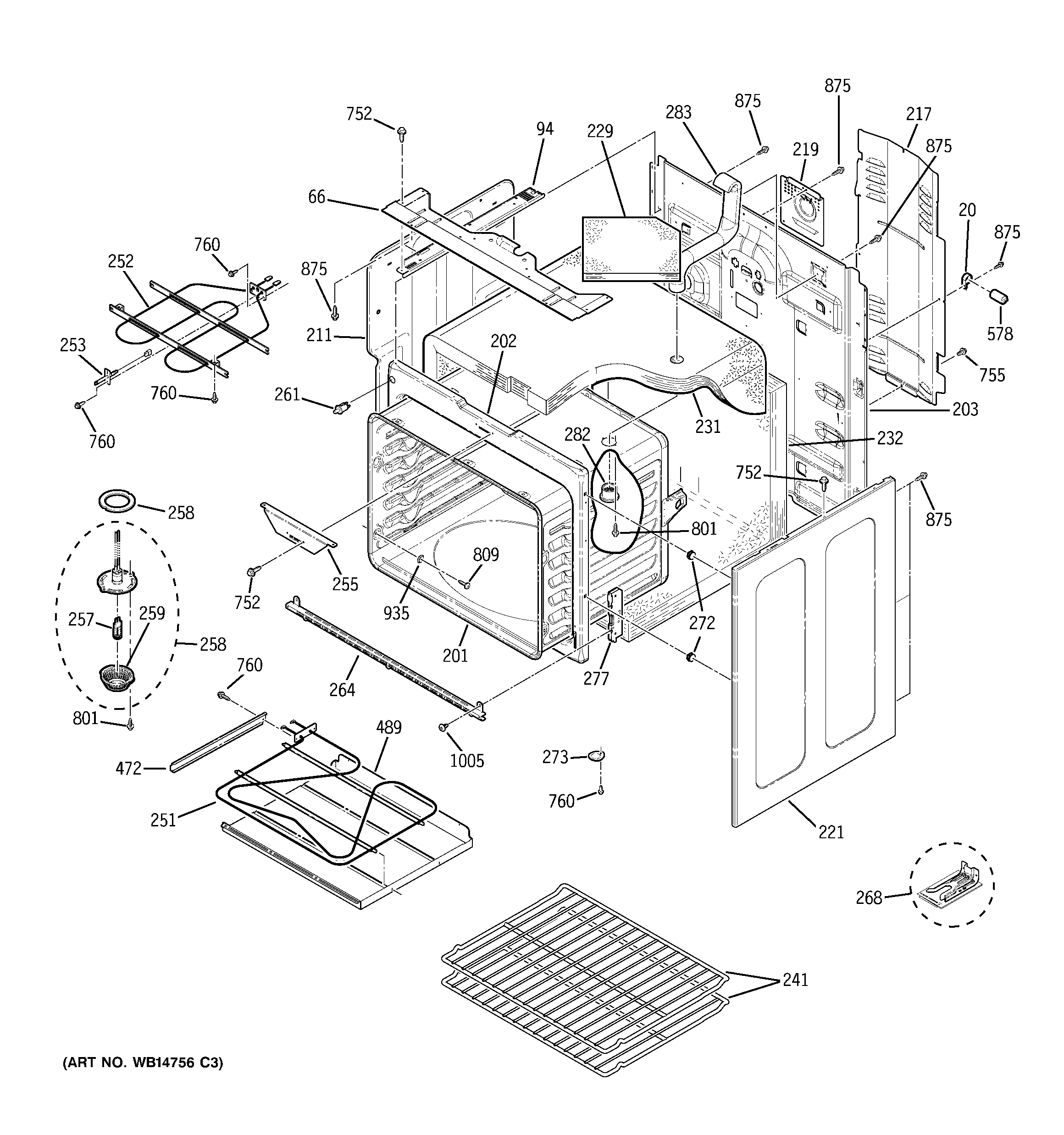

Body parts diagram
Wall oven temperature sensorPart #WB21T10007
Replaced by #WB21X22134
?Manufacturer substitutionThis part replaces WB21T10007. Substitute parts can look different from the original.$20.60 |23% OFF Phone Price : $26.60In Stock - #338

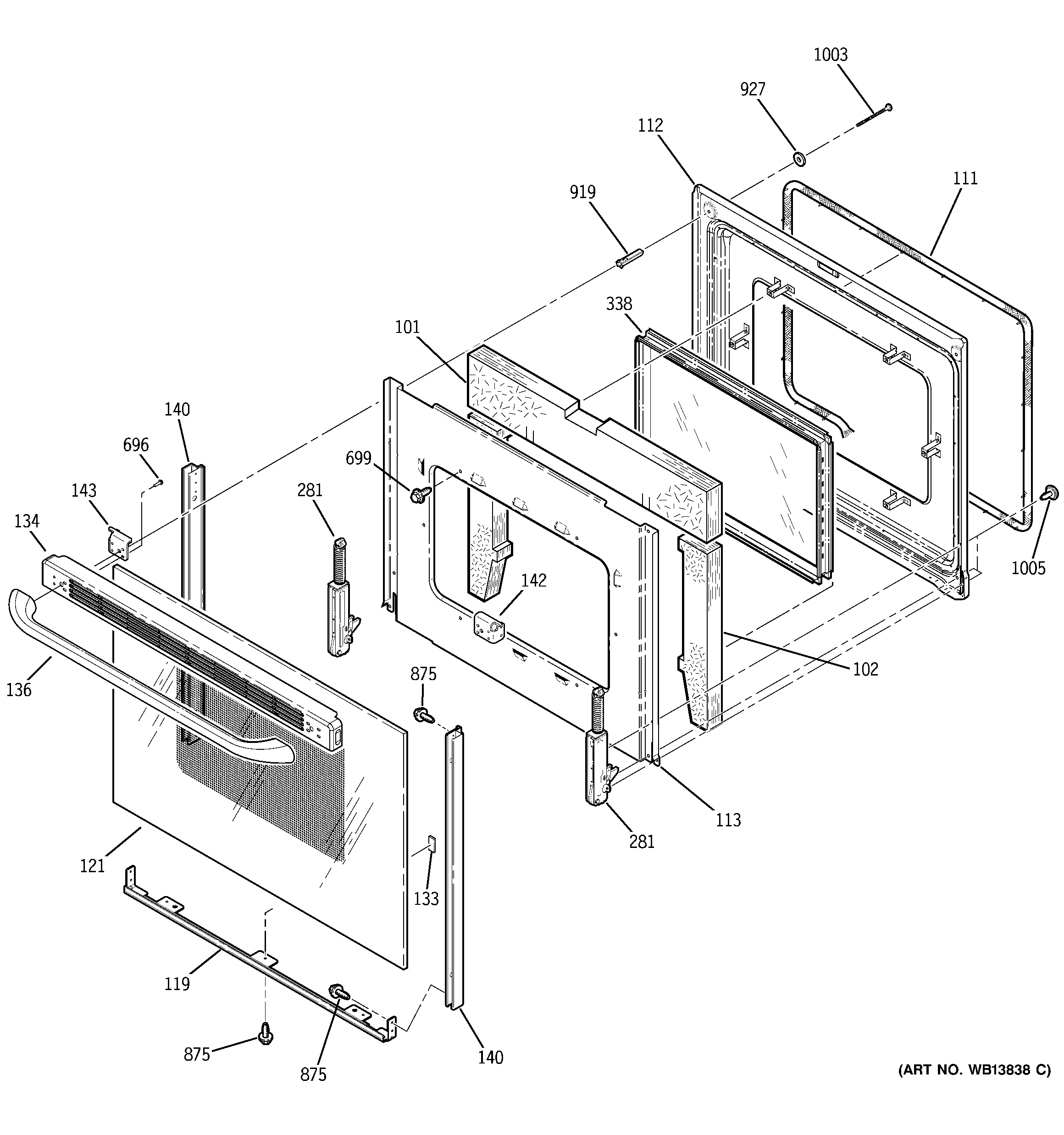

Door diagram
Pack windowPart #WB55T10160
Replaced by #WB56T10105
?Manufacturer substitutionThis part replaces WB55T10160. Substitute parts can look different from the original.$116.76 |9% OFF Phone Price : $128.76In Stock - #19

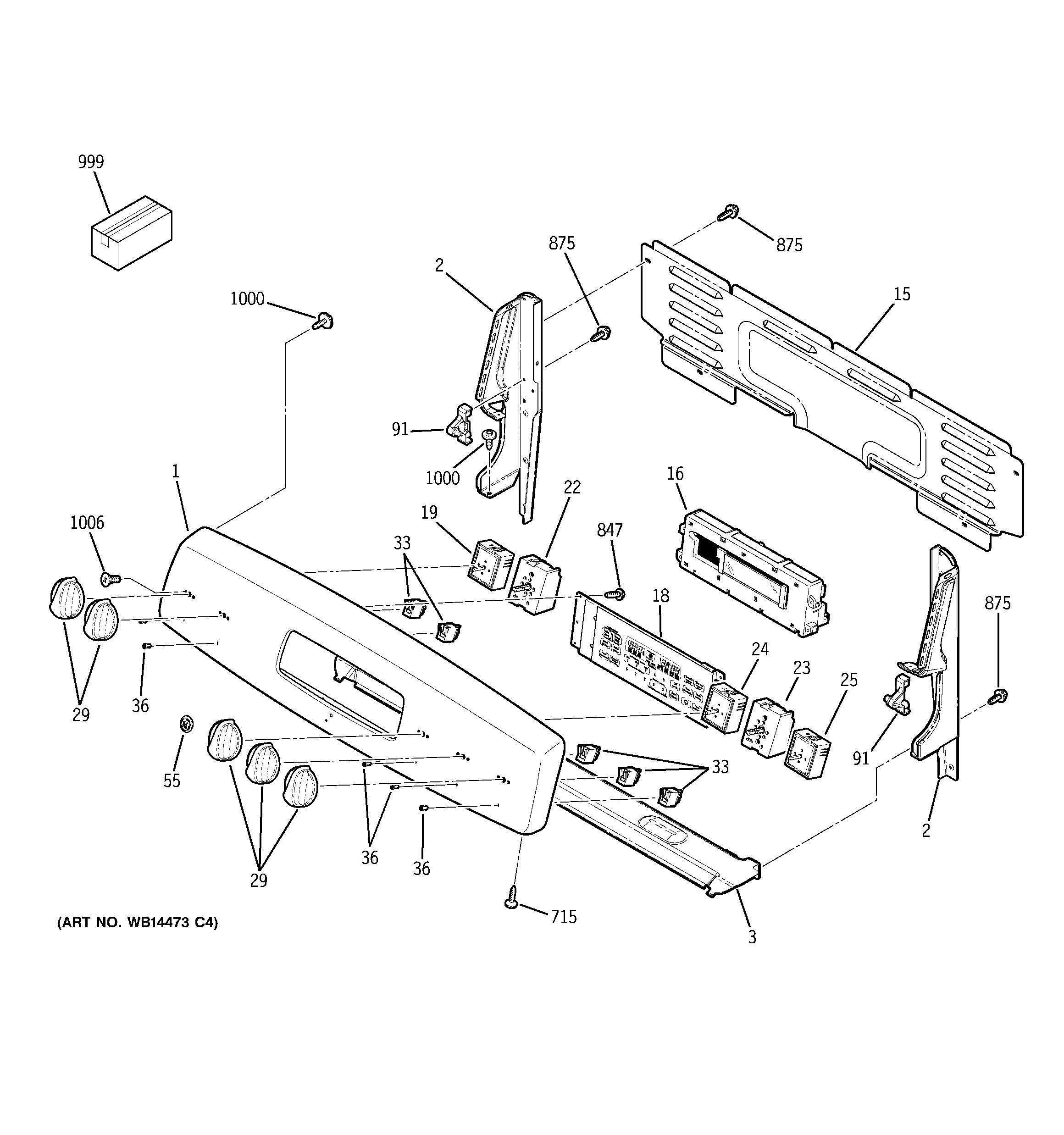

Control panel diagram
Range surface element control switchPart #WB24T10153
$77.32 |7% OFF Phone Price : $83.32In Stock - #254
Warming drawer diagram
Terminal blockPart #WB17T10012
Replaced by #WB17T10011
?Manufacturer substitutionThis part replaces WB17T10012. Substitute parts can look different from the original.$54.72 |10% OFF Phone Price : $60.72In Stock - #261
Body parts diagram
Range oven door switchPart #WB24T10147
This item is not returnable$18.69 |10% OFF Phone Price : $20.69In Stock - #257
Body parts diagram
Light bulbPart #WB08T10007
Replaced by #WB08T10023
?Manufacturer substitutionThis part replaces WB08T10007. Substitute parts can look different from the original.This item is not returnable$22.56 |21% OFF Phone Price : $28.56In Stock - #23
Control panel diagram
Range surface element control switchPart #WB24T10145
This item is not returnable$56.18 |18% OFF Was : $68.14In Stock - #251
Body parts diagram
Unit asm (h/Part #WB44T10049
Replaced by #WB44X45499
?Manufacturer substitutionThis part replaces WB44T10049. Substitute parts can look different from the original.$121.17In Stock - #111
Door diagram
Range oven door gasketPart #WB04T10001
Replaced by #WB04T10086
?Manufacturer substitutionThis part replaces WB04T10001. Substitute parts can look different from the original.$44.25 |12% OFF Phone Price : $50.25In Stock - Cooking appliance screw, #10-32
Part #WB01T10008
This item is not returnable$9.89 |9% OFF Phone Price : $10.89In Stock
