Craftsman
Hammer Drill

Model # 315101371 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315101371 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

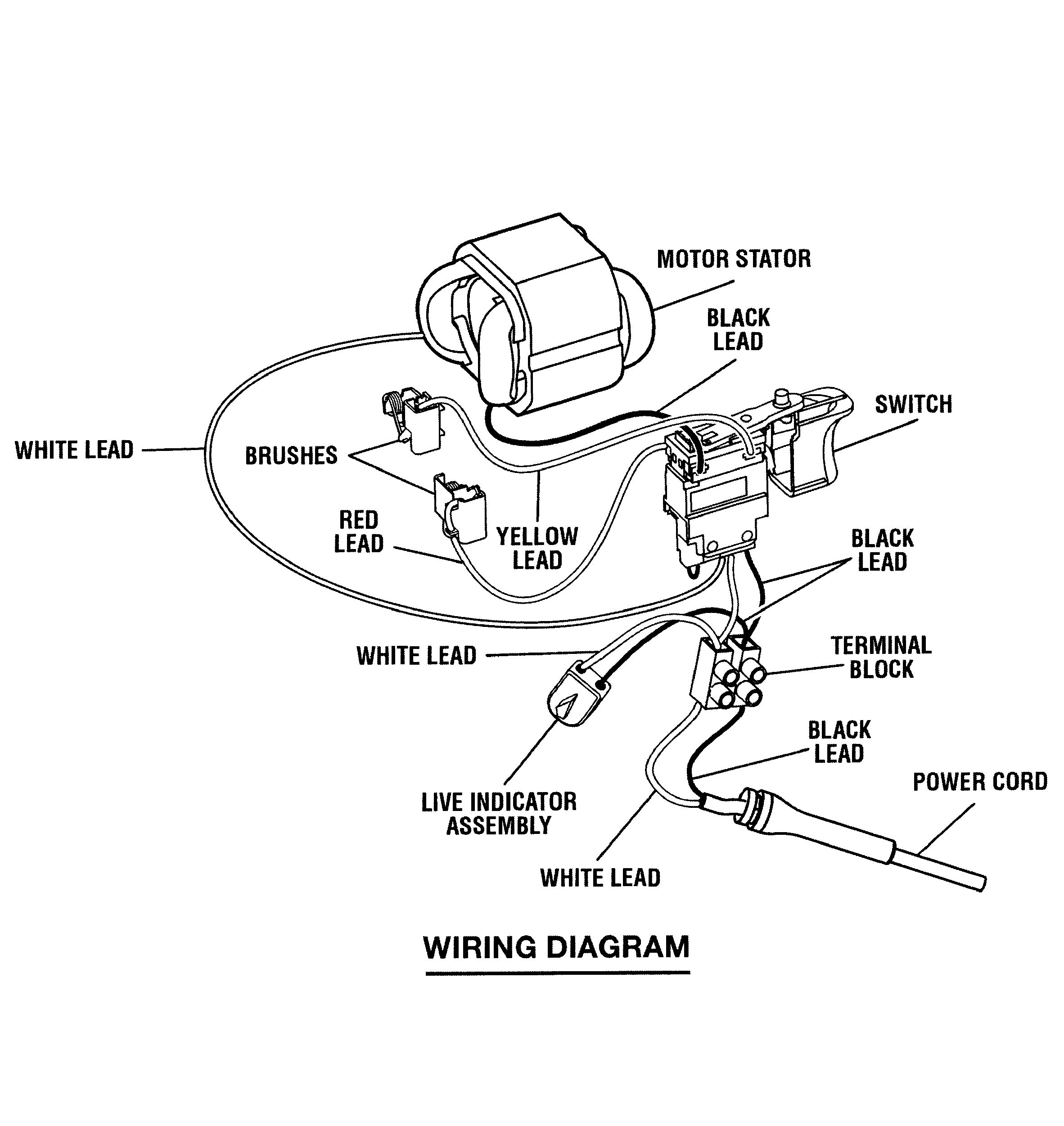

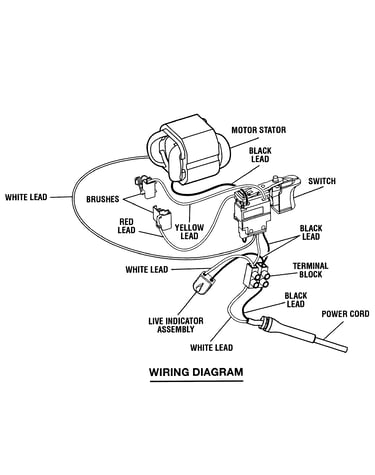

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Level Bubb 304152002
#13

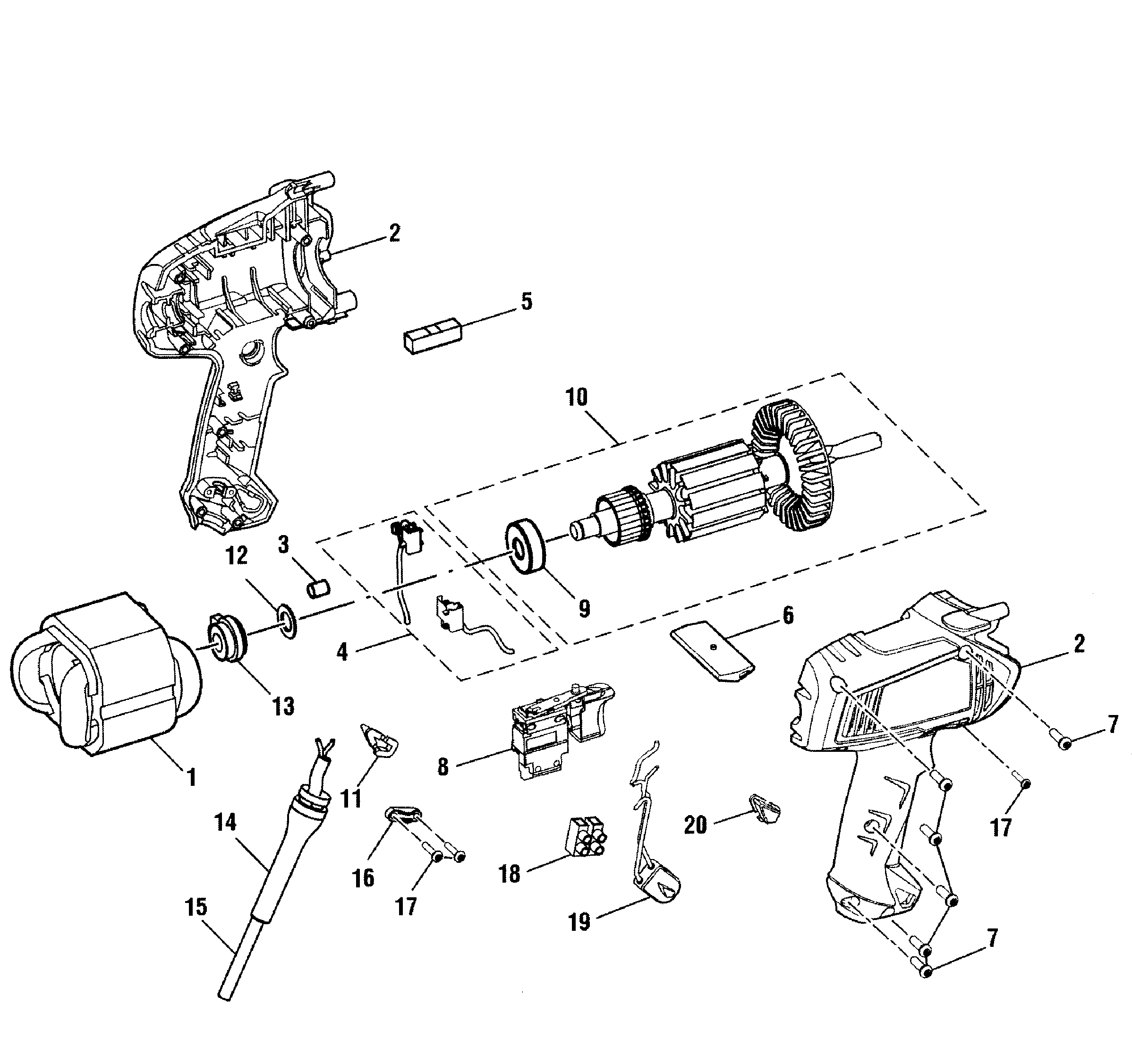

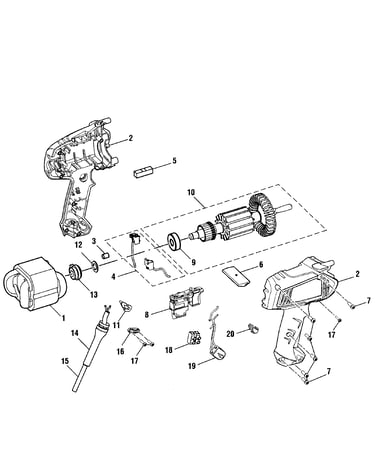

Motor assy diagram

Level bubb

Part #304152002

The manufacturer no longer makes this part, and there's no substitute part

Adjusting Button 513394001
#24

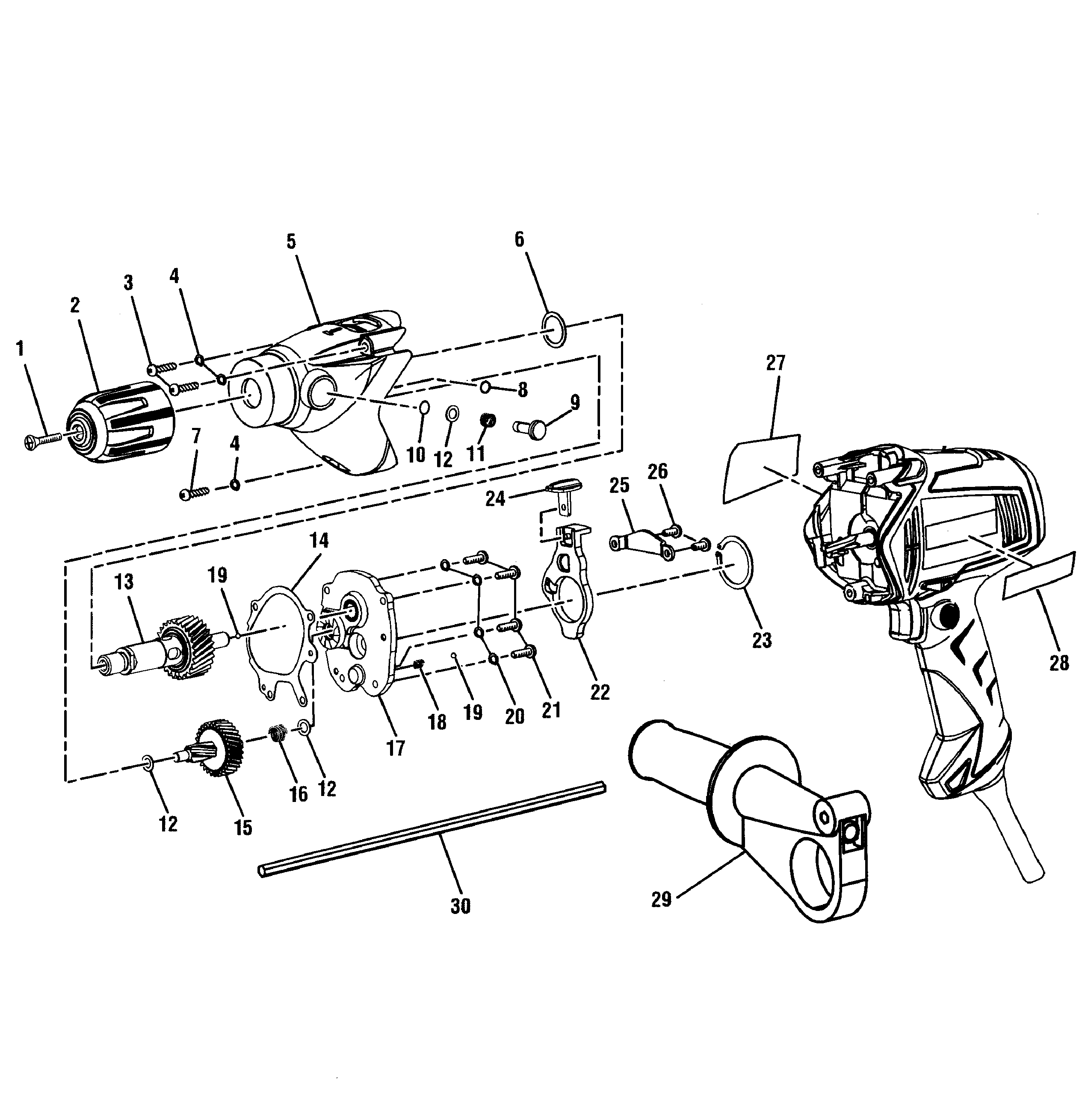

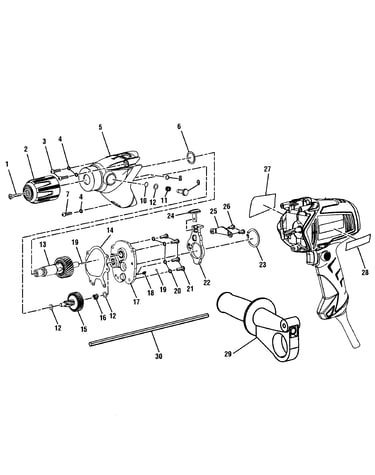

Drill assy diagram

Adjusting button

Part #513394001

The manufacturer no longer makes this part, and there's no substitute part

Hammer Drill Output Gear 300676003
#13

Drill assy diagram

Hammer drill output gear

Part #300676003

The manufacturer no longer makes this part, and there's no substitute part

Right Lens 513314001
#20

Motor assy diagram

Right lens

Part #513314001

The manufacturer no longer makes this part, and there's no substitute part

Hammer Drill Intermediate Gear And Pinion 3067501
#15

Drill assy diagram

Hammer drill intermediate gear and pinion

Part #3067501

The manufacturer no longer makes this part, and there's no substitute part

Screw 6616504
#26

Drill assy diagram

Screw

Part #6616504

The manufacturer no longer makes this part, and there's no substitute part

Washer 6796001
#4

Drill assy diagram

Washer

Part #6796001

The manufacturer no longer makes this part, and there's no substitute part

Ring 680821001
#12

Motor assy diagram

Ring

Part #680821001

The manufacturer no longer makes this part, and there's no substitute part

Hammer Drill Auxiliary Handle 300188058
#29

Drill assy diagram

Hammer drill auxiliary handle

Part #300188058

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 300826004
#5

Motor assy diagram

Drill level

Part #300826004

The manufacturer no longer makes this part, and there's no substitute part
