Thermador
Range Hood

Model # H5530W Official Thermador range hood

Here are the diagrams and repair parts for Official Thermador H5530W range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

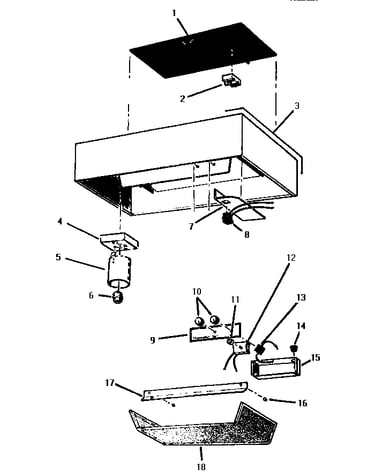

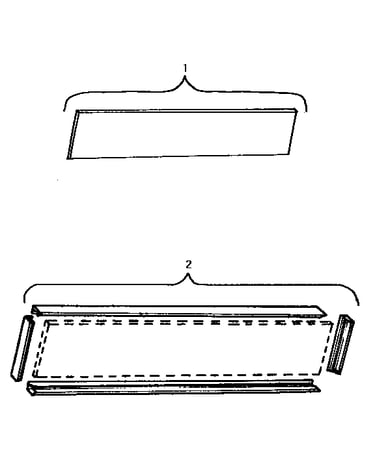

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Range Hood Light Socket 14-09-941
Range hood light socket

Part #14-09-941

This item is not returnable
$6.99
In Stock
Hood Panel Glass, Appliance White, 30" 19-19-420-01
Hood panel glass, appliance white, 30"

Part #19-19-420-01

The manufacturer no longer makes this part, and there's no substitute part

Hood Body Assembly, Appliance White, 42" 19-08-657-01
Hood body assembly, appliance white, 42"

Part #19-08-657-01

The manufacturer no longer makes this part, and there's no substitute part

Trim And Glass Assembly, Appliance White, 42" 19-08-850-01
Trim and glass assembly, appliance white, 42"

Part #19-08-850-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 14-91-102

#NI

All parts diagram

Screw

Part #14-91-102

The manufacturer no longer makes this part, and there's no substitute part

Screw 14-91-034

#NI

All parts diagram

Screw

Part #14-91-034

The manufacturer no longer makes this part, and there's no substitute part

Filter Assembly 19-19-265
Filter assembly

Part #19-19-265

The manufacturer no longer makes this part, and there's no substitute part

Hood Panel Glass, Appliance White, 42" 19-19-422-01
Hood panel glass, appliance white, 42"

Part #19-19-422-01

The manufacturer no longer makes this part, and there's no substitute part

Hood Panel Glass, Appliance White, 36" 19-19-421-01
Hood panel glass, appliance white, 36"

Part #19-19-421-01

The manufacturer no longer makes this part, and there's no substitute part

Accessory Screw 19-19-040

#NI

All parts diagram

Accessory screw

Part #19-19-040

The manufacturer no longer makes this part, and there's no substitute part
