Model # MEW6627BAC Official Maytag electric wall oven

Here are the diagrams and repair parts for Official Maytag MEW6627BAC electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

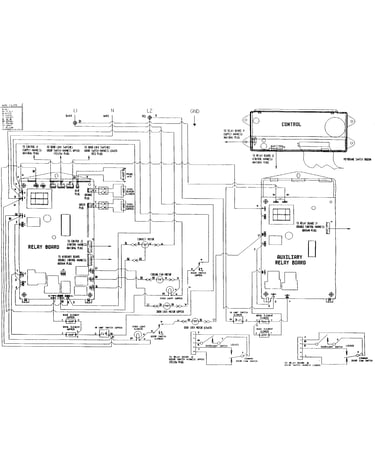

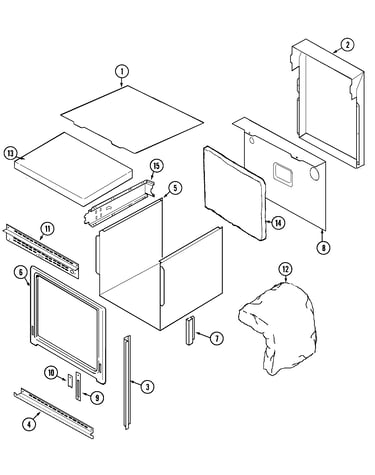

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Oven Sensor 71003083
#12

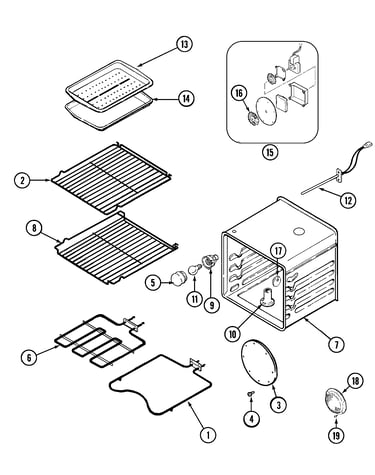

Oven diagram

Oven sensor

Part #71003083

Replaced by #12001656

?
Manufacturer substitution
This part replaces 71003083. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Door Hinge 71003350
#5

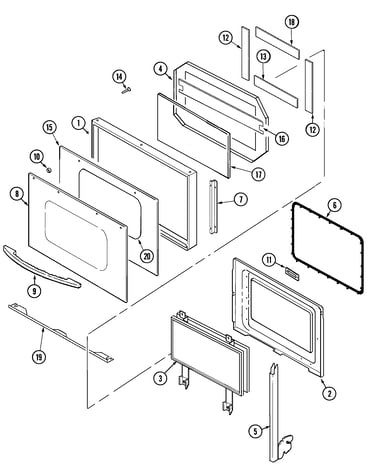

Door (upper & lower-mew6627bac) diagram

Door hinge

Part #71003350

Replaced by #WP74008014

?
Manufacturer substitution
This part replaces 71003350. Substitute parts can look different from the original.
BEST SELLER
$71.11 |
8% OFF Phone Price : $77.11
In Stock
Nut 715634
Nut

Part #715634

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 715634. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Range Oven Control Board And Clock 71001872
#2

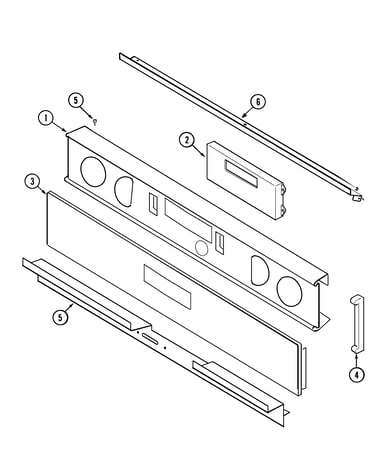

Control panel diagram

Range oven control board and clock

Part #71001872

Replaced by #WP71001872

?
Manufacturer substitution
This part replaces 71001872. Substitute parts can look different from the original.
$273.81 |
$12.00 OFF Phone Price : $285.81
In Stock
Screw 700725
#11A

Door (upper & lower-mew6627bac) diagram

Screw

Part #700725

Replaced by #WP355214

?
Manufacturer substitution
This part replaces 700725. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bake Element 71001636
#1A

Oven diagram

Bake element

Part #71001636

Replaced by #WP7406P272-60

?
Manufacturer substitution
This part replaces 71001636. Substitute parts can look different from the original.
$81.63 |
7% OFF Phone Price : $87.63
In Stock
Broiler Element 71001637
#6

Oven diagram

Broiler element

Part #71001637

Replaced by #WPW10310260

?
Manufacturer substitution
This part replaces 71001637. Substitute parts can look different from the original.
$95.40 |
11% OFF Phone Price : $107.40
In Stock
Receptacle 71001866
#9

Oven diagram

Receptacle

Part #71001866

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 71001866. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Range High-limit Thermostat 71001844
#4

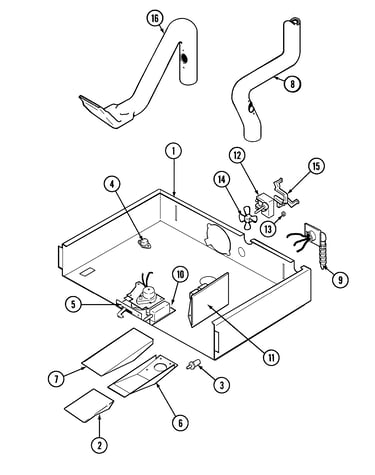

Internal controls diagram

Range high-limit thermostat

Part #71001844

Replaced by #WP71001844

?
Manufacturer substitution
This part replaces 71001844. Substitute parts can look different from the original.
$88.79 |
6% OFF Phone Price : $94.79
In Stock
Gasket 74004733
#20

Door (upper & lower-mew6627bac) diagram

Gasket

Part #74004733

Replaced by #WP74009029

?
Manufacturer substitution
This part replaces 74004733. Substitute parts can look different from the original.
$64.89 |
8% OFF Phone Price : $70.89
In Stock
