Model # WJSR4160D6CC Official GE washer

Here are the diagrams and repair parts for Official GE WJSR4160D6CC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Split Ring WH02X1195
#313

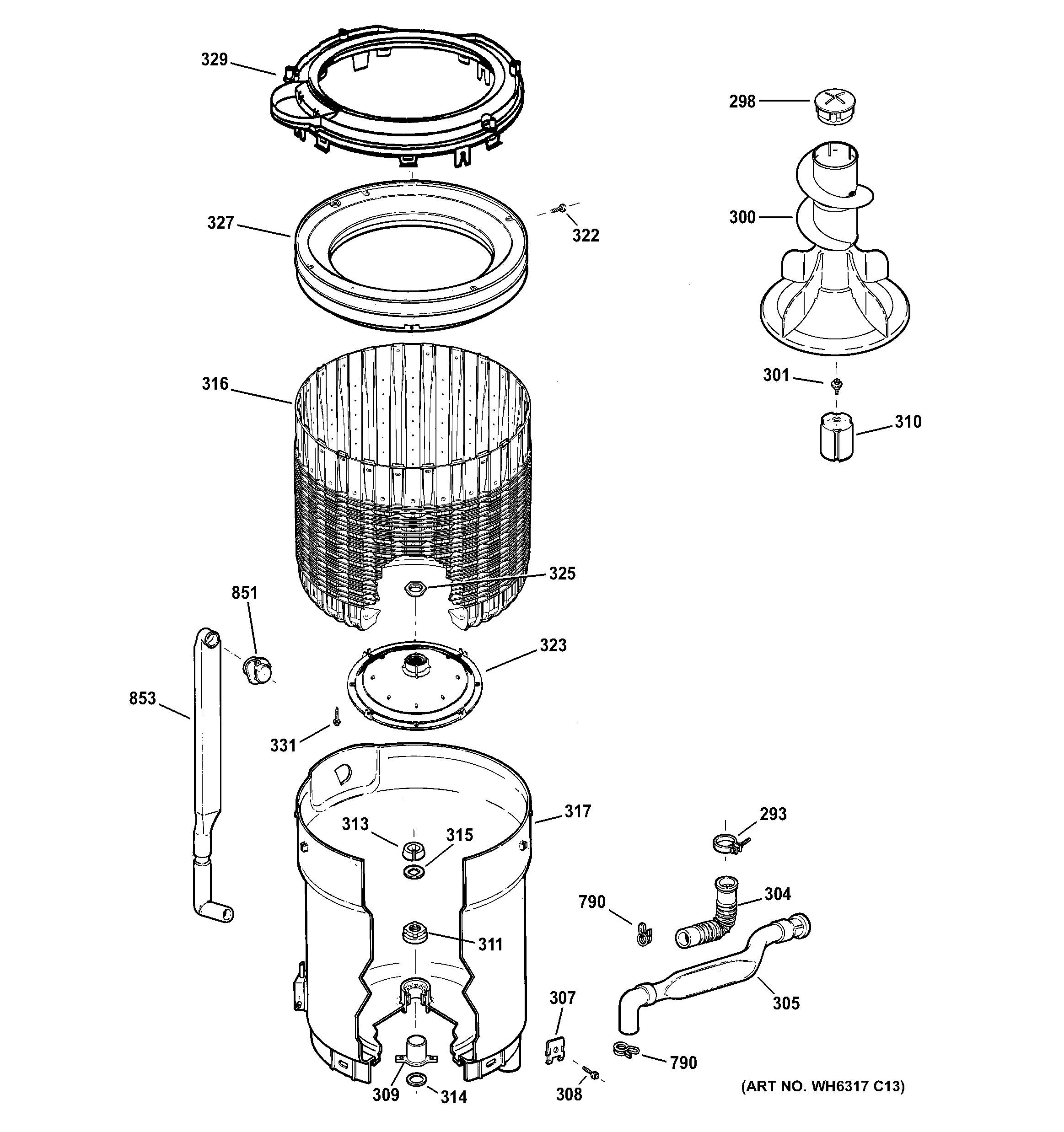

Tub, basket & agitator diagram

Split ring

Part #WH02X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH02X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Hub Washer WH02X1199
#315

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Extra Large Tub Assembly WH45X10024
#317

Tub, basket & agitator diagram

Extra large tub assembly

Part #WH45X10024

Replaced by #WH45X20473

?
Manufacturer substitution
This part replaces WH45X10024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$100.87 |
11% OFF Phone Price : $112.87
In Stock

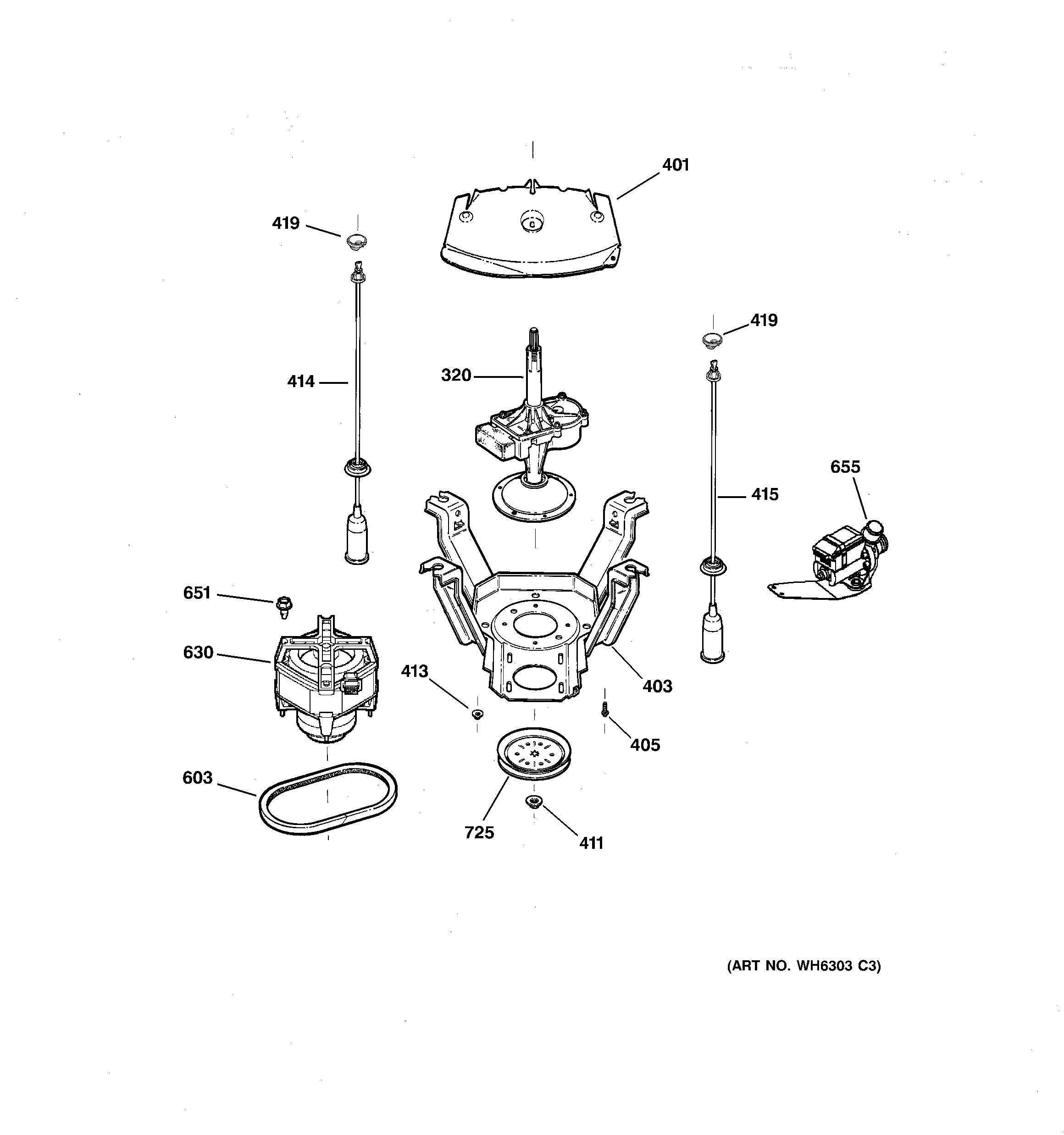

Washer Drain Pump Assembly WH23X10013
#655

Suspension, pump & drive components diagram

Washer drain pump assembly

Part #WH23X10013

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X10013. Substitute parts can look different from the original.
BEST SELLER
$62.84 |
9% OFF Phone Price : $68.84
In Stock

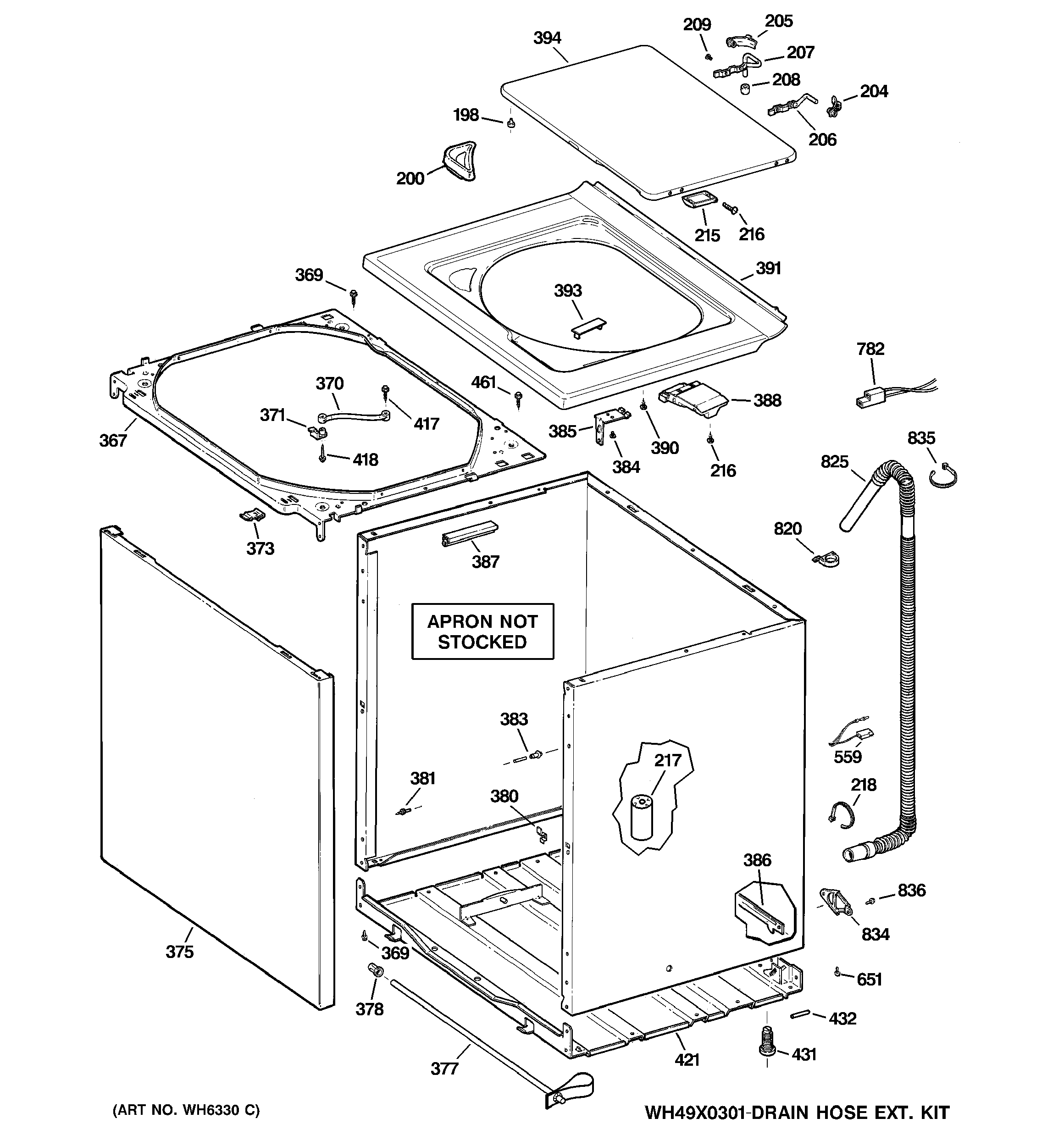

Strap Dampng WH01X10046
#370

Cabinet, cover & top panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Rod/sprg Blk WH16X0544
#414

Suspension, pump & drive components diagram

Rod/sprg blk

Part #WH16X0544

Replaced by #WH16X544

?
Manufacturer substitution
This part replaces WH16X0544. Substitute parts can look different from the original.
BEST SELLER
$34.24 |
15% OFF Phone Price : $40.24
In Stock

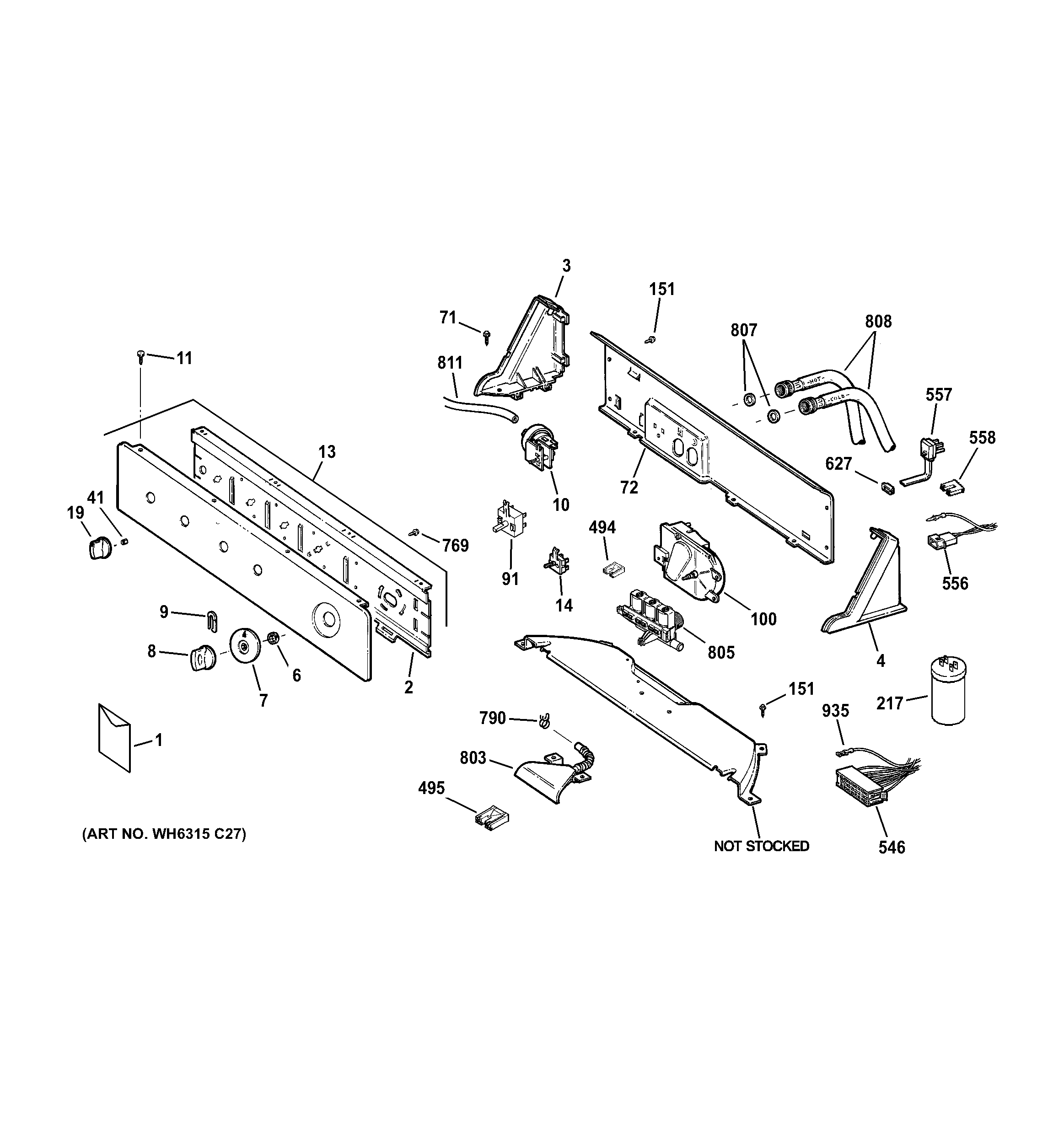

Spring Clip WH01X2117
#9

Controls & backsplash diagram

Spring clip

Part #WH01X2117

Replaced by #WH1X2117

?
Manufacturer substitution
This part replaces WH01X2117. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Belt WH01X2026
#603

Suspension, pump & drive components diagram

Belt

Part #WH01X2026

Replaced by #WH1X2026

?
Manufacturer substitution
This part replaces WH01X2026. Substitute parts can look different from the original.
BEST SELLER
$7.73 |
11% OFF Phone Price : $8.73
In Stock
Rod/spr Yllw WH16X0543
#415

Suspension, pump & drive components diagram

Rod/spr yllw

Part #WH16X0543

Replaced by #WH16X543

?
Manufacturer substitution
This part replaces WH16X0543. Substitute parts can look different from the original.
BEST SELLER
$33.98 |
15% OFF Phone Price : $39.98
In Stock
Knob Clip WH01X10107
#19

Controls & backsplash diagram

Knob clip

Part #WH01X10107

Replaced by #WH01X10060

?
Manufacturer substitution
This part replaces WH01X10107. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
