Whirlpool
Top-Mount Refrigerator

Model # WRT511SZDW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRT511SZDW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Refrigerator Evaporator Fan Motor 2315539
#10

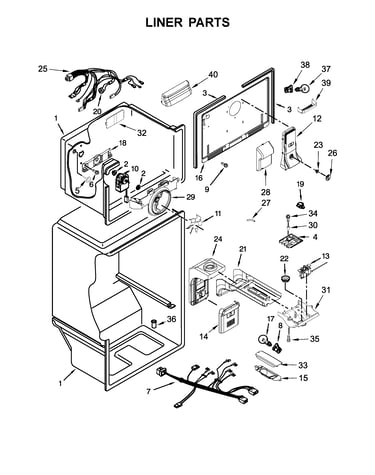

Liner parts diagram

Refrigerator evaporator fan motor

Part #2315539

Replaced by #WP2315539

?
Manufacturer substitution
This part replaces 2315539. Substitute parts can look different from the original.
BEST SELLER
$57.37 |
9% OFF Phone Price : $63.37
In Stock
Refrigerator Capacitor W10590083
#19

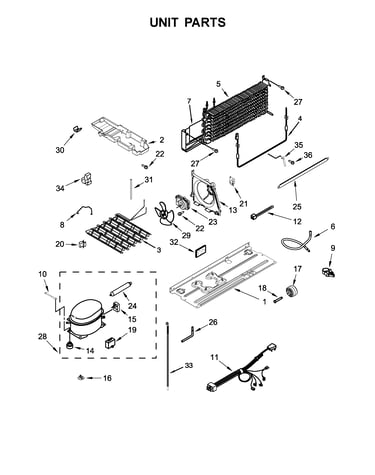

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Defrost Heater W10316428
#4

Unit parts diagram

Refrigerator defrost heater

Part #W10316428

Replaced by #WPW10316428

?
Manufacturer substitution
This part replaces W10316428. Substitute parts can look different from the original.
BEST SELLER
$103.41 |
10% OFF Phone Price : $115.41
In Stock
Refrigerator Evaporator W10570565
#5

Unit parts diagram

Refrigerator evaporator

Part #W10570565

Replaced by #W10836706

?
Manufacturer substitution
This part replaces W10570565. Substitute parts can look different from the original.
BEST SELLER
$206.39 |
5% OFF Phone Price : $218.39
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Deli Drawer Hanger W10628698
#20

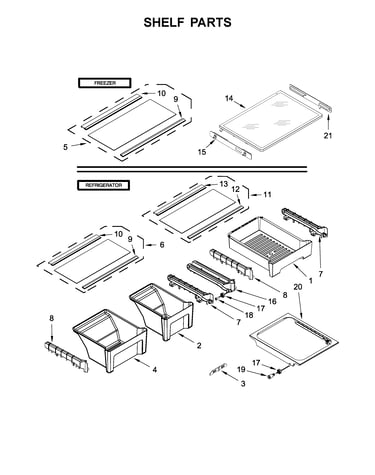

Shelf parts diagram

Refrigerator deli drawer hanger

Part #W10628698

Replaced by #W10861519

?
Manufacturer substitution
This part replaces W10628698. Substitute parts can look different from the original.
BEST SELLER
$43.53 |
12% OFF Phone Price : $49.53
In Stock
Refrigerator Screw 2262176
#30

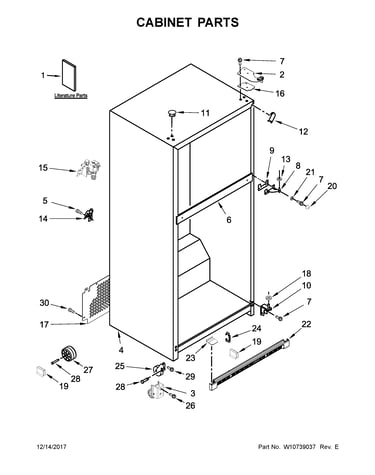

Cabinet parts diagram

Refrigerator screw

Part #2262176

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 2262176. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Gasket Panel (black) 2202882
#5A

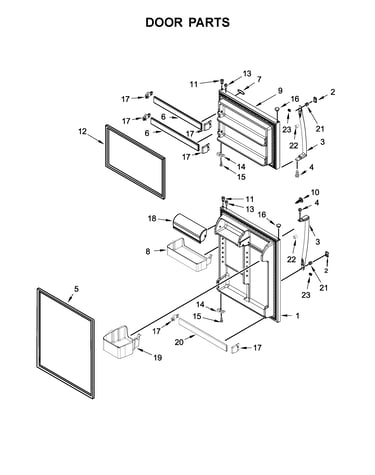

Door parts diagram

Gasket panel (black)

Part #2202882

Replaced by #2177311

?
Manufacturer substitution
This part replaces 2202882. Substitute parts can look different from the original.
BEST SELLER
$136.52 |
8% OFF Phone Price : $148.52
In Stock
Refrigerator Bi-metal Thermostat W10392132
#20

Liner parts diagram

Refrigerator bi-metal thermostat

Part #W10392132

Replaced by #WPW10392132

?
Manufacturer substitution
This part replaces W10392132. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
