Model # 119718601 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 119718601 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
119718601 Ranges
Rear Knob 4807
#89

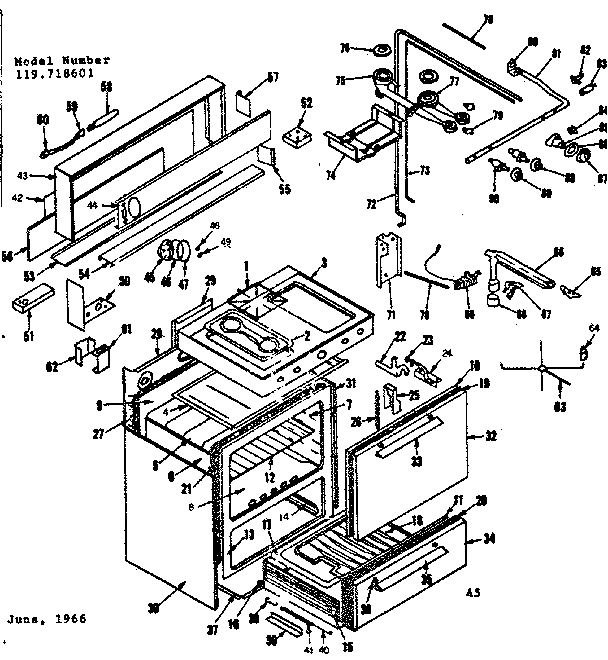

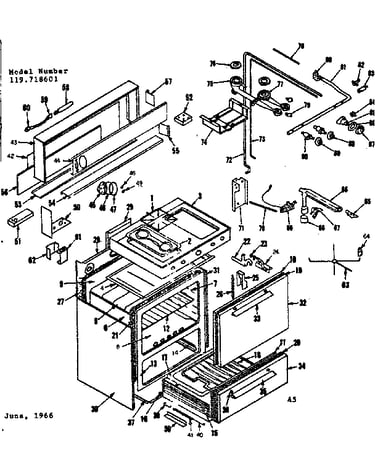

Body section diagram

Rear knob

Part #4807

The manufacturer no longer makes this part, and there's no substitute part

Knob (white) 4806
#88

Body section diagram

Knob (white)

Part #4806

The manufacturer no longer makes this part, and there's no substitute part

Panel Support 4058
#57

Body section diagram

Panel support

Part #4058

The manufacturer no longer makes this part, and there's no substitute part

Base 3078
#37

Body section diagram

Base

Part #3078

The manufacturer no longer makes this part, and there's no substitute part

Support 3648
#65

Body section diagram

Support

Part #3648

The manufacturer no longer makes this part, and there's no substitute part

Brace 4314
#50B

Body section diagram

Brace

Part #4314

The manufacturer no longer makes this part, and there's no substitute part

Hook Spring 3420
#40A

Body section diagram

Hook spring

Part #3420

The manufacturer no longer makes this part, and there's no substitute part

Oven 4465
#9

Body section diagram

Oven

Part #4465

The manufacturer no longer makes this part, and there's no substitute part

Clock Knob 3549
#48

Body section diagram

Clock knob

Part #3549

The manufacturer no longer makes this part, and there's no substitute part

Channel 4793
#54

Body section diagram

Channel

Part #4793

The manufacturer no longer makes this part, and there's no substitute part
