Lawn & Garden Engine

Model # 143234102 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143234102 engine, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
143234102 Engine
Starter Rope 590386
#9

Rewind starter diagram

Starter rope

Part #590386

Replaced by #590535

?
Manufacturer substitution
This part replaces 590386. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
Back Order
Repair Kit 630974
#25

Carburetor diagram

Repair kit

Part #630974

Replaced by #631893A

?
Manufacturer substitution
This part replaces 630974. Substitute parts can look different from the original.
In Stock
Fitting 631034
#16

Carburetor diagram

Fitting

Part #631034

Replaced by #632527

?
Manufacturer substitution
This part replaces 631034. Substitute parts can look different from the original.
This item is not returnable
$9.59
9% OFF Phone Price : $10.59
In Stock
Element 31410
#54

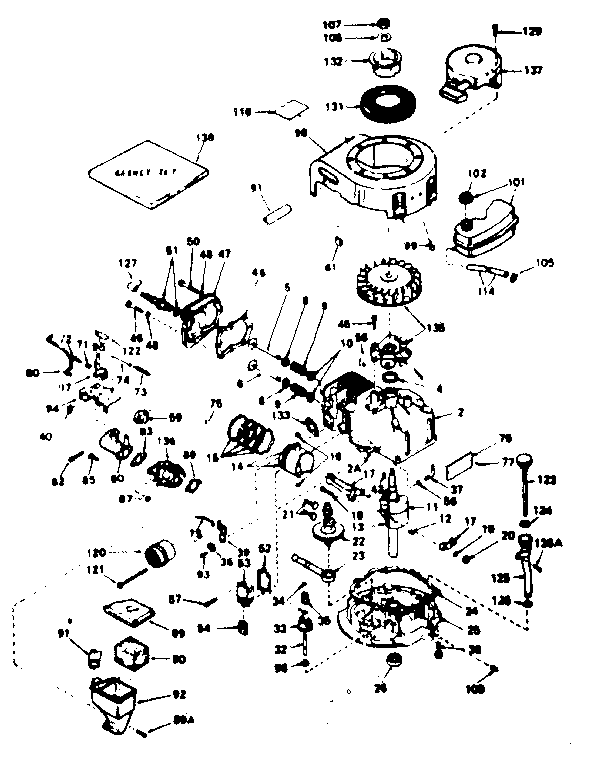

Unit parts diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

Replaced by #631767

?
Manufacturer substitution
This part replaces 630731. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Tension Spring 630766
#5

Carburetor diagram

Troybilt lawn & garden equipment engine tension spring

Part #630766

This item is not returnable
In Stock
Troybilt Lawn & Garden Equipment Engine Welch Plug 630748
#15

Carburetor diagram

Troybilt lawn & garden equipment engine welch plug

Part #630748

This item is not returnable
In Stock
Lawn & Garden Equipment Engine Breaker Assembly 30547A
#6

Magneto diagram

Lawn & garden equipment engine breaker assembly

Part #30547A

In Stock
Lawn & Garden Equipment Engine Recoil Starter Pawl 590148
#4

Rewind starter diagram

Lawn & garden equipment engine recoil starter pawl

Part #590148

This item is not returnable
In Stock
Spool 30588A
#35

Unit parts diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part
