Frigidaire
Wall Oven/Microwave Combo

Model # GLEB27M9FSB Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire GLEB27M9FSB wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

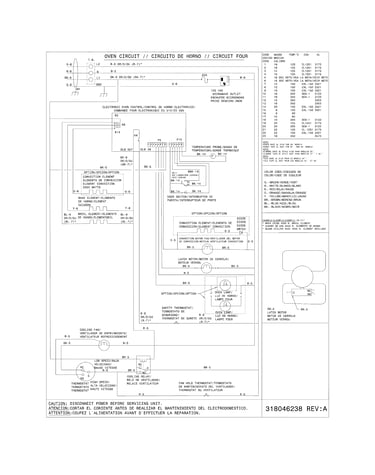

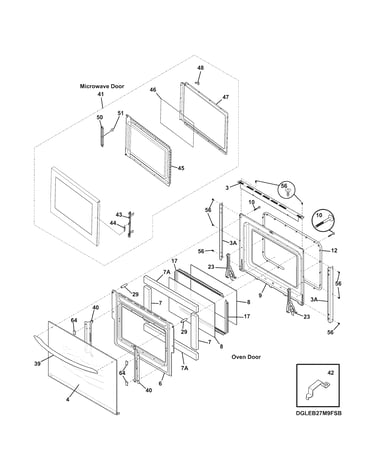

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Range Oven Light Bulb 5303013071
#15

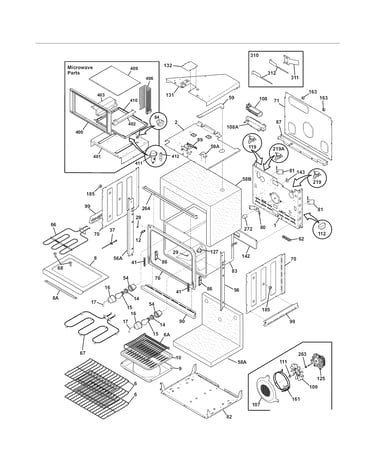

Lower oven diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7 316217002
#37

Lower oven diagram

Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Fuse 5304442353
#412

Lower oven diagram

Fuse

Part #5304442353

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442353. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Holder 5304442354
#411

Lower oven diagram

Holder

Part #5304442354

Replaced by #318647300

?
Manufacturer substitution
This part replaces 5304442354. Substitute parts can look different from the original.
BEST SELLER
$108.36 |
10% OFF Phone Price : $120.36
In Stock
Frigidaire Range Bake Element (replaces 318254908) 318254902
#67

Lower oven diagram

Frigidaire range bake element (replaces 318254908)

Part #318254902

BEST SELLER
$148.46 |
7% OFF Phone Price : $160.46
In Stock
Latch 5304440840
#30

Upper oven diagram

Latch

Part #5304440840

Replaced by #5304503439

?
Manufacturer substitution
This part replaces 5304440840. Substitute parts can look different from the original.
BEST SELLER
$48.11 |
11% OFF Phone Price : $54.11
In Stock
Washer 316136500
#263

Lower oven diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Crosley Range High-limit Thermostat 318003614
#219

Lower oven diagram

Crosley range high-limit thermostat

Part #318003614

BEST SELLER
$69.03 |
8% OFF Phone Price : $75.03
In Stock
Switch 5304440841
#31

Upper oven diagram

Switch

Part #5304440841

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304440841. Substitute parts can look different from the original.
BEST SELLER
$51.29 |
10% OFF Phone Price : $57.29
In Stock
Microwave Door Interlock Switch And Fuse (replaces 75303319559) 5303319559
#5

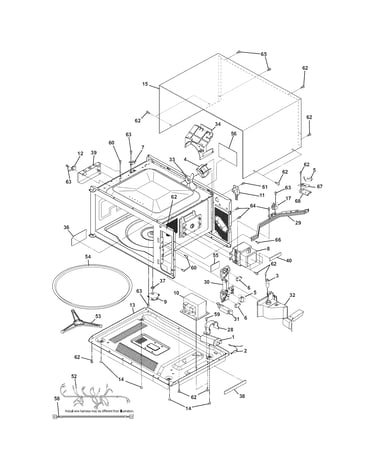

Upper oven diagram

Microwave door interlock switch and fuse (replaces 75303319559)

Part #5303319559

BEST SELLER
$77.69 |
7% OFF Phone Price : $83.69
In Stock
