Model # 580324030 Official Craftsman portable alternator

Here are the diagrams and repair parts for Official Craftsman 580324030 portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Screw 24421
#19

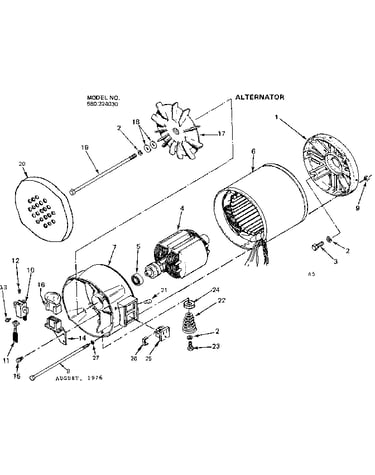

Alternator diagram

Screw

Part #24421

Replaced by #24421GS

?
Manufacturer substitution
This part replaces 24421. Substitute parts can look different from the original.
$26.36
In Stock
Bearing 24049
#5

Alternator diagram

Bearing

Part #24049

The manufacturer no longer makes this part, and there's no substitute part

Spring 25047
Spring

Part #25047

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22283
#6

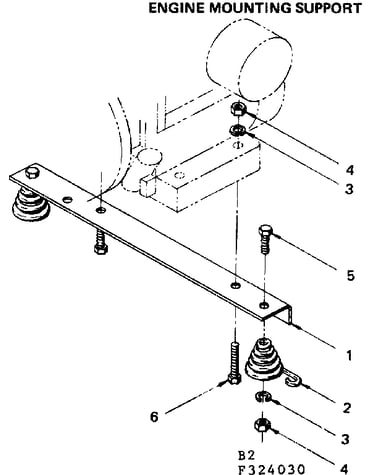

Engine mounting support diagram

Cap screw

Part #22283

The manufacturer no longer makes this part, and there's no substitute part

Retainer 27272
#26

Alternator diagram

Retainer

Part #27272

The manufacturer no longer makes this part, and there's no substitute part

Support 24509
#1

Engine mounting support diagram

Support

Part #24509

The manufacturer no longer makes this part, and there's no substitute part

Taptite Scrw 24413
#21

Alternator diagram

Taptite scrw

Part #24413

The manufacturer no longer makes this part, and there's no substitute part

Engine 47610
#1

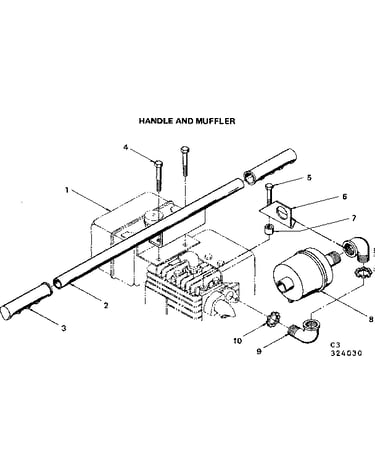

Handle and muffler diagram

Engine

Part #47610

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22336
#3

Alternator diagram

Cap screw

Part #22336

The manufacturer no longer makes this part, and there's no substitute part

Spacer 22500
#7

Handle and muffler diagram

Spacer

Part #22500

The manufacturer no longer makes this part, and there's no substitute part
