Model # HPIB42HS/01 Official Thermador island hood

Here are the diagrams and repair parts for Official Thermador HPIB42HS-01 island hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Range Hood Fan Motor Assembly 662225
#101

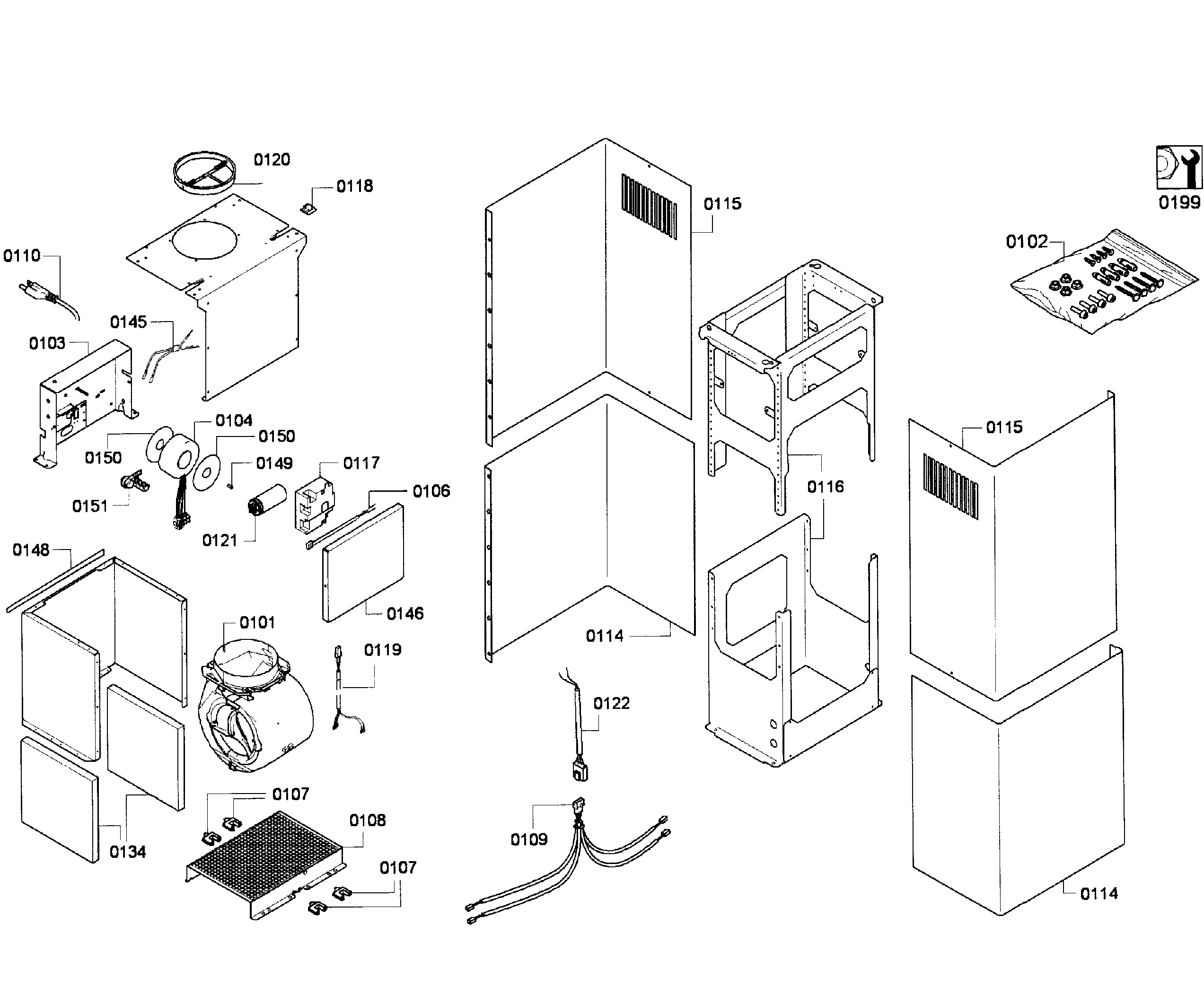

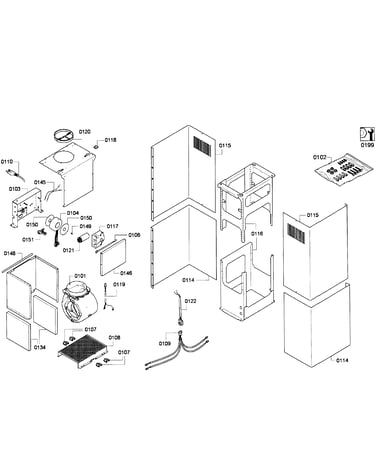

Chimney assy diagram

Range hood fan motor assembly

Part #662225

Replaced by #11007194

?
Manufacturer substitution
This part replaces 662225. Substitute parts can look different from the original.
$383.09 |
$12.00 OFF Phone Price : $395.09
In Stock
Insulating 264187
#134

Chimney assy diagram

Insulating

Part #264187

Replaced by #00264187

?
Manufacturer substitution
This part replaces 264187. Substitute parts can look different from the original.
$78.29
In Stock
Metal Filt 672129
#253

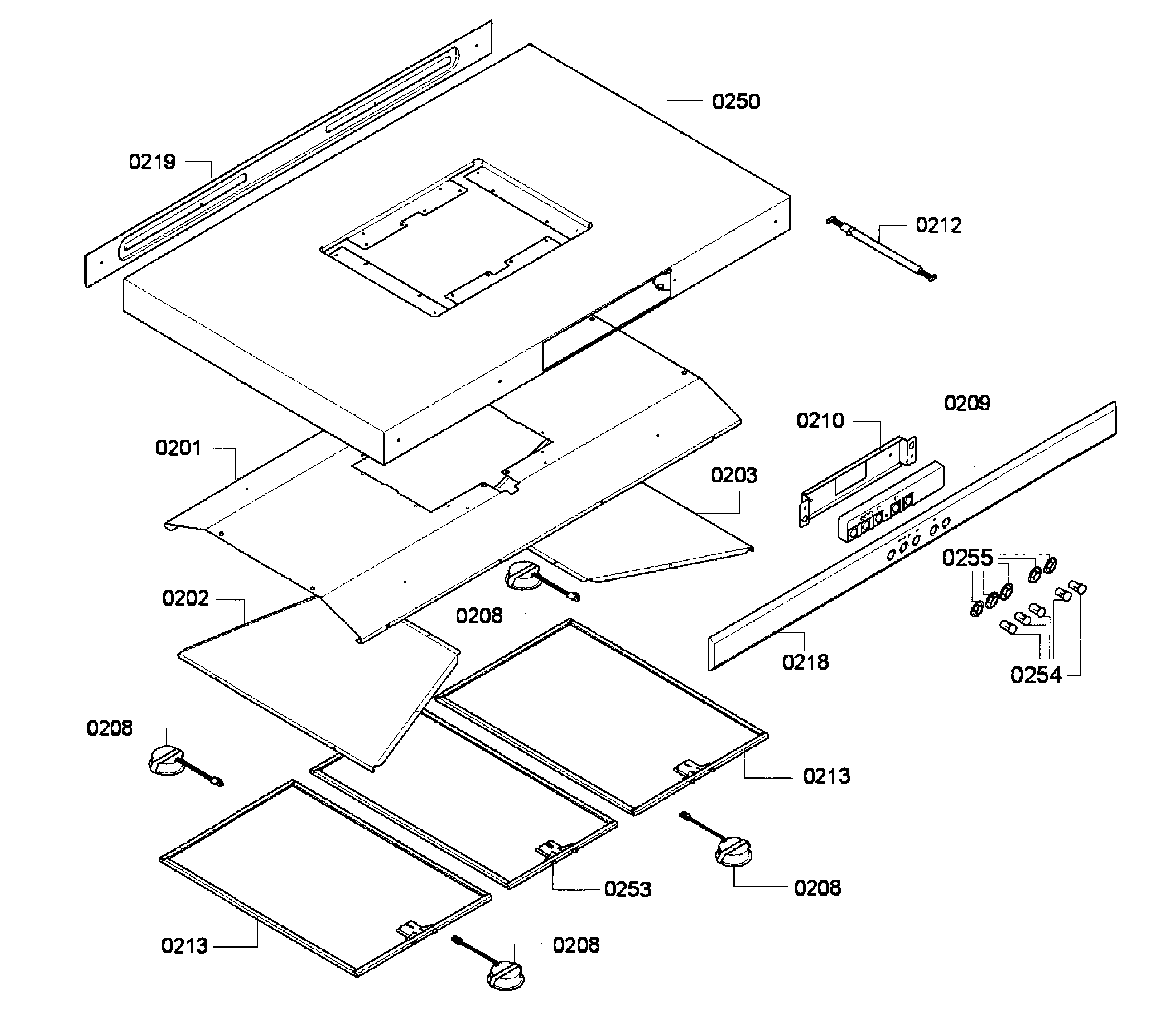

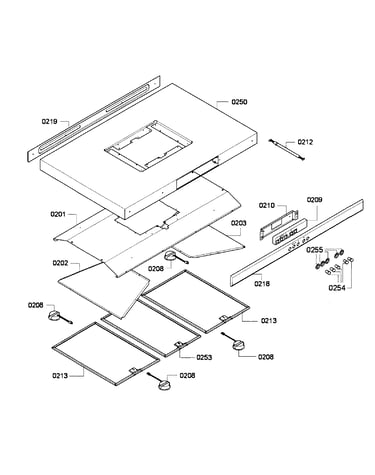

Range hood diagram
