Model # VFD31GDSR0WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE VFD31GDSR0WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

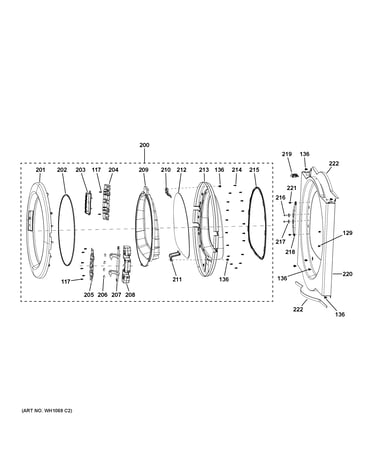

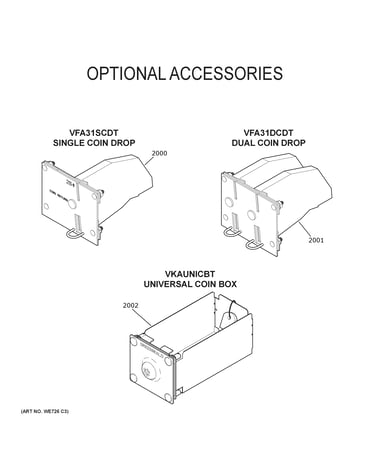

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |

Outlet Therm WE04X26348
#409

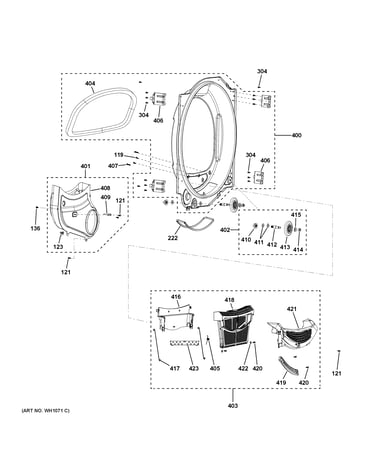

Trap duct assembly diagram

Outlet therm

Part #WE04X26348

$24.28
20% OFF Phone Price : $30.28
In Stock
Dryer Drum Support Roller WE21X26838
Dryer drum support roller

Part #WE21X26838

$36.68
14% OFF Phone Price : $42.68
In Stock
Cntrl Board WH22X36263
#134

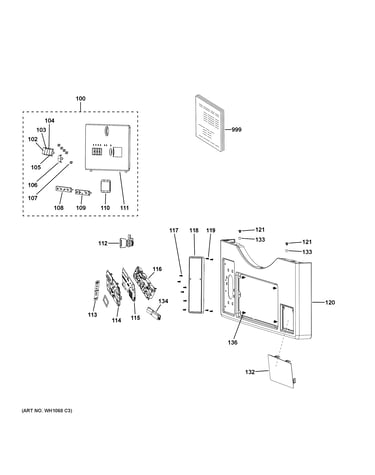

Control panel diagram

Cntrl board

Part #WH22X36263

Replaced by #WH22X36577

?
Manufacturer substitution
This part replaces WH22X36263. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw St4*12 WH02X26240
#420

Trap duct assembly diagram

Screw st4*12

Part #WH02X26240

$7.88
11% OFF Phone Price : $8.88
In Stock
Ground Harness Clamp WH02X29626
#123

Trap duct assembly diagram

Ground harness clamp

Part #WH02X29626

In Stock
Cool Temp Button WE01X33580
#105

Control panel diagram

Cool temp button

Part #WE01X33580

In Stock
Haier Wire Tie WE01X26391
#317

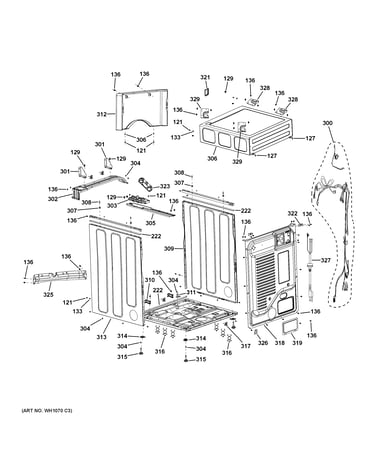

Cabinet & top panel diagram

Haier wire tie

Part #WE01X26391

This item is not returnable
In Stock
Mid Temp Button WE01X33567
#103

Control panel diagram

Mid temp button

Part #WE01X33567

In Stock
Rear Drum Support WE13X33555
#505

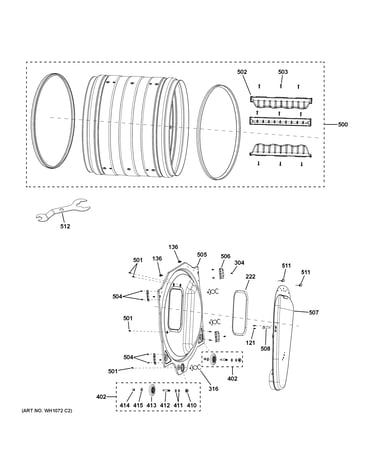

Drum diagram

Rear drum support

Part #WE13X33555

In Stock
Lint Filter Baffle Torsion Spring WE02X35278
#405

Trap duct assembly diagram

Lint filter baffle torsion spring

Part #WE02X35278

In Stock
