Model # JBP21GS2 Official GE electric range

Here are the diagrams and repair parts for Official GE JBP21GS2 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082
#650

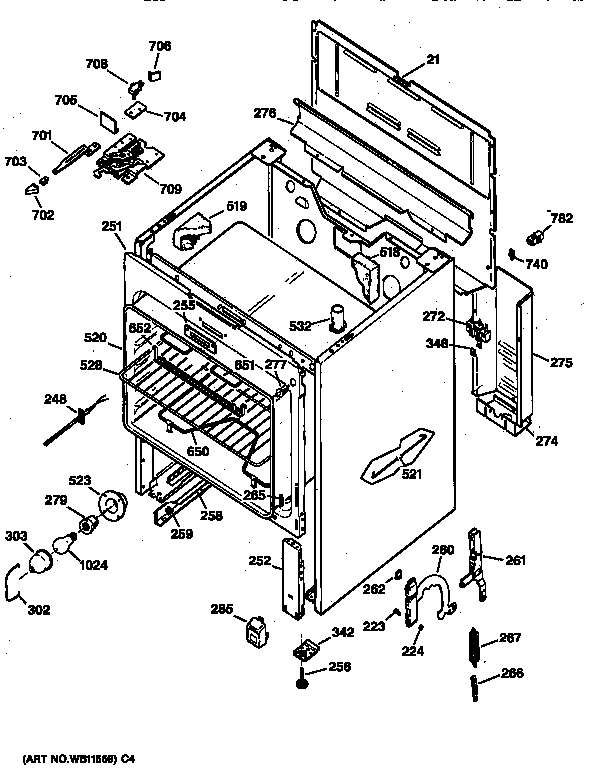

Body parts diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Infinite Control Switch WB32X5095
#3B

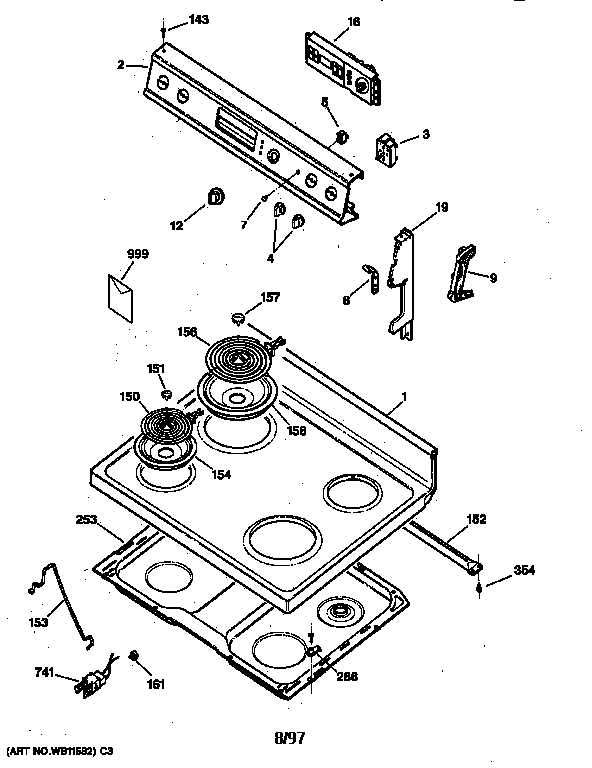

Control panel & cooktop diagram

Infinite control switch

Part #WB32X5095

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB32X5095. Substitute parts can look different from the original.
BEST SELLER
$42.68 |
12% OFF Phone Price : $48.68
In Stock
Infinite Control Switch WB23X5092
#3A

Control panel & cooktop diagram

Infinite control switch

Part #WB23X5092

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB23X5092. Substitute parts can look different from the original.
BEST SELLER
$42.68 |
12% OFF Phone Price : $48.68
In Stock
Receptacle WB08X5095
#279

Body parts diagram

Receptacle

Part #WB08X5095

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08X5095. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Unit F WB44X0185
#651

Body parts diagram

Broil unit f

Part #WB44X0185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X0185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Range Drip Pan WB32X5075
#154

Control panel & cooktop diagram

Range drip pan

Part #WB32X5075

Replaced by #WB31K10265

?
Manufacturer substitution
This part replaces WB32X5075. Substitute parts can look different from the original.
This item is not returnable
$8.72 |
10% OFF Phone Price : $9.72
In Stock
End Cap Handle WB07X7183
#397

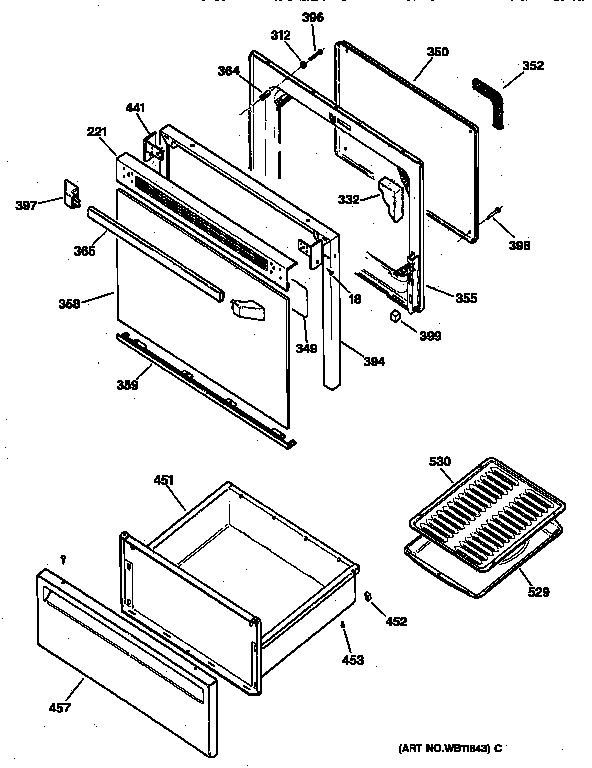

Door & drawer parts diagram

End cap handle

Part #WB07X7183

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB07X7183. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Handle WB15X5203
#365

Door & drawer parts diagram

Handle

Part #WB15X5203

Replaced by #WB15K5076

?
Manufacturer substitution
This part replaces WB15X5203. Substitute parts can look different from the original.
$33.13 |
15% OFF Phone Price : $39.13
In Stock
Broil Pan Rack WB48X5093
#530

Door & drawer parts diagram

Broil pan rack

Part #WB48X5093

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X5093. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Broiler Pan WB49X5547
#529

Door & drawer parts diagram

Broiler pan

Part #WB49X5547

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X5547. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
