Electric Range

Model # EHT-345 Official Caloric electric range

Here are the diagrams and repair parts for Official Caloric EHT-345 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

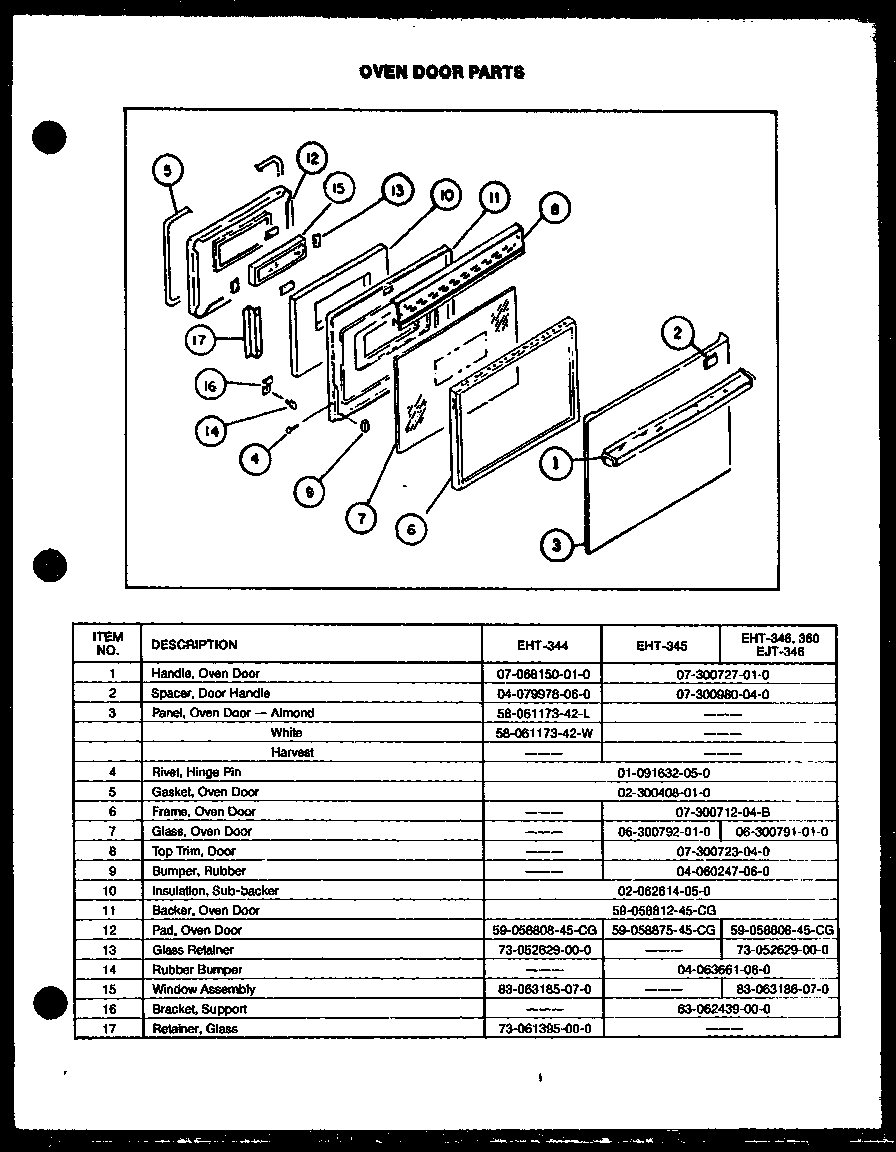

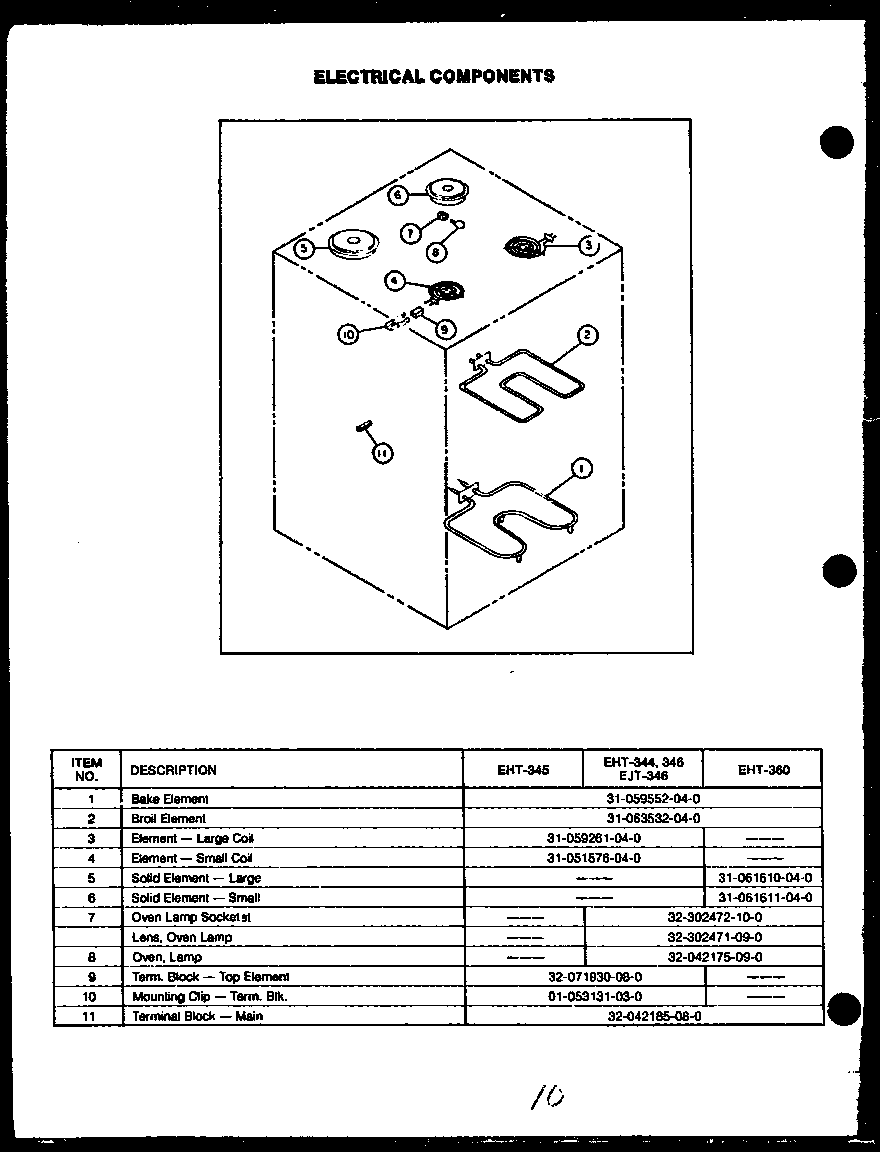

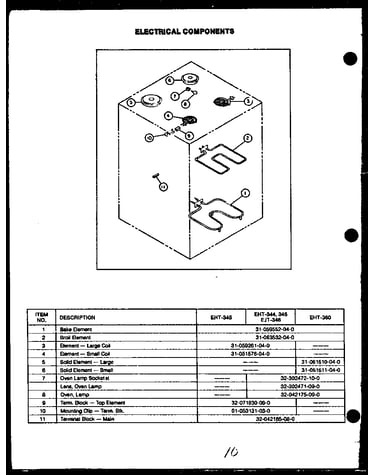

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Chip Cover 75-300278-00-0
#19

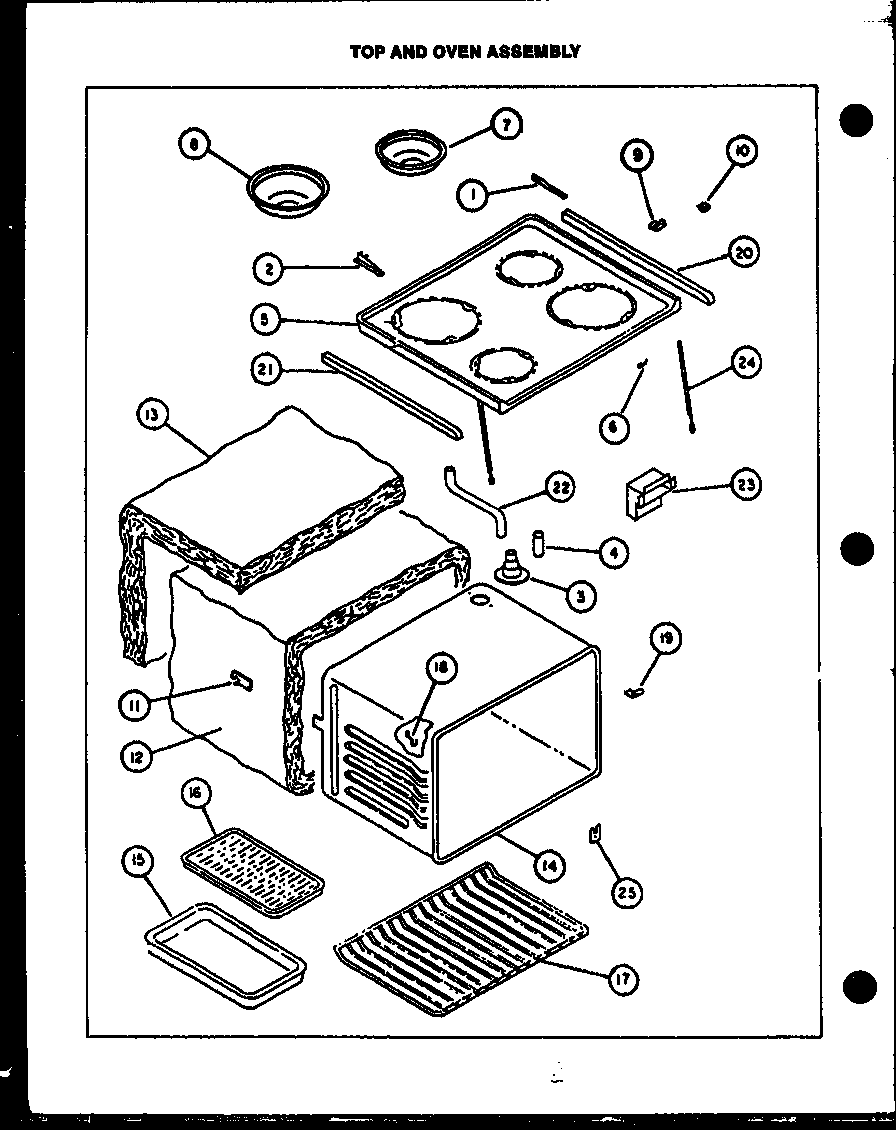

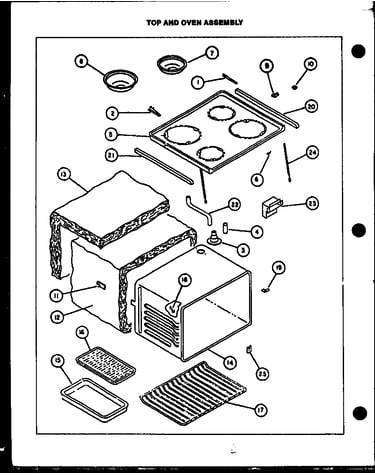

Top and oven assembly diagram

Chip cover

Part #75-300278-00-0

The manufacturer no longer makes this part, and there's no substitute part

Insulation Retainer - Side 73-058999-00-0
#20

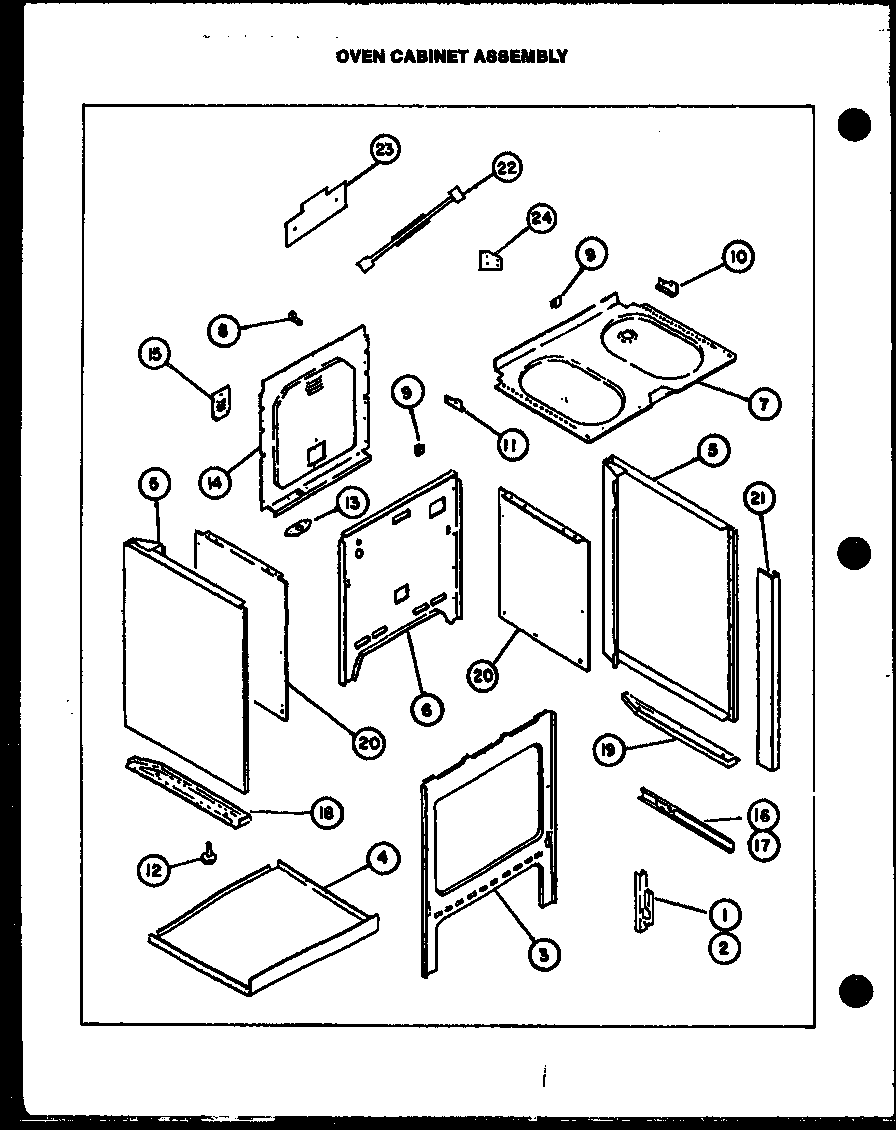

Oven cabinet assembly diagram

Insulation retainer - side

Part #73-058999-00-0

The manufacturer no longer makes this part, and there's no substitute part

Drawer 57-058922-48-CG
#1

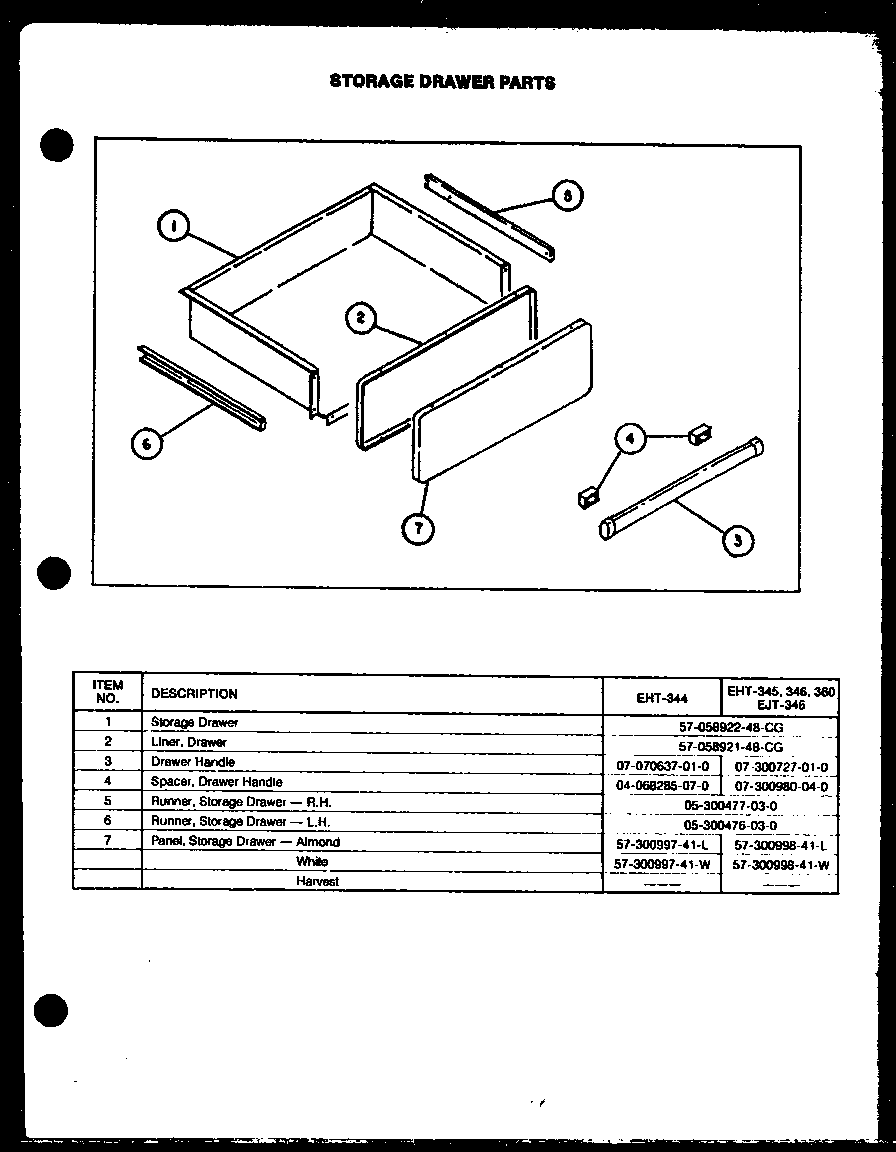

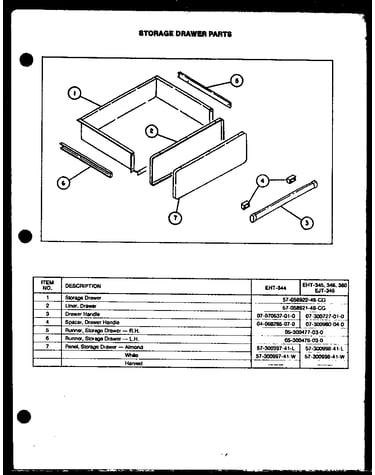

Storage drawer parts diagram

Drawer

Part #57-058922-48-CG

The manufacturer no longer makes this part, and there's no substitute part

Glass Control Panel 06-300468-01-0
#1B

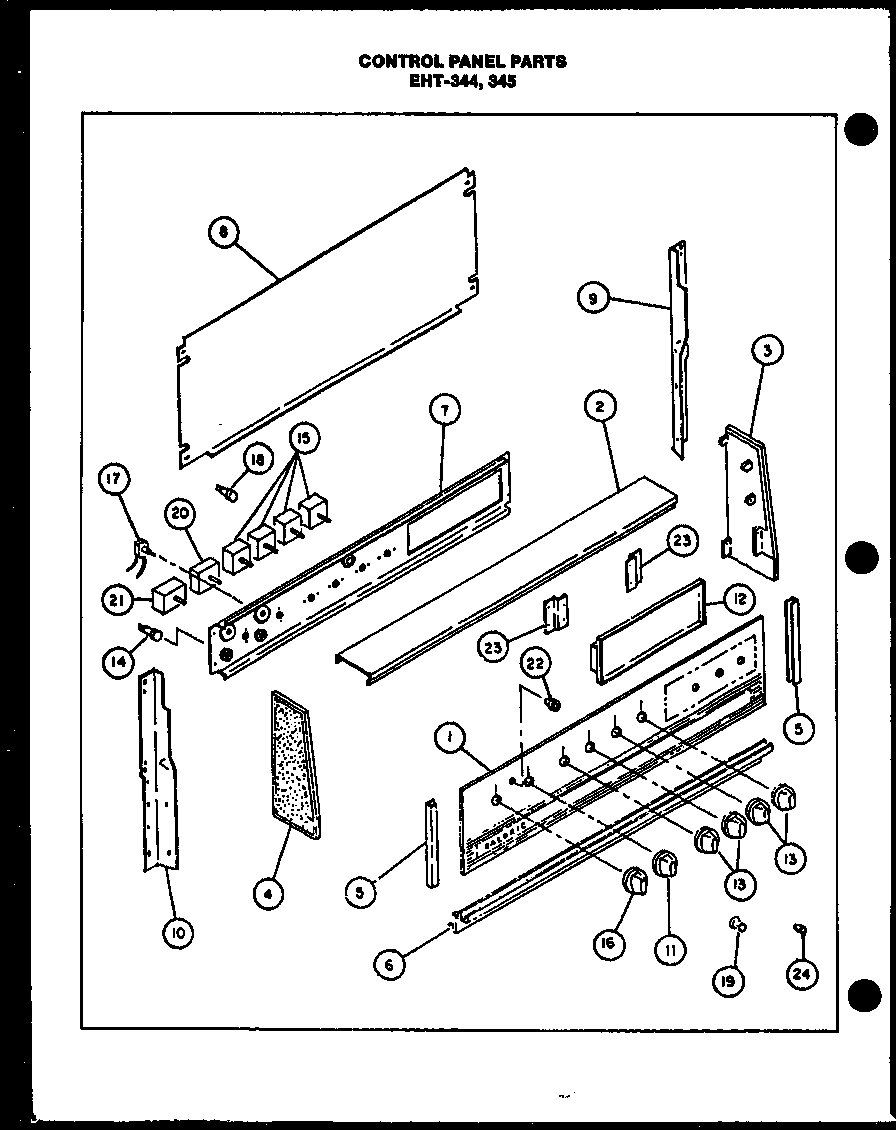

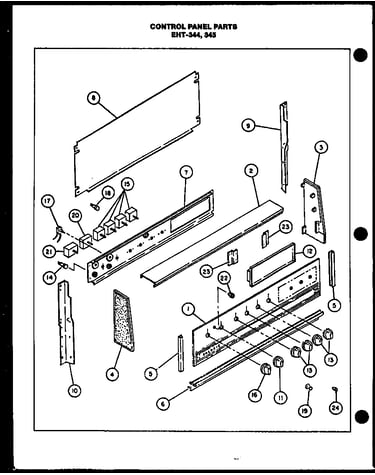

Control panel parts (eht-344) (eht-345) diagram

Glass control panel

Part #06-300468-01-0

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut 01-096604-02-0
#10

Top and oven assembly diagram

Speed nut

Part #01-096604-02-0

The manufacturer no longer makes this part, and there's no substitute part

Trim, Main Top - R. H. 07-300720-04-0
#20

Top and oven assembly diagram

Trim, main top - r. h.

Part #07-300720-04-0

The manufacturer no longer makes this part, and there's no substitute part

Cable Clip 01-091587-03-0
#9

Oven cabinet assembly diagram

Cable clip

Part #01-091587-03-0

The manufacturer no longer makes this part, and there's no substitute part

Cover Access 74-058435-00-0
#15

Oven cabinet assembly diagram

Cover access

Part #74-058435-00-0

The manufacturer no longer makes this part, and there's no substitute part

Switch, Fluorescent Lamp 31-300778-02-0
Switch, fluorescent lamp

Part #31-300778-02-0

The manufacturer no longer makes this part, and there's no substitute part

Main Top - White 51-059156-42-W
#5D

Top and oven assembly diagram

Main top - white

Part #51-059156-42-W

The manufacturer no longer makes this part, and there's no substitute part
