Hedge Trimmer

Model # 358796353 Official Craftsman hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 358796353 hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Lawn & Garden Equipment Fuel Line, Small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404) 530069247
#53

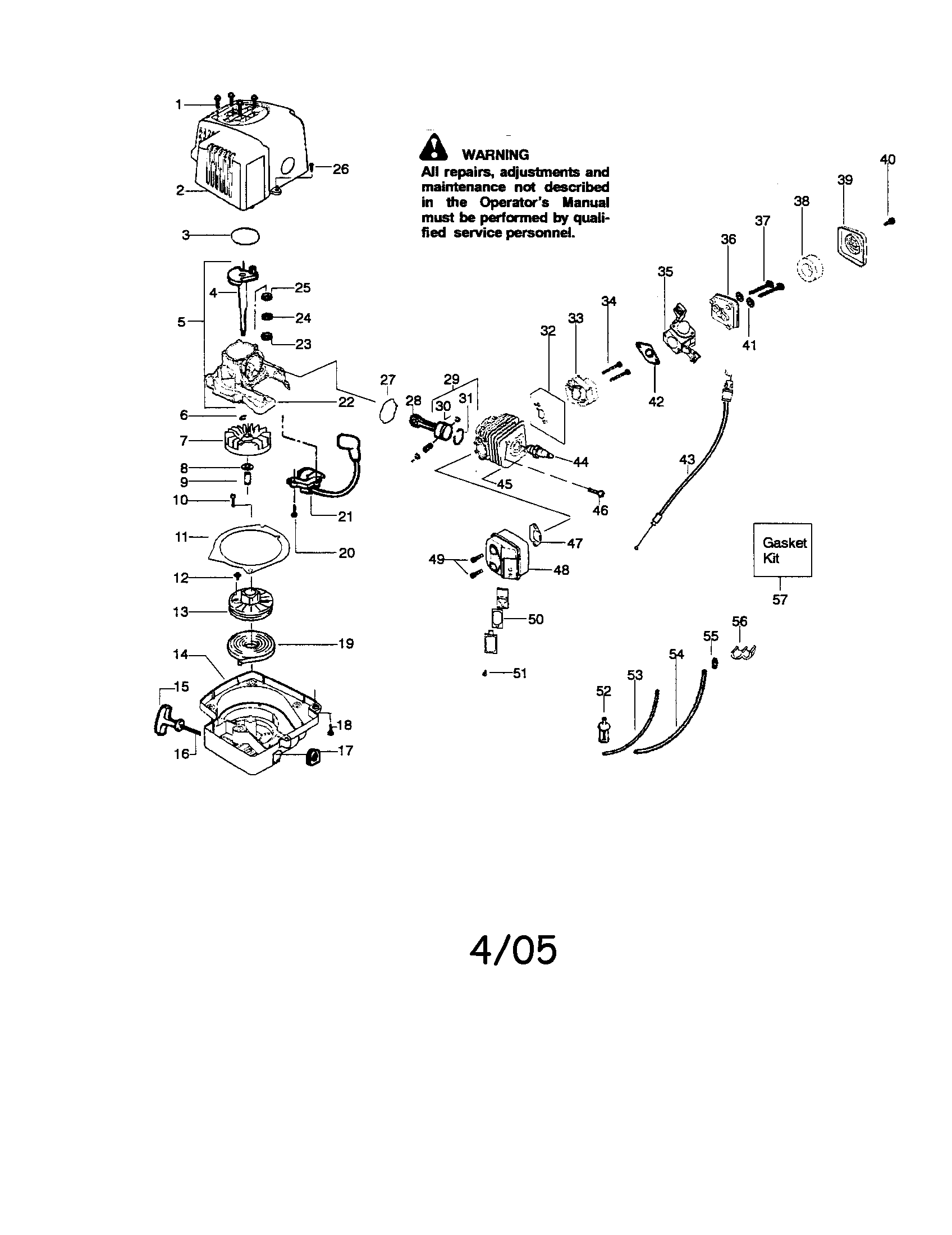

Cylinder/crankcase/crankshaft diagram

Lawn & garden equipment fuel line, small (replaces 530021058, 530-021058, 530021076, 5300692-47, 530-069247, 530-069751, 530071404)

Part #530069247

BEST SELLER
$10.11 |
17% OFF Phone Price : $12.11
In Stock
Lawn & Garden Equipment Fuel Line, Large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216) 530069216
#54

Cylinder/crankcase/crankshaft diagram

Lawn & garden equipment fuel line, large (replaces 530021017, 530-021025, 530021026, 530-021026, 530021028, 530-021028, 530-021035, 530021042, 530021132, 530028505, 530-028505, 5300692-16, 530-069216)

Part #530069216

BEST SELLER
$14.44 |
12% OFF Phone Price : $16.44
In Stock
Chainsaw Recoil Starter Rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339) 530069232
#16

Cylinder/crankcase/crankshaft diagram

Chainsaw recoil starter rope (replaces 530-022289, 530024451, 530042033, 5300692-32, 530-069232, 530069233, 530-069233, 530069339)

Part #530069232

This item is not returnable
$7.20 |
12% OFF Phone Price : $8.20
In Stock
Lawn Mower Fuel Cap 530047877
#21

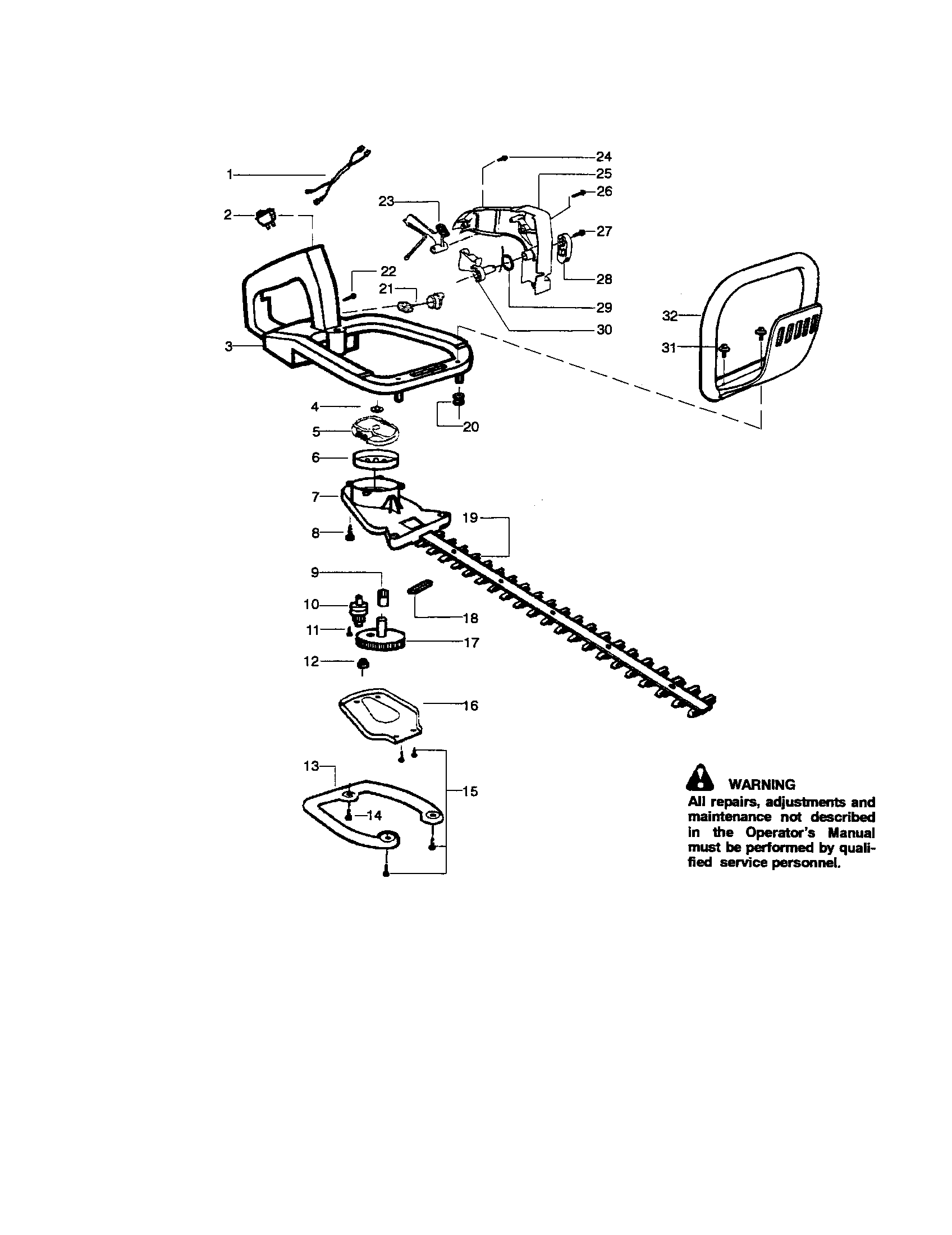

Blade/handle diagram

Lawn mower fuel cap

Part #530047877

Replaced by #577858601

?
Manufacturer substitution
This part replaces 530047877. Substitute parts can look different from the original.
$11.56 |
15% OFF Phone Price : $13.56
In Stock
Flywheel Assembly 530069886
#7

Cylinder/crankcase/crankshaft diagram

Flywheel assembly

Part #530069886

Replaced by #545221701

?
Manufacturer substitution
This part replaces 530069886. Substitute parts can look different from the original.
This item is not returnable
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Piston Kit 530071357
#29

Cylinder/crankcase/crankshaft diagram

Piston kit

Part #530071357

Replaced by #530071833

?
Manufacturer substitution
This part replaces 530071357. Substitute parts can look different from the original.
$30.33 |
17% OFF Phone Price : $36.33
In Stock
Hedge Trimmer Choke Lever 530071718

#NI03

All parts diagram

Hedge trimmer choke lever

Part #530071718

This item is not returnable
$26.00
In Stock
Screw 530016394
#37

Cylinder/crankcase/crankshaft diagram

Screw

Part #530016394

Replaced by #530016429

?
Manufacturer substitution
This part replaces 530016394. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Lawn & Garden Equipment Head Bolt 530015953
#46

Cylinder/crankcase/crankshaft diagram

Lawn & garden equipment head bolt

Part #530015953

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Lawn & Garden Equipment Screw 530015849
#14

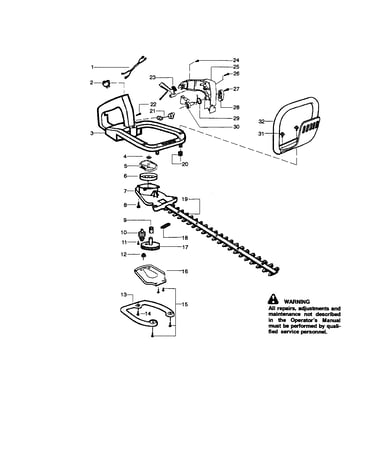

Blade/handle diagram

Lawn & garden equipment screw

Part #530015849

This item is not returnable
$7.40
In Stock
