Furnace

Model # NCGM050EFA2 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NCGM050EFA2 gas furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
NCGM050EFA2 Gas Furnace
Trans 40 Va 1008782
#23

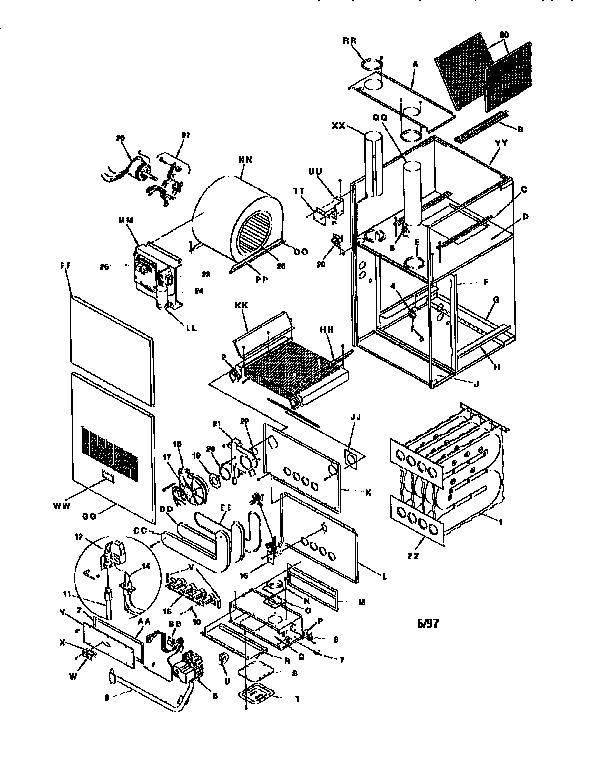

Unit parts diagram

Trans 40 va

Part #1008782

The manufacturer no longer makes this part, and there's no substitute part

Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#14

Unit parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19
7% OFF Phone Price : $178.19
Back Order
Cont Fan Tmr 1009838
#25

Unit parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$217.41
5% OFF Phone Price : $229.41
In Stock
Cap Rnrd 1094954
#24

Unit parts diagram

Cap rnrd

Part #1094954

Replaced by #12005

?
Manufacturer substitution
This part replaces 1094954. Substitute parts can look different from the original.
$16.49
11% OFF Phone Price : $18.49
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#28

Unit parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20
8% OFF Phone Price : $142.20
In Stock
Motor 1009054
#26

Unit parts diagram

Motor

Part #1009054

Replaced by #1012514

?
Manufacturer substitution
This part replaces 1009054. Substitute parts can look different from the original.
$345.23
$12.00 OFF Phone Price : $357.23
Back Order
Exchgr Hea 1010495
#2

Unit parts diagram

Exchgr hea

Part #1010495

Replaced by #1010492

?
Manufacturer substitution
This part replaces 1010495. Substitute parts can look different from the original.
In Stock
Control Limi 1320549
#16

Unit parts diagram

Control limi

Part #1320549

In Stock
Clamp Capctr 1095020
#LL

Unit parts diagram

Clamp capctr

Part #1095020

In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#27

Unit parts diagram

Furnace blower fan motor mounting kit

Part #609227

In Stock
