Ikea
Electric Wall Oven

Model # IBS224PSM00 Official Ikea electric oven

Here are the diagrams and repair parts for Official Ikea IBS224PSM00 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Kitchenaid Nut 8186882
#8

Internal oven diagram

Kitchenaid nut

Part #8186882

$7.80
In Stock
Whirlpool Fan Wheel 8186866
#7

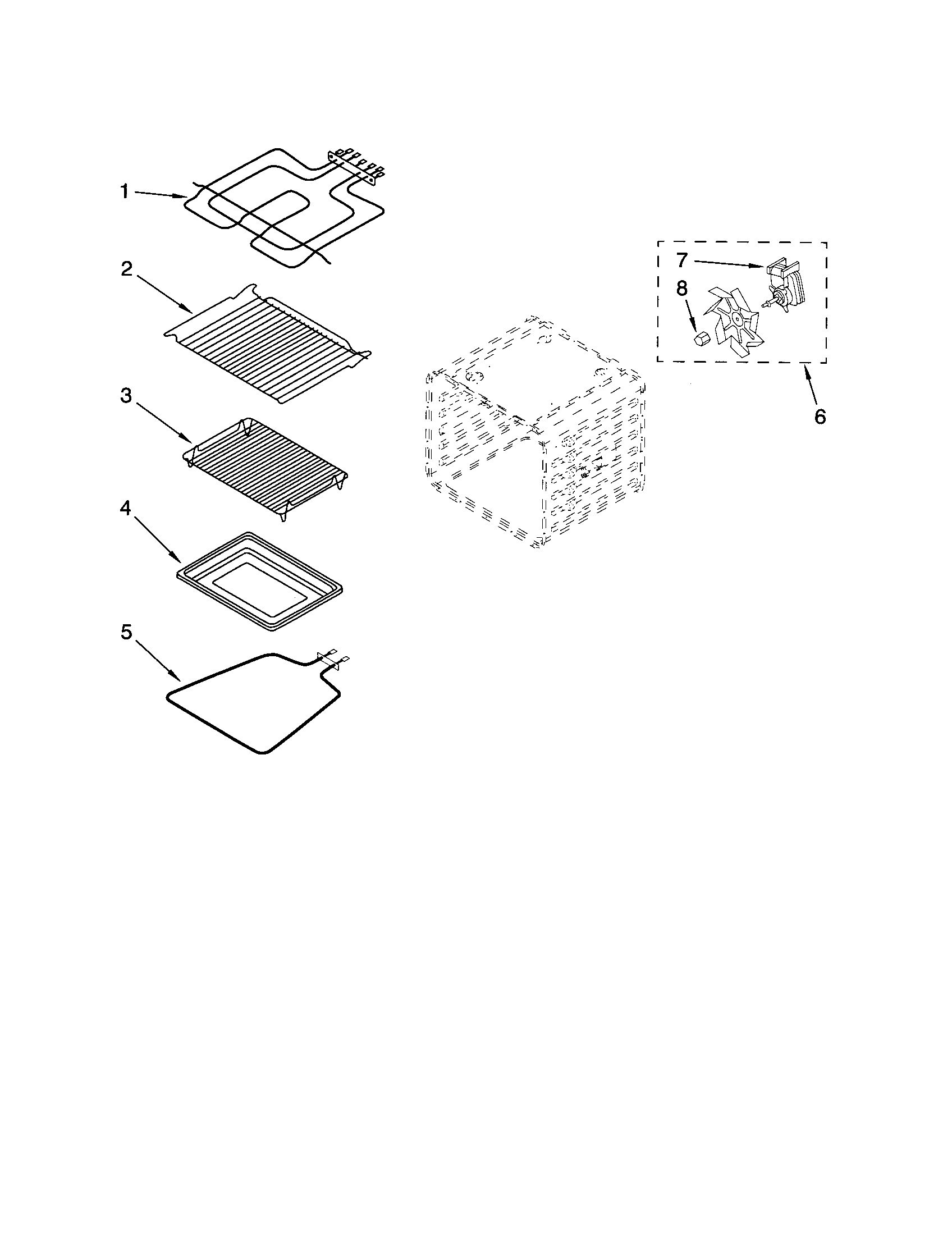

Internal oven diagram

Whirlpool fan wheel

Part #8186866

$73.00
In Stock
Door Glass 8186912
#5

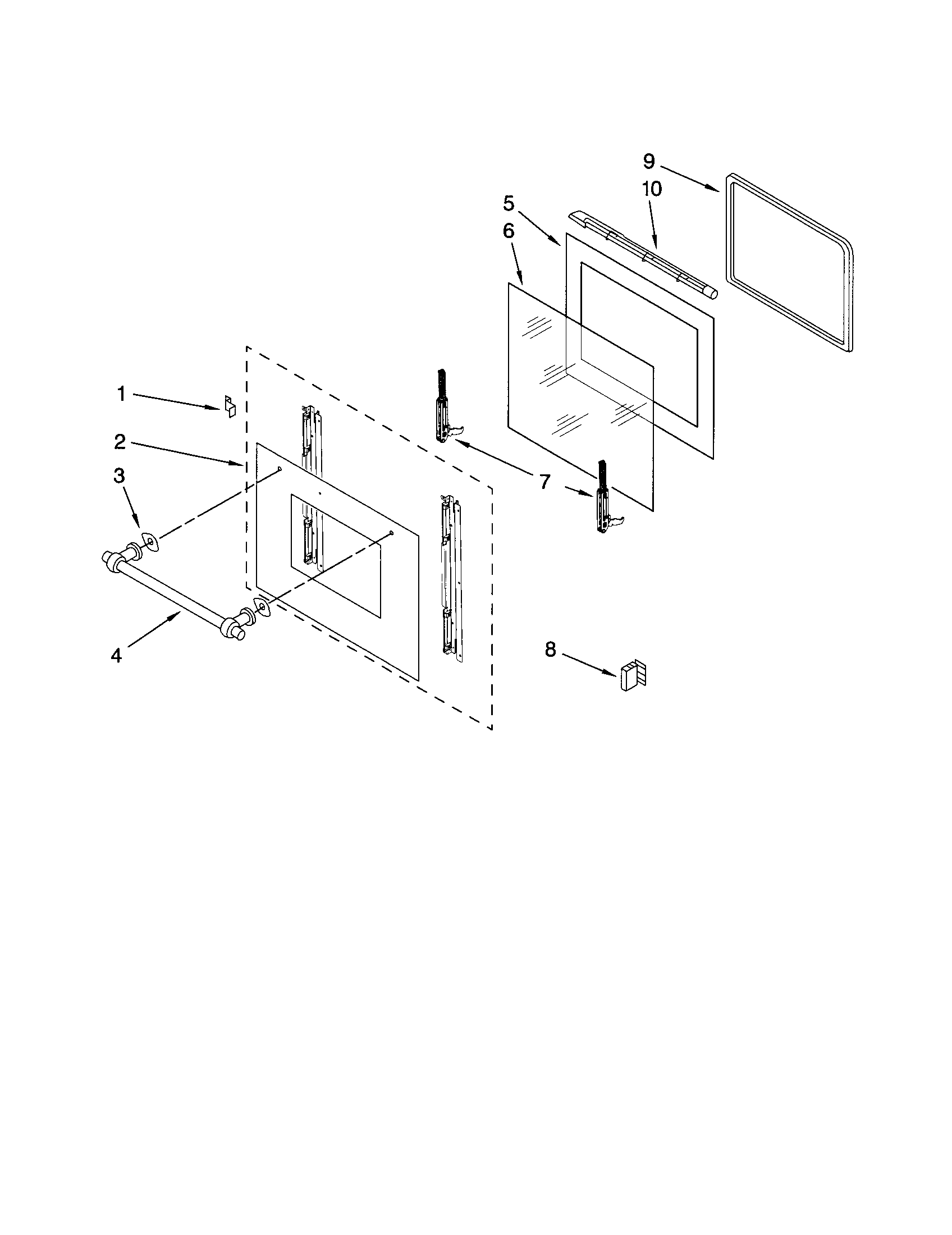

Oven door diagram

Door glass

Part #8186912

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Bulb 8186880
#4

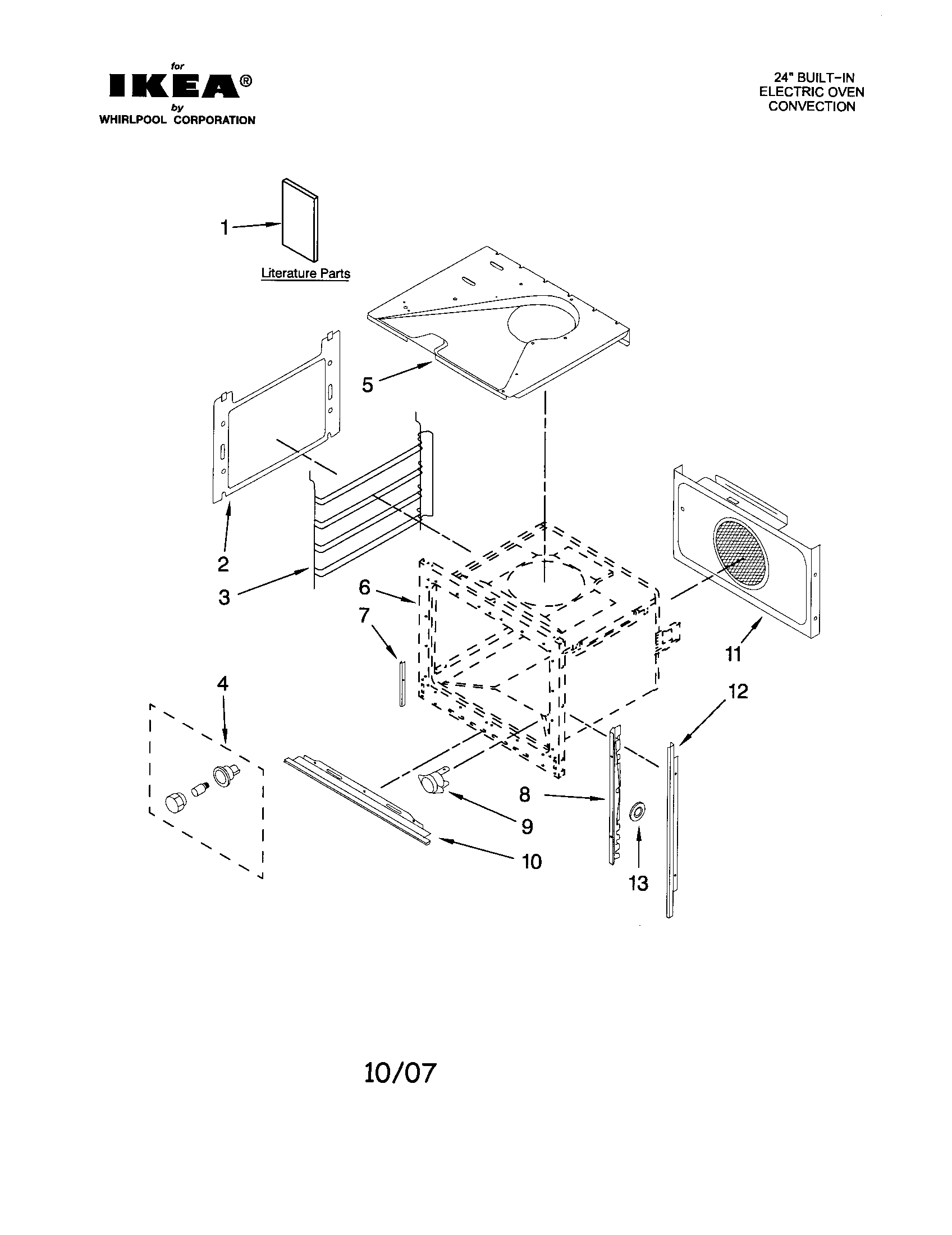

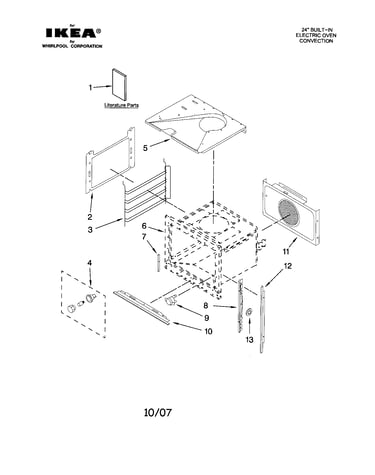

Oven diagram

Oven light bulb

Part #8186880

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 8186863
#6

Internal oven diagram

Fan motor

Part #8186863

The manufacturer no longer makes this part, and there's no substitute part

Oven Blower Fan 8186864
#3

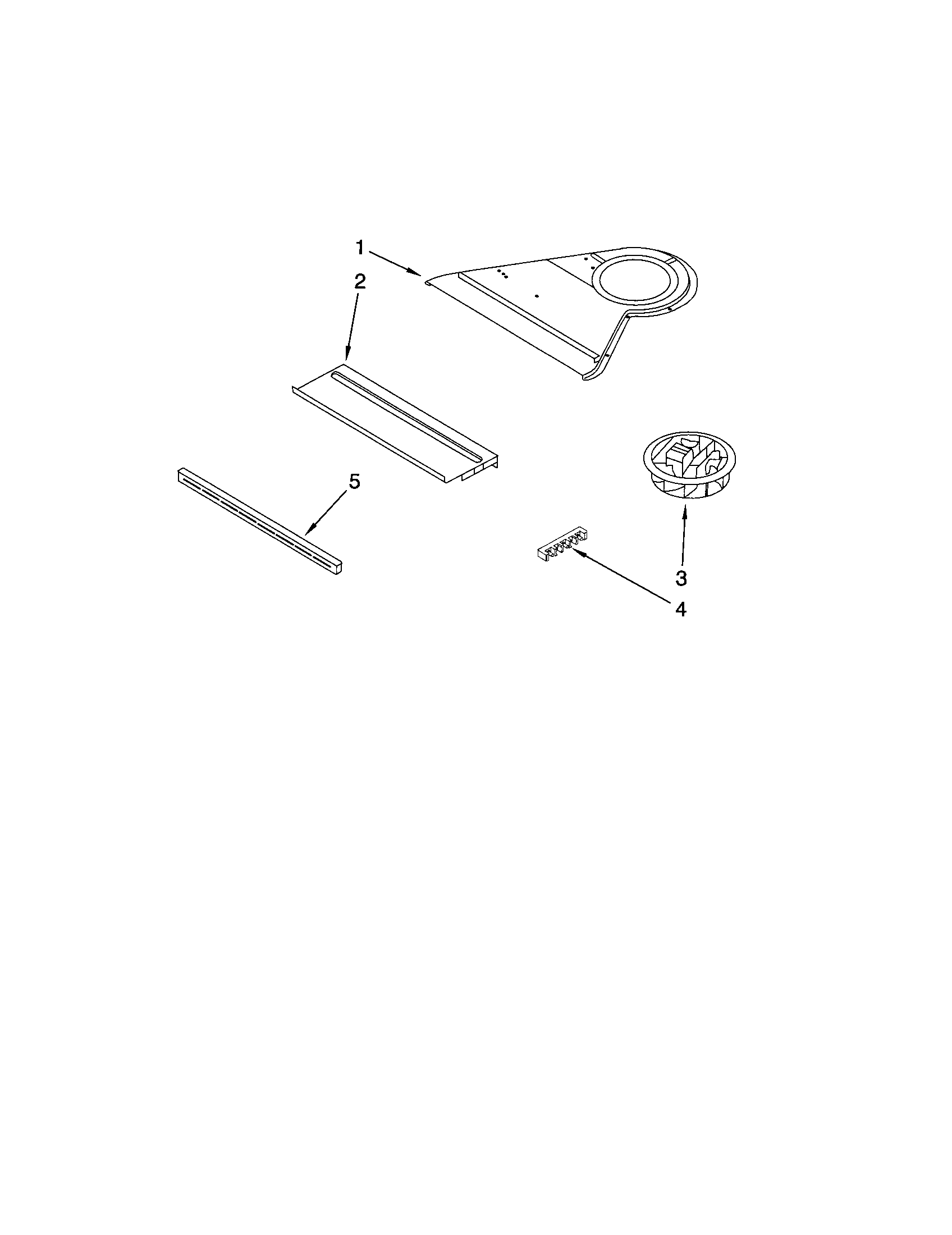

Top venting diagram

Oven blower fan

Part #8186864

The manufacturer no longer makes this part, and there's no substitute part

Oven Switch 8186922
#8

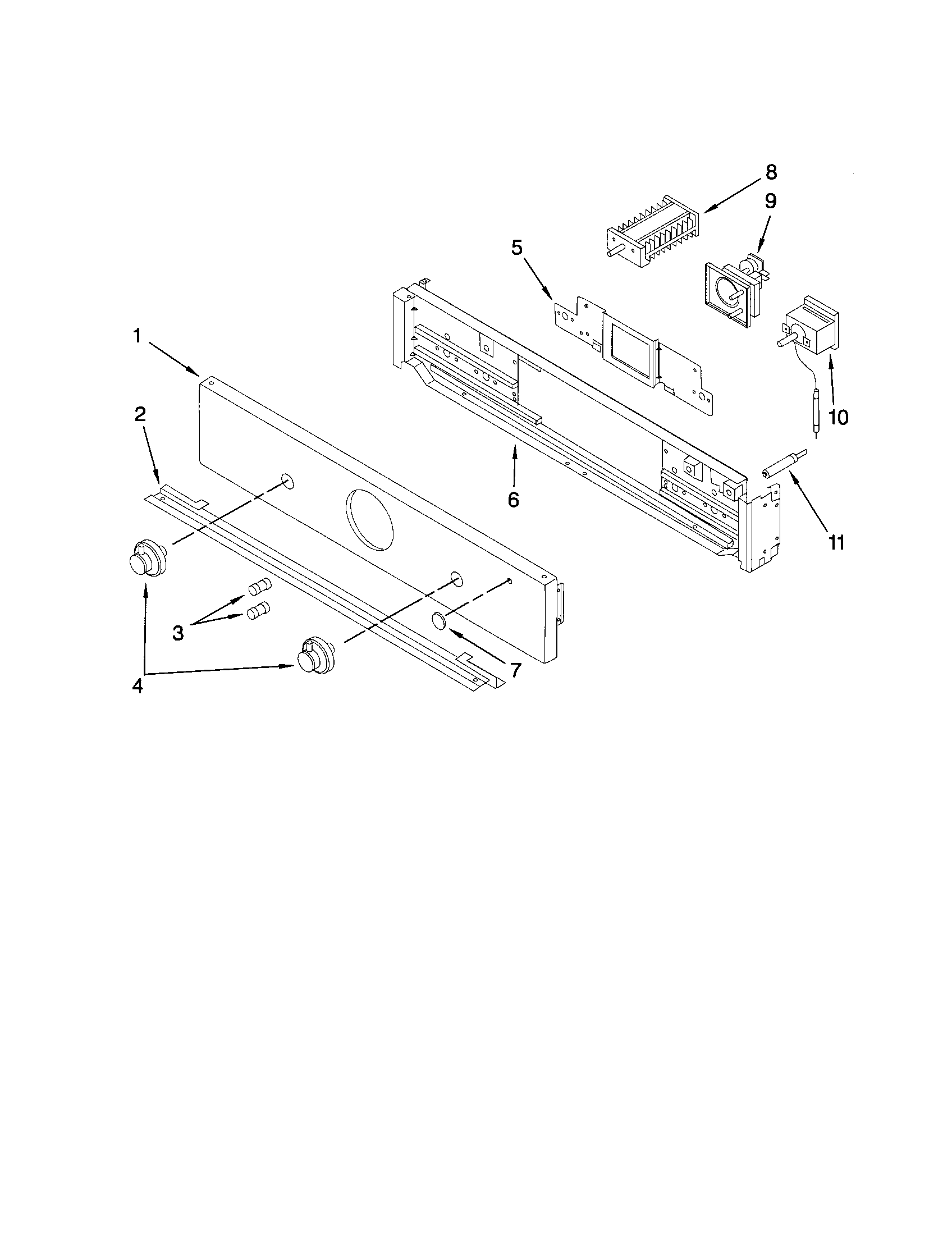

Control panel diagram

Oven switch

Part #8186922

The manufacturer no longer makes this part, and there's no substitute part

(left W/dual) N/P
(left w/dual)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Spacer 8186843
#3

Oven door diagram

Spacer

Part #8186843

The manufacturer no longer makes this part, and there's no substitute part

Trim 8186905
#8A

Oven diagram

Trim

Part #8186905

The manufacturer no longer makes this part, and there's no substitute part
