Caloric
Microwave/Hood Combo

Model # MWR365 Official Caloric microwave & range hood - r series

Here are the diagrams and repair parts for Official Caloric MWR365 microwave & range hood - r series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 152 parts  |
Fuse 45611
#1626

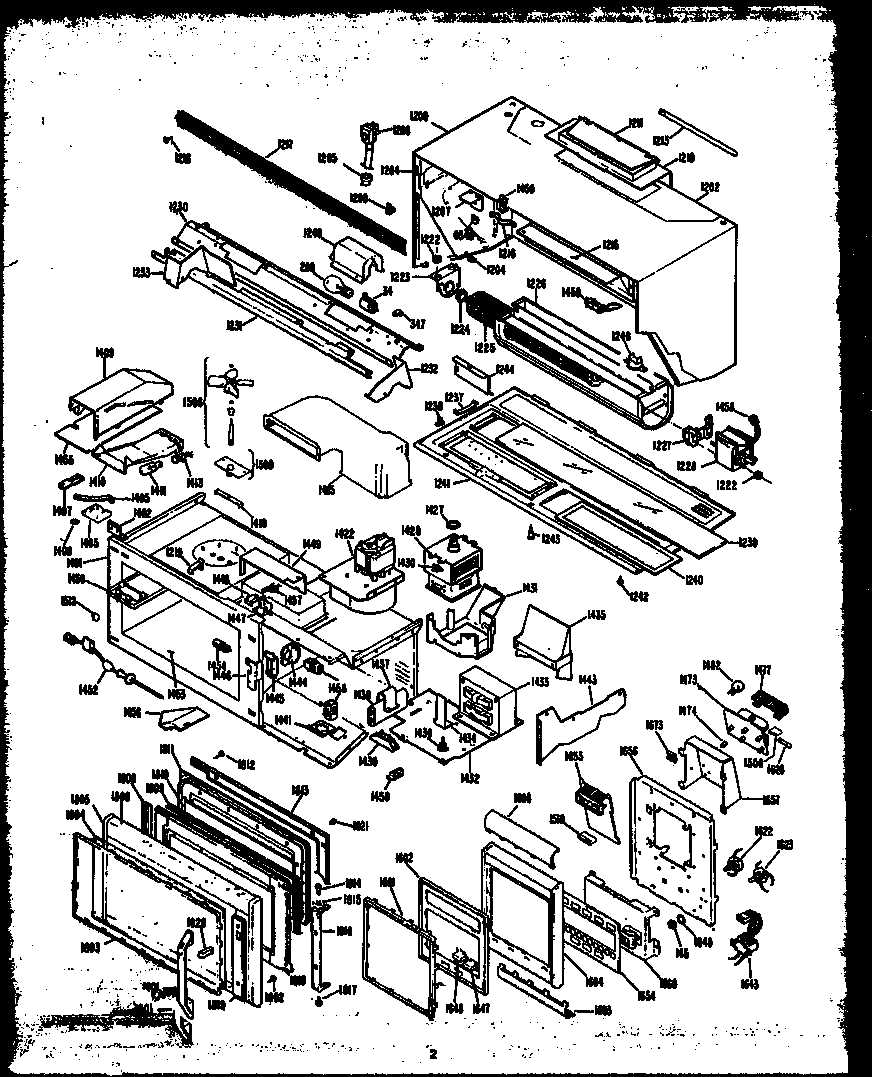

Microwave parts (mwr365) diagram

Fuse

Part #45611

Replaced by #WPM0805102

?
Manufacturer substitution
This part replaces 45611. Substitute parts can look different from the original.
$8.69 |
10% OFF Phone Price : $9.69
In Stock
Cover Rh Wiring 87255
#1232

Microwave parts (mwr365) diagram

Cover rh wiring

Part #87255

The manufacturer no longer makes this part, and there's no substitute part

7 Pin Socket W/terminals 87174
#1506B

Microwave parts (mwr365) diagram

7 pin socket w/terminals

Part #87174

The manufacturer no longer makes this part, and there's no substitute part

Speednut Mt. Case Upper 87232
#1204A

Microwave parts (mwr365) diagram

Speednut mt. case upper

Part #87232

The manufacturer no longer makes this part, and there's no substitute part

Side Panel 87293
#1443

Microwave parts (mwr365) diagram

Side panel

Part #87293

The manufacturer no longer makes this part, and there's no substitute part

Clip Head 87242
#1216

Microwave parts (mwr365) diagram

Clip head

Part #87242

The manufacturer no longer makes this part, and there's no substitute part

Cord Power 87235
#1206

Microwave parts (mwr365) diagram

Cord power

Part #87235

The manufacturer no longer makes this part, and there's no substitute part

Fastener Mtg Duct Air 87275
#1415A

Microwave parts (mwr365) diagram

Fastener mtg duct air

Part #87275

The manufacturer no longer makes this part, and there's no substitute part

Pad 87502
#1C

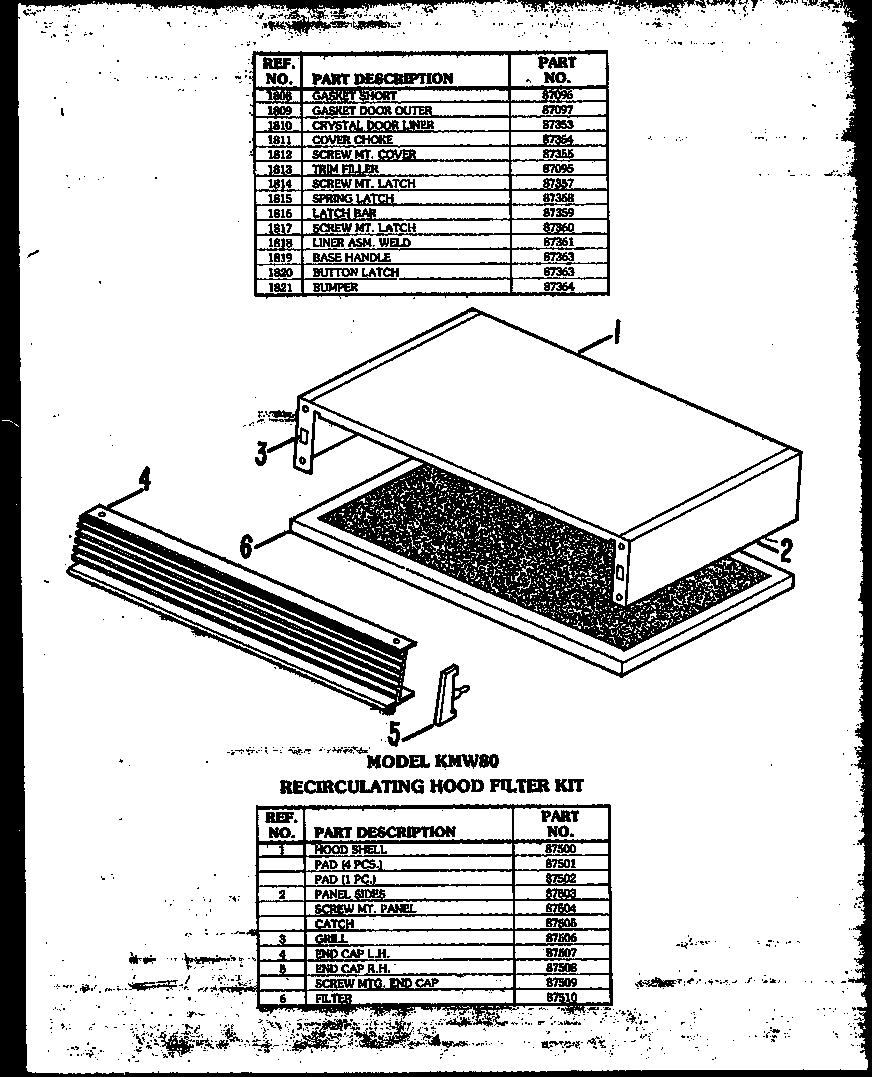

Microwave outer cover diagram

Pad

Part #87502

The manufacturer no longer makes this part, and there's no substitute part

Barrier 87299
#1449

Microwave parts (mwr365) diagram

Barrier

Part #87299

The manufacturer no longer makes this part, and there's no substitute part
