Model # QS330BL Official Broan range hood

Here are the diagrams and repair parts for Official Broan QS330BL range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Range Hood Light Socket R111630
#22

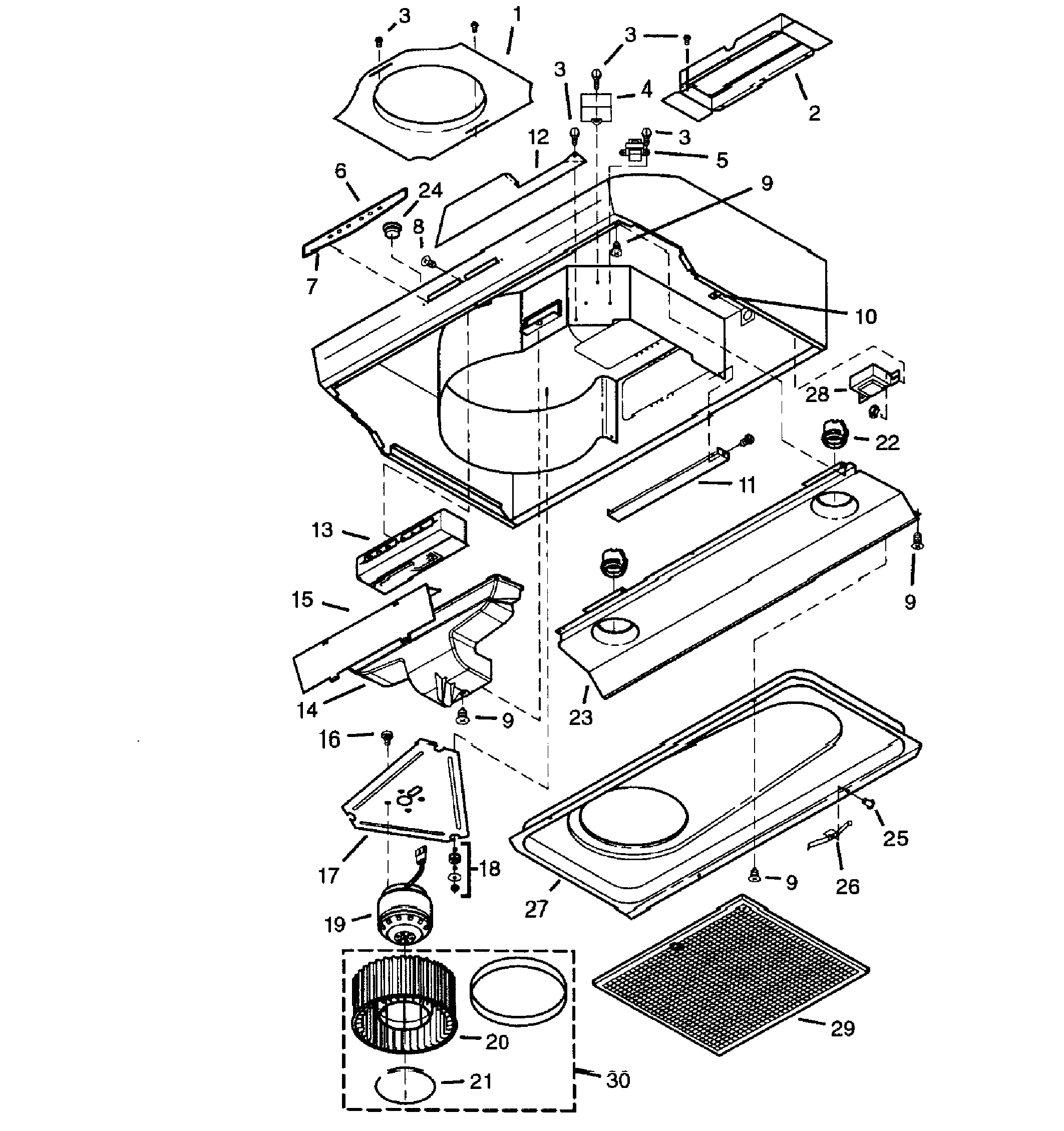

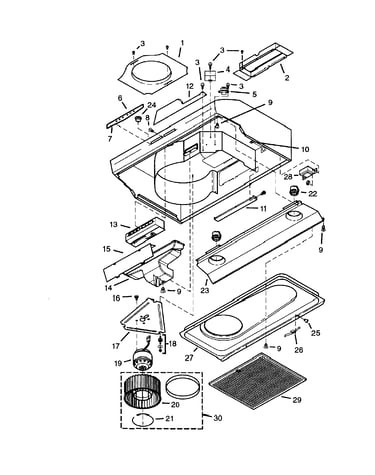

Range hood assy diagram

Range hood light socket

Part #R111630

Replaced by #SR111630

?
Manufacturer substitution
This part replaces R111630. Substitute parts can look different from the original.
BEST SELLER
$41.57 |
13% OFF Phone Price : $47.57
In Stock
Range Hood Panel R169013
#7

Range hood assy diagram

Range hood panel

Part #R169013

Replaced by #SR169013

?
Manufacturer substitution
This part replaces R169013. Substitute parts can look different from the original.
$32.69 |
16% OFF Phone Price : $38.69
In Stock
Range Hood Charcoal Filter 99010308
#NI

Range hood assy diagram

Range hood charcoal filter

Part #99010308

Replaced by #S99010308

?
Manufacturer substitution
This part replaces 99010308. Substitute parts can look different from the original.
$60.99 |
9% OFF Phone Price : $66.99
In Stock
Range Hood Blower Wheel R531068
#20

Range hood assy diagram

Range hood blower wheel

Part #R531068

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Screw R602017
#3

Range hood assy diagram

Range hood screw

Part #R602017

This item is not returnable
$4.88
In Stock
Panel R7201734
#23

Range hood assy diagram

Panel

Part #R7201734

$87.22
In Stock
Plate R651973
#17

Range hood assy diagram

Plate

Part #R651973

Replaced by #SR651973

?
Manufacturer substitution
This part replaces R651973. Substitute parts can look different from the original.
$37.92
In Stock
Spring R169016
#26

Range hood assy diagram

Spring

Part #R169016

Replaced by #SR169016

?
Manufacturer substitution
This part replaces R169016. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Range Hood Motor Plate Mounting Kit R169009
#18

Range hood assy diagram

Range hood motor plate mounting kit

Part #R169009

Replaced by #SR169009

?
Manufacturer substitution
This part replaces R169009. Substitute parts can look different from the original.
$12.00
In Stock
Range Hood Vent Damper R680508
#1

Range hood assy diagram

Range hood vent damper

Part #R680508

The manufacturer no longer makes this part, and there's no substitute part
