Amana
Upright Freezer

Model # AQU1627BRW Official Amana upright freezer

Here are the diagrams and repair parts for Official Amana AQU1627BRW upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

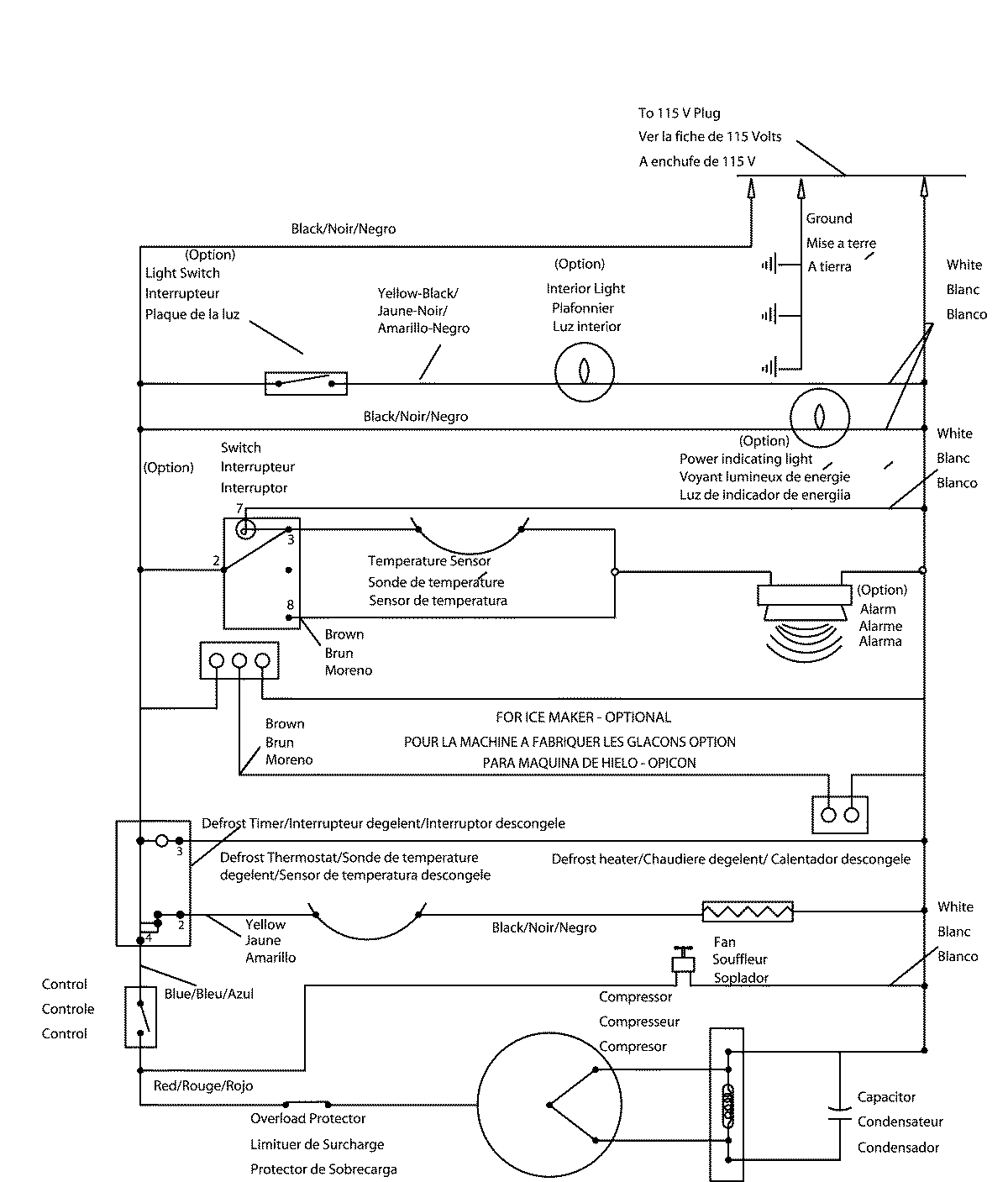

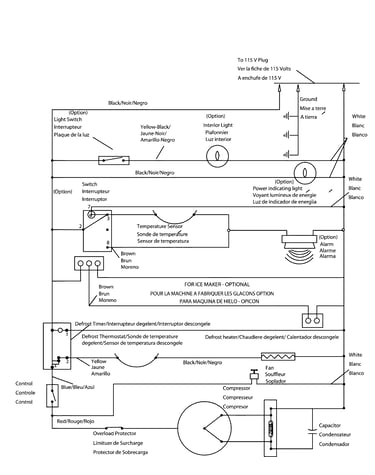

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Refrigerator Uv Dye Dryer 13900-1
#13

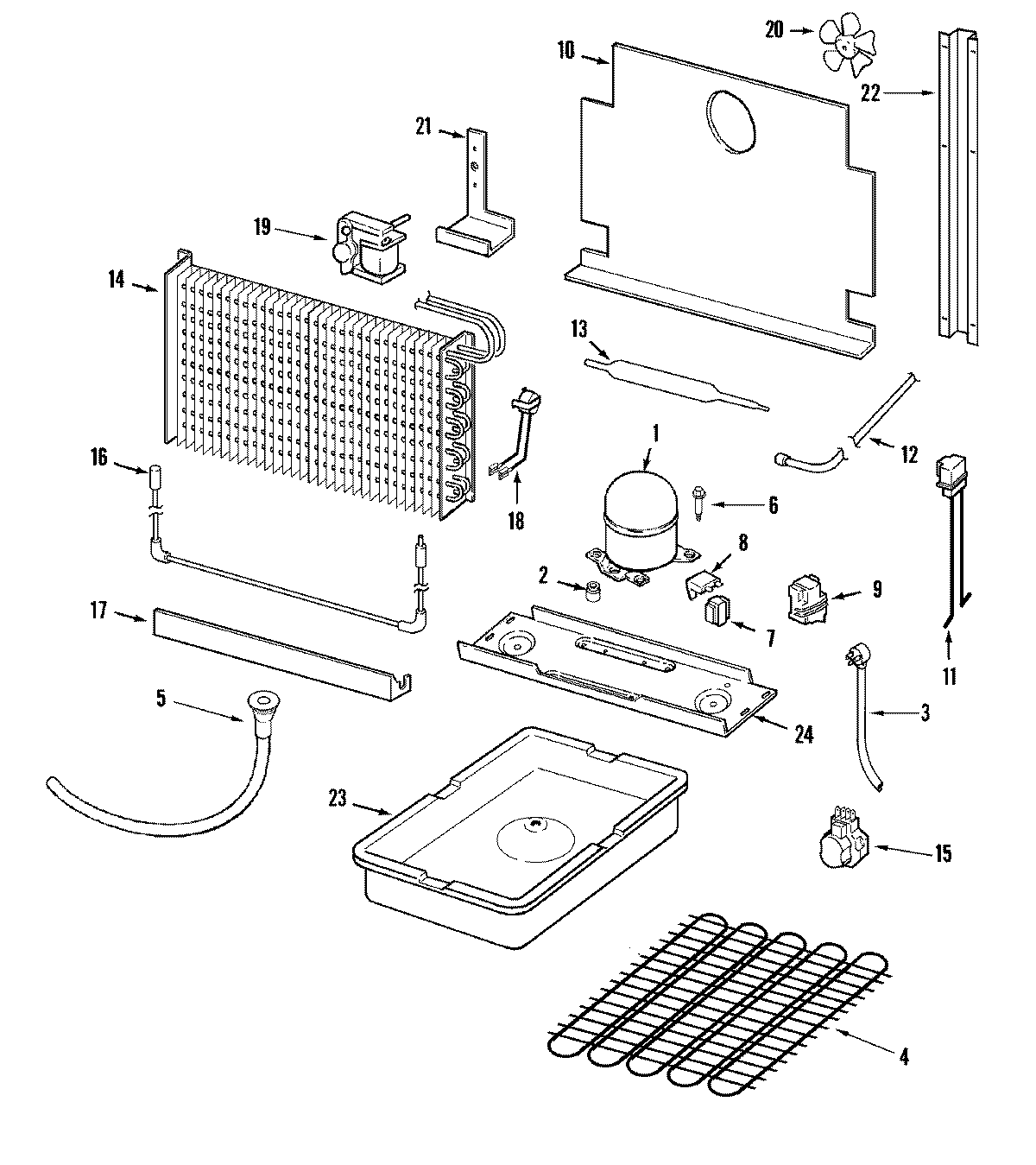

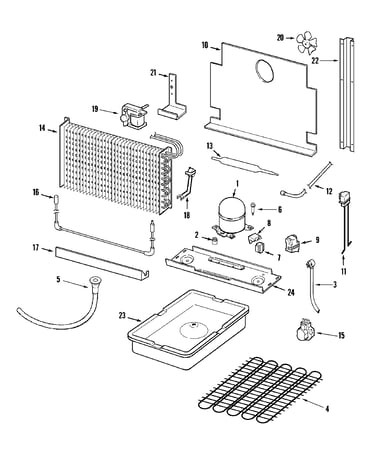

Unit compartment & system diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Light Bulb 68001557
#12

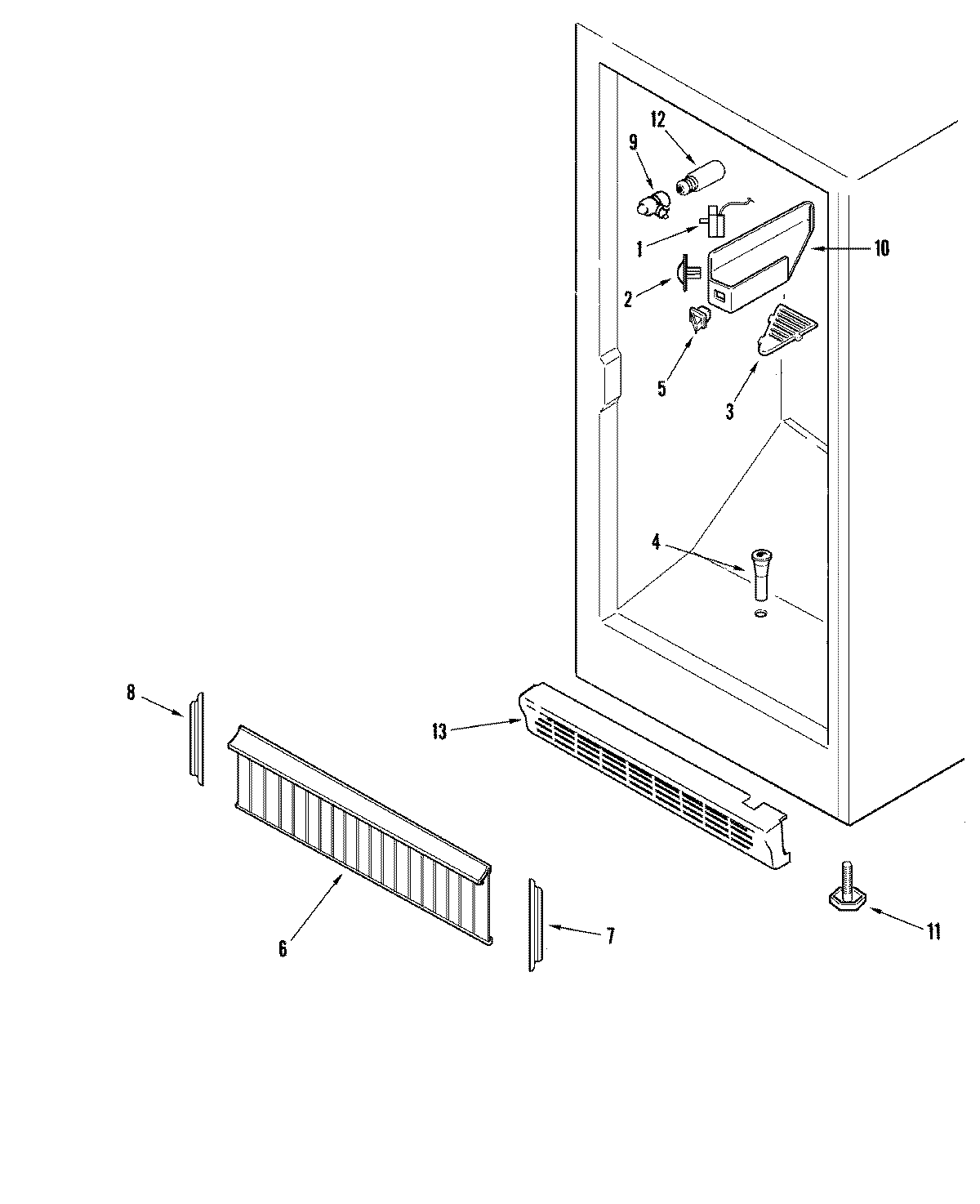

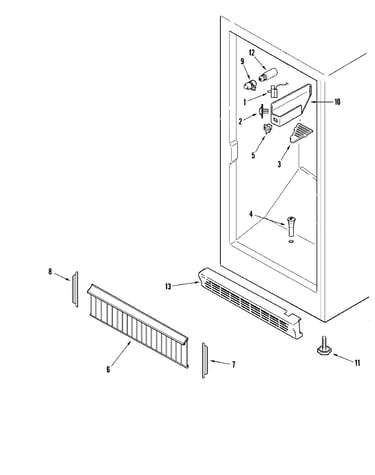

Freezer compartment diagram

Light bulb

Part #68001557

Replaced by #40A15

?
Manufacturer substitution
This part replaces 68001557. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Light Switch 68001324
#5

Freezer compartment diagram

Light switch

Part #68001324

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 68001324. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Screw 68001715
#14B

Unit compartment & system diagram

Screw

Part #68001715

Replaced by #WP489491

?
Manufacturer substitution
This part replaces 68001715. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Defrost Timer 68001115
#15

Unit compartment & system diagram

Defrost timer

Part #68001115

Replaced by #WP3-81329

?
Manufacturer substitution
This part replaces 68001115. Substitute parts can look different from the original.
$88.66 |
6% OFF Phone Price : $94.66
In Stock
Screw 046897-05
#17

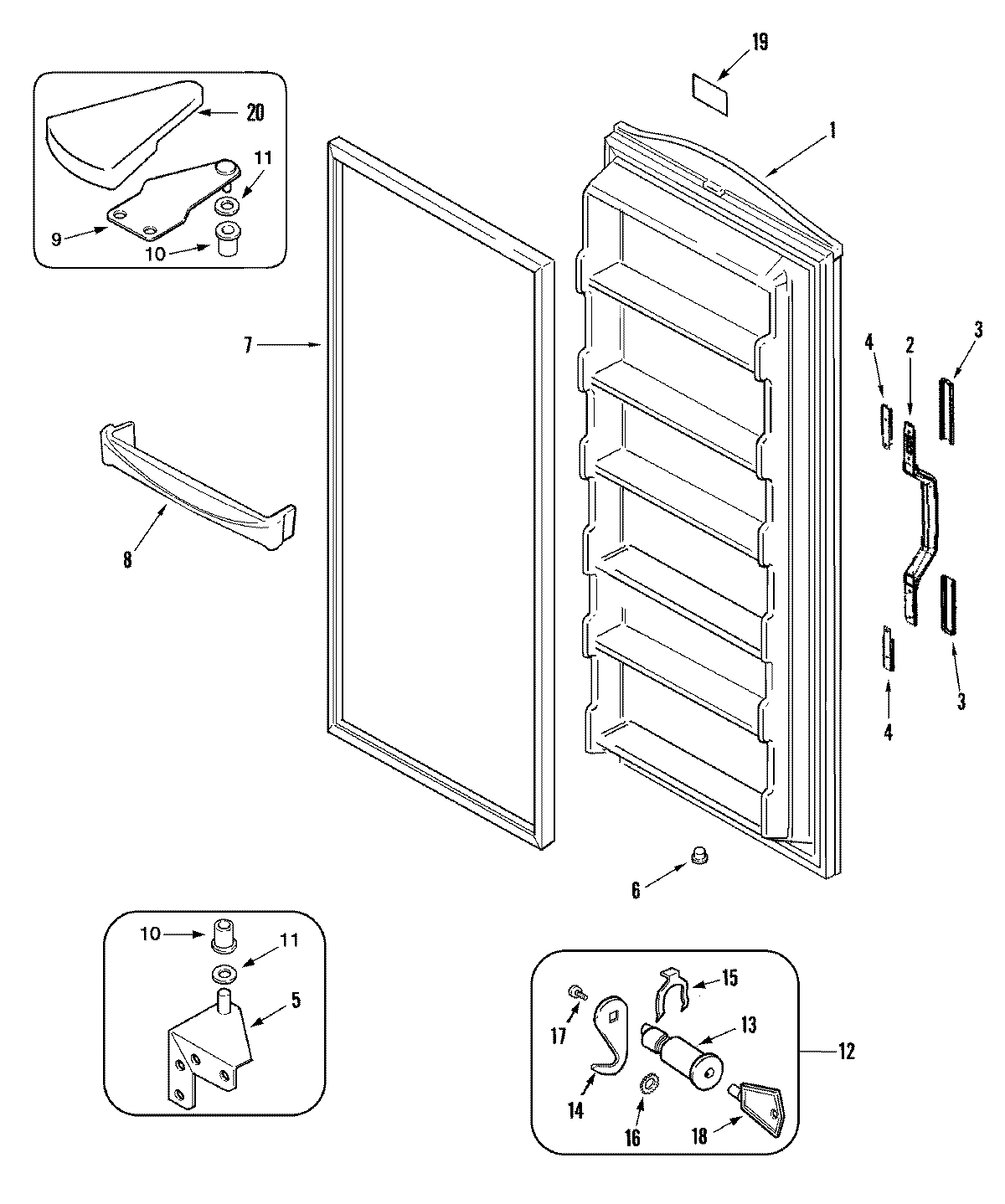

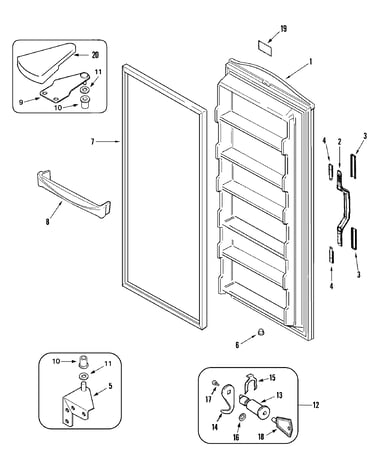

Door diagram

Screw

Part #046897-05

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 046897-05. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Thermostat R0213208
#18

Unit compartment & system diagram

Thermostat

Part #R0213208

Replaced by #WP1-81801-001

?
Manufacturer substitution
This part replaces R0213208. Substitute parts can look different from the original.
$48.06 |
11% OFF Phone Price : $54.06
In Stock
Screw 68001474
#14A

Freezer compartment diagram

Screw

Part #68001474

Replaced by #WP489464

?
Manufacturer substitution
This part replaces 68001474. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Temperature Control 68001744
#1

Freezer compartment diagram

Temperature control

Part #68001744

Replaced by #WP4-83053-001

?
Manufacturer substitution
This part replaces 68001744. Substitute parts can look different from the original.
$100.64 |
11% OFF Phone Price : $112.64
In Stock
Bezel 045575-01
#19

Freezer compartment diagram

Bezel

Part #045575-01

Replaced by #WP3-80414-103

?
Manufacturer substitution
This part replaces 045575-01. Substitute parts can look different from the original.
$7.67 |
12% OFF Phone Price : $8.67
In Stock
