Gas Walk-Behind Mower

Model # 12AV566P004 Official MTD lawn mower

Here are the diagrams and repair parts for Official MTD 12AV566P004 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Troybilt Lawn Mower 21-in Deck Mulching Blade (replaces 01002810, 742-0741a, 942-04276, 942-0741) 942-0741A
#34

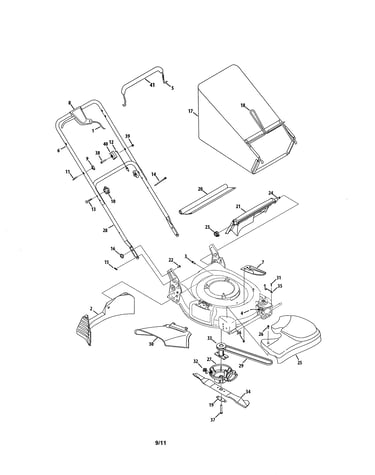

Handle/grass bag diagram

Troybilt lawn mower 21-in deck mulching blade (replaces 01002810, 742-0741a, 942-04276, 942-0741)

Part #942-0741A

BEST SELLER

Get free shipping with Automatic Reorder

$29.10 |
17% OFF Phone Price : $35.10
In Stock
Yard Machines Lawn & Garden Equipment Nut 712-04064
#39

Handle/grass bag diagram

Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
#5

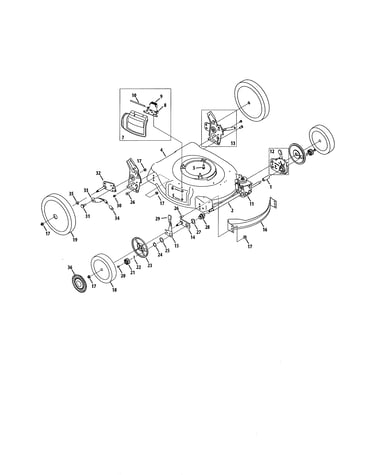

Drive control/deck diagram

Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Yard Machines Lawn Mower Handle Knob (replaces 01000382, 113589, 720-04072, 720-04125) 720-04072A
#10

Handle/grass bag diagram

Yard machines lawn mower handle knob (replaces 01000382, 113589, 720-04072, 720-04125)

Part #720-04072A

BEST SELLER
$9.33 |
10% OFF Phone Price : $10.33
In Stock
Lawn Tractor Screw, 1/4-20 X 5/8-in (replaces 910-1652) 710-1652
#30

Drive control/deck diagram

Lawn tractor screw, 1/4-20 x 5/8-in (replaces 910-1652)

Part #710-1652

BEST SELLER
This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Lawn & Garden Equipment Wing Nut 912-0397
#16

Handle/grass bag diagram

Lawn & garden equipment wing nut

Part #912-0397

Replaced by #712-0397A

?
Manufacturer substitution
This part replaces 912-0397. Substitute parts can look different from the original.
This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Lawn Mower Tie Cable 926-0240
#14

Handle/grass bag diagram

Lawn mower tie cable

Part #926-0240

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 926-0240. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Yard Machines Lawn & Garden Equipment Cupped Washer 736-0270
#6

Drive control/deck diagram

Yard machines lawn & garden equipment cupped washer

Part #736-0270

This item is not returnable
$5.10 |
16% OFF Phone Price : $6.10
In Stock
Aircap Lawn & Garden Equipment Hex Screw 710-0896
#36

Handle/grass bag diagram

Aircap lawn & garden equipment hex screw

Part #710-0896

This item is not returnable
$5.22 |
16% OFF Phone Price : $6.22
In Stock
Lawn Mower Screw 710-04531
#20

Drive control/deck diagram

Lawn mower screw

Part #710-04531

This item is not returnable
$7.77 |
11% OFF Phone Price : $8.77
In Stock
