Model # JK915SF1SS Official GE wall oven
Here are the diagrams and repair parts for Official GE JK915SF1SS wall oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forJK915SF1SS Wall Ovens
- #253

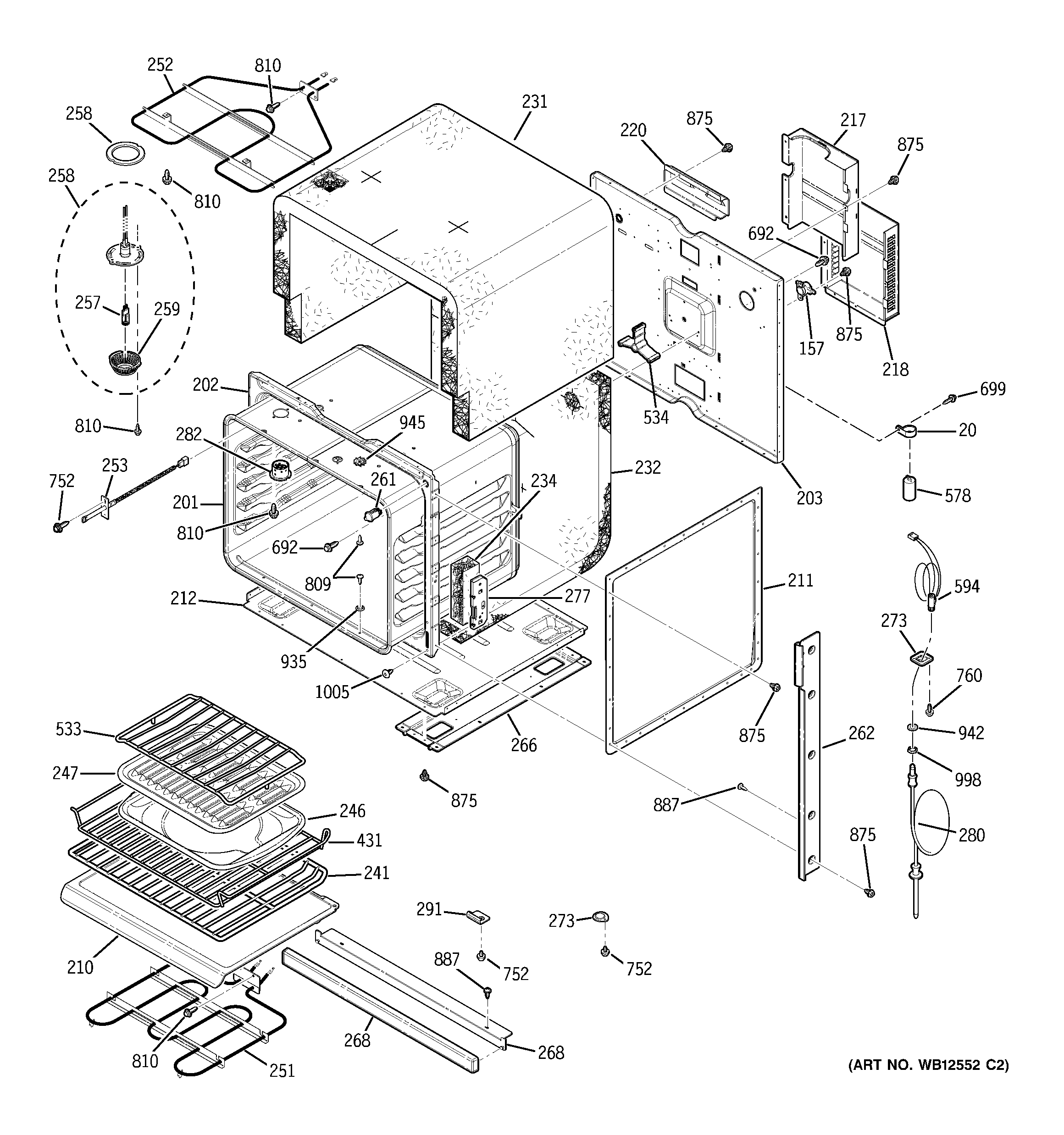

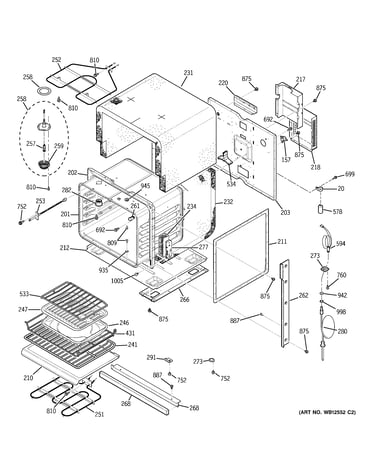

Body parts diagram
Wall oven temperature sensorPart #WB21T10007
Replaced by #WB21X22134
?Manufacturer substitutionThis part replaces WB21T10007. Substitute parts can look different from the original.$20.00 |23% OFF Phone Price : $26.00In Stock - #159

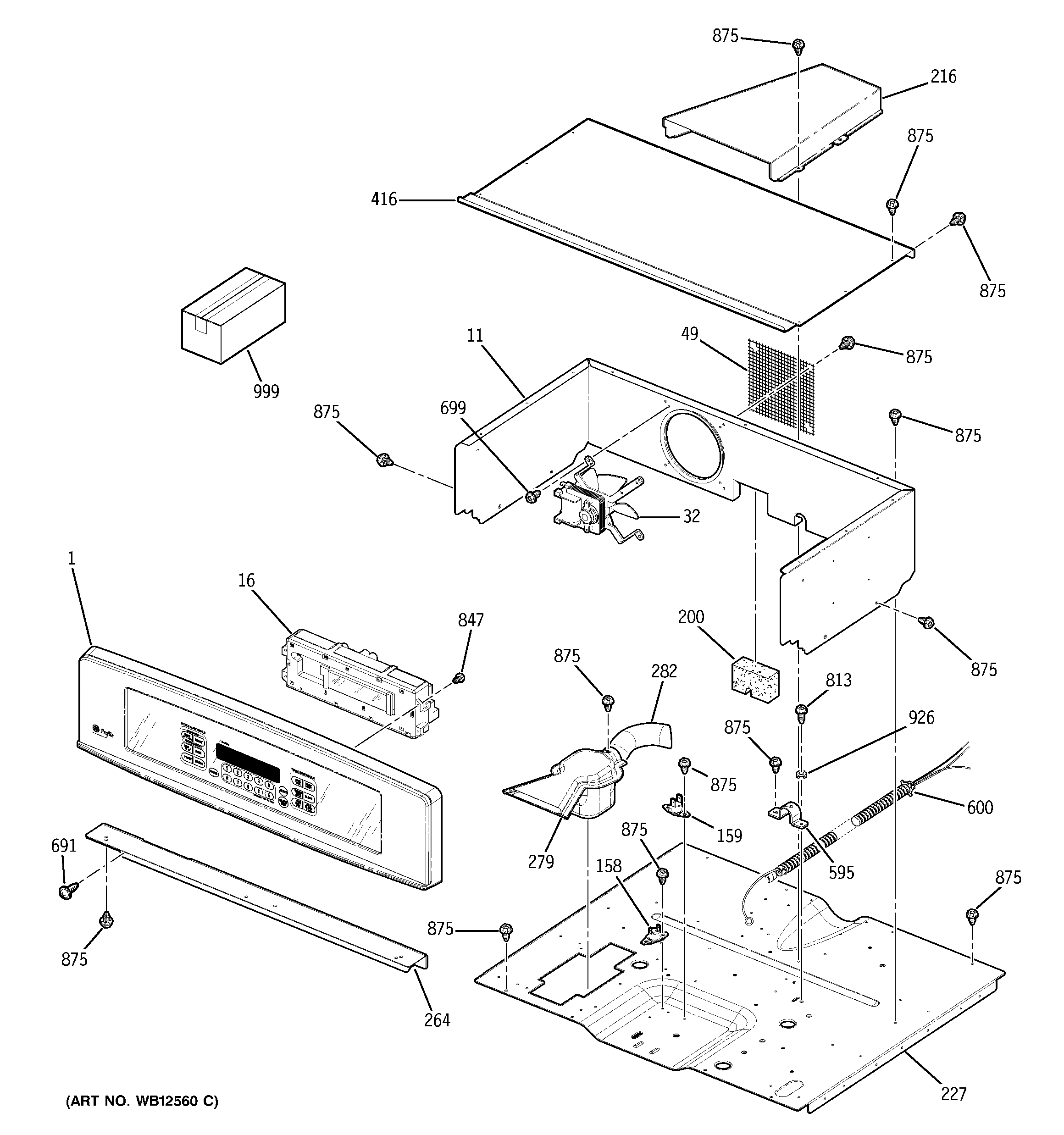

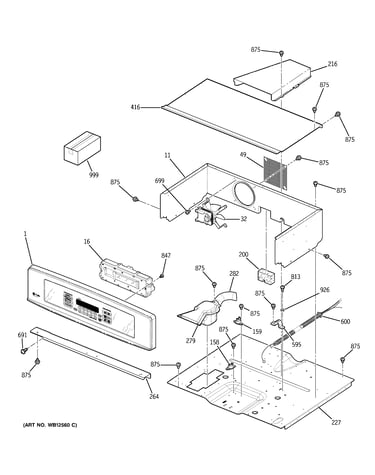

Control panel & cooktop diagram
Wall oven safety thermostatPart #WB24T10060
This item is not returnable$12.89 |13% OFF Phone Price : $14.89In Stock - #252
Body parts diagram
Broil elementPart #WB44T10030
Replaced by #WB44T10051
?Manufacturer substitutionThis part replaces WB44T10030. Substitute parts can look different from the original.$97.63 |11% OFF Phone Price : $109.63In Stock - #977

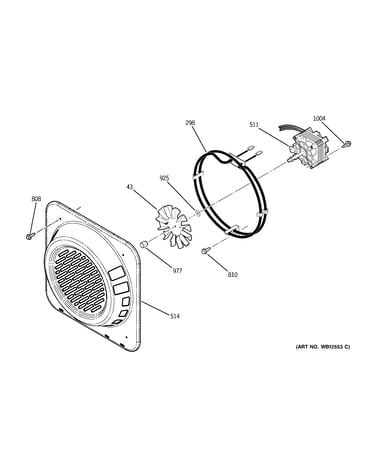

Convection fan diagram
NutPart #WB02T10017
This item is not returnable$11.04 |15% OFF Phone Price : $13.04In Stock - #43
Convection fan diagram
Complete fan bladePart #WB02T10142
Replaced by #WB02T10289
?Manufacturer substitutionThis part replaces WB02T10142. Substitute parts can look different from the original.This item is not returnable$25.09 |19% OFF Phone Price : $31.09In Stock - #32
Control panel & cooktop diagram
Range control panel cooling fanPart #WB26T10018
$189.06 |6% OFF Phone Price : $201.06In Stock - Screw
Part #WH02X0930
Replaced by #WH2X930
?Manufacturer substitutionThis part replaces WH02X0930. Substitute parts can look different from the original.This item is not returnable$7.95 |11% OFF Phone Price : $8.95In Stock - #809
Body parts diagram
ScrewPart #WB01X1137
Replaced by #WB1X1137
?Manufacturer substitutionThis part replaces WB01X1137. Substitute parts can look different from the original.$7.95 |11% OFF Phone Price : $8.95In Stock - #760
Body parts diagram
ScrewPart #WB01K5028
Replaced by #WB1X536
?Manufacturer substitutionThis part replaces WB01K5028. Substitute parts can look different from the original.$9.11 |10% OFF Phone Price : $10.11In Stock - #132

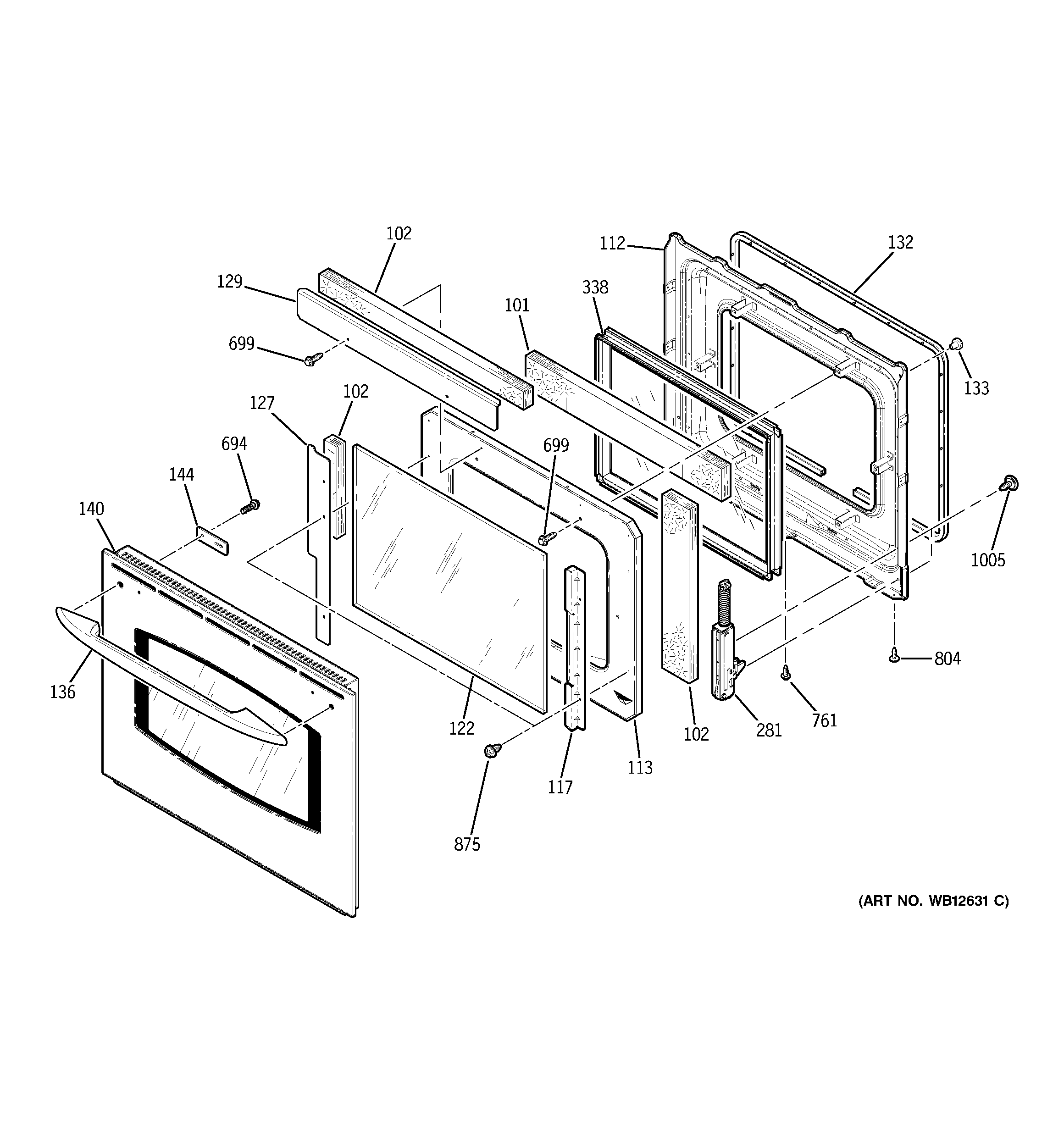

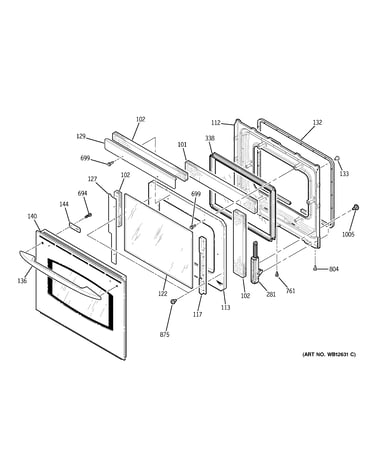

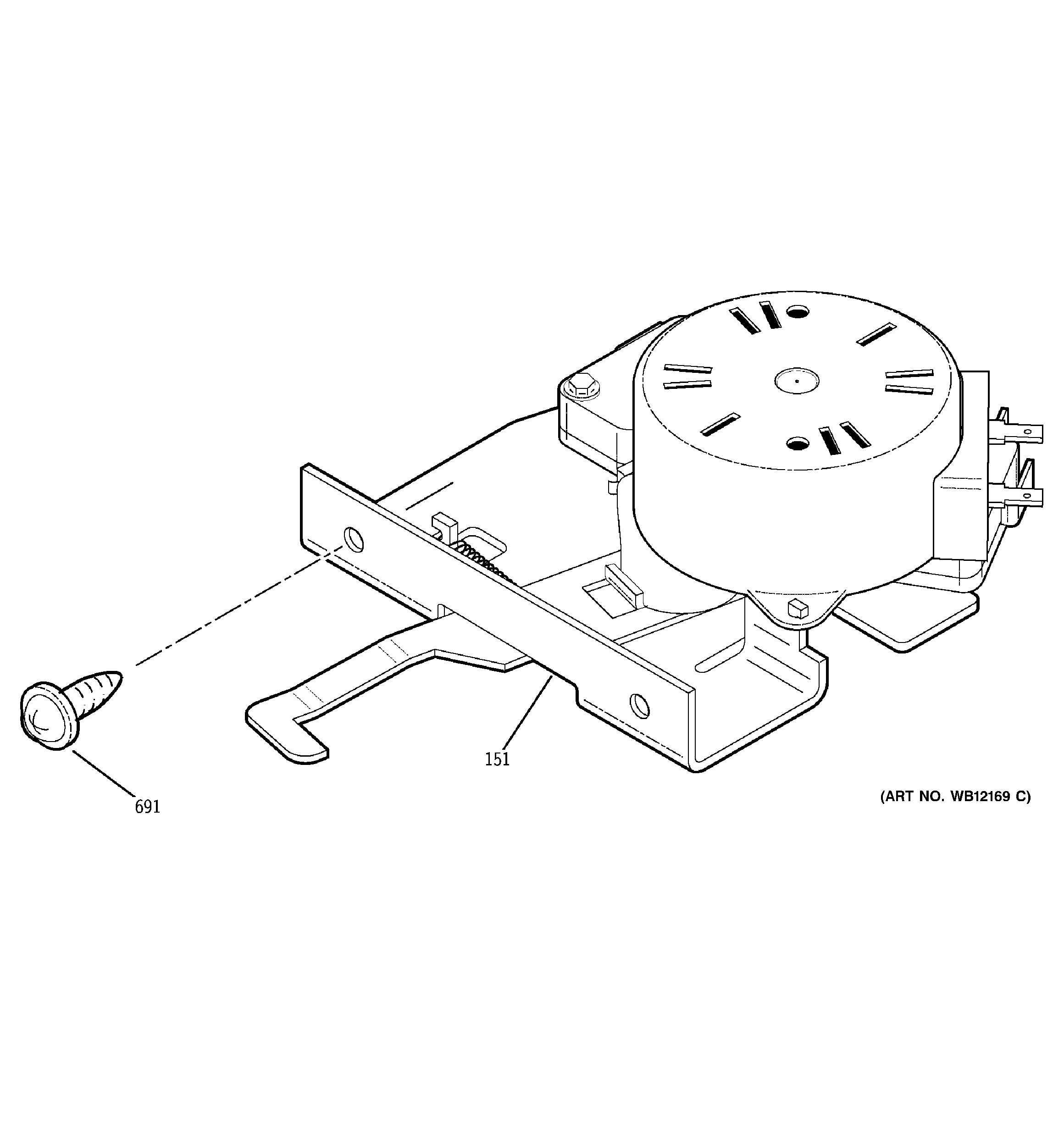

Door diagram
Range oven door gasketPart #WB32T10010
$77.58 |7% OFF Phone Price : $83.58In Stock
