Room Air Conditioner

Model # AJ710AVT2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJ710AVT2 room air conditioner, as well as links to manuals and error code tables, if available.

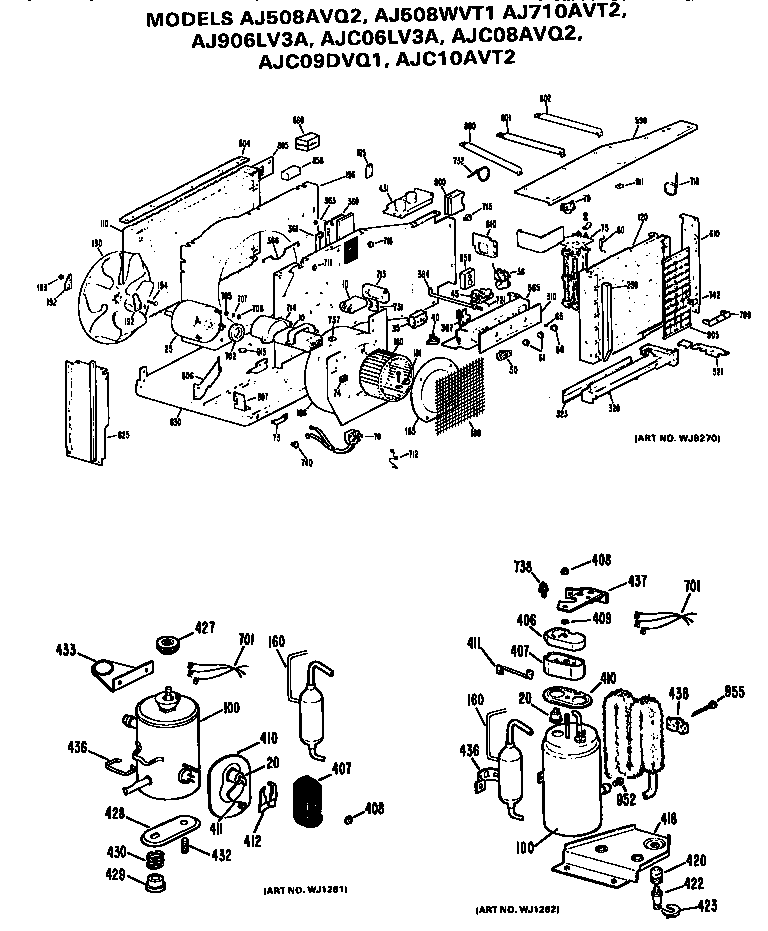

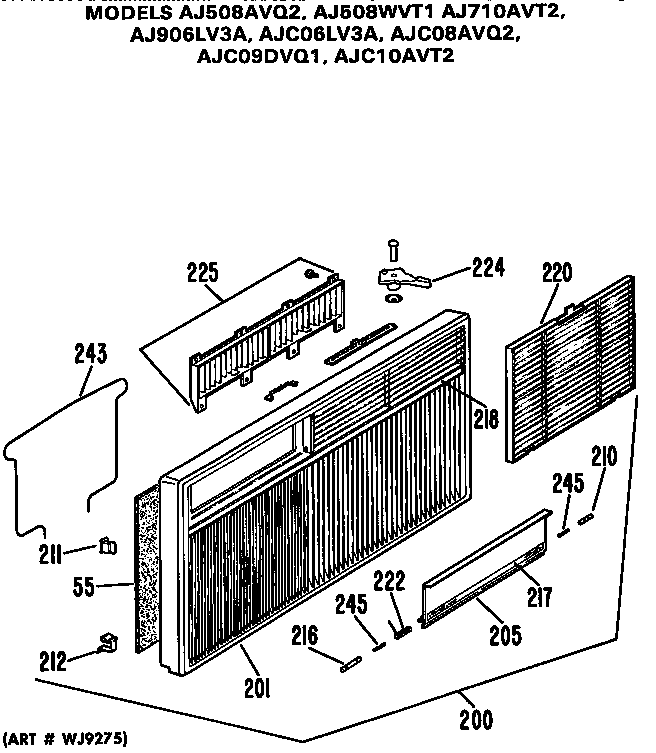

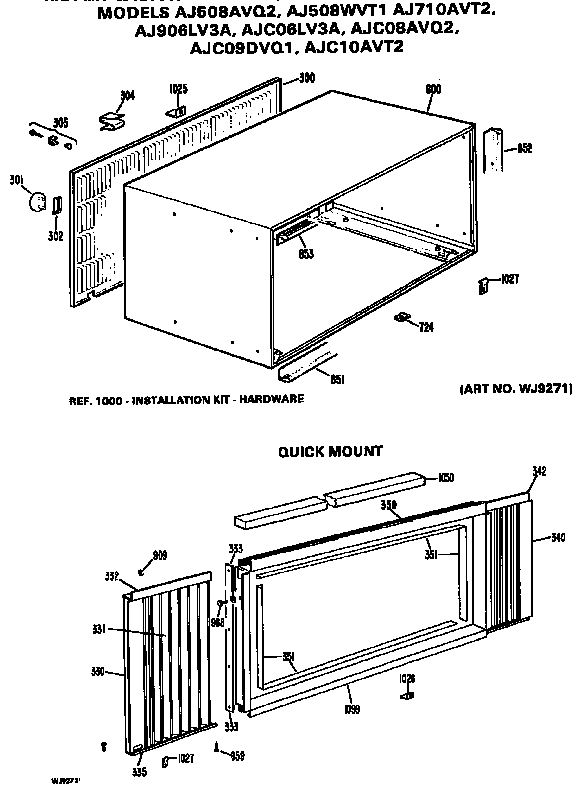

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAJ710AVT2 Room Air Conditioner

  • Screw WZ5X153

    #983

    All parts diagram

    Screw

    Part #WZ5X153

    This item is not returnable
    $2.49
    In Stock
  • Thermostat WJ28X510

    #35

    All parts diagram

    Thermostat

    Part #WJ28X510

    $169.64
    In Stock
  • Rear Grille WJ71X172

    #300

    All parts diagram

    Rear grille

    Part #WJ71X172

    Replaced by #RAG13A

    ?
    Manufacturer substitution
    This part replaces WJ71X172. Substitute parts can look different from the original.
    $39.26 |
    14% OFF Was : $45.47
    In Stock
  • Orifice WP76X5

    #185

    All parts diagram

    Orifice

    Part #WP76X5

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal WJ43X240

    #702

    All parts diagram

    Seal

    Part #WJ43X240

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket WJ43X335

    #410

    All parts diagram

    Gasket

    Part #WJ43X335

    The manufacturer no longer makes this part, and there's no substitute part

  • Cup Capacitor Cover WJ3X213

    #714

    All parts diagram

    Cup capacitor cover

    Part #WJ3X213

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet Asm Final WJ90X50

    #600

    All parts diagram

    Cabinet asm final

    Part #WJ90X50

    The manufacturer no longer makes this part, and there's no substitute part

  • Use & Care A 49-7155

    #LITR

    All parts diagram

    Use & care a

    Part #49-7155

    The manufacturer no longer makes this part, and there's no substitute part

  • Desuperheater Bracket WJ66X426

    #437

    All parts diagram

    Desuperheater bracket

    Part #WJ66X426

    The manufacturer no longer makes this part, and there's no substitute part
