Model # DLE330RCW-PDLE330RCW Official Amana dryer

Here are the diagrams and repair parts for Official Amana DLE330RCW-PDLE330RCW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

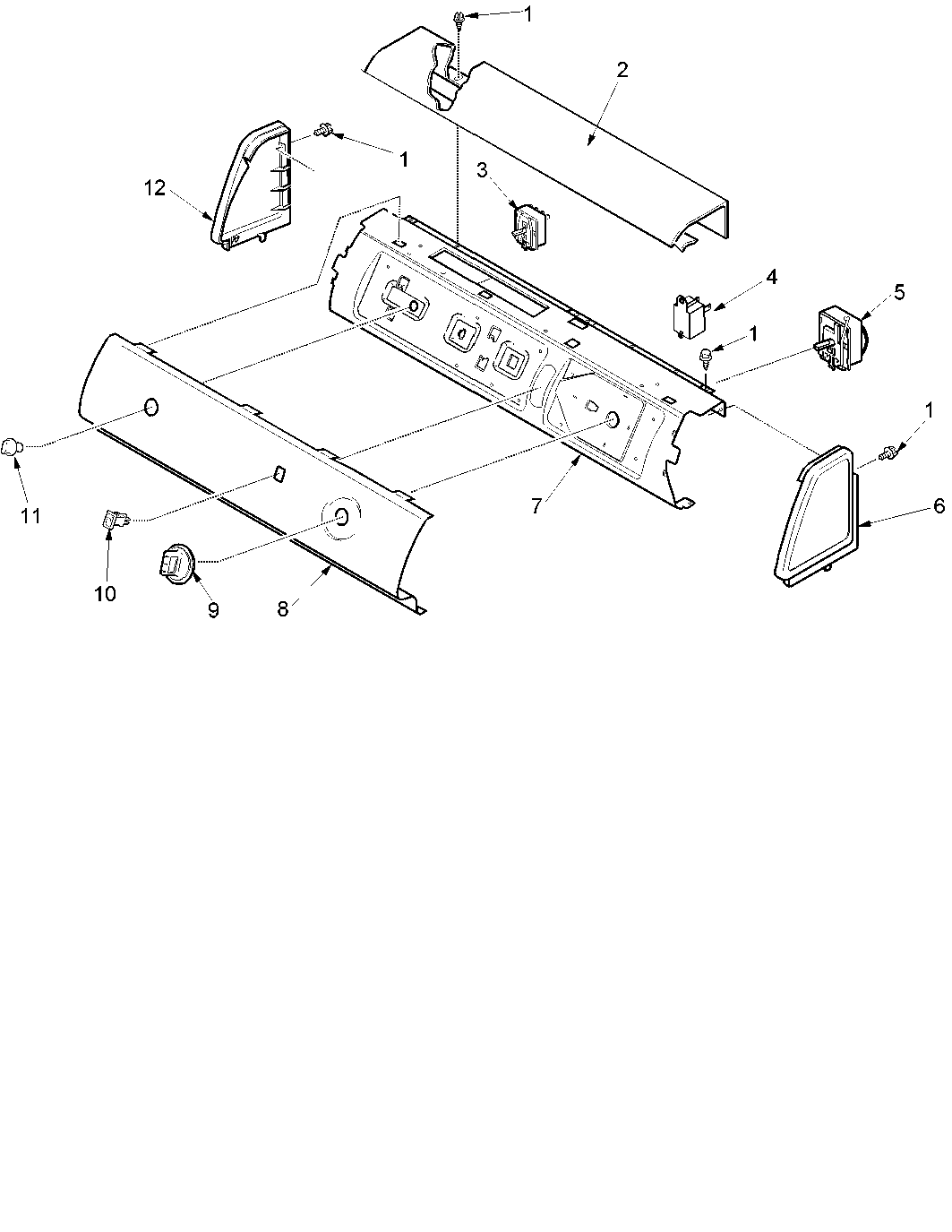

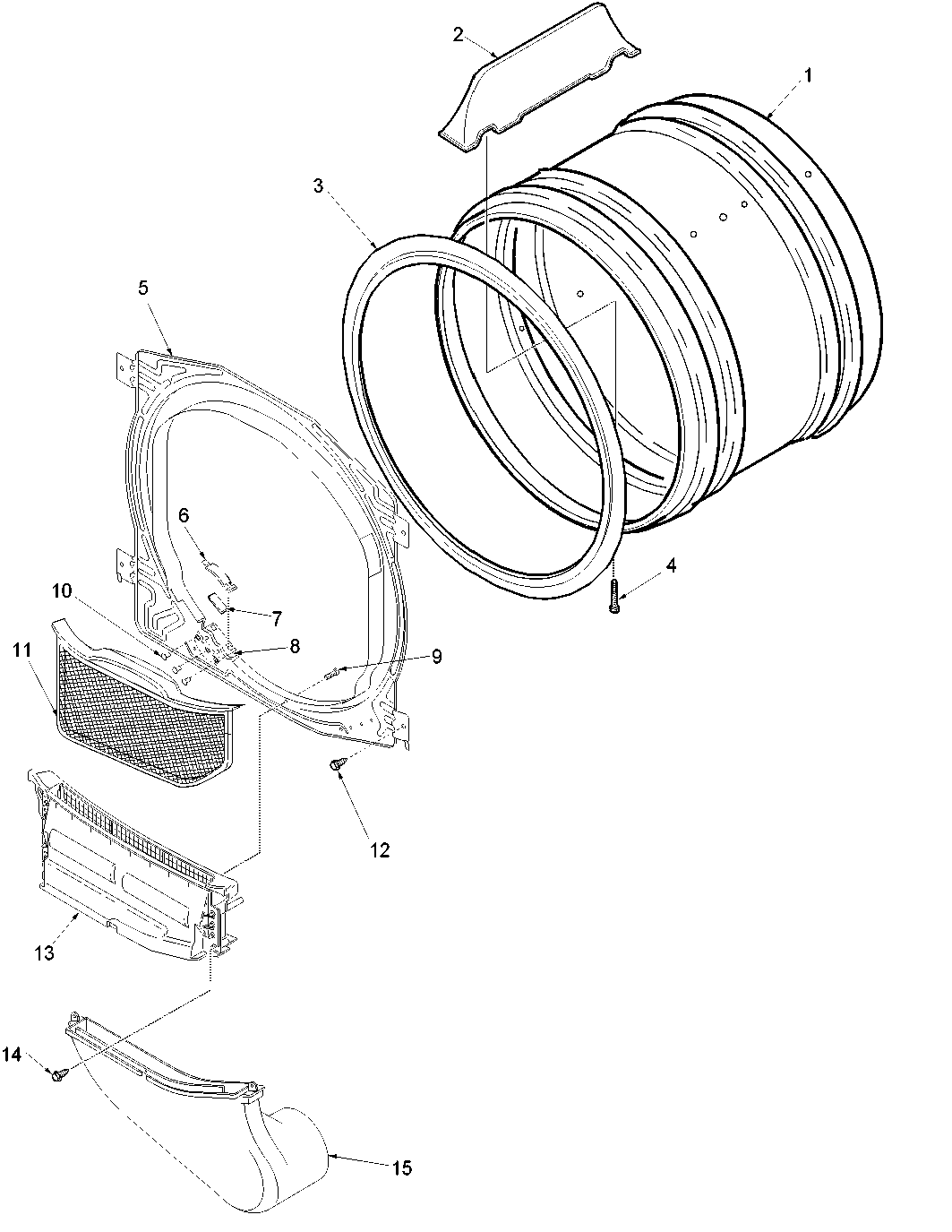

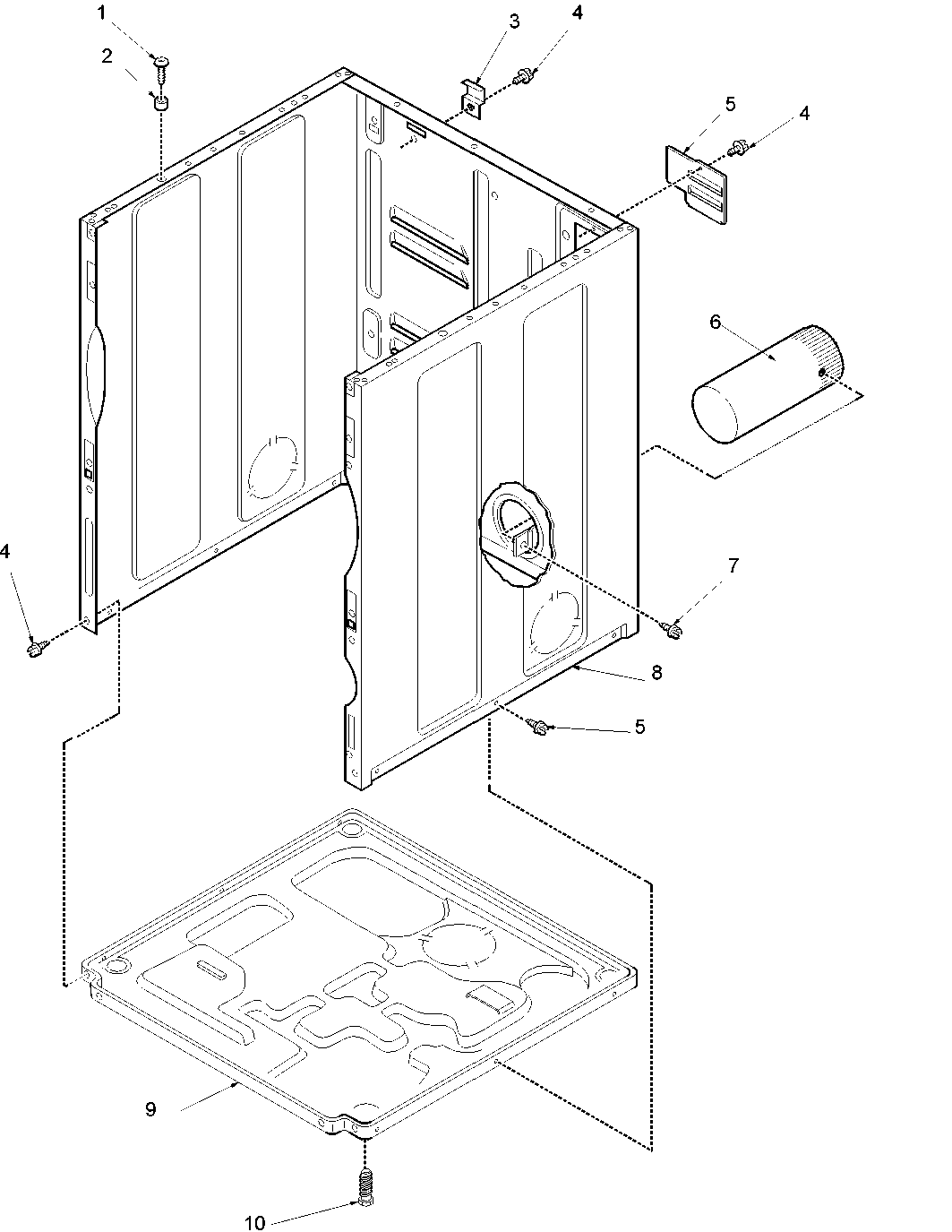

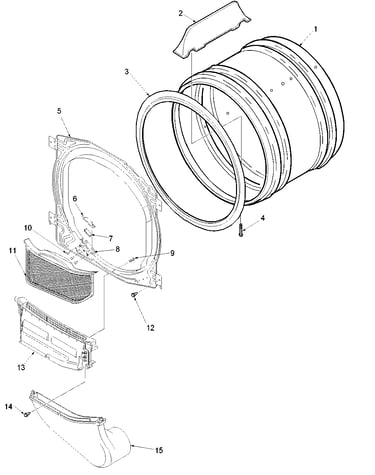

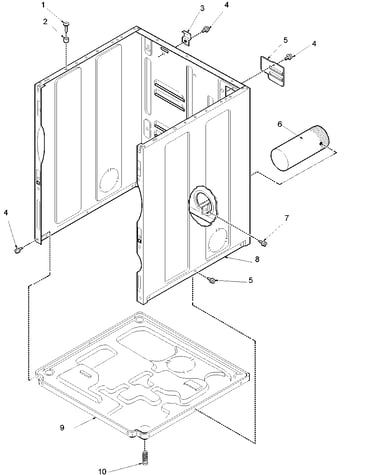

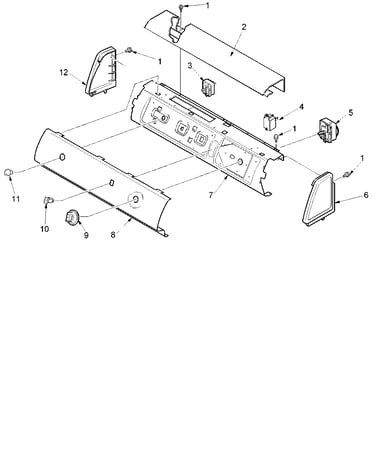

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Motor 40099801
#4

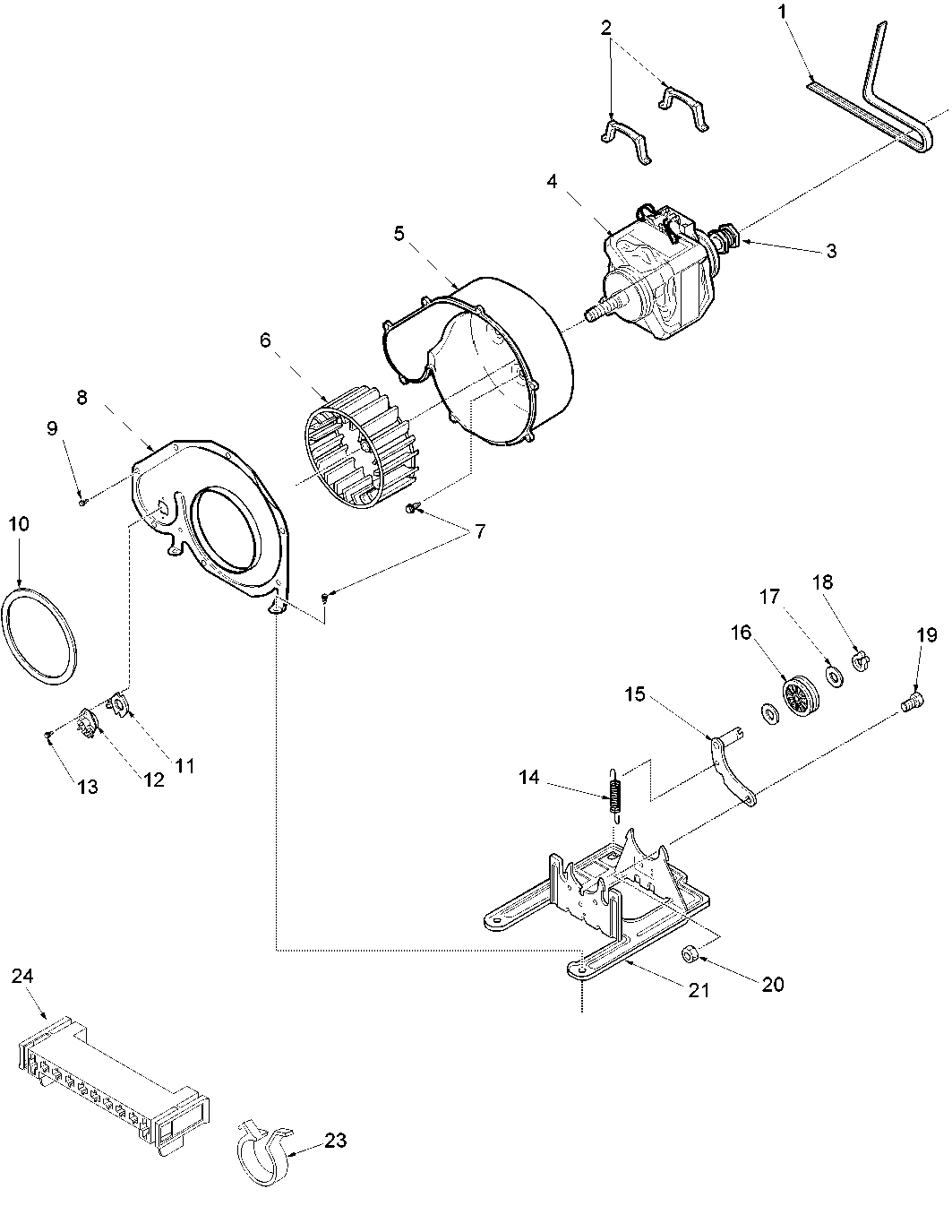

Motor and fan assembly diagram

Motor

Part #40099801

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 40099801. Substitute parts can look different from the original.
BEST SELLER
$132.01 |
8% OFF Phone Price : $144.01
In Stock
Thermal Fuse 40113801
#4

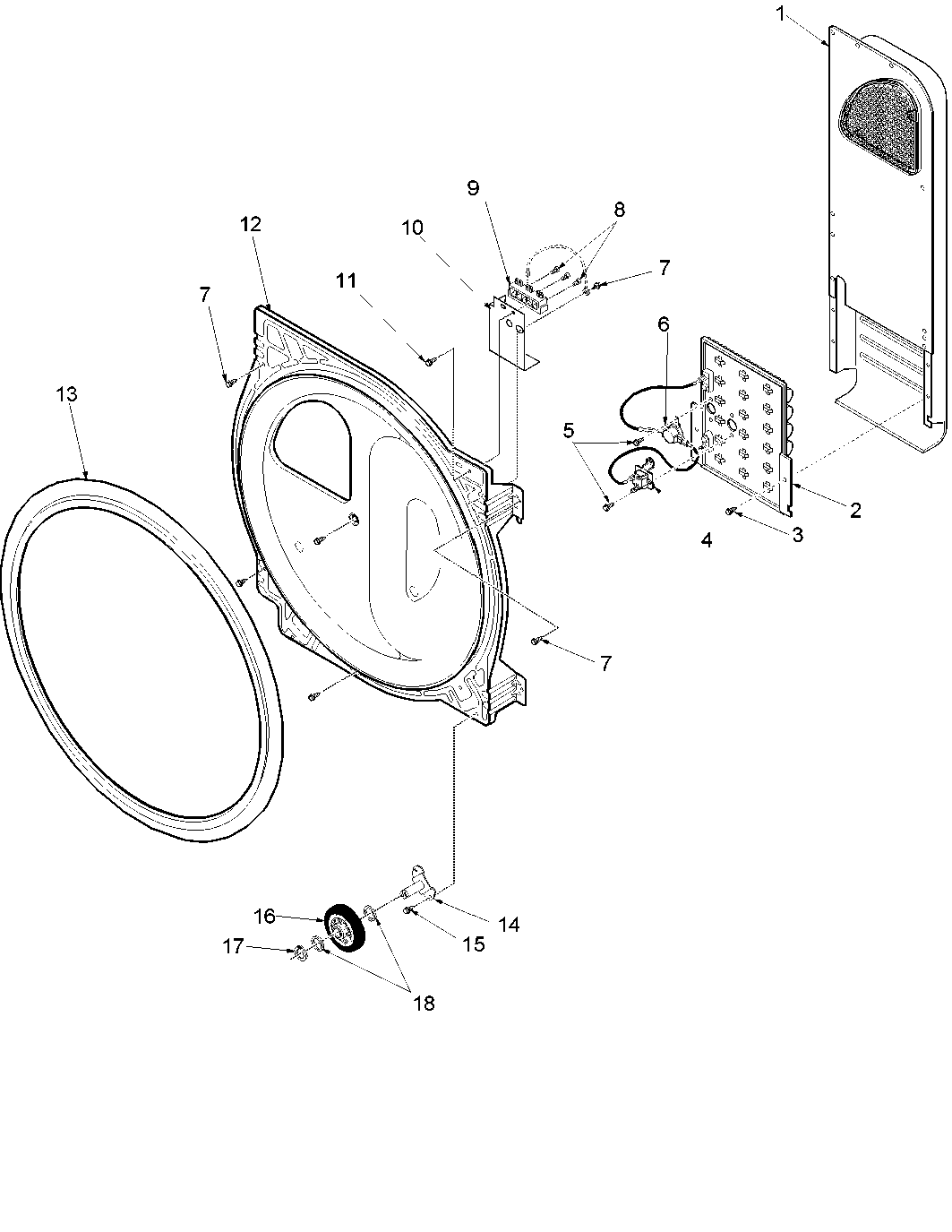

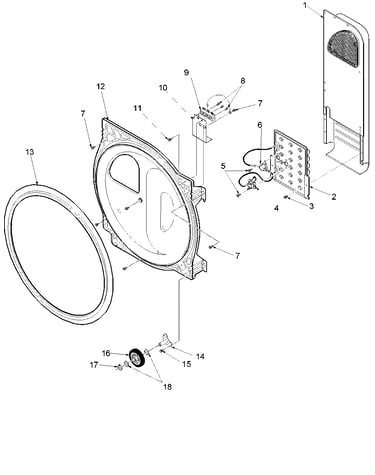

Rear bulkhead, rollers & air duct diagram

Thermal fuse

Part #40113801

The manufacturer no longer makes this part, and there's no substitute part

Switch 504570
#12

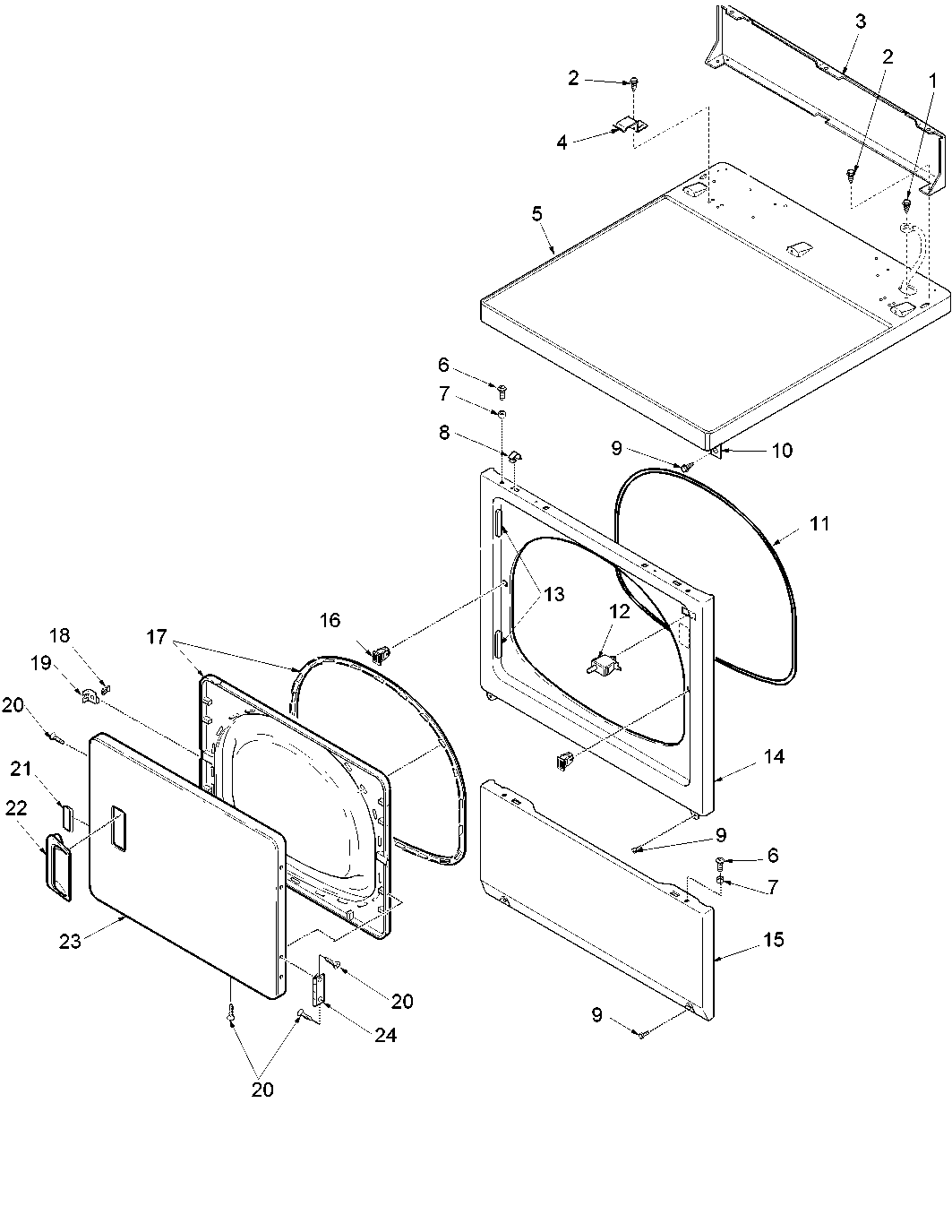

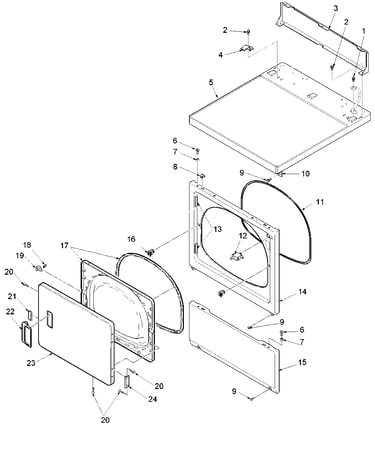

Door and front, access, and top panel diagram

Switch

Part #504570

Replaced by #W10169313

?
Manufacturer substitution
This part replaces 504570. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Thermostat 62641
#6

Rear bulkhead, rollers & air duct diagram

Thermostat

Part #62641

Replaced by #WPW10116735

?
Manufacturer substitution
This part replaces 62641. Substitute parts can look different from the original.
BEST SELLER
$44.72 |
12% OFF Phone Price : $50.72
In Stock
Washer 52549
#17

Motor and fan assembly diagram

Washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Retainer Ring 23748
Retainer ring

Part #23748

Replaced by #WP23748

?
Manufacturer substitution
This part replaces 23748. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Roller Assembly 40113601
#14

Rear bulkhead, rollers & air duct diagram

Roller assembly

Part #40113601

The manufacturer no longer makes this part, and there's no substitute part

Clip 56080
#8

Door and front, access, and top panel diagram

Clip

Part #56080

Replaced by #WP22001650

?
Manufacturer substitution
This part replaces 56080. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw 20530
#7

Rear bulkhead, rollers & air duct diagram

Screw

Part #20530

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 20530. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 32671
#6

Door and front, access, and top panel diagram

Screw

Part #32671

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 32671. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
