Model # 11021352110 Official Kenmore washer
Here are the diagrams and repair parts for Official Kenmore 11021352110 washer, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for11021352110 Washer
- #13

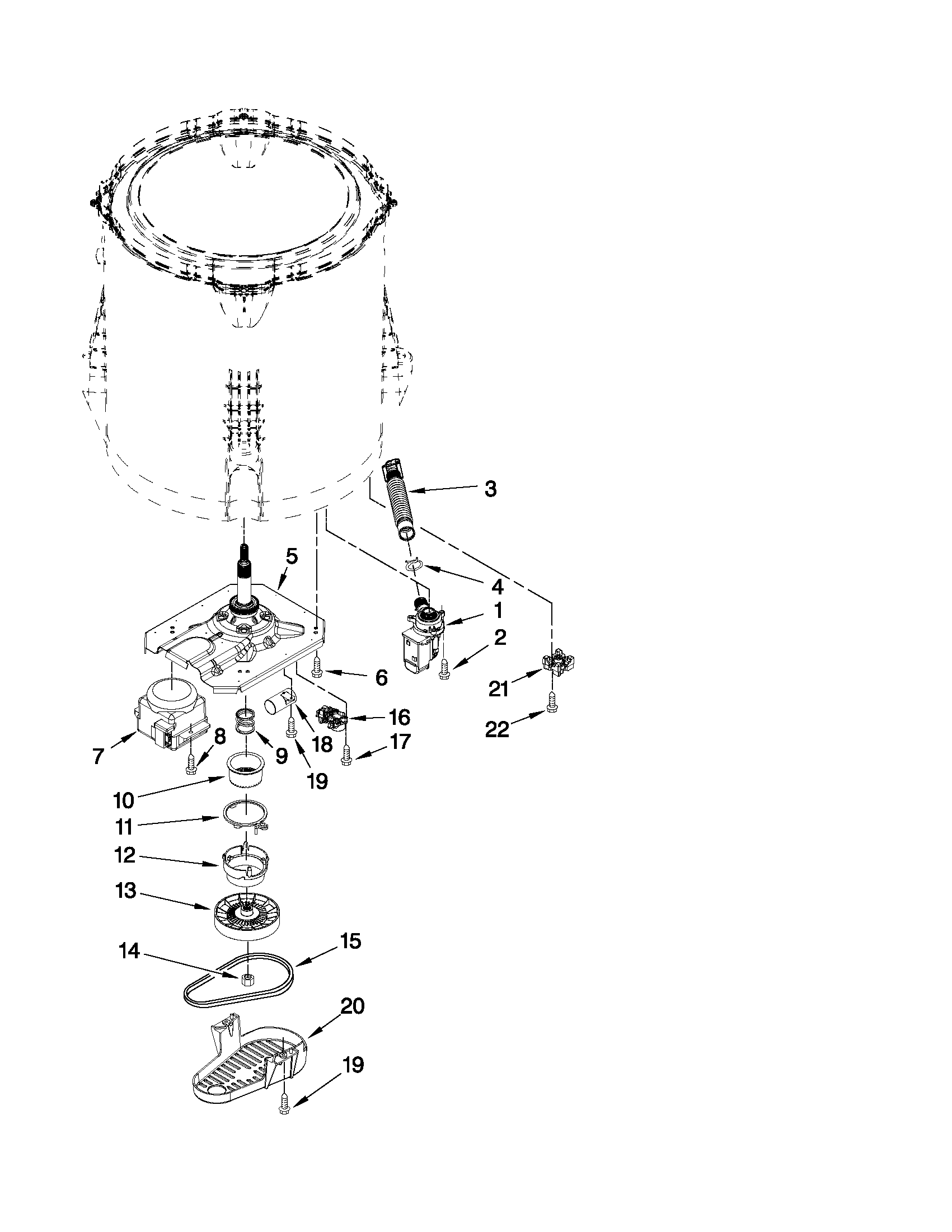

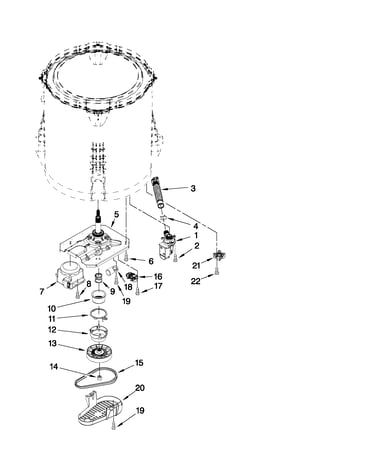

Gearcase, motor and pump parts diagram
Washer motor drive pulleyPart #W10006356
Replaced by #W10721967
?Manufacturer substitutionThis part replaces W10006356. Substitute parts can look different from the original.$45.50 |12% OFF Phone Price : $51.50In Stock - #9
Gearcase, motor and pump parts diagram
SpringPart #W10006382
Replaced by #W10721967
?Manufacturer substitutionThis part replaces W10006382. Substitute parts can look different from the original.$45.50 |12% OFF Phone Price : $51.50In Stock - #12
Gearcase, motor and pump parts diagram
CamPart #W10006354
Replaced by #W10721967
?Manufacturer substitutionThis part replaces W10006354. Substitute parts can look different from the original.$45.50 |12% OFF Phone Price : $51.50In Stock - #10
Gearcase, motor and pump parts diagram
Washer drive pulley and splutch assemblyPart #W10006352
Replaced by #W10721967
?Manufacturer substitutionThis part replaces W10006352. Substitute parts can look different from the original.$45.50 |12% OFF Phone Price : $51.50In Stock - #11
Gearcase, motor and pump parts diagram
CamPart #W10006353
Replaced by #W10721967
?Manufacturer substitutionThis part replaces W10006353. Substitute parts can look different from the original.$45.50 |12% OFF Phone Price : $51.50In Stock - #8

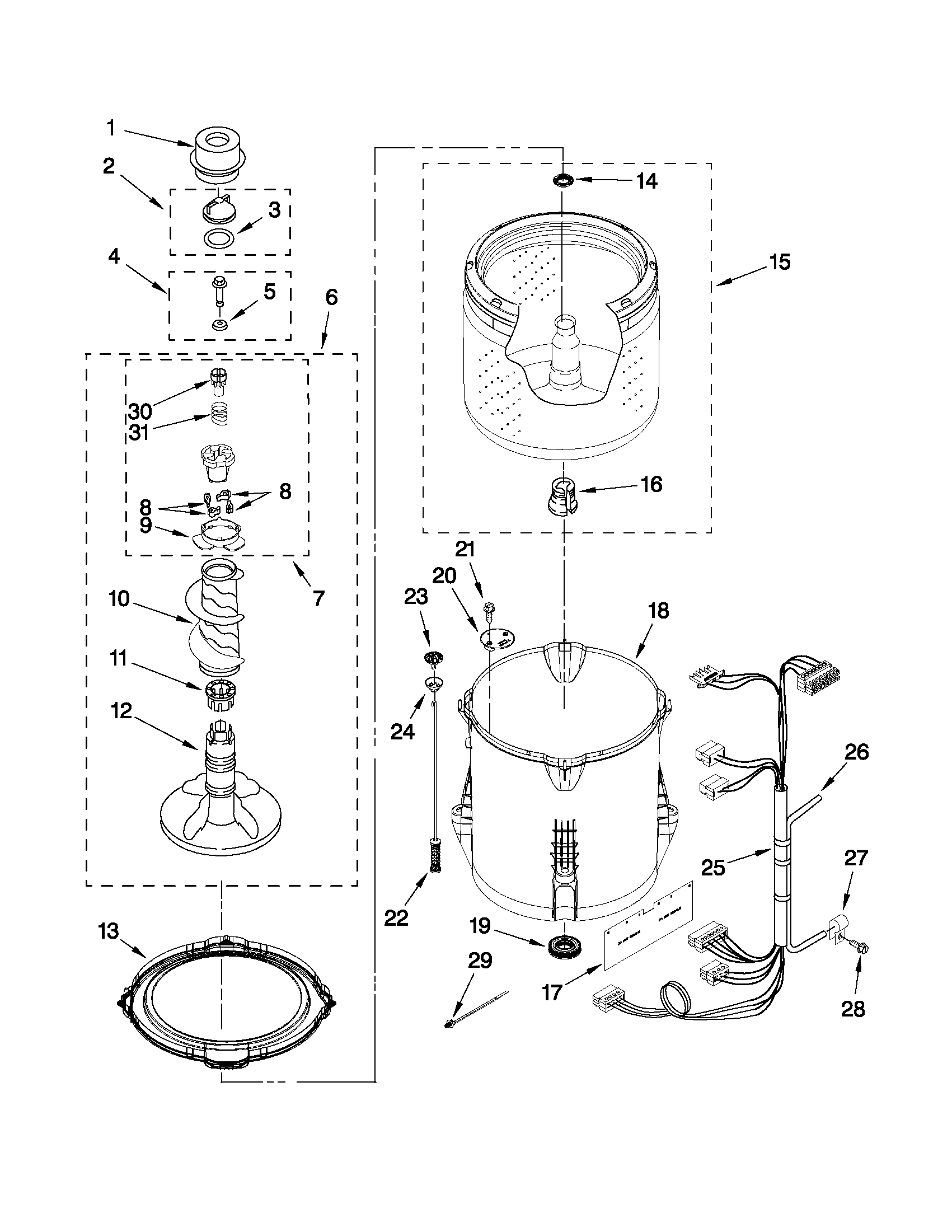

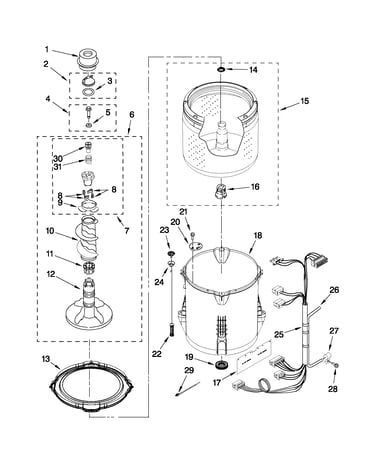

Basket and tub parts diagram
Agitator dogPart #3366877
Replaced by #80040
?Manufacturer substitutionThis part replaces 3366877. Substitute parts can look different from the original.This item is not returnable$6.31 |14% OFF Phone Price : $7.31In Stock - #15
Gearcase, motor and pump parts diagram
Washer drive beltPart #W10006384
Replaced by #WPW10006384
?Manufacturer substitutionThis part replaces W10006384. Substitute parts can look different from the original.$20.35 |23% OFF Phone Price : $26.35In Stock - #16
Gearcase, motor and pump parts diagram
Washer actuatorPart #W10006355
Replaced by #WPW10006355
?Manufacturer substitutionThis part replaces W10006355. Substitute parts can look different from the original.$43.11 |12% OFF Phone Price : $49.11In Stock - #16
Basket and tub parts diagram
Washer drive blockPart #389140
Replaced by #WP389140
?Manufacturer substitutionThis part replaces 389140. Substitute parts can look different from the original.$20.92 |22% OFF Phone Price : $26.92In Stock - #14
Basket and tub parts diagram
Washer spanner nutPart #21366
Replaced by #WP21366
?Manufacturer substitutionThis part replaces 21366. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock
