Model # 350 Official NEC printer

Here are the diagrams and repair parts for Official NEC 350 printer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
350 Printer
E-ring 803-010030-040-0
#36

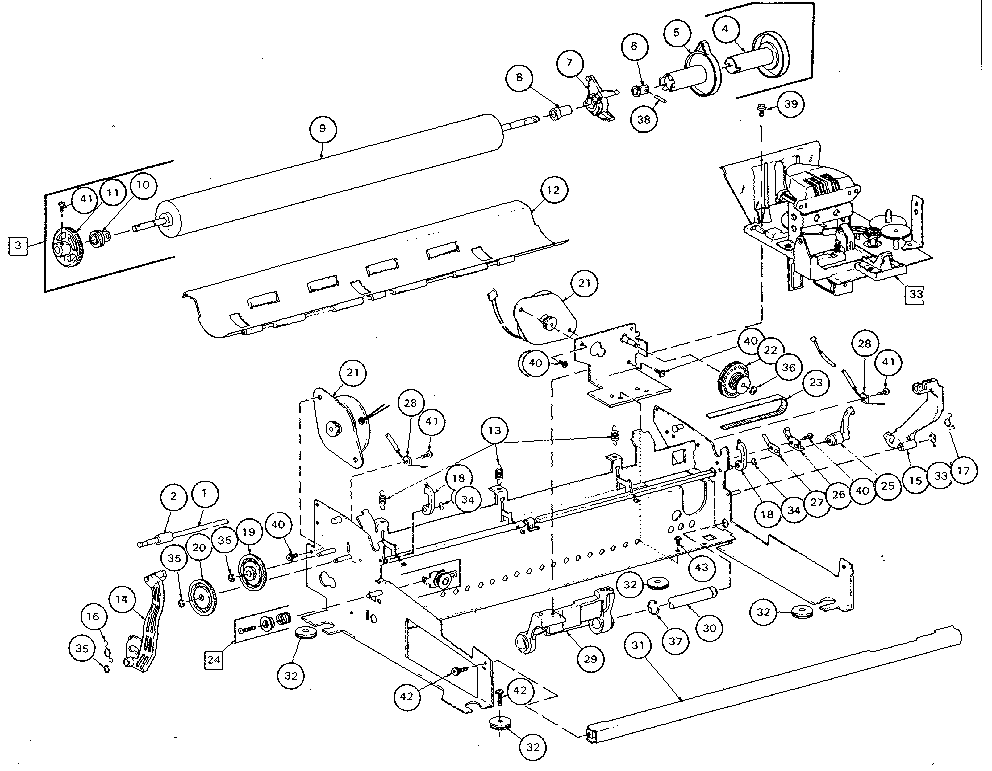

Platen assembly diagram

E-ring

Part #803-010030-040-0

The manufacturer no longer makes this part, and there's no substitute part

Drive Belt 808-802073101-A
#23

Platen assembly diagram

Drive belt

Part #808-802073101-A

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly, Ribbon End 136-765087-A
#16

Carriage unit diagram

Switch assembly, ribbon end

Part #136-765087-A

The manufacturer no longer makes this part, and there's no substitute part

360 Elf Tech Reference Guide 819-150204-000

#NI

All parts diagram

360 elf tech reference guide

Part #819-150204-000

The manufacturer no longer makes this part, and there's no substitute part

Card Holder 136-741473-A
#21

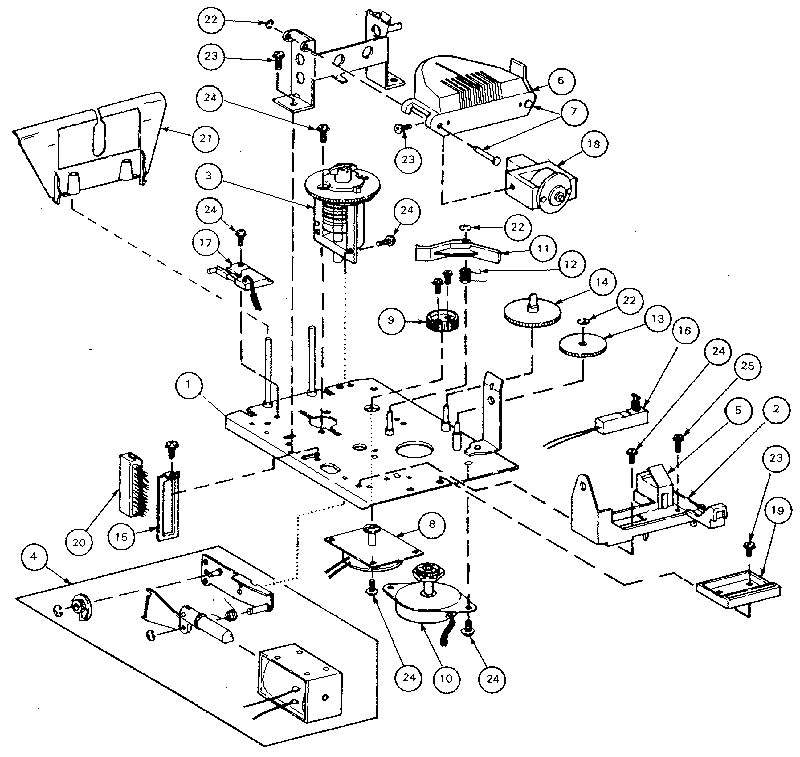

Carriage unit diagram

Card holder

Part #136-741473-A

The manufacturer no longer makes this part, and there's no substitute part

Connector, Pcc-020 802-710205-020-0
#20

Carriage unit diagram

Connector, pcc-020

Part #802-710205-020-0

The manufacturer no longer makes this part, and there's no substitute part

350 Elf Tech Reference Guide 819-150253-000

#NI

All parts diagram

350 elf tech reference guide

Part #819-150253-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer E-80 803-010030-080-0
#37

Platen assembly diagram

Retainer e-80

Part #803-010030-080-0

The manufacturer no longer makes this part, and there's no substitute part

Right Tractor Assembly 808-863237-001-A
#1

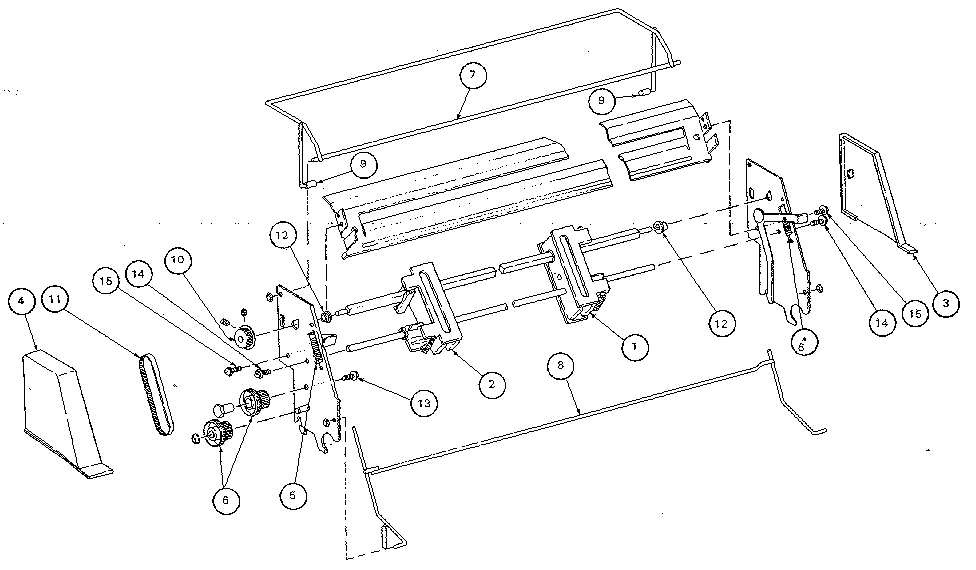

Unidirectional forms tractor diagram

Right tractor assembly

Part #808-863237-001-A

The manufacturer no longer makes this part, and there's no substitute part

Spring Pin 808-802018-312-A
#38

Platen assembly diagram

Spring pin

Part #808-802018-312-A

The manufacturer no longer makes this part, and there's no substitute part
