Thermador
Range Hood

Model # HGSW36 Official Thermador chimney-style wall hood

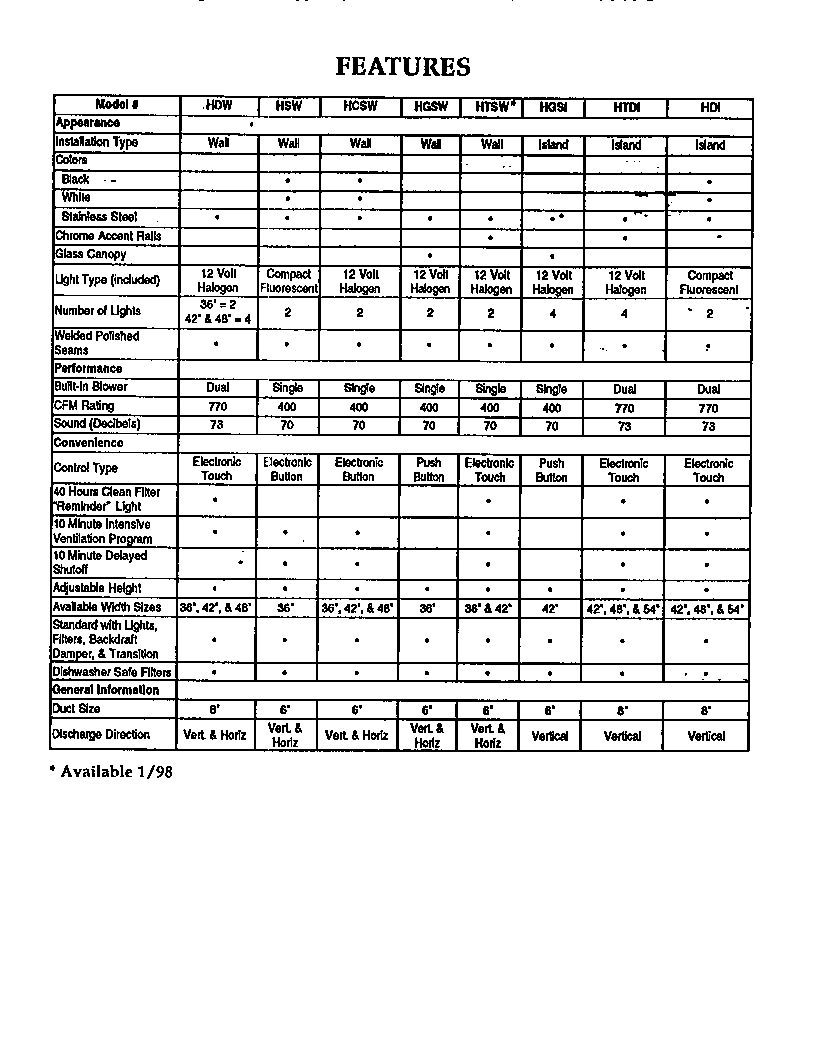

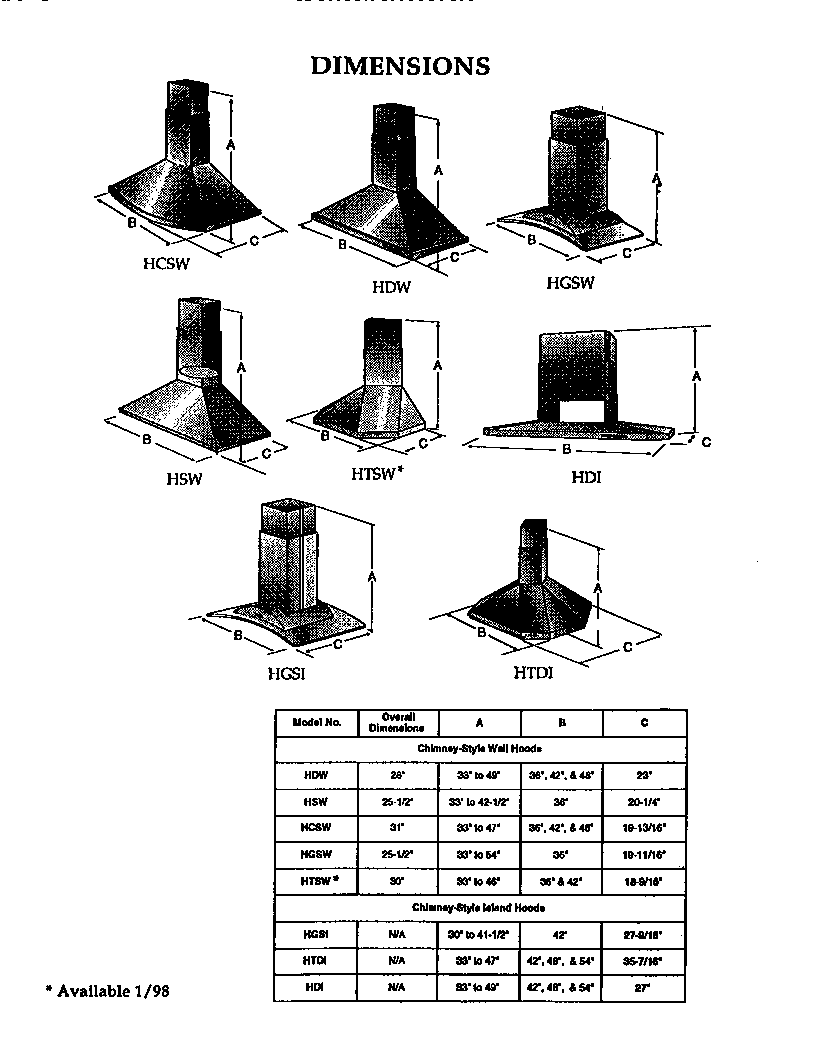

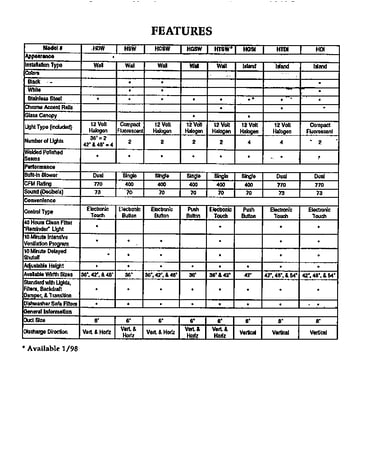

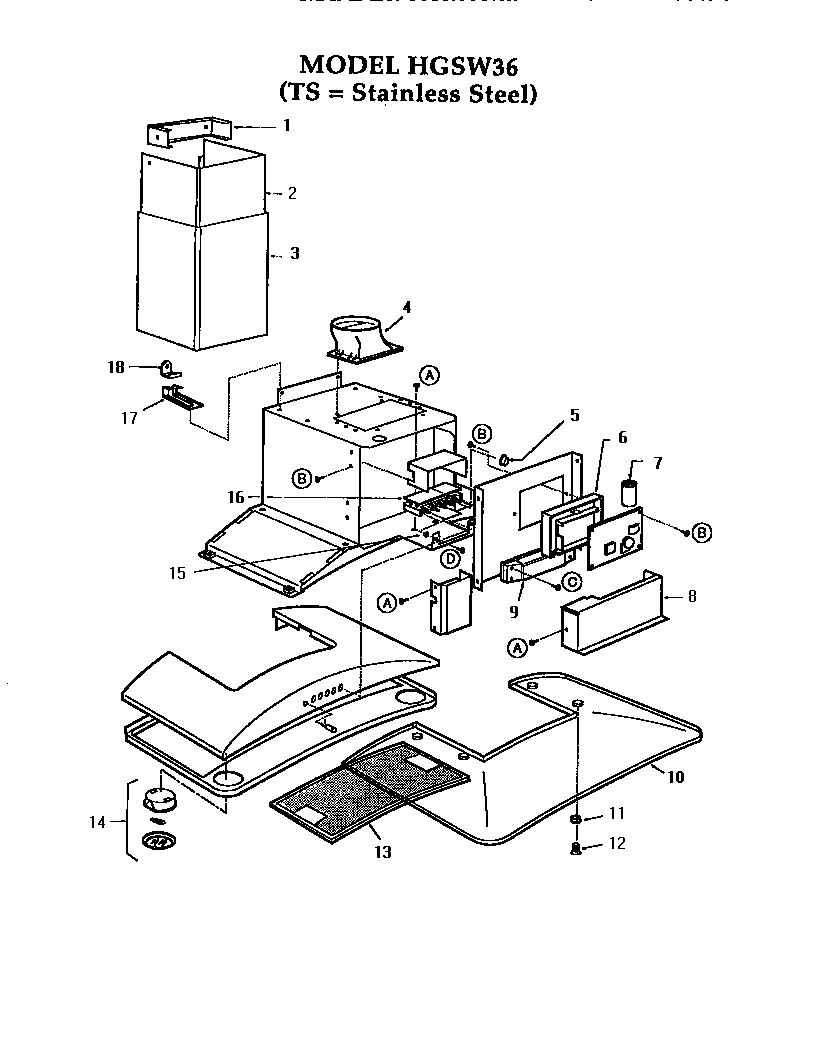

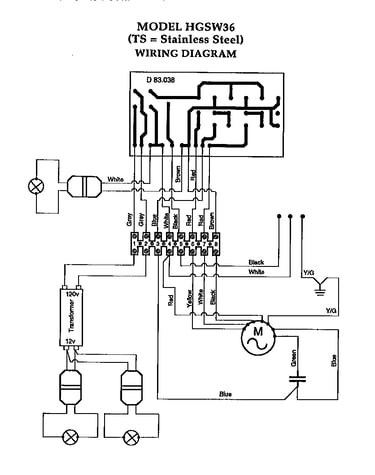

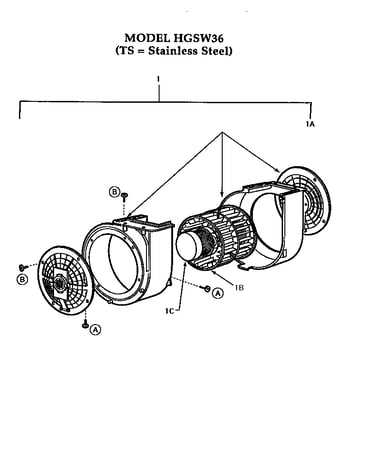

Here are the diagrams and repair parts for Official Thermador HGSW36 chimney-style wall hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Button Control Key (part Is Not Normally Stocked Because 35-05-144
Button control key (part is not normally stocked because

Part #35-05-144

The manufacturer no longer makes this part, and there's no substitute part

Lamp (part May Be Purchased Locally) 35-05-117
Lamp (part may be purchased locally)

Part #35-05-117

The manufacturer no longer makes this part, and there's no substitute part

Glass Clamping Screw (part Is Not Normally Stocked Becau 35-05-148
Glass clamping screw (part is not normally stocked becau

Part #35-05-148

The manufacturer no longer makes this part, and there's no substitute part

Duct Cover Ceiling Bracket 35-05-069
Duct cover ceiling bracket

Part #35-05-069

The manufacturer no longer makes this part, and there's no substitute part

Filter 35-05-004
Filter

Part #35-05-004

The manufacturer no longer makes this part, and there's no substitute part

Glass Canopy 35-05-093
Glass canopy

Part #35-05-093

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Motor 35-05-001
Range hood blower motor

Part #35-05-001

The manufacturer no longer makes this part, and there's no substitute part

12.5 Mf Capacitor (part May Be Purchased Locally) 35-05-113
12.5 mf capacitor (part may be purchased locally)

Part #35-05-113

The manufacturer no longer makes this part, and there's no substitute part

Electric Plant Box (part Is Not Normally Stocked Because 35-05-145
Electric plant box (part is not normally stocked because

Part #35-05-145

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Fan 35-05-002
Range hood blower fan

Part #35-05-002

The manufacturer no longer makes this part, and there's no substitute part
