Kenmore
Trash Compactor

Model # 6657242602 Official Kenmore compactor

Here are the diagrams and repair parts for Official Kenmore 6657242602 compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

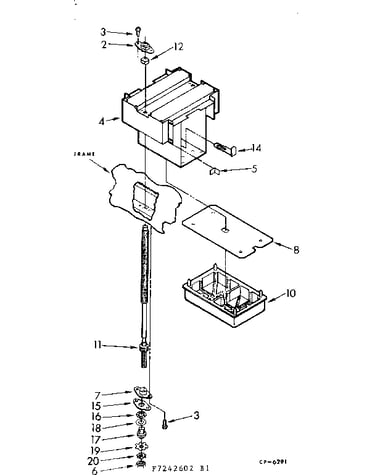

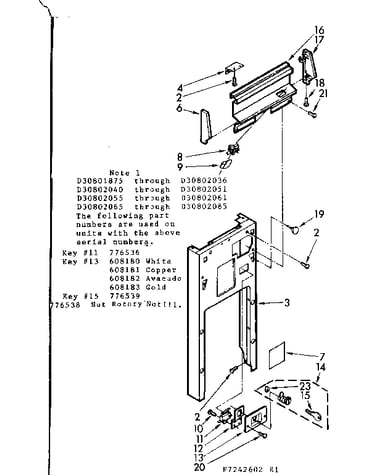

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Drive Gear 776270
#11

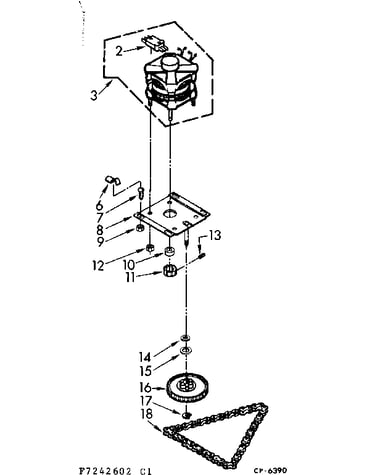

Motor & drive assembly diagram

Drive gear

Part #776270

Replaced by #882699

?
Manufacturer substitution
This part replaces 776270. Substitute parts can look different from the original.
BEST SELLER
$50.90 |
11% OFF Phone Price : $56.90
In Stock
Screw 775538
#11

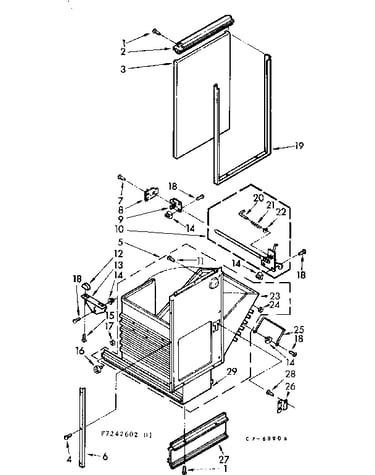

Container assembly diagram

Screw

Part #775538

Replaced by #WPW10119828

?
Manufacturer substitution
This part replaces 775538. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Clip 776036
#17

Motor & drive assembly diagram

Clip

Part #776036

Replaced by #WP776036

?
Manufacturer substitution
This part replaces 776036. Substitute parts can look different from the original.
This item is not returnable
$6.49
In Stock
Bearing 776262
#35

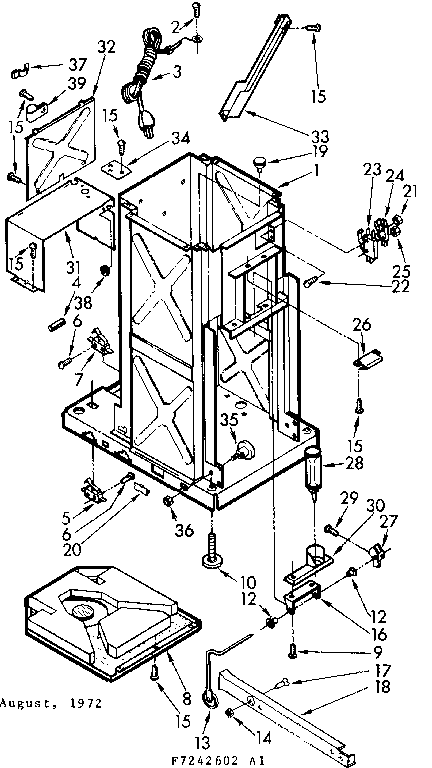

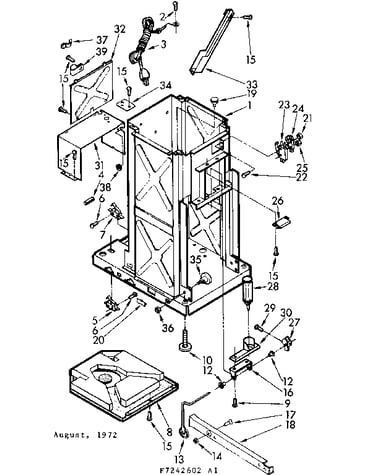

Frame assembly diagram

Bearing

Part #776262

Replaced by #882688

?
Manufacturer substitution
This part replaces 776262. Substitute parts can look different from the original.
This item is not returnable
$22.04 |
21% OFF Phone Price : $28.04
In Stock
Latch 775740
#10

Container assembly diagram

Latch

Part #775740

Replaced by #675379

?
Manufacturer substitution
This part replaces 775740. Substitute parts can look different from the original.
$66.29 |
8% OFF Phone Price : $72.29
In Stock
Kenmore Elite Washer 776035
#14

Motor & drive assembly diagram

Kenmore elite washer

Part #776035

$16.83
In Stock
Washer 297462
#15

Motor & drive assembly diagram

Washer

Part #297462

Replaced by #W11214485

?
Manufacturer substitution
This part replaces 297462. Substitute parts can look different from the original.
$16.83
In Stock
Kenmore Elite Trash Compactor Drawer Latch Assembly 775665
#26

Container assembly diagram

Kenmore elite trash compactor drawer latch assembly

Part #775665

$40.22
In Stock
Kenmore Elite Trash Compactor Drive Motor Plate 776327
#8

Motor & drive assembly diagram

Kenmore elite trash compactor drive motor plate

Part #776327

$46.62
In Stock
Lock Nut 776338
#12

Motor & drive assembly diagram

Lock nut

Part #776338

Replaced by #WP776338

?
Manufacturer substitution
This part replaces 776338. Substitute parts can look different from the original.
$11.34
In Stock
