Radial Arm Saw

Model # 22238-LEG SET Official Craftsman leg set

Here are the diagrams and repair parts for Official Craftsman 22238-LEG SET leg set, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
22238-LEG SET Power Tools
Leg (gray) 63749
#1

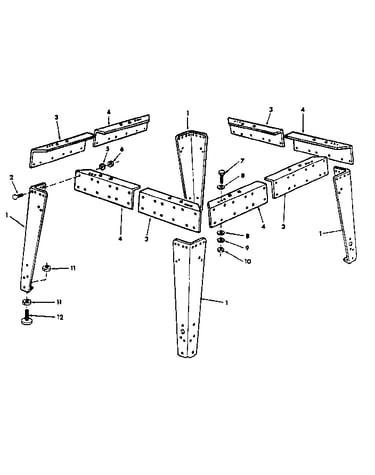

Leg set diagram

Leg (gray)

Part #63749

The manufacturer no longer makes this part, and there's no substitute part

Stfnr L H 63750
#4

Leg set diagram

Stfnr l h

Part #63750

The manufacturer no longer makes this part, and there's no substitute part

Bag Of Parts 63752

#NI

All parts diagram

Bag of parts

Part #63752

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 1/2-in STD523106
#7

Leg set diagram

Hex head bolt, 5/16-18 x 1/2-in

Part #STD523106

The manufacturer no longer makes this part, and there's no substitute part

Ft. Levlng 803835
#12

Leg set diagram

Ft. levlng

Part #803835

The manufacturer no longer makes this part, and there's no substitute part

Stfnr R H 63751
#3

Leg set diagram

Stfnr r h

Part #63751

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541025
#6

Leg set diagram

Hex nut

Part #STD541025

The manufacturer no longer makes this part, and there's no substitute part

1/4-in. Flat Lock Washer 8-pack STD551225
#5

Leg set diagram

1/4-in. flat lock washer 8-pack

Part #STD551225

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541250
#11

Leg set diagram

Hex nut

Part #STD541250

The manufacturer no longer makes this part, and there's no substitute part

Screw 60314
#2

Leg set diagram

Screw

Part #60314

The manufacturer no longer makes this part, and there's no substitute part
