LG
Bottom-Mount Refrigerator

Model # LMXS27626D/00 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LMXS27626D-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

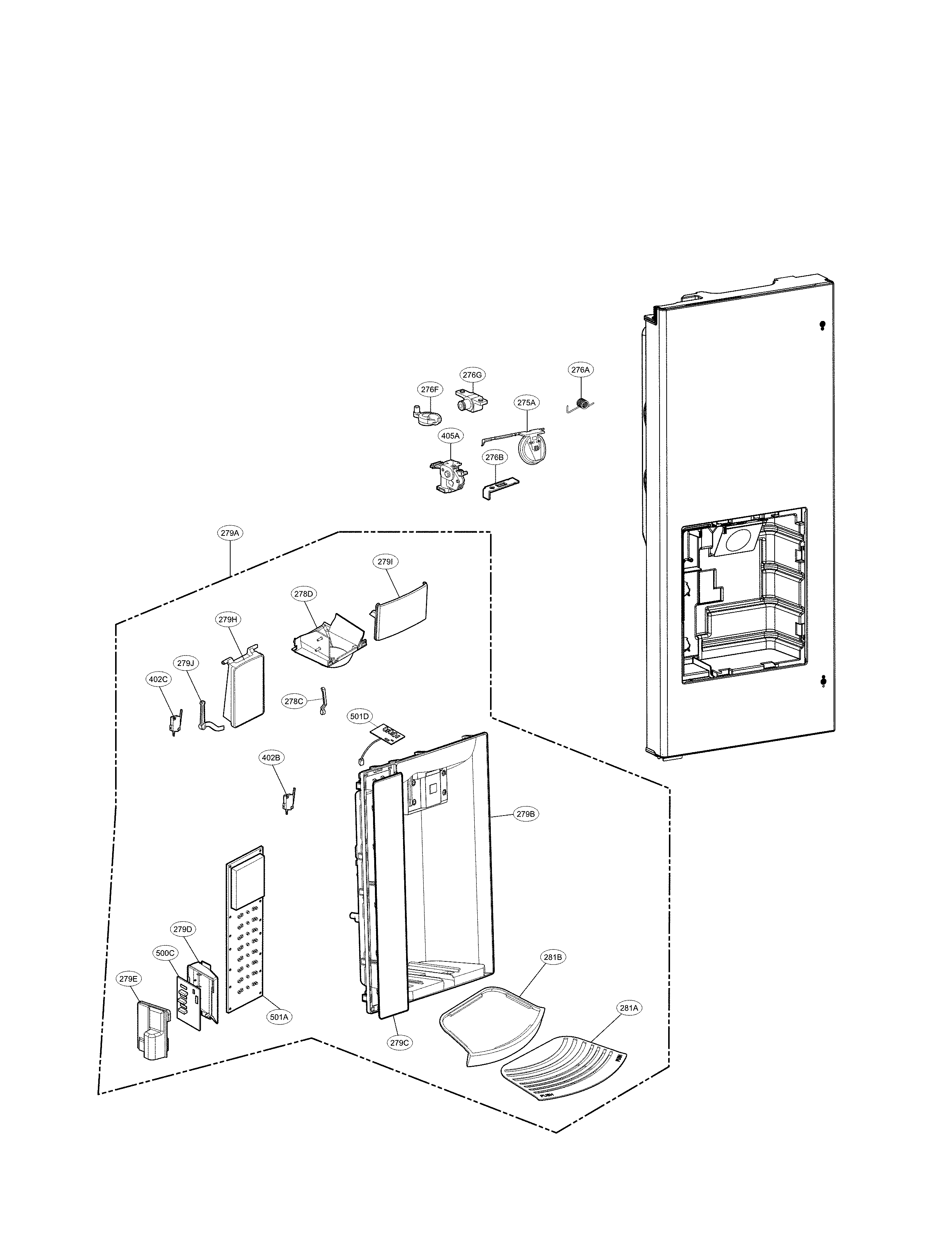

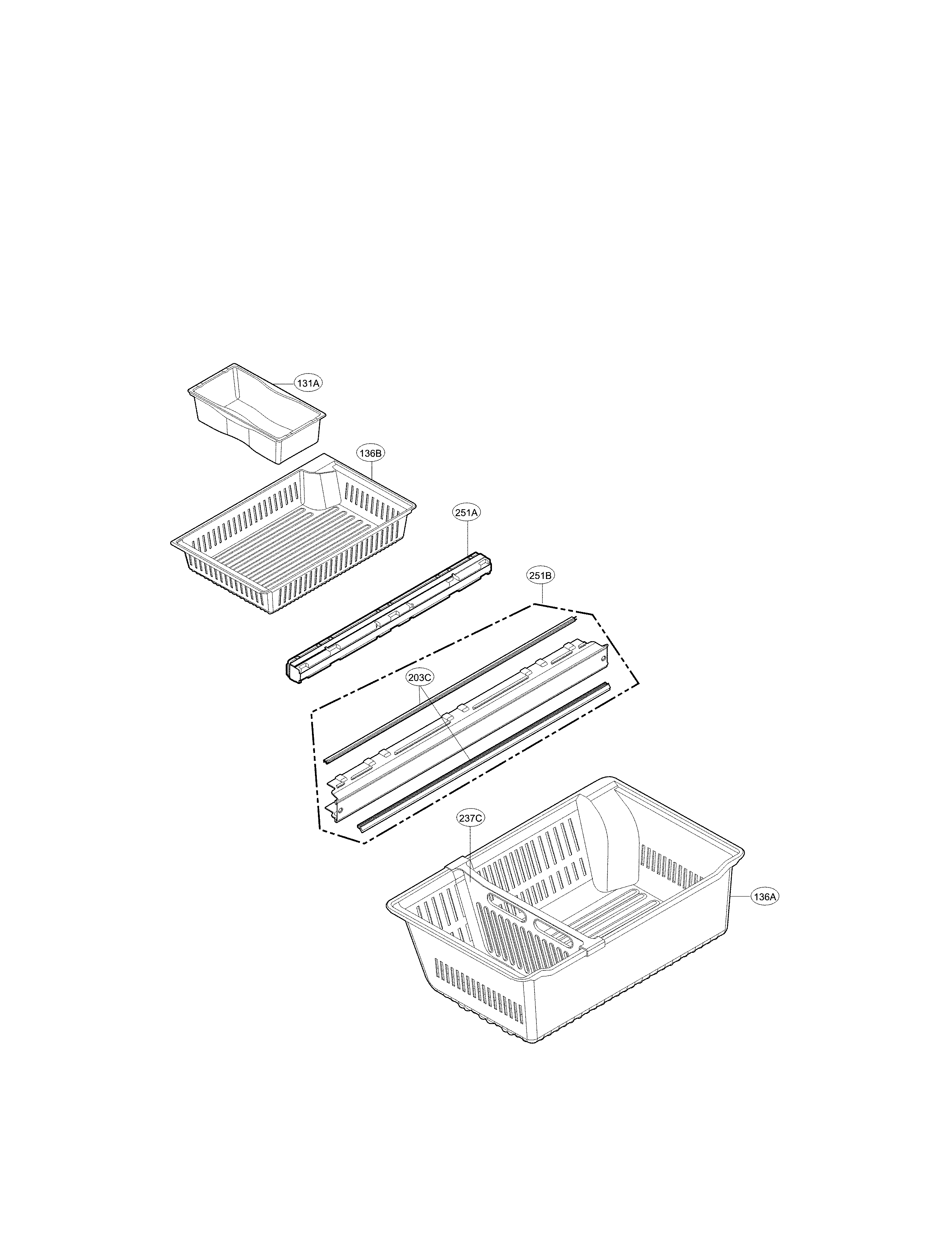

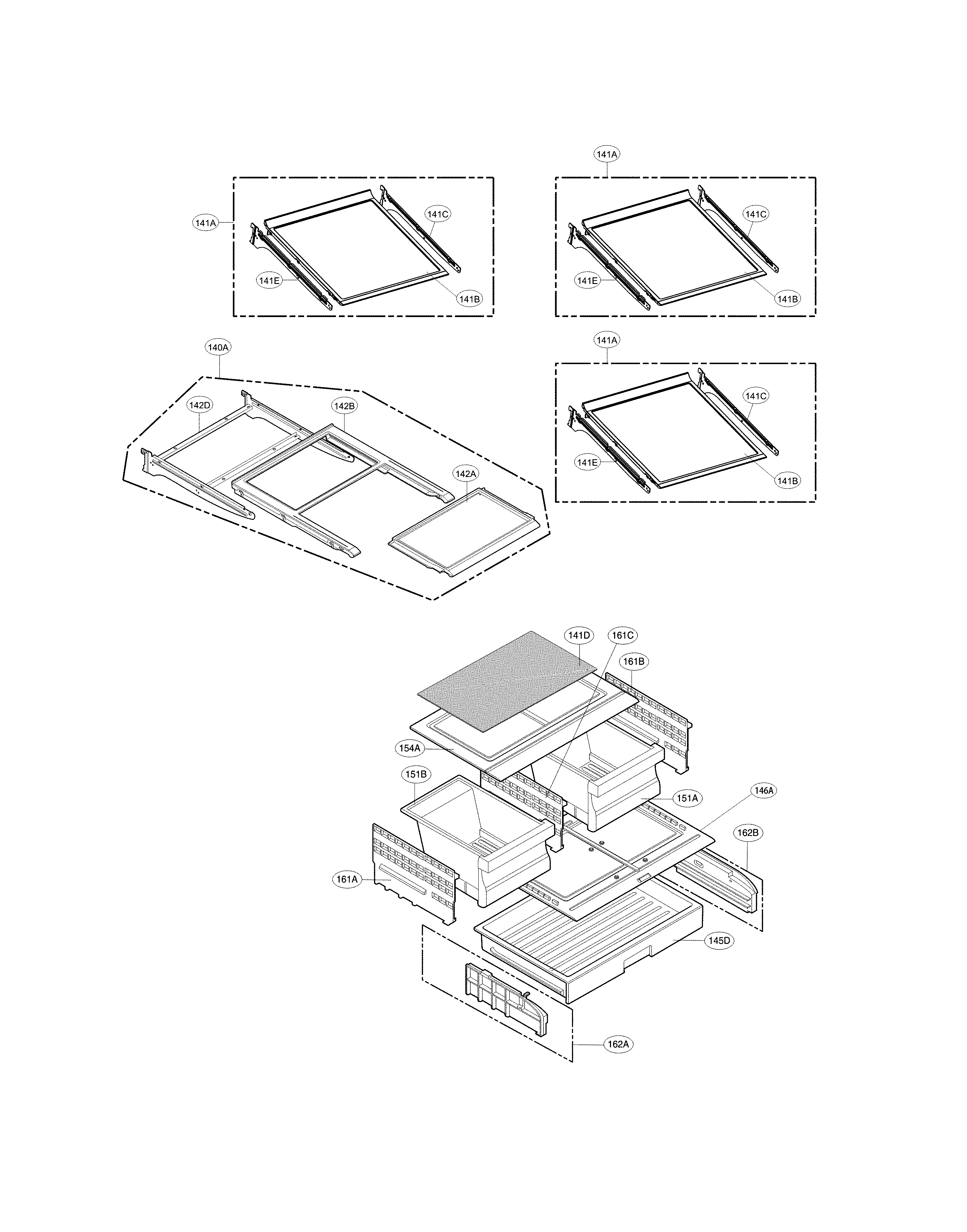

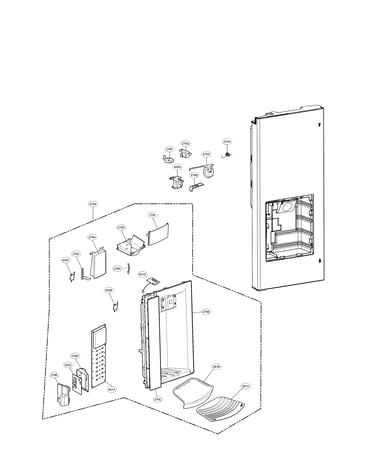

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Refrigerator Air Filter ADQ73214404
#150C

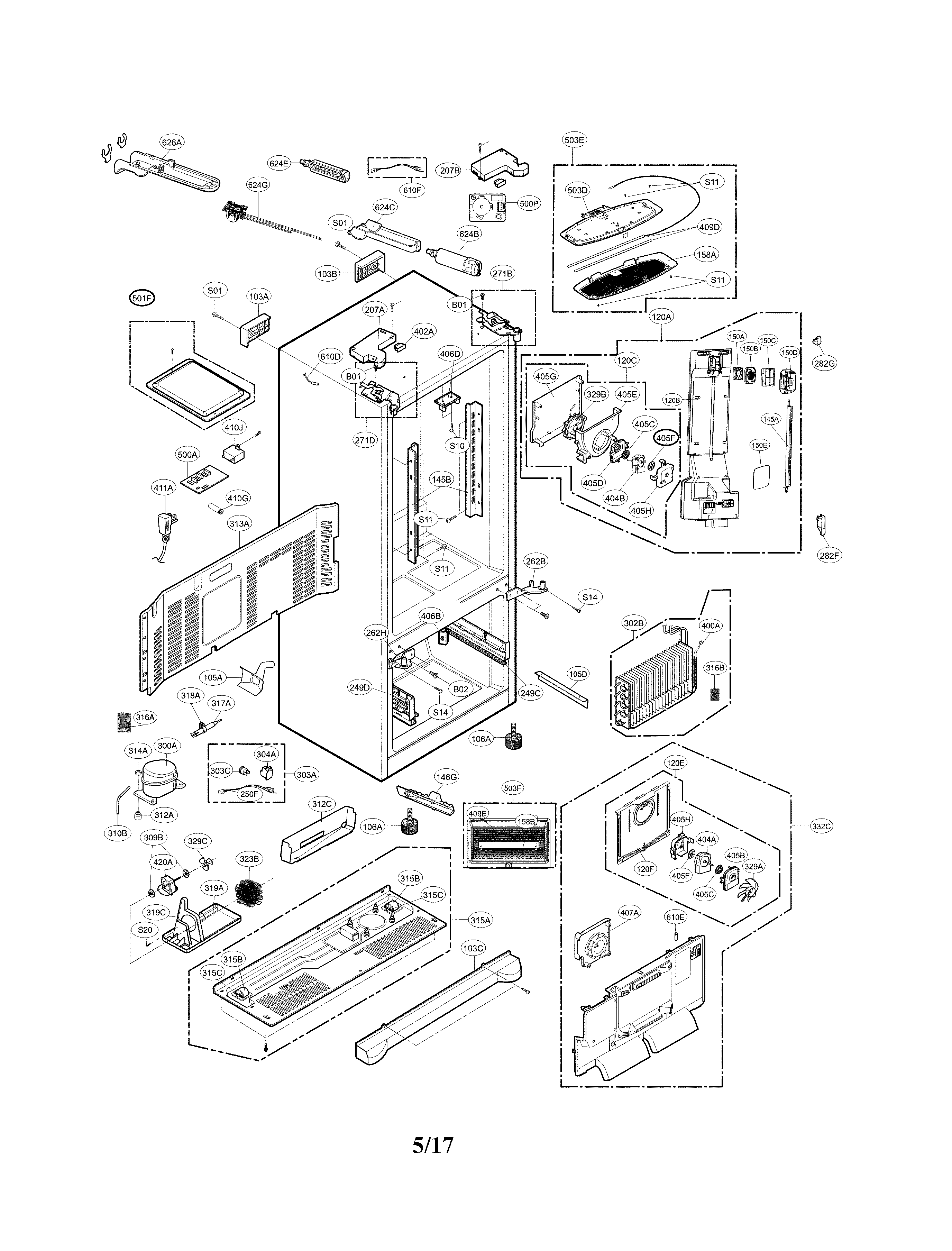

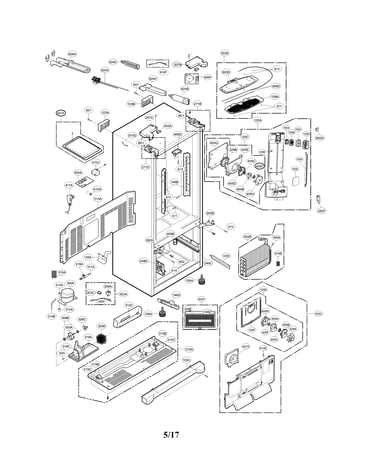

Case parts diagram

Refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$31.91 |
16% OFF Phone Price : $37.91
In Stock
Kenmore Lg Lt700p Refrigerator Water Filter (replaces Adq36006113) ADQ36006101
#624B

Case parts diagram

Kenmore lg lt700p refrigerator water filter (replaces adq36006113)

Part #ADQ36006101

BEST SELLER

Get free shipping with Automatic Reorder

$68.99
In Stock
Refrigerator Ice Maker (replaces Aeq73110208) AEQ73110210
#600A

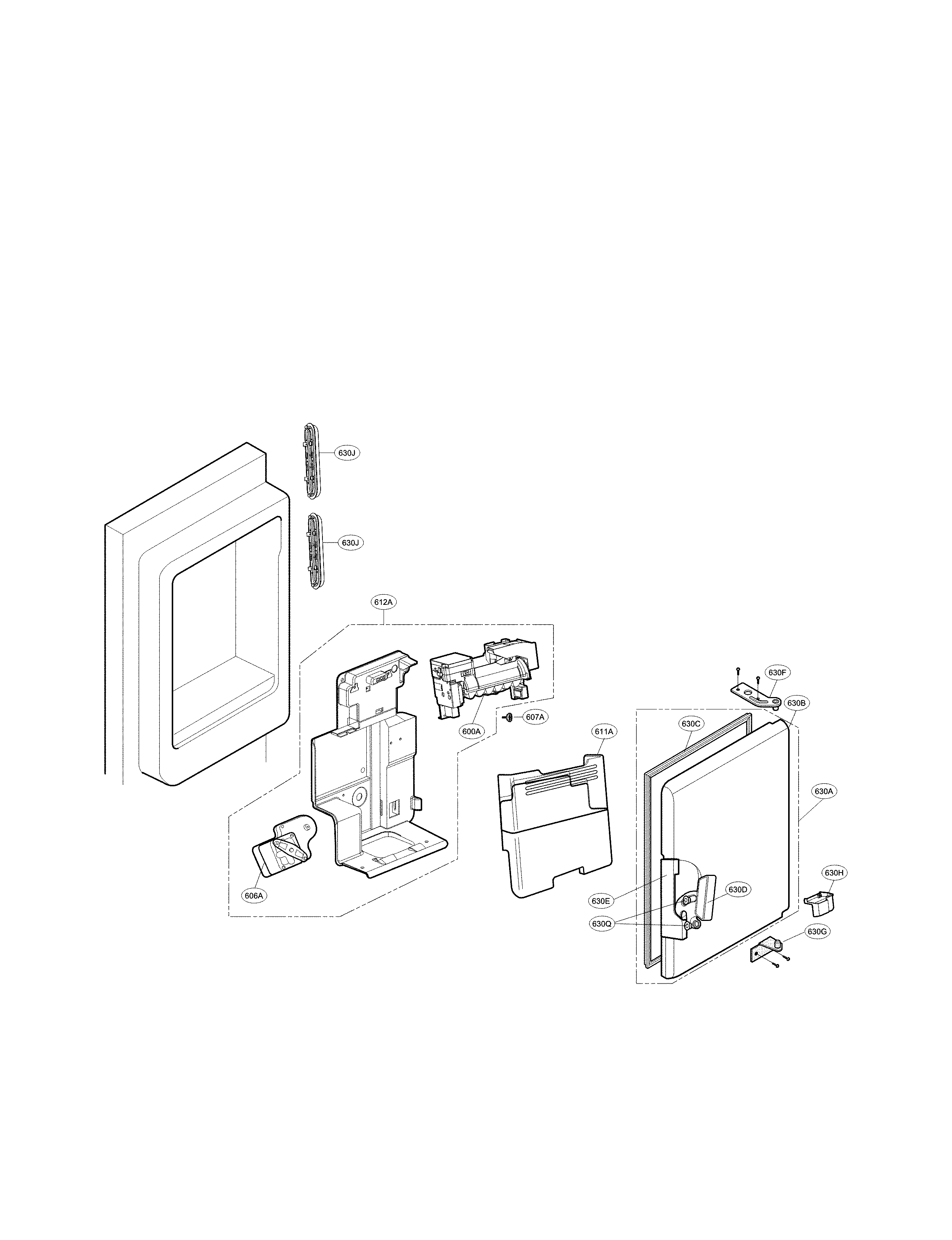

Ice maker parts diagram

Refrigerator ice maker (replaces aeq73110208)

Part #AEQ73110210

BEST SELLER
$166.25 |
7% OFF Phone Price : $178.25
In Stock
Kenmore Elite Refrigerator Door Bin AAP73631502
#241D

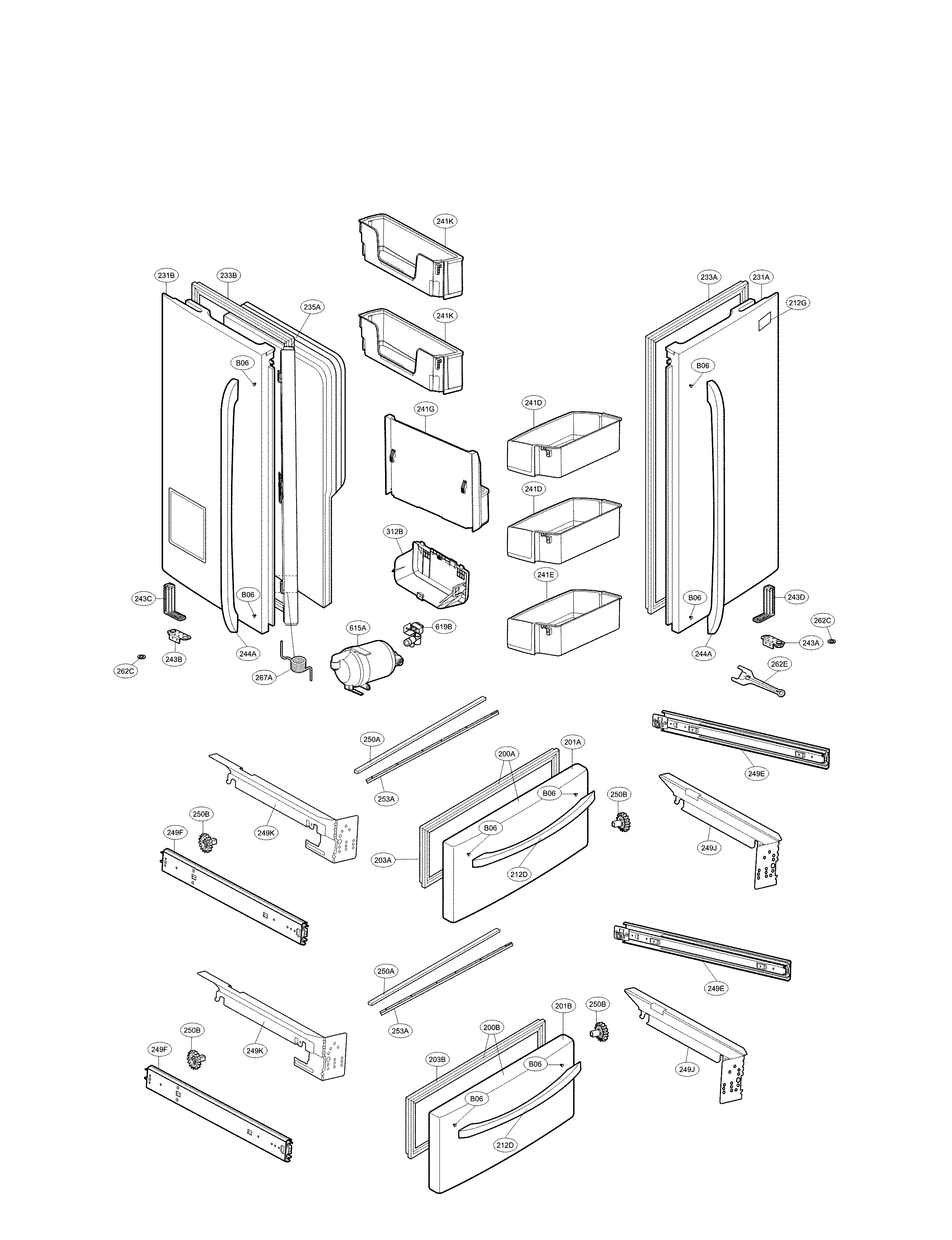

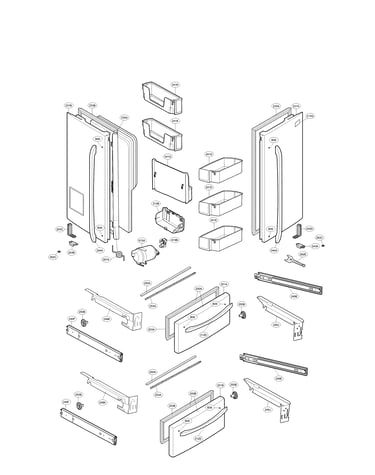

Door parts diagram

Kenmore elite refrigerator door bin

Part #AAP73631502

BEST SELLER
$28.60 |
17% OFF Phone Price : $34.60
In Stock
Refrigerator Dispenser Ice Chute Door Motor (replaces Eau59551201, Eau59551202, Eau59551203, Eau59551205, Eau59551207) EAU59551204
#404B

Case parts diagram

Refrigerator dispenser ice chute door motor (replaces eau59551201, eau59551202, eau59551203, eau59551205, eau59551207)

Part #EAU59551204

BEST SELLER
$52.52 |
10% OFF Phone Price : $58.52
In Stock
Refrigerator Ac Motor EAU61843014
#612A

Ice maker parts diagram

Refrigerator ac motor

Part #EAU61843014

Replaced by #EAU61843018

?
Manufacturer substitution
This part replaces EAU61843014. Substitute parts can look different from the original.
BEST SELLER
$165.01 |
7% OFF Phone Price : $177.01
In Stock
Refrigerator Condenser Coil (replaces Acg72915209) ACG73784701
#323B

Case parts diagram

Refrigerator condenser coil (replaces acg72915209)

Part #ACG73784701

BEST SELLER
$124.97 |
9% OFF Phone Price : $136.97
In Stock
Refrigerator Water Inlet Valve (replaces 5221ja2011p, Aju72992606, Ebd60664501) AJU72992601
#619A

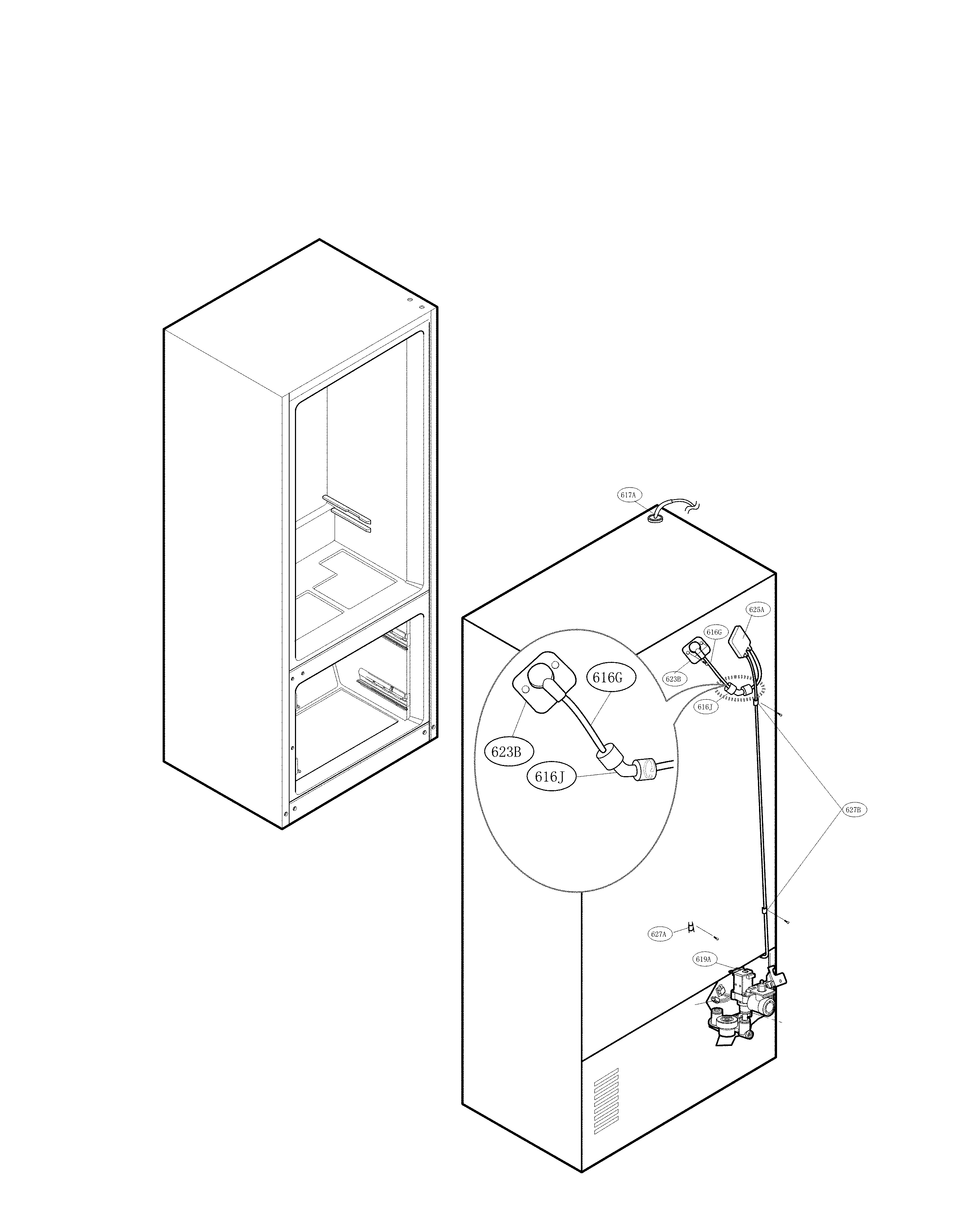

Tub and valve parts diagram

Refrigerator water inlet valve (replaces 5221ja2011p, aju72992606, ebd60664501)

Part #AJU72992601

BEST SELLER
$111.69 |
10% OFF Phone Price : $123.69
In Stock
Refrigerator Ice Container Assembly AKC73249303
#611A

Ice maker parts diagram

Refrigerator ice container assembly

Part #AKC73249303

Replaced by #AKC73249304

?
Manufacturer substitution
This part replaces AKC73249303. Substitute parts can look different from the original.
BEST SELLER
$48.33 |
11% OFF Phone Price : $54.33
In Stock
Refrigerator Compressor Start Relay EBG60663213
#303A

Case parts diagram

Refrigerator compressor start relay

Part #EBG60663213

Replaced by #EBG60663230

?
Manufacturer substitution
This part replaces EBG60663213. Substitute parts can look different from the original.
BEST SELLER
$55.81 |
10% OFF Phone Price : $61.81
In Stock
