Model # GTS18GTNBRBB Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE GTS18GTNBRBB top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

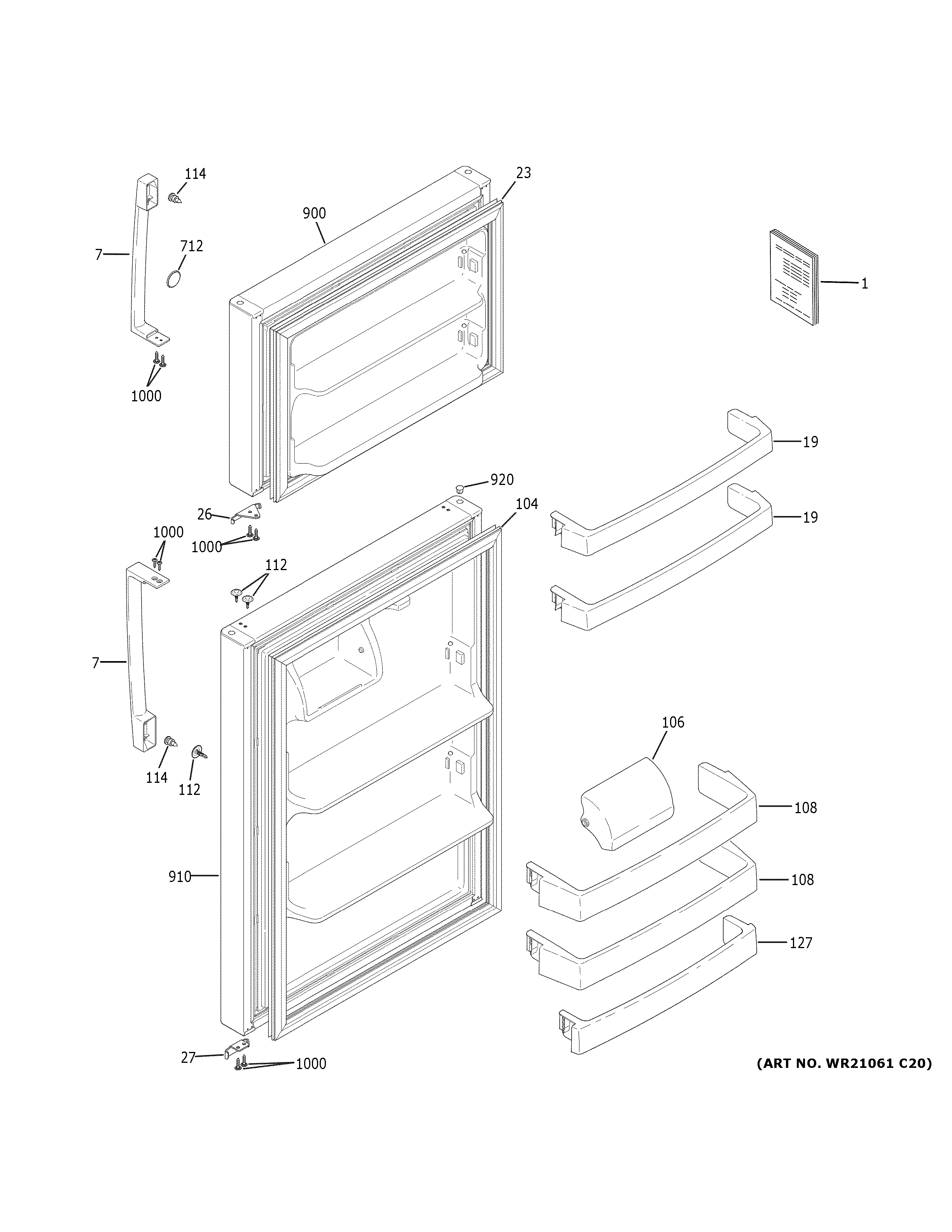

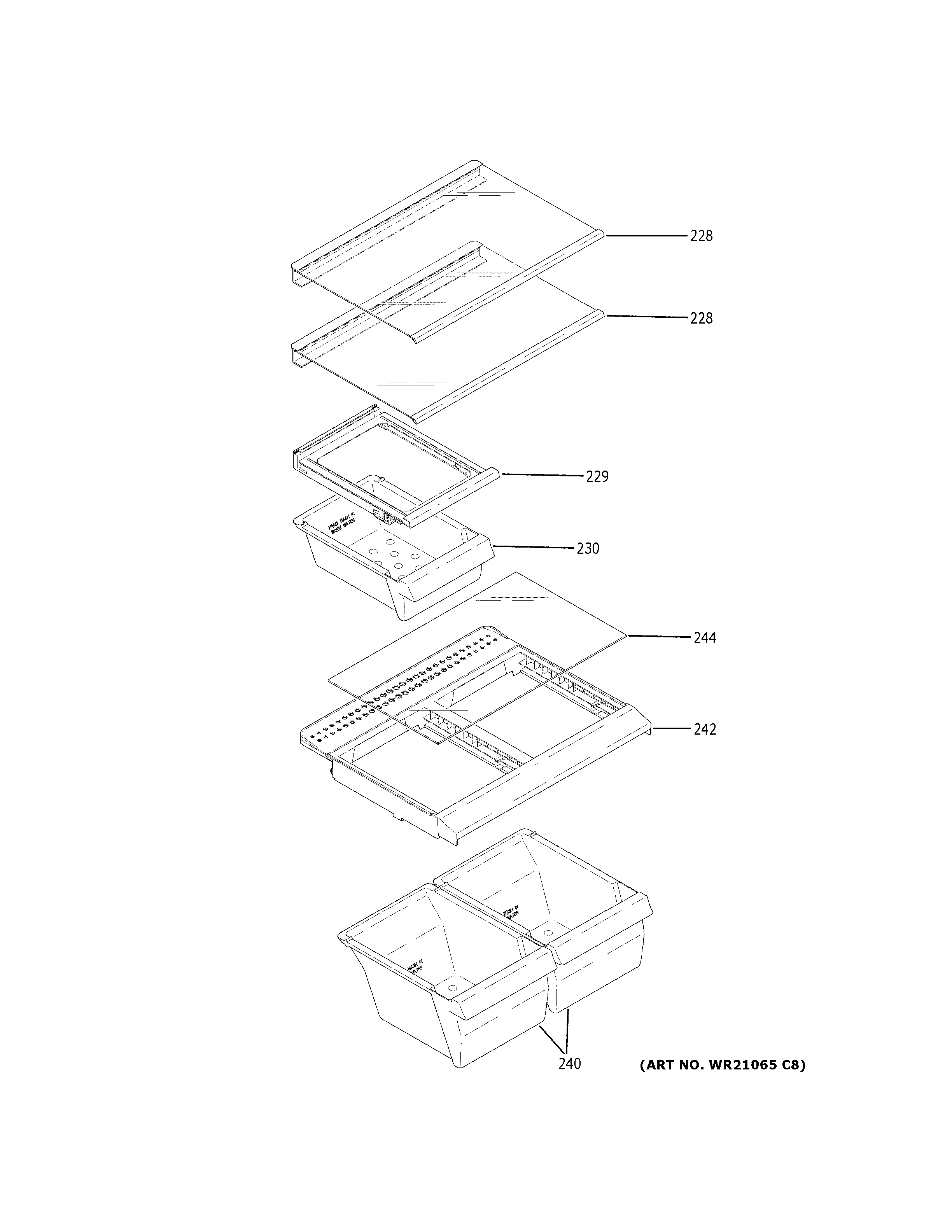

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
R600 Drier W/ Red Cap WR87X30875
#740

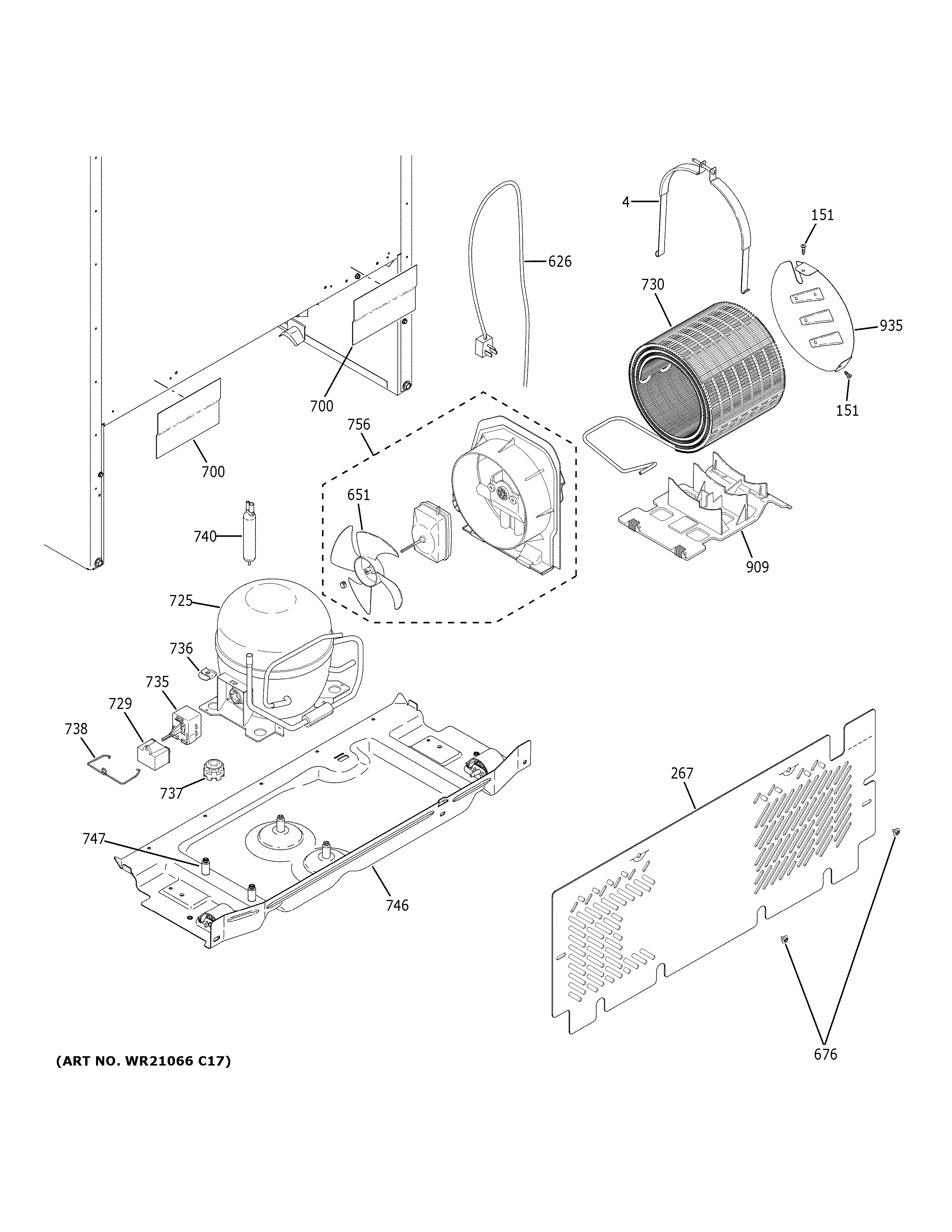

Machine compartment diagram

R600 drier w/ red cap

Part #WR87X30875

BEST SELLER
$56.29
In Stock
Evaporator Fan Motor WR60X31523
#610

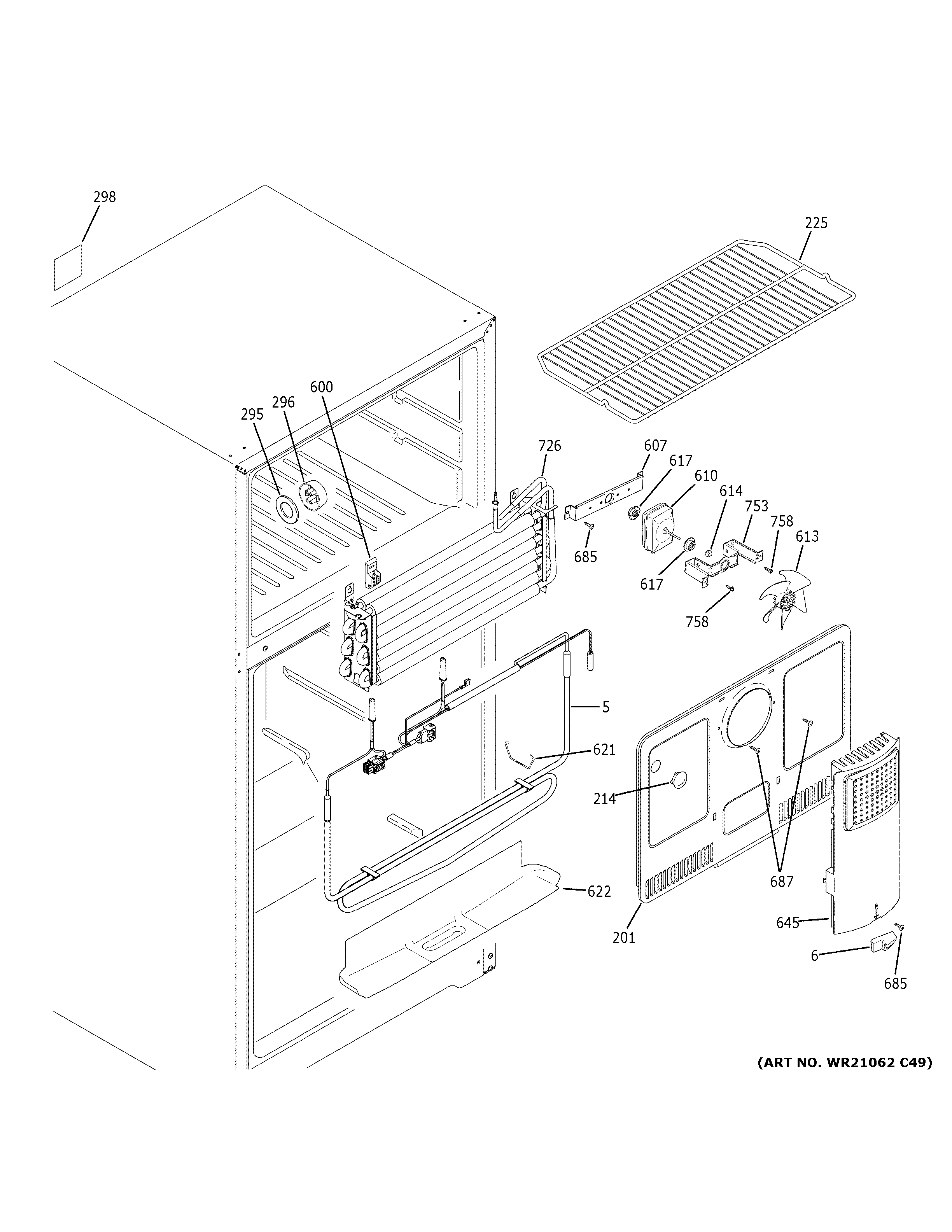

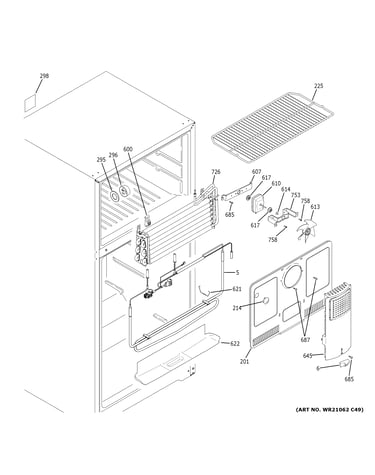

Freezer section diagram

Evaporator fan motor

Part #WR60X31523

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X31523. Substitute parts can look different from the original.
BEST SELLER
$64.75 |
8% OFF Phone Price : $70.75
In Stock
Compressor WR87X32218
#725

Machine compartment diagram

Compressor

Part #WR87X32218

Replaced by #WR87X31765

?
Manufacturer substitution
This part replaces WR87X32218. Substitute parts can look different from the original.
BEST SELLER
$214.28 |
5% OFF Phone Price : $226.28
In Stock
Refrigerator Evaporator Fan Blade (replaces Wr60x10047, Wr60x10188) WR60X10204
#613

Freezer section diagram

Refrigerator evaporator fan blade (replaces wr60x10047, wr60x10188)

Part #WR60X10204

BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#617

Freezer section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Door Hinge Nylon Washer (replaces Wr01x10146) WR01X27364
#281

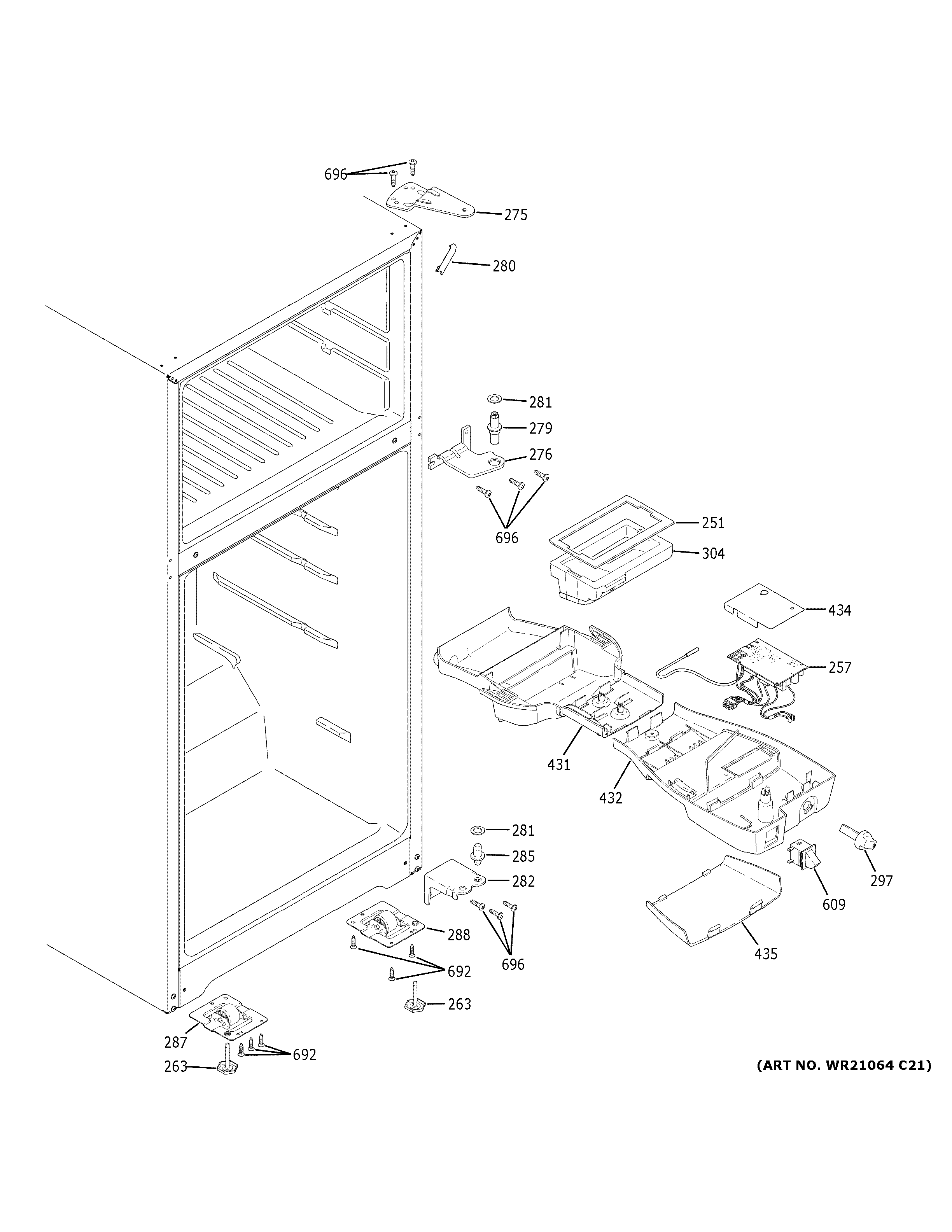

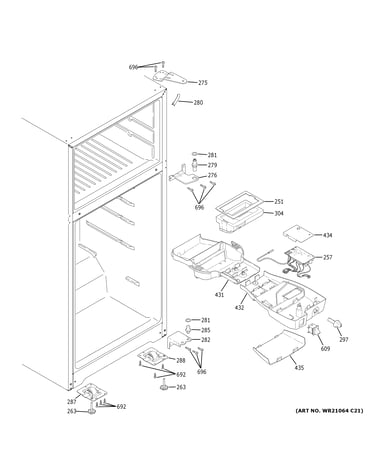

Fresh food section diagram

Refrigerator door hinge nylon washer (replaces wr01x10146)

Part #WR01X27364

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Defrost Heater Assembly WR55X31113
#5

Freezer section diagram

Refrigerator defrost heater assembly

Part #WR55X31113

BEST SELLER
$77.75 |
7% OFF Phone Price : $83.75
In Stock
Refrigerator Water Inlet Valve WR57X32213
#800

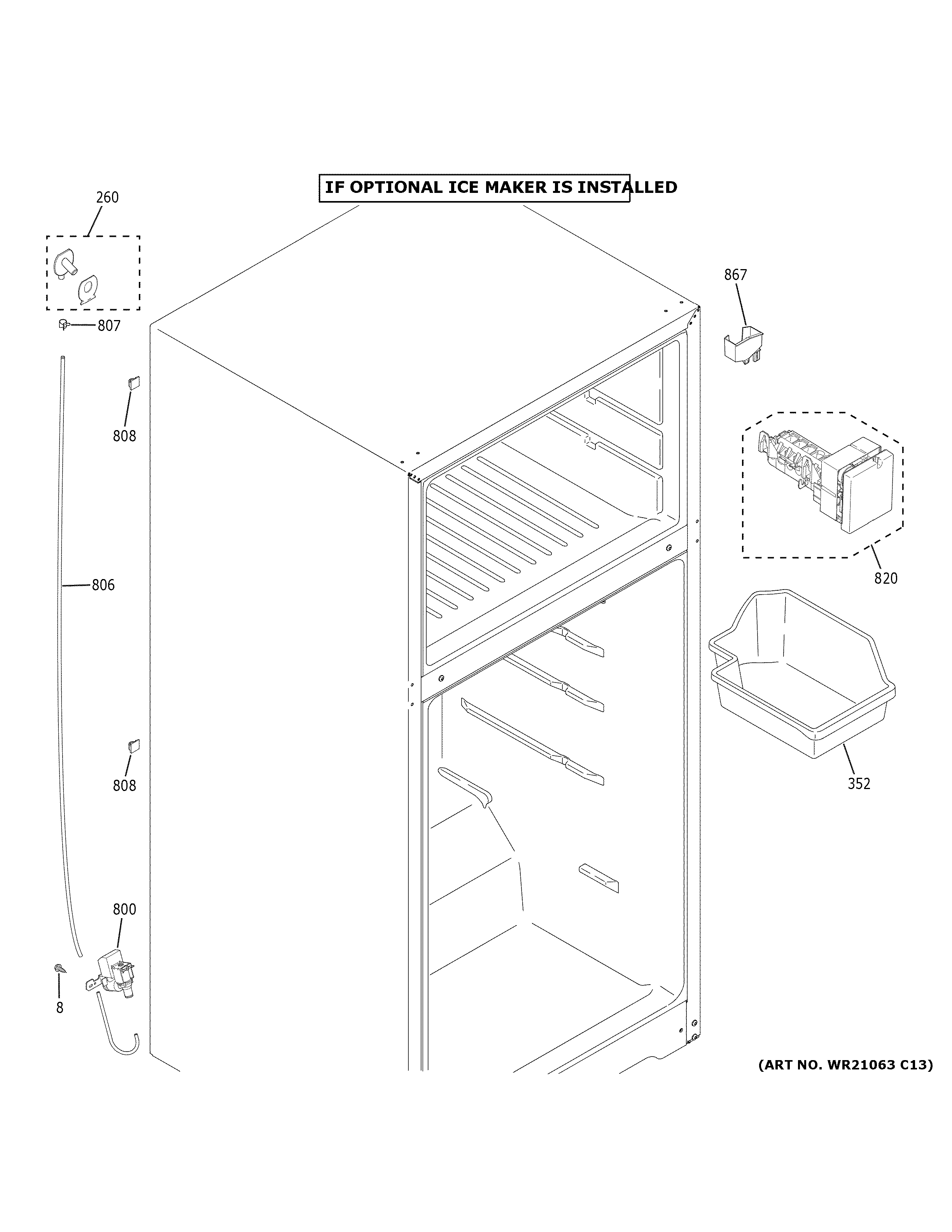

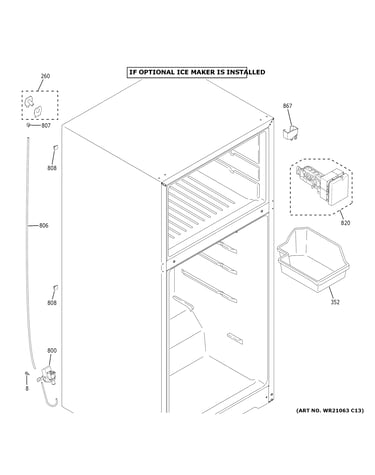

Ice maker diagram
