Gas Walk-Behind Mower

Model # 917378520 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378520 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 259 parts  |
Belt, 21-in 175064
#47

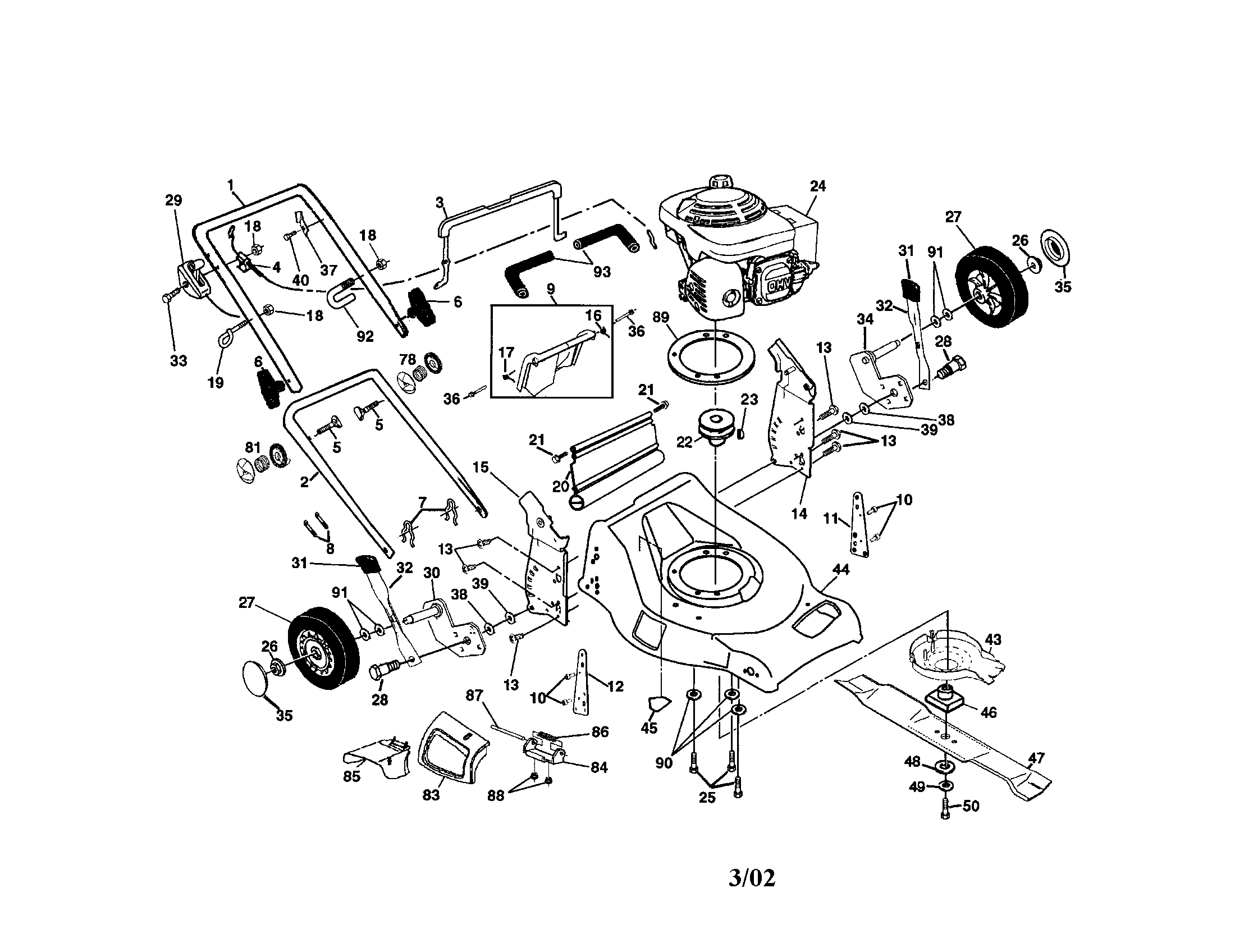

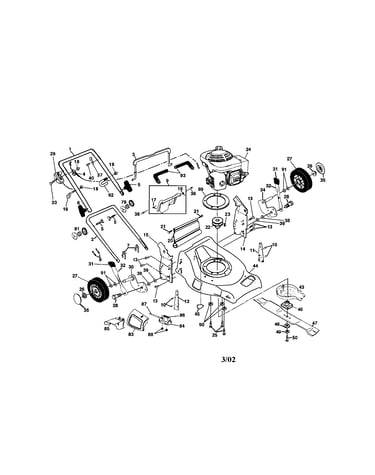

Engine/housing/handle diagram

Belt, 21-in

Part #175064

Replaced by #532406712

?
Manufacturer substitution
This part replaces 175064. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.79 |
21% OFF Phone Price : $28.79
In Stock
Selector Knob 180912
Selector knob

Part #180912

Replaced by #532701037

?
Manufacturer substitution
This part replaces 180912. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Torsion Spring 175267
#52

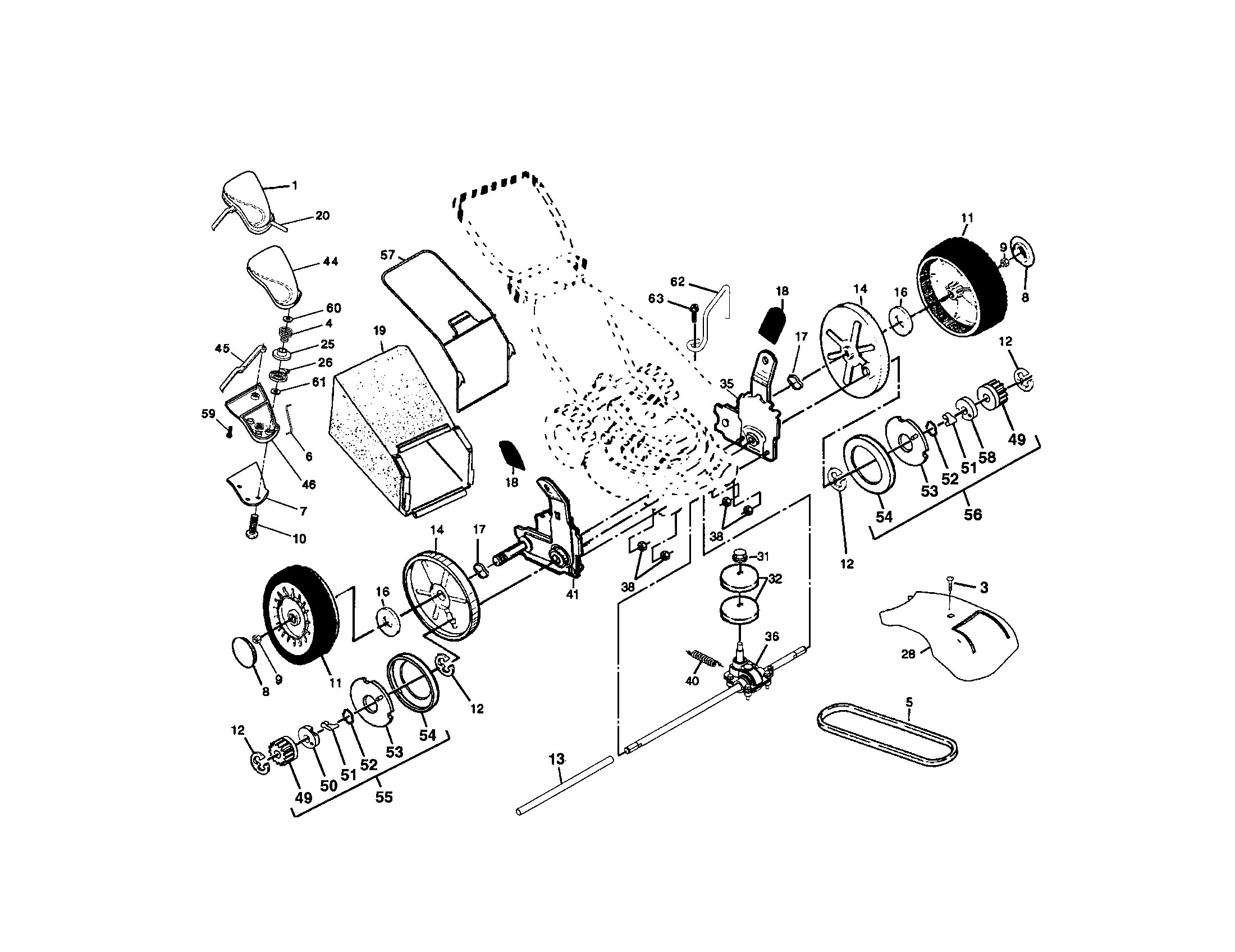

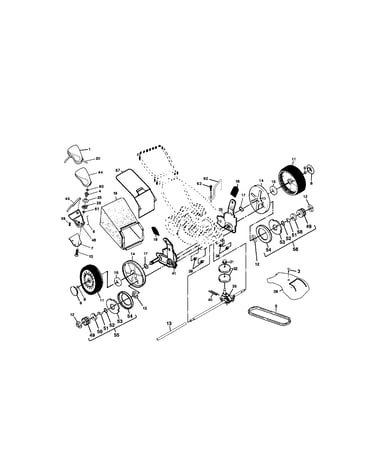

Wheels/tires/bag diagram

Torsion spring

Part #175267

Replaced by #532188291

?
Manufacturer substitution
This part replaces 175267. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 132004
#18

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#21

Engine/housing/handle diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rod.hinge.21 175650
#87

Engine/housing/handle diagram

Rod.hinge.21

Part #175650

Replaced by #532175650

?
Manufacturer substitution
This part replaces 175650. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Rope Guide 179585
#19

Engine/housing/handle diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

Wheels/tires/bag diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Helical Gear 171755
#11

Gear case assembly diagram

Helical gear

Part #171755

Replaced by #532171755

?
Manufacturer substitution
This part replaces 171755. Substitute parts can look different from the original.
This item is not returnable
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Weed Eater Lawn & Garden Equipment Screw, 14-20 X 5/8-in 17060410
Weed eater lawn & garden equipment screw, 14-20 x 5/8-in

Part #17060410

Replaced by #817060410

?
Manufacturer substitution
This part replaces 17060410. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
