Kenmore Elite
Electric Cooktop

Model # 79044272001 Official Kenmore Elite cooktop

Here are the diagrams and repair parts for Official Kenmore Elite 79044272001 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

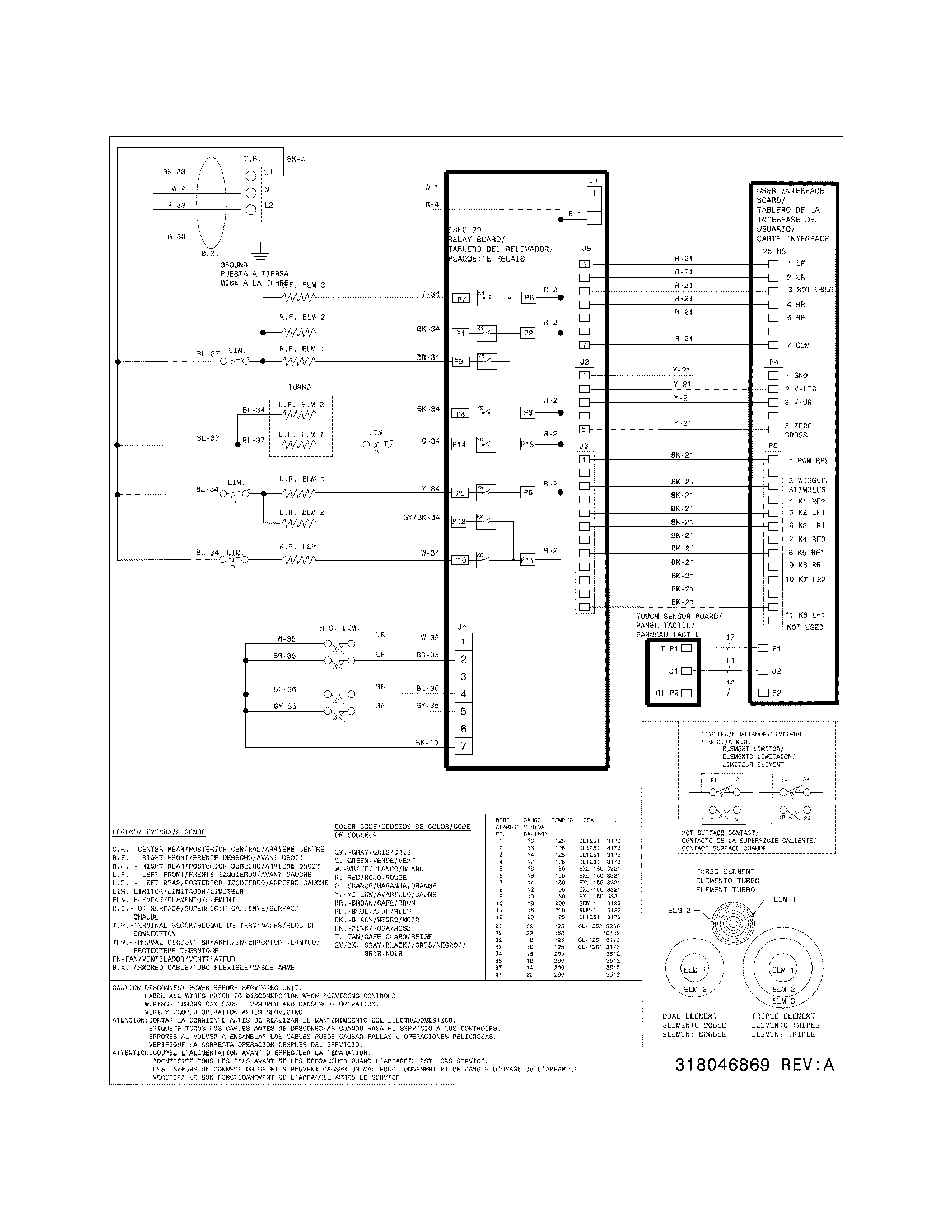

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Range Radiant Surface Element 316530000
#15B

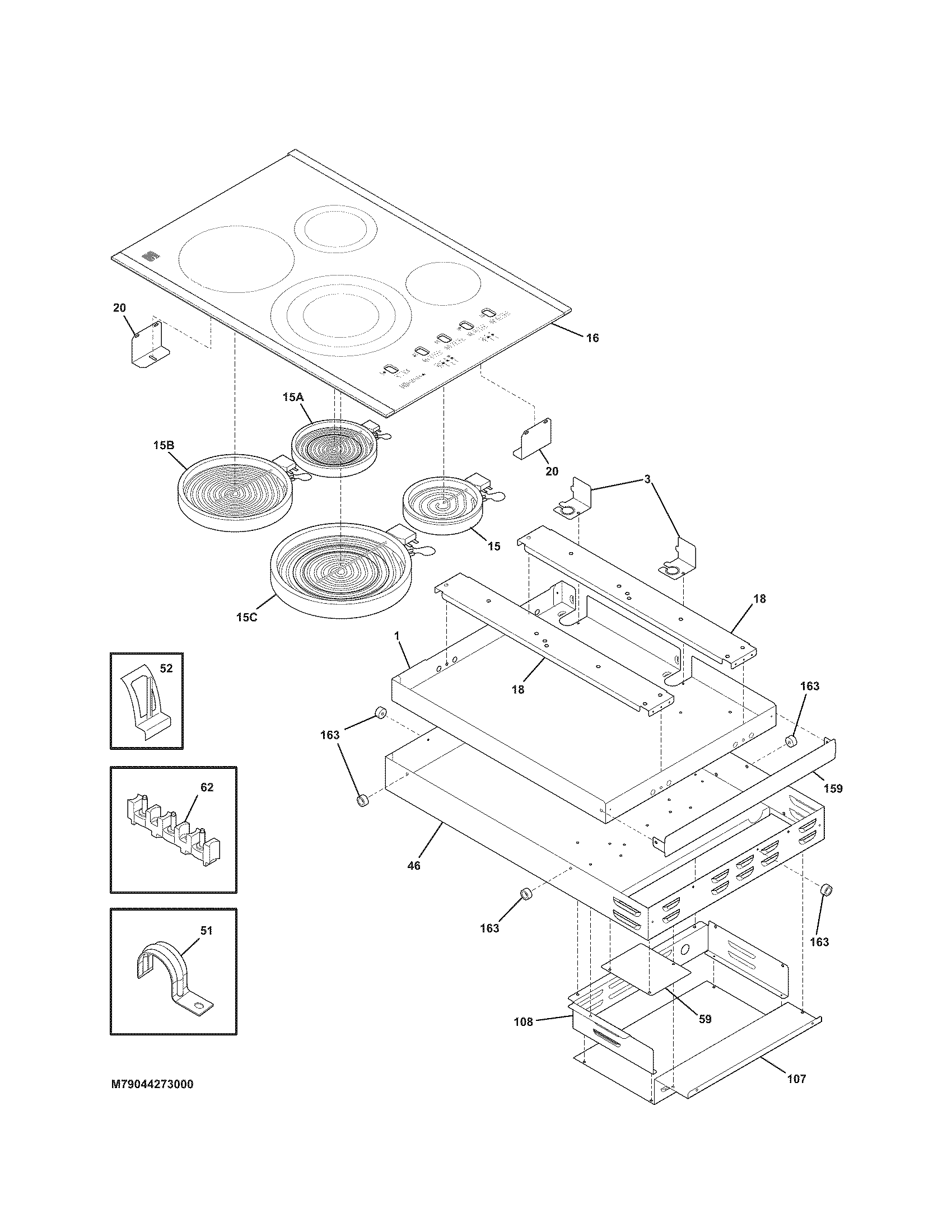

Main top/surface units diagram

Range radiant surface element

Part #316530000

Replaced by #316530001

?
Manufacturer substitution
This part replaces 316530000. Substitute parts can look different from the original.
BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Terminal Block 316056000
#62

Main top/surface units diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Electrolux Appliance Stainless Steel Cleaner, 1-oz 316136900
#NI

Main top/surface units diagram

Electrolux appliance stainless steel cleaner, 1-oz

Part #316136900

$22.75 |
21% OFF Phone Price : $28.75
In Stock
Ikea Range Dual Surface Element (replaces 316419901, 316419902) 318198952
#15A

Main top/surface units diagram

Ikea range dual surface element (replaces 316419901, 316419902)

Part #318198952

$151.30 |
7% OFF Phone Price : $163.30
In Stock
Cooktop Owner's Manual 318203644
#NI

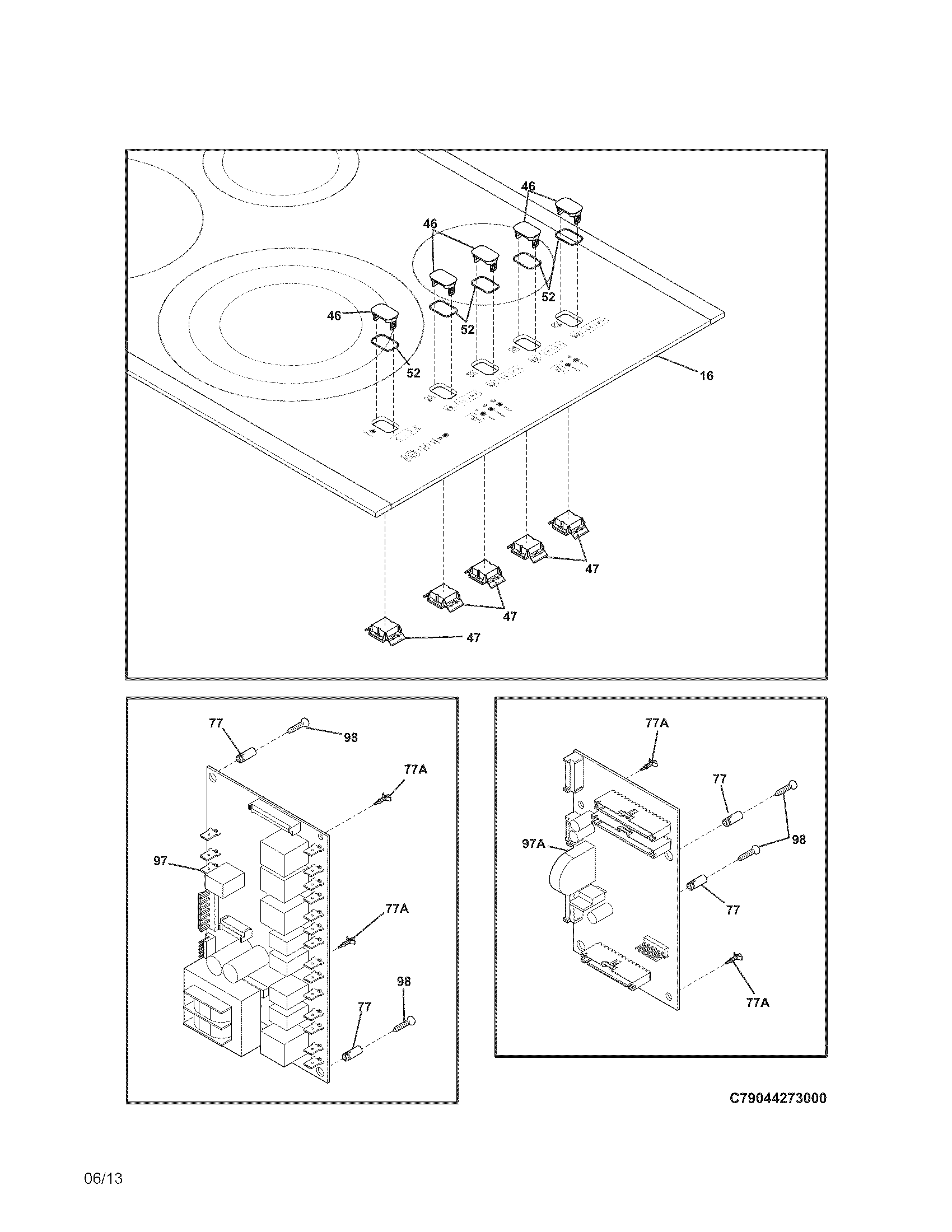

Control panel diagram

Cooktop owner's manual

Part #318203644

This item is not returnable
$4.89
In Stock
Range Screw 5303323140
#NI

Main top/surface units diagram

Range screw

Part #5303323140

$11.17
In Stock
Repair Parts List 5995633558
#NI

Control panel diagram

Repair parts list

Part #5995633558

This item is not returnable
$4.14
In Stock
Range Surface Element Control Board (replaces 316442115) 316442120
#97

Control panel diagram

Range surface element control board (replaces 316442115)

Part #316442120

$190.80 |
6% OFF Phone Price : $202.80
In Stock
Range Screw 5303300265
#NI

Main top/surface units diagram

Range screw

Part #5303300265

This item is not returnable
$16.63
In Stock
Range Screw 5303307980
#NI

Main top/surface units diagram

Range screw

Part #5303307980

$21.34 |
22% OFF Phone Price : $27.34
In Stock
