Model # LFEV30FE Official Frigidaire range hood

Here are the diagrams and repair parts for Official Frigidaire LFEV30FE range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

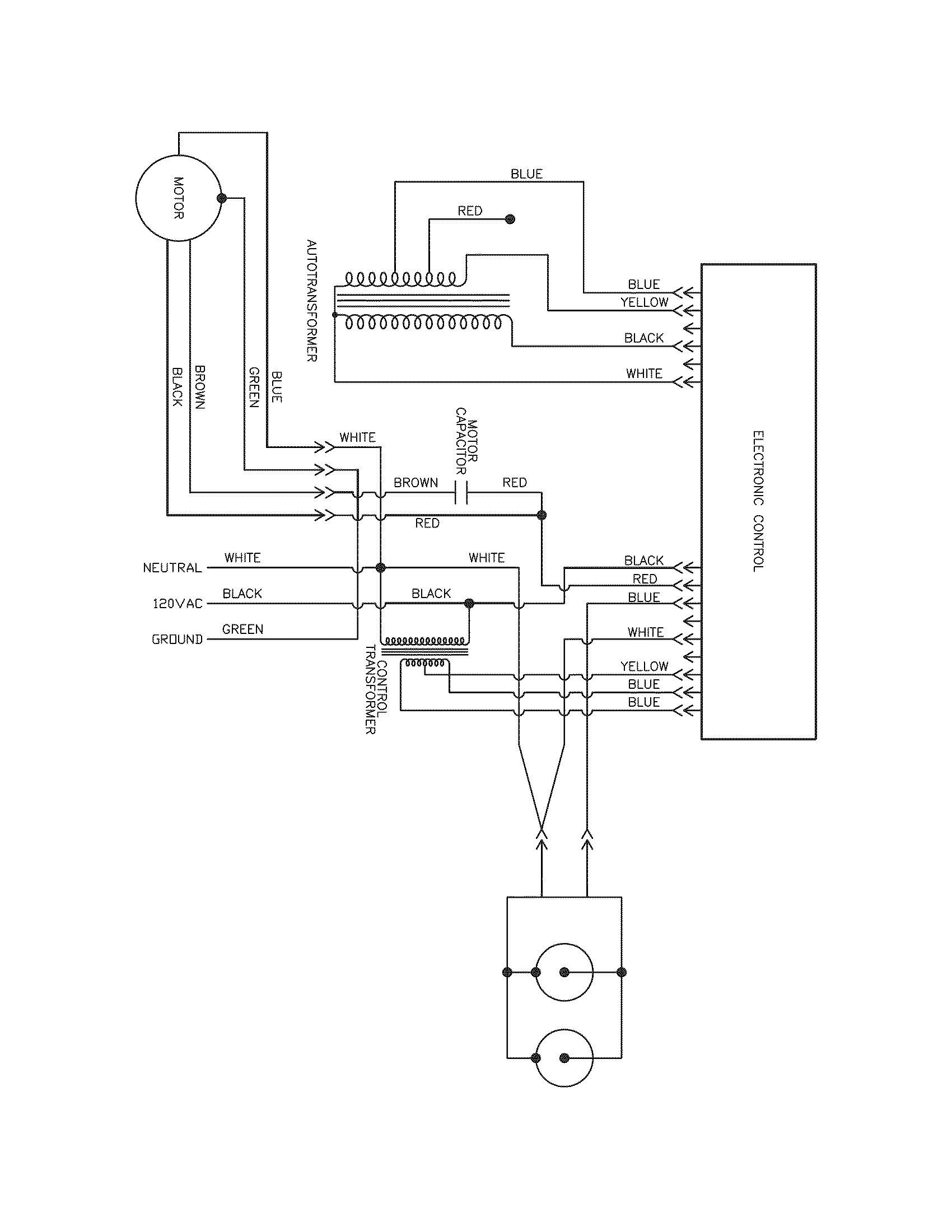

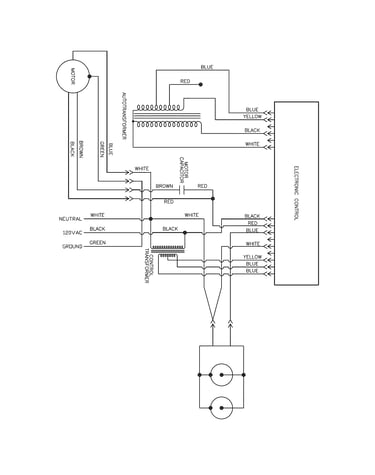

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Hole Plug 5304454205
#24

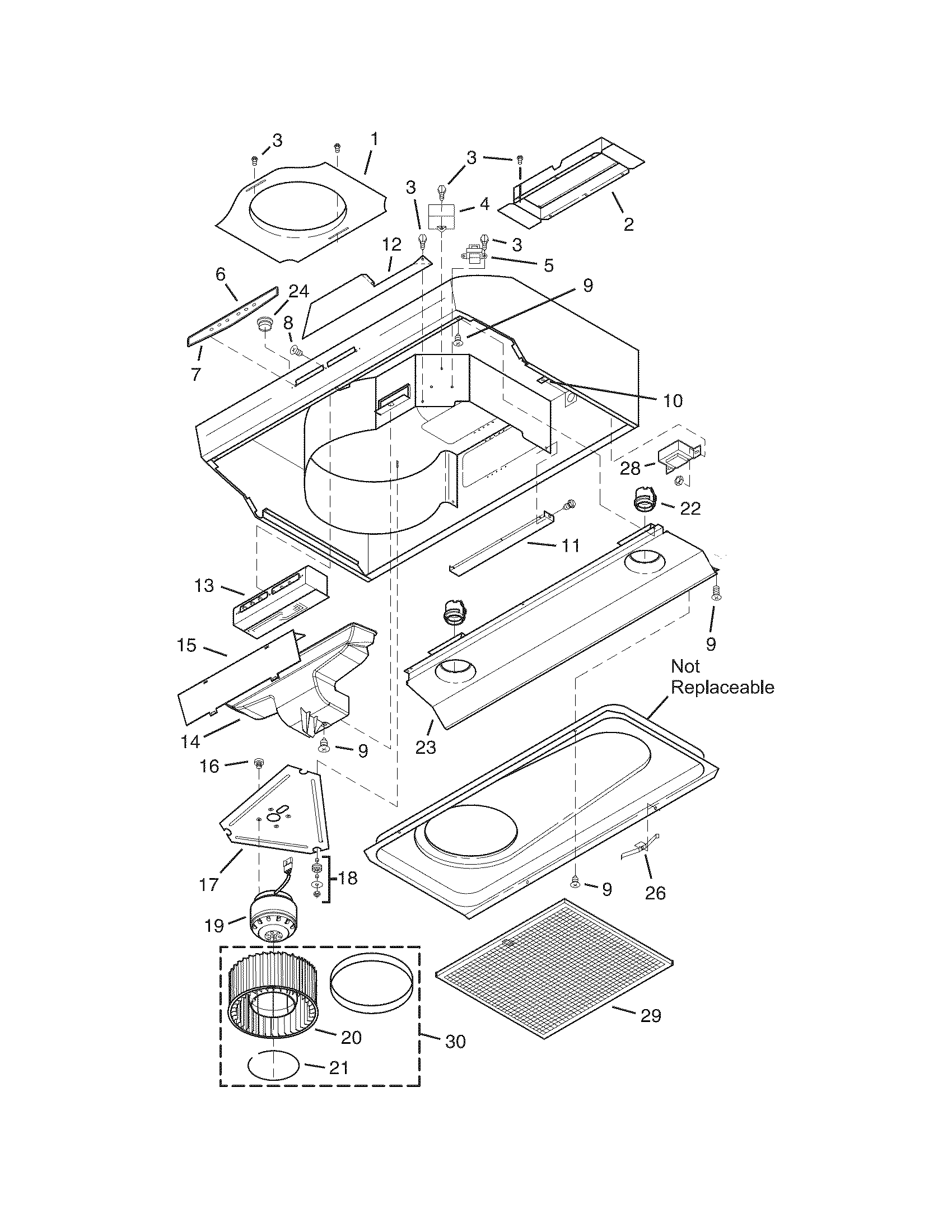

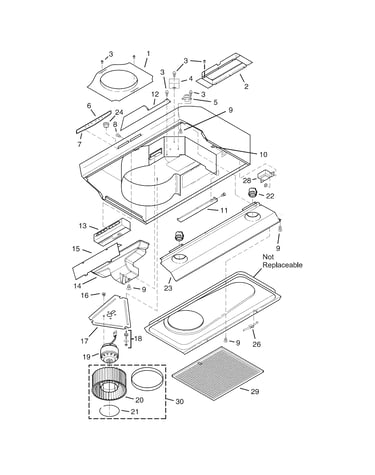

Replacement parts diagram

Hole plug

Part #5304454205

The manufacturer no longer makes this part, and there's no substitute part

Plate 5304454193
#17

Replacement parts diagram

Plate

Part #5304454193

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Aluminum Mesh Filter 5304454208
#29

Replacement parts diagram

Range hood aluminum mesh filter

Part #5304454208

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel 5304454196
#20

Replacement parts diagram

Range hood blower wheel

Part #5304454196

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 5304454177
#4

Replacement parts diagram

Capacitor

Part #5304454177

The manufacturer no longer makes this part, and there's no substitute part

Transformer 5304454178
#5

Replacement parts diagram

Transformer

Part #5304454178

The manufacturer no longer makes this part, and there's no substitute part

Fuse 5304454212
#NI

Replacement parts diagram

Fuse

Part #5304454212

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304454187
#12

Replacement parts diagram

Cover

Part #5304454187

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 5304457438
#7

Replacement parts diagram

Control panel

Part #5304457438

The manufacturer no longer makes this part, and there's no substitute part

Screw 5304454184
#9

Replacement parts diagram

Screw

Part #5304454184

The manufacturer no longer makes this part, and there's no substitute part
