Model # DE650KDW5 Official White-Westinghouse 27" electric dryer - 5995228862

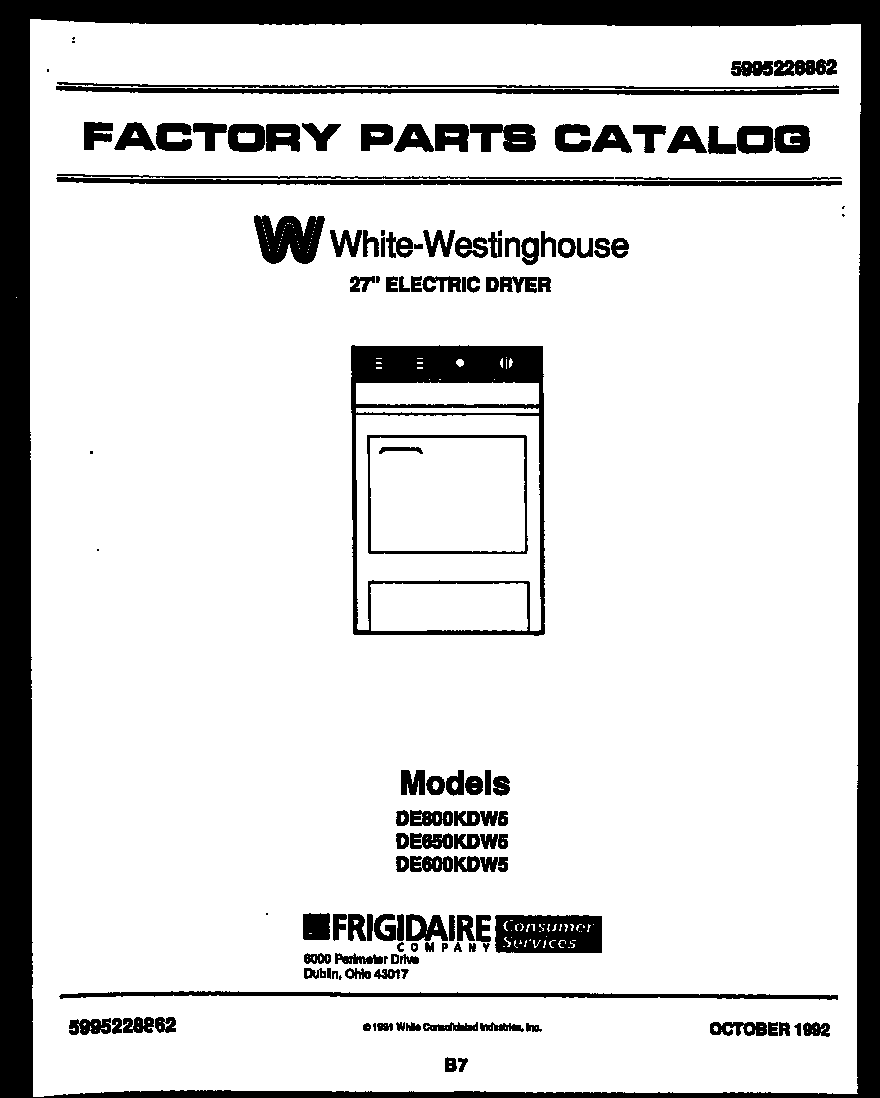

Here are the diagrams and repair parts for Official White-Westinghouse DE650KDW5 27" electric dryer - 5995228862, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forDE650KDW5 27" Electric Dryer - 5995228862
- #17

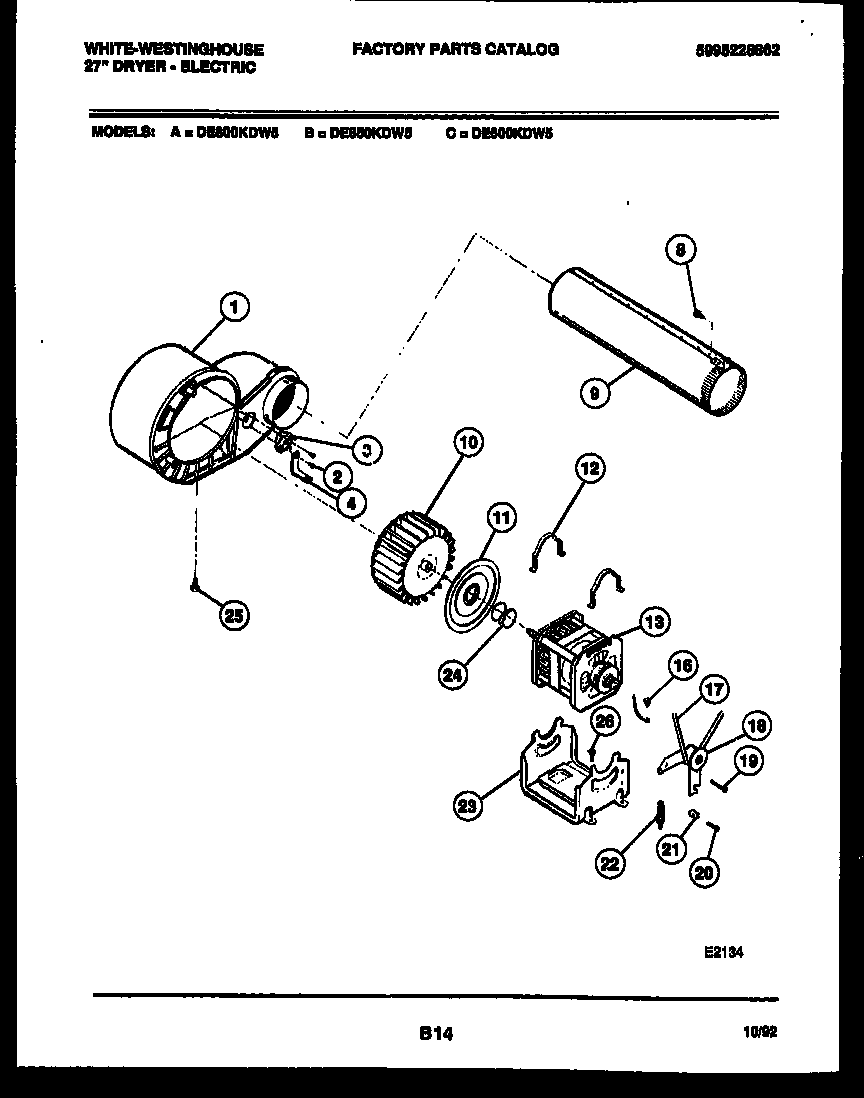

Blower and drive parts diagram
BeltPart #5303283471
Replaced by #134503600
?Manufacturer substitutionThis part replaces 5303283471. Substitute parts can look different from the original.$8.43 |11% OFF Phone Price : $9.43In Stock - #32A

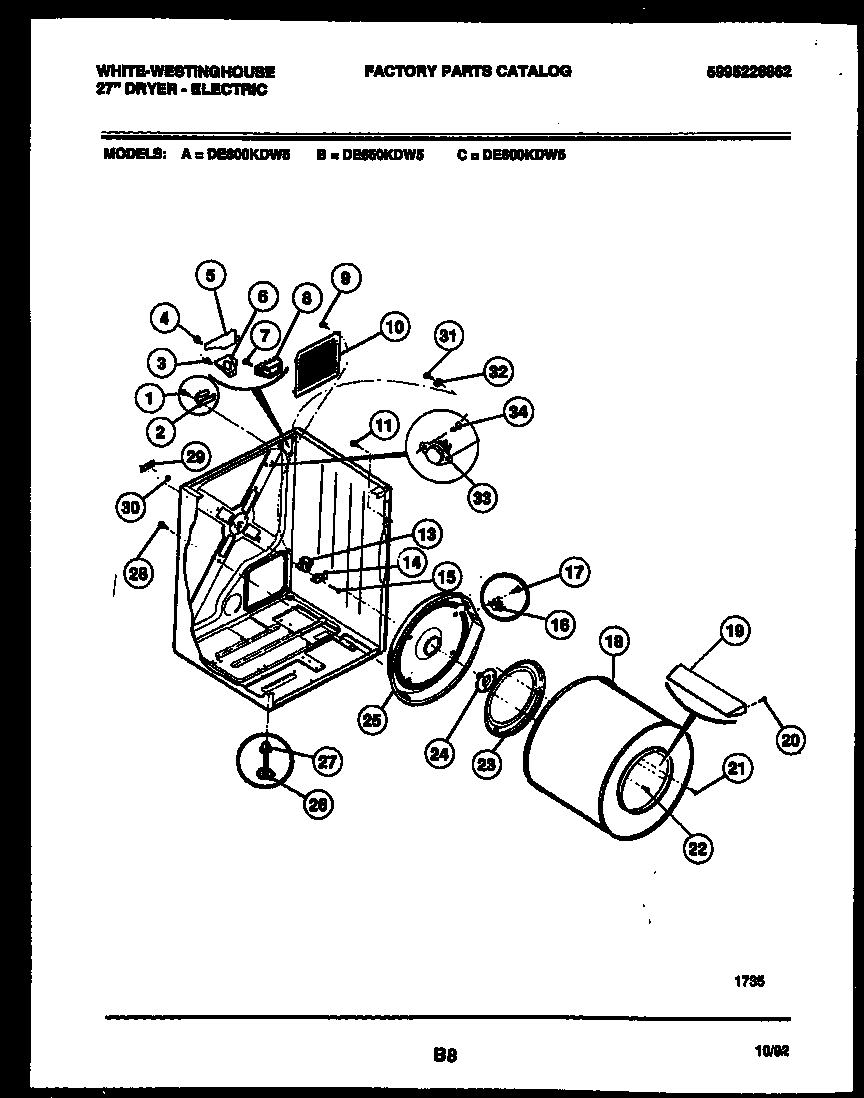

Cabinet and component parts diagram
Bearing kitPart #3281153
Replaced by #5303281153
?Manufacturer substitutionThis part replaces 3281153. Substitute parts can look different from the original.$36.47 |14% OFF Phone Price : $42.47In Stock - #13
Cabinet and component parts diagram
BearingPart #3281008
Replaced by #131825900
?Manufacturer substitutionThis part replaces 3281008. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #34

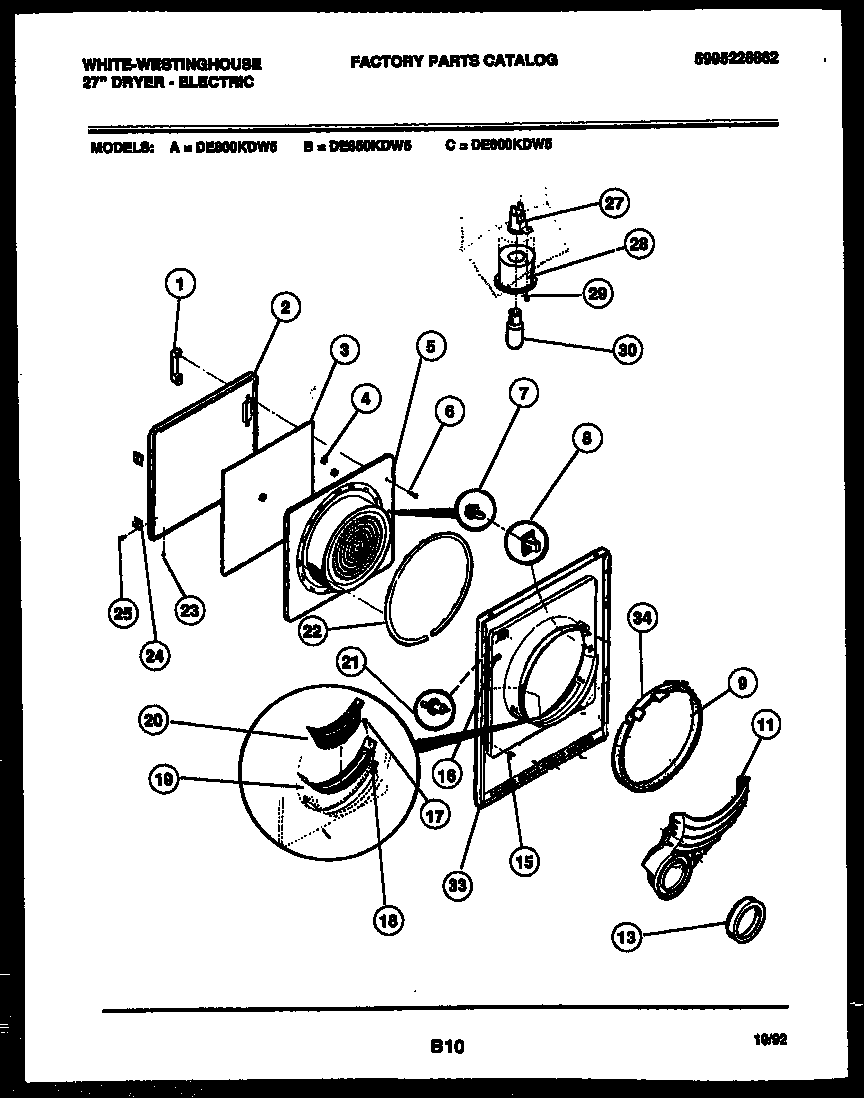

Door parts diagram
GlidePart #5303283285
Replaced by #5303937139
?Manufacturer substitutionThis part replaces 5303283285. Substitute parts can look different from the original.$31.46 |16% OFF Phone Price : $37.46Back Order - #33
Cabinet and component parts diagram
Thermo limitPart #3205659
Replaced by #134120900
?Manufacturer substitutionThis part replaces 3205659. Substitute parts can look different from the original.$13.18 |13% OFF Phone Price : $15.18In Stock - #14
Cabinet and component parts diagram
BracketPart #3281023
Replaced by #131724301
?Manufacturer substitutionThis part replaces 3281023. Substitute parts can look different from the original.$12.91 |13% OFF Phone Price : $14.91In Stock - #29
Cabinet and component parts diagram
NutPart #3281020
Replaced by #5303281020
?Manufacturer substitutionThis part replaces 3281020. Substitute parts can look different from the original.$17.28 |10% OFF Phone Price : $19.28In Stock - #15
Cabinet and component parts diagram
ScrewPart #3281033
Replaced by #131205400
?Manufacturer substitutionThis part replaces 3281033. Substitute parts can look different from the original.$13.01 |13% OFF Phone Price : $15.01In Stock - #13
Door parts diagram
SealPart #3281013
Replaced by #134417000
?Manufacturer substitutionThis part replaces 3281013. Substitute parts can look different from the original.$8.29 |11% OFF Phone Price : $9.29In Stock - #23
Cabinet and component parts diagram
BafflePart #3201198
Replaced by #3204254
?Manufacturer substitutionThis part replaces 3201198. Substitute parts can look different from the original.$100.72 |11% OFF Phone Price : $112.72In Stock
