Here are the diagrams and repair parts for Official Admiral AT21EM9V/DA77A refrigerator, as well as links to manuals and error code tables, if available.

Error Codes

By Schematic

By Part

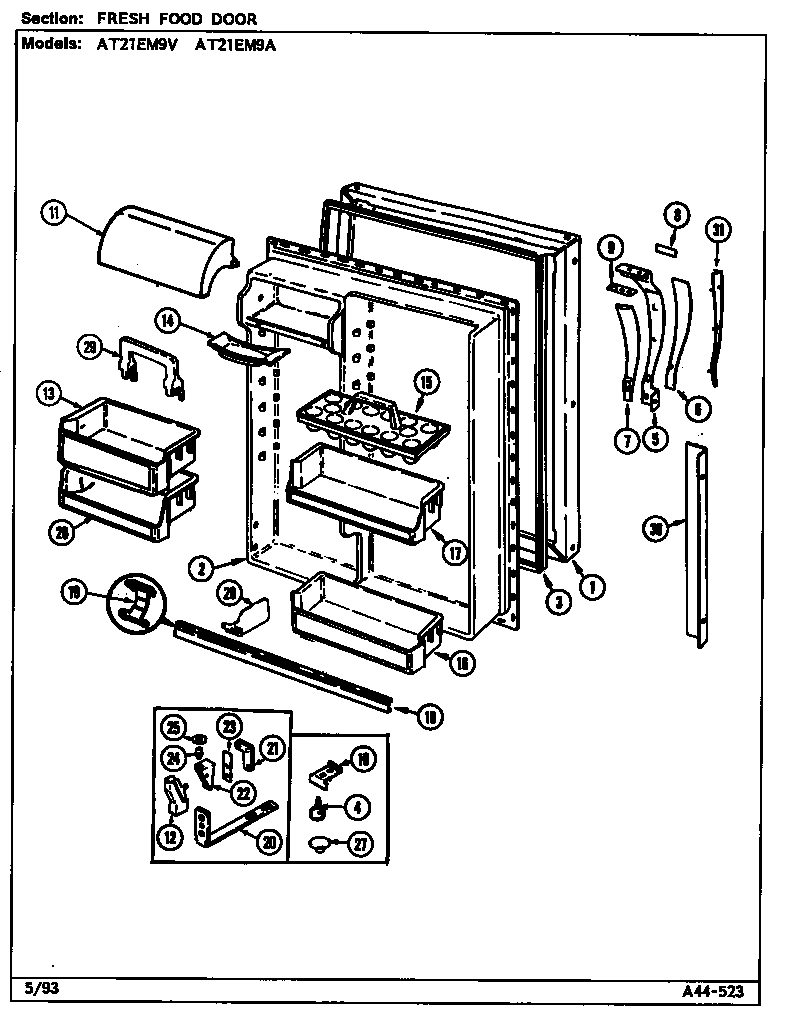

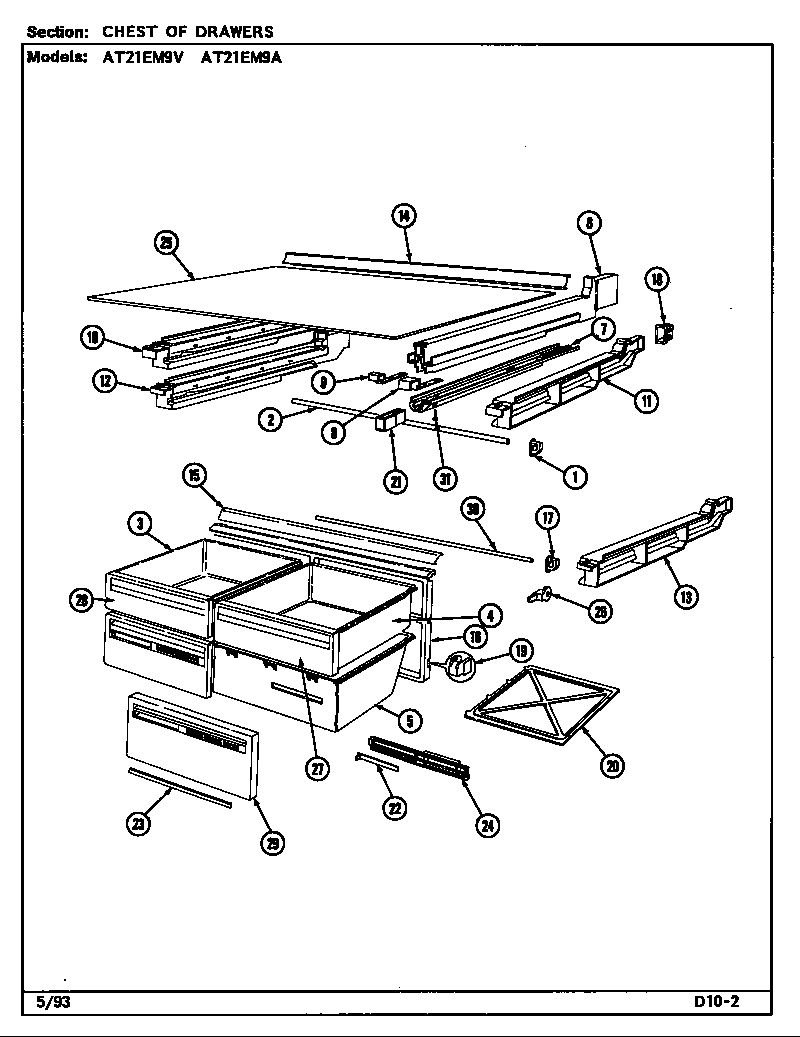

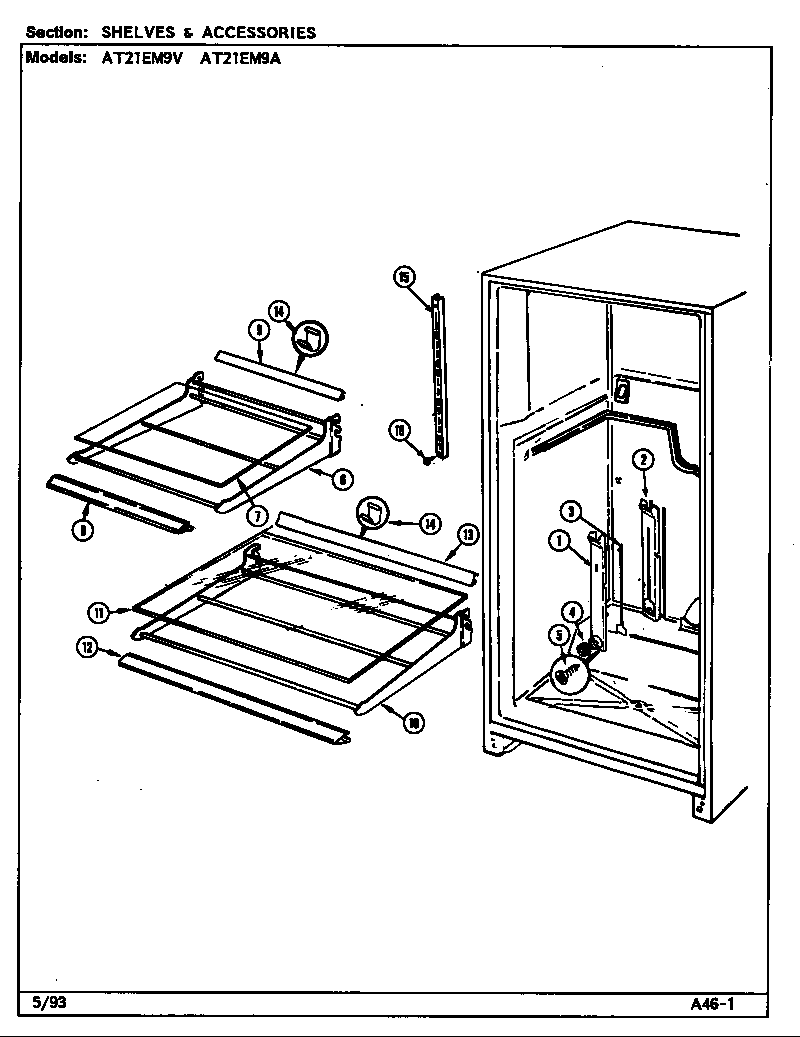

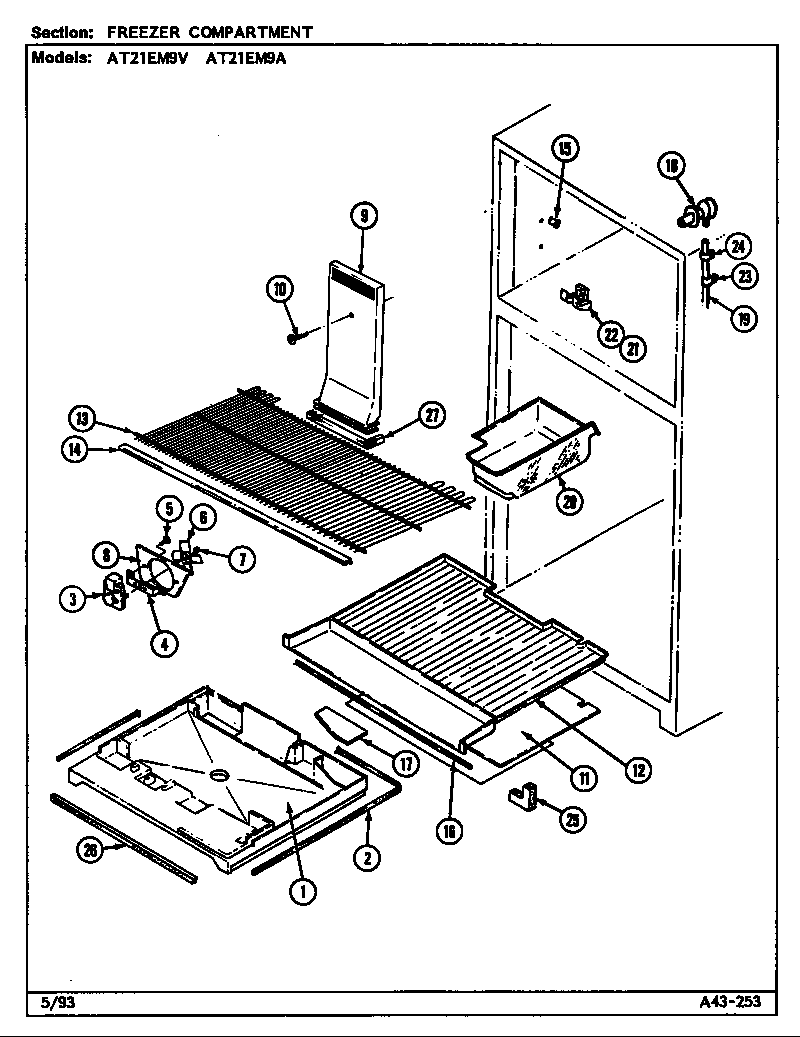

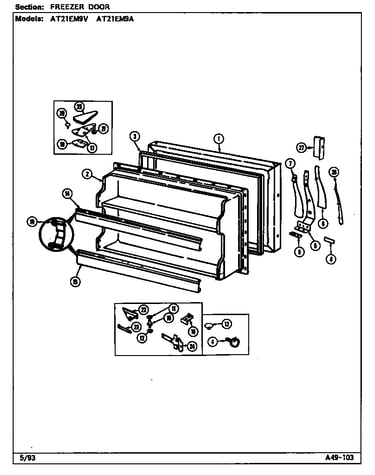

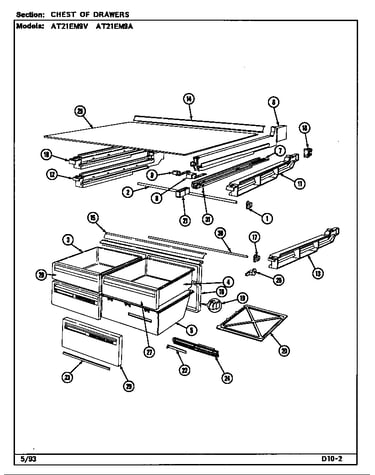

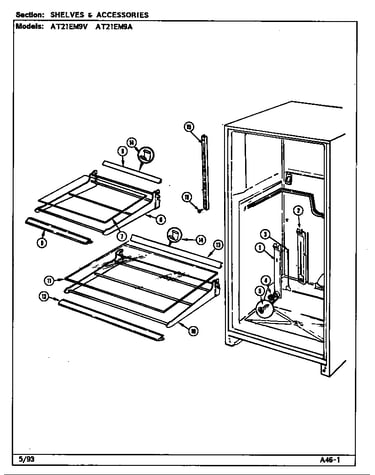

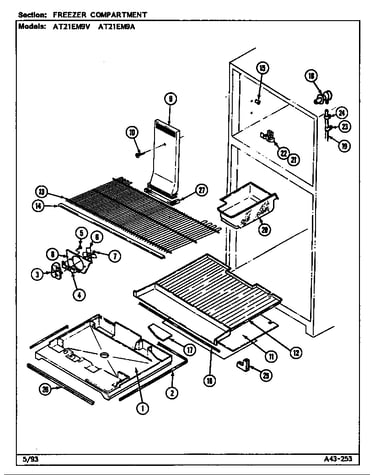

SELECT DIAGRAM

Browse Parts forAT21EM9V/DA77A Refrigerators

#13

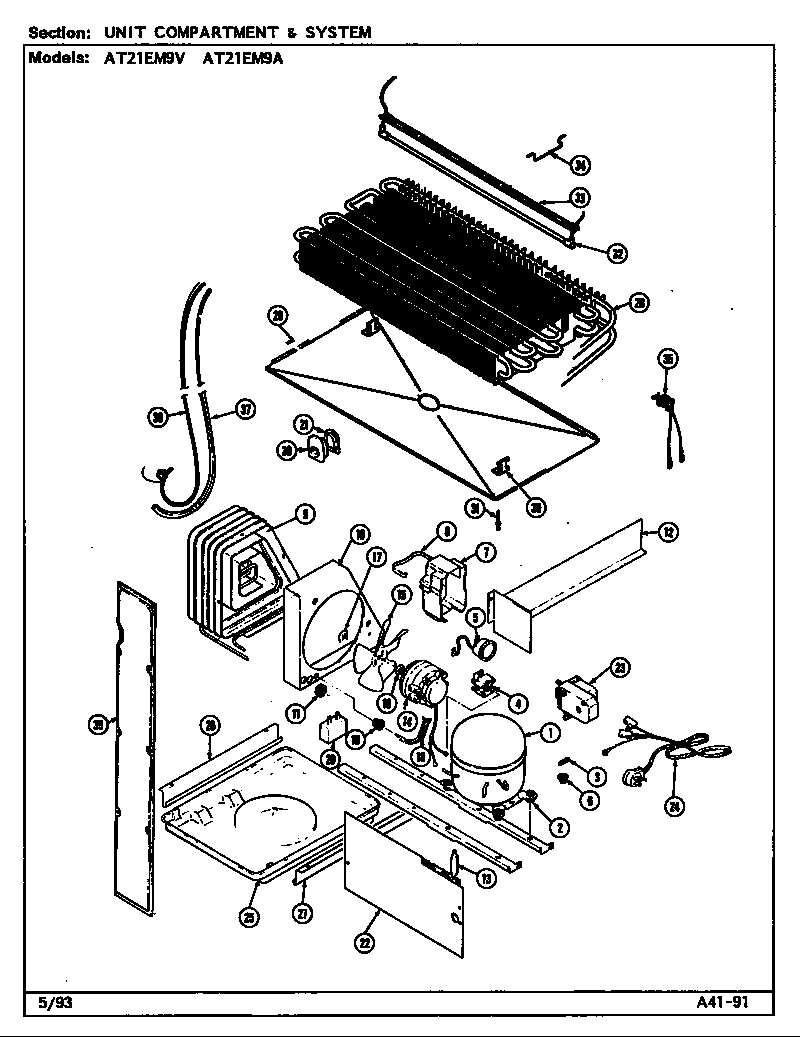

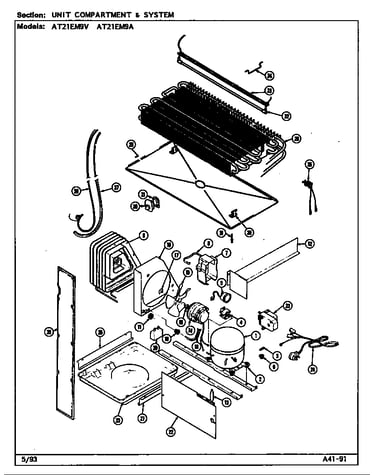

Unit compartment & system diagram
Drier
Part #13900
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces 13900. Substitute parts can look different from the original.
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Qty
#11

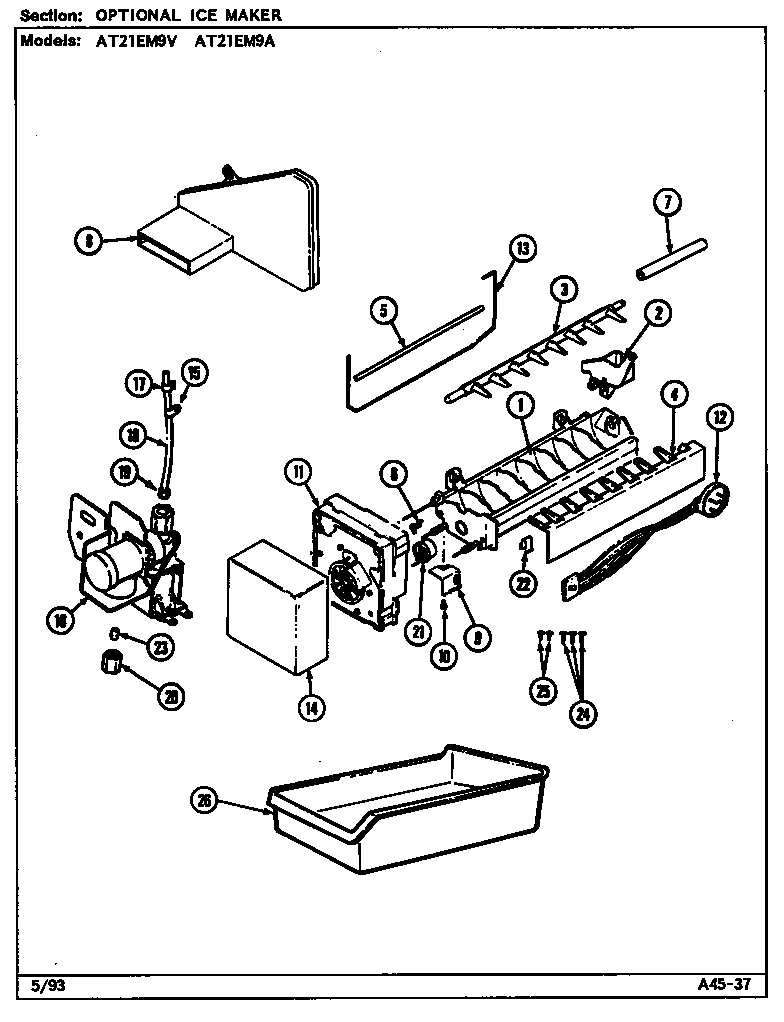

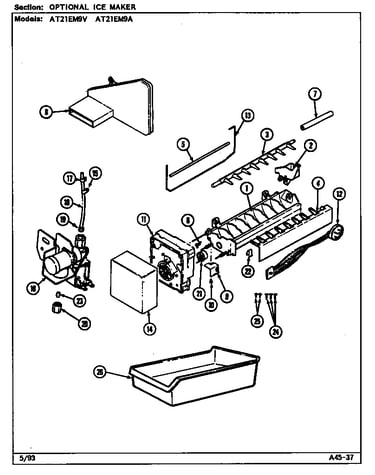

Optional ice maker diagram
Refrigerator ice maker module
Part #95109-1
The manufacturer no longer makes this part, and there's no substitute part
#1
Optional ice maker diagram
Refrigerator mold and heater
Part #95098-1
Replaced by #D7824706Q
?
Manufacturer substitution
This part replaces 95098-1. Substitute parts can look different from the original.
4.12 (52)
$74.58 |
7% OFF Phone Price : $80.58
In Stock
Qty
#14

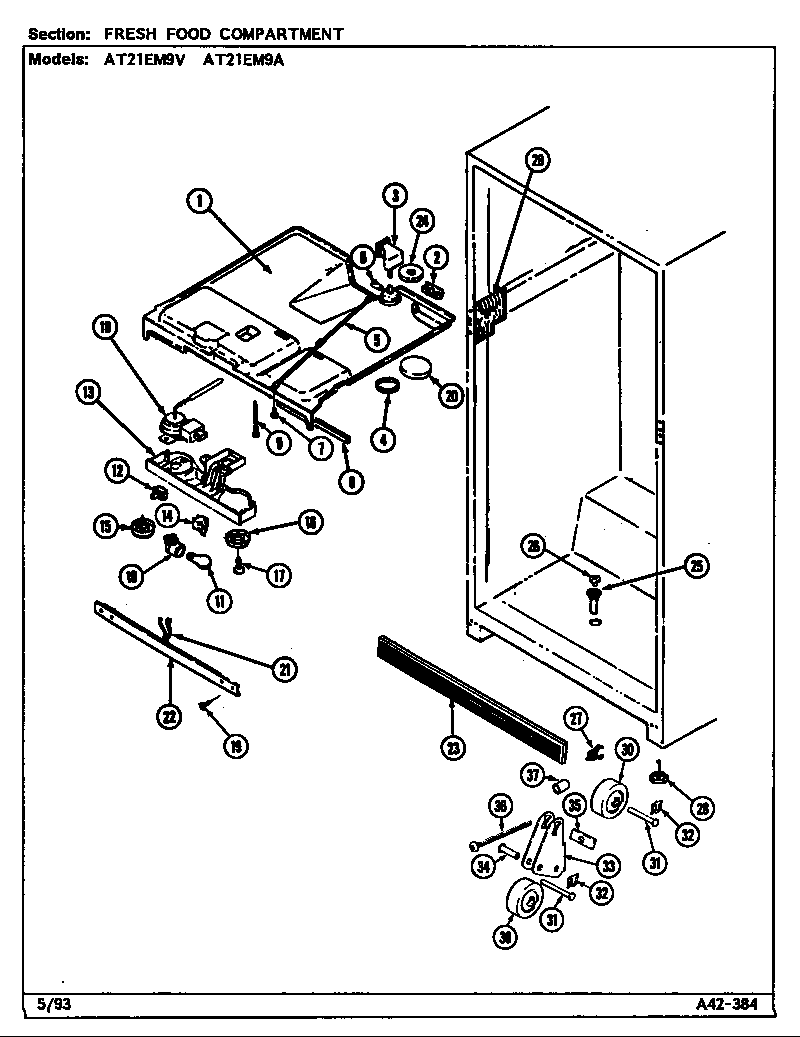

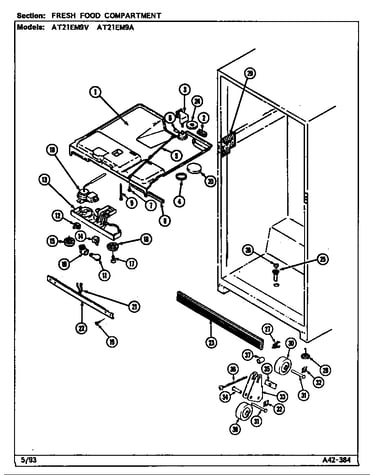

Fresh food compartment diagram
Light switch
Part #66987-1
Replaced by #W11384469
?
Manufacturer substitution
This part replaces 66987-1. Substitute parts can look different from the original.
3.82 (11)
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Qty
#22A
Unit compartment & system diagram
Screw
Part #9986-45
Replaced by #WP488729
?
Manufacturer substitution
This part replaces 9986-45. Substitute parts can look different from the original.
This item is not returnable
$4.33 |
19% OFF Phone Price : $5.33
In Stock
Qty
#3A
Unit compartment & system diagram
Compressor screw
Part #414011-1
Replaced by #WP681414
?
Manufacturer substitution
This part replaces 414011-1. Substitute parts can look different from the original.
3 (2)
This item is not returnable
$4.33 |
19% OFF Phone Price : $5.33
In Stock
Qty
#21
Optional ice maker diagram
Refrigerator thermostat
Part #95092-1
Replaced by #WP627985
?
Manufacturer substitution
This part replaces 95092-1. Substitute parts can look different from the original.
2.5 (2)
$51.73 |
10% OFF Phone Price : $57.73
In Stock
Qty
#20
Unit compartment & system diagram
Refrigerator compressor start capacitor
Part #65889-4
Replaced by #WP65889-4
?
Manufacturer substitution
This part replaces 65889-4. Substitute parts can look different from the original.
3 (2)
$53.19 |
10% OFF Phone Price : $59.19
In Stock
Qty
#19
Optional ice maker diagram
Refrigerator water tube fitting
Part #69583-1
Replaced by #WP627018
?
Manufacturer substitution
This part replaces 69583-1. Substitute parts can look different from the original.
5 (1)
This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Qty
#16
Optional ice maker diagram
Refrigerator water valve
Part #69364-1
Replaced by #WP61005273
?
Manufacturer substitution
This part replaces 69364-1. Substitute parts can look different from the original.
3 (2)
$54.76 |
10% OFF Phone Price : $60.76
In Stock
Qty
